Mechanical configuration specification
1) Feeding unit with sensing (one set): 72 sections of sensing units, accurate detection of different thicknesses, low failure rate, longer service life and sensing of workpiece processing size and position at actual time.

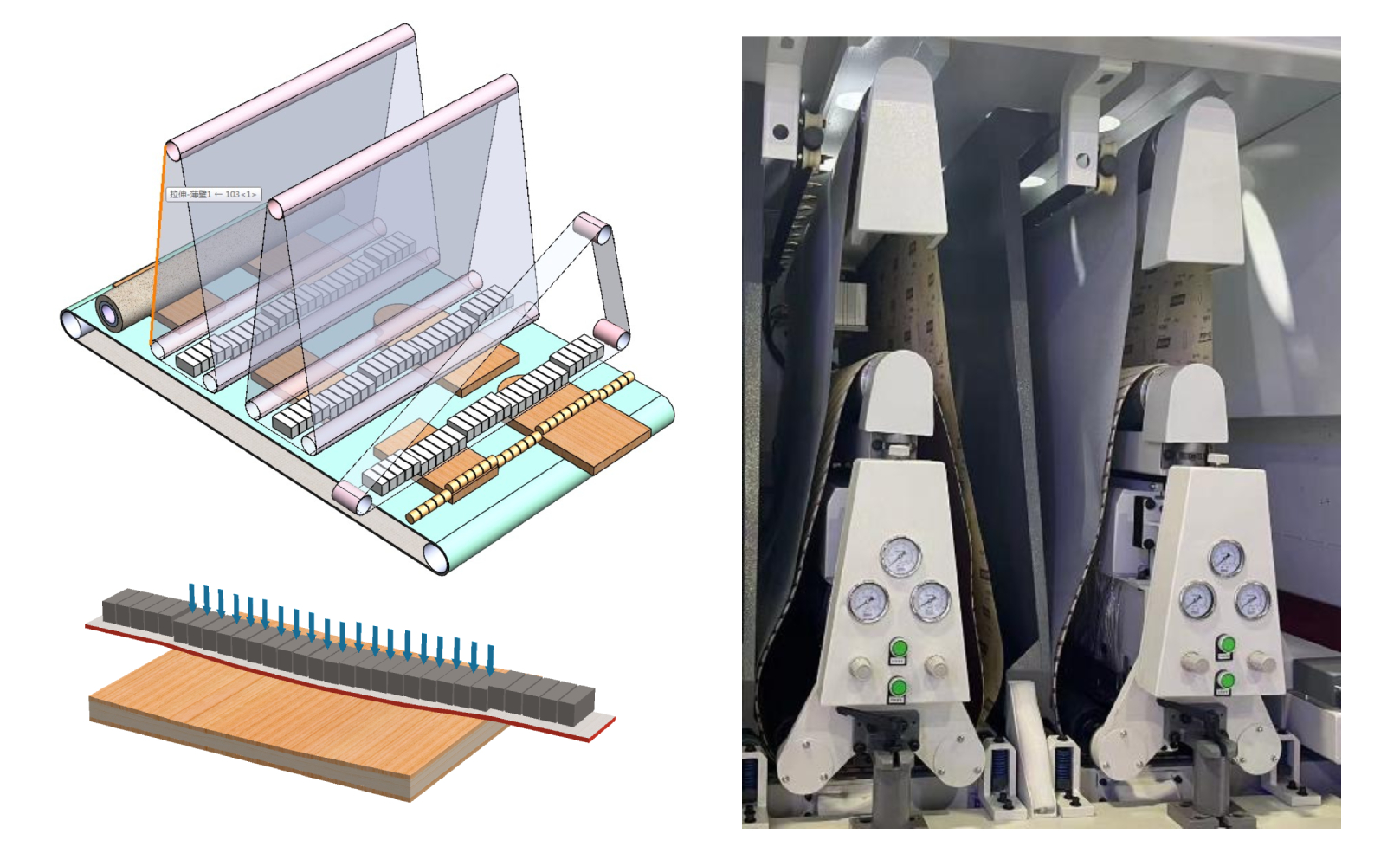

2) CNC Keyboard Cross Belt Sanding Unit : According to the sensing, the constant pressure controls 72 sections of keyboard type pressure pads to press the surface of the board accurately.
3) CNC piano key type broadband sanding unit (forward and reverse two groups): According to the sensing, constant pressure control 72 sections of piano key type pressure pads, the surface would be accurately pressed, and the sanding trace of the previous sanding would be smoothed out. Also can sand the concave and convex surface and the sanding quality is delicate.
4) Cleaning unit : Sanding belt dusting and brush roller dusting to clean plate surface.
5) Conveyor unit : 9mm rubber diamond shaped belt, durable and non-slip. Conveyor table vacuum adsorption, equipment running conveyor belt surface clean, the bottom of the board clean.
The picture is for reference only
Equipment characteristics
1. This series of sanding processing a wide range, the plane workpiece, veneer, primer within a height of 100mm and a width if 1300mm can be sanded. Such as: solid wood furniture, solid wood doors and windows, cabinets and closets and other industries sanding and polishing.
2. The system adopts PLC connecting high-definition touch screen communication inverter, intuitive display, operation, adjustment, maintenance and instructions.
3. The feeding position is automatically sensed to effectively protect the head and tail of the workpiece, sand smoothly and completely
4. Overall frame structure profile welding, to ensure stable operation of the equipment and sanding precision.
5. Modular production of sanding parts, independent frequency conversion speed control, independent lifting control, according to the different requirements of customer products on sanding, customized equipment parts process configuration layout, to achieve the best sanding effect.
6. Conveyor table fixed, sanding unit overall floating sanding, pressure material independent, convenient for multi-machine automation line.
