What Is Profile Sanding Machine ?
This MDF plate sanding and polishing is used for sanding or polishing varnish, on the planar with special-shaped of various materials. Through the selection and combination of different sanding parts and sanding materials,Sanding the surface with special-shaped paint.
Various combinations of this machine can greatly improve the sanding efficiency, reduce or do not need to be repaired manually again. Reduce the harm of dust produced by manual grinding to human body.

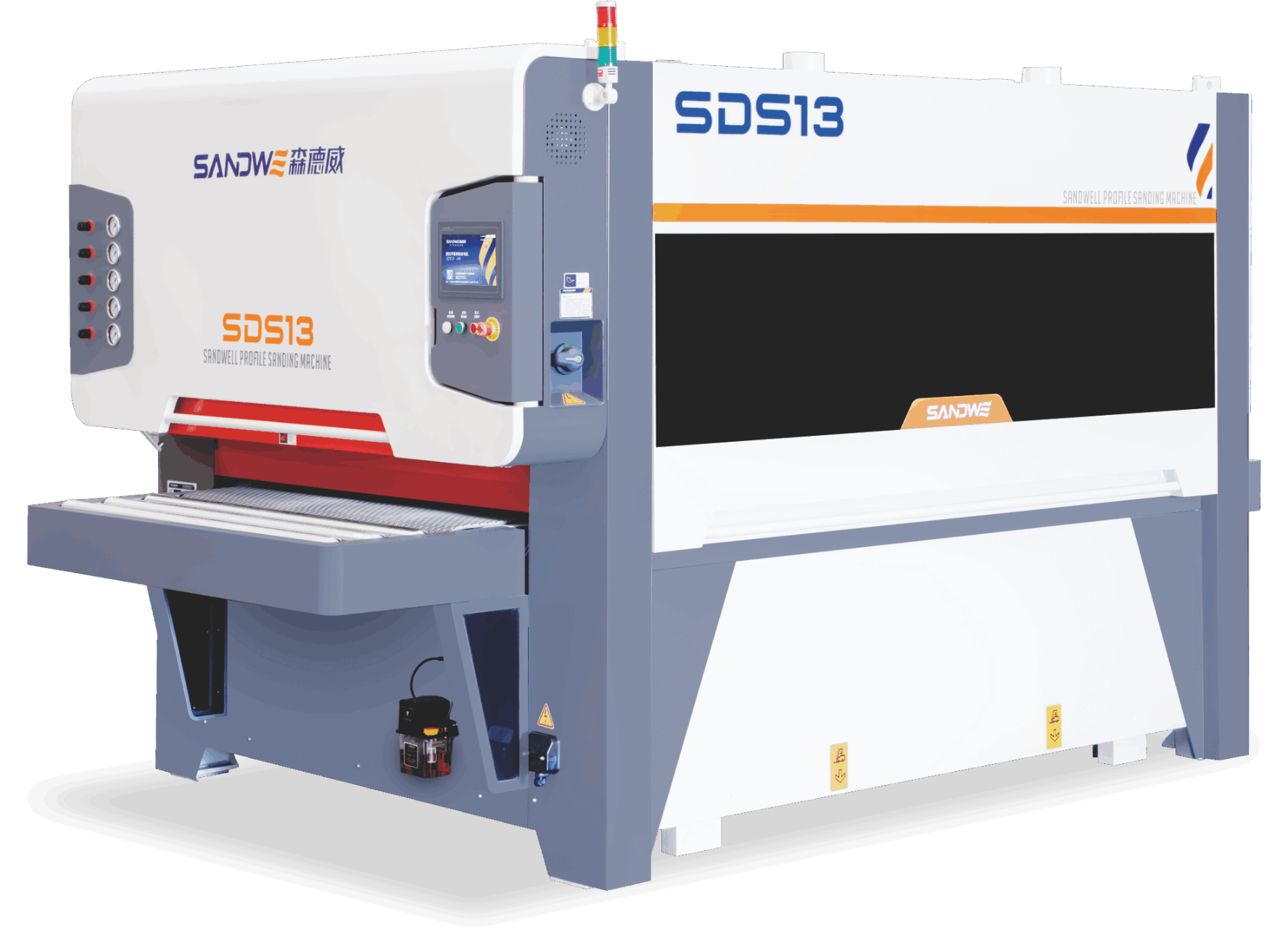

Let’s show you SANDWELL Profile Sander SDG10/13-PPLLLL
Profile Sander SDG10/13-PPPPLL Configuration Description
1. This sanding and polishing machine for Plastic uptake door panel is equipped with 4 sets of sanding units, composed of 2 sets of sanding components, with a feeding width of 1000MM/1300MM.
2. The first four sets of sanding components, include eight sets of disc sanding units, with 360°forward rotation and 360°reverse rotation, are used to sand and polish the surfaces with uneven-shape and the horizontal and vertical corners;

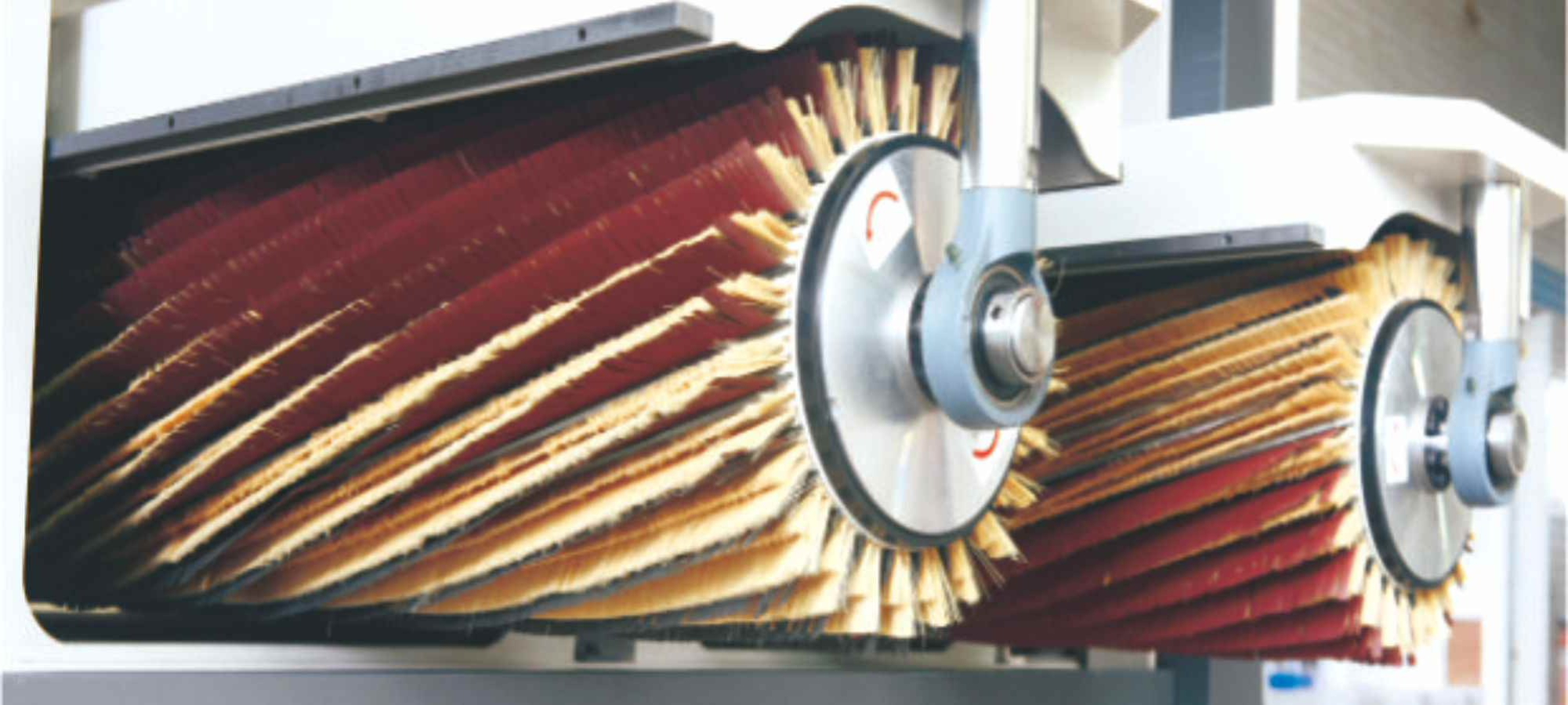

3. The fifth, and sixth sets of sanding components, that two sets of spiral roller sanding units, one is forward-rotation and on is reverse-rotation. large-size diameter sanding rollers are used for large-area sanding. The sand lines of the first few sanding layers of paint would be fully polished. It is a rotating flexible sanding formed by a spiral shaped sanding belt supported by an elastic brush. It adopts a continuous downward pressure rolling all-round irregular sanding unit, which has the characteristics of stable sanding force, smooth and uniform patterns, and sanding is carried out on concave and convex surfaces.
4. Equipped with 8 of 125MM suction ports, to ensure the cleaning effect, it is best to maintain a wind speed of 22 m/s or above in the vacuum exhaust pipe.
6. The equipment is equipped with a feeding and discharging detection device, which controls the start and stop of the sand roller to prevent hitting the head or tail.
Multifunctional sanding machine characteristics
1. The Profile Sanding Machine has a wide range of applications, and can sanding a variety of plane special-shaped workpieces with paint.
2. High strength integral frame structure profile fuselage to ensure sanding accuracy of equipment.
3. With one-click adjust, PLC can store hundreds of sanding parameters and quickly adjust different workpiece sanding.
4. Transportation and sanding components, frequency converter independent speed regulation and independent lifting control. PLC controls frequency converter and related operation.
5. Each set of sanding components can be pulled out as a whole, and abrasive replacement is convenient. The disc components have a patented fast replacement structure.
6. The conveying table is fixed, the sanding unit is floating sanding as a whole, the pressing material is independent, and it is convenient for multi-machine automatic connection.
For reference only, subject to specific configurations and requirements.
