Automatic Wide Belt Sander Sheet Metal Sanding machine

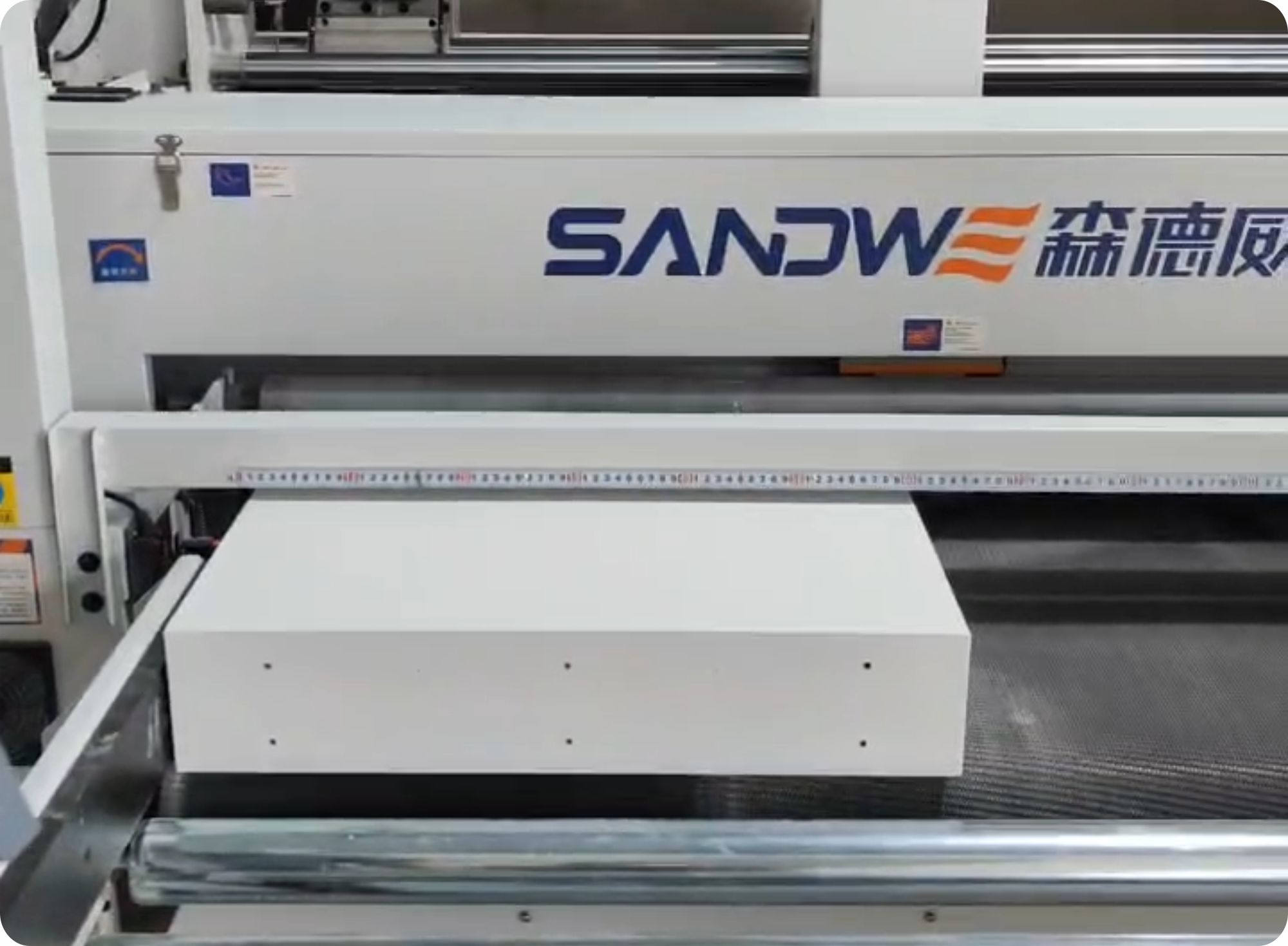

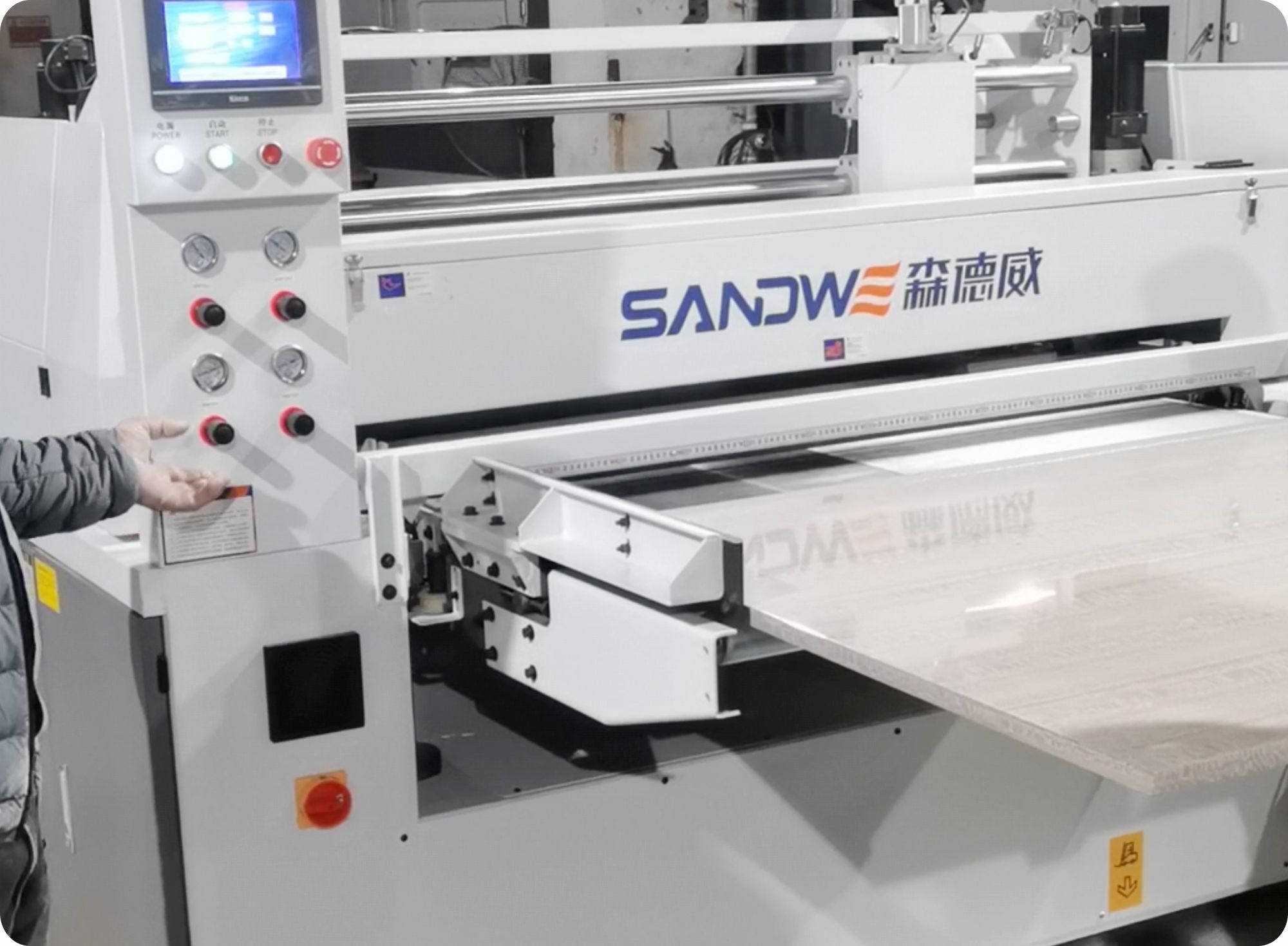

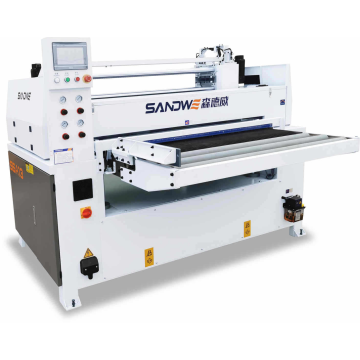

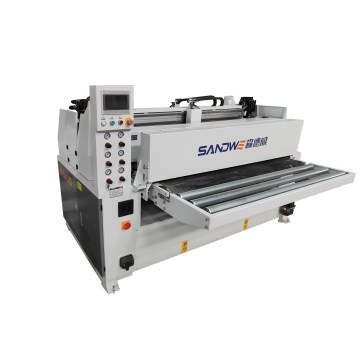

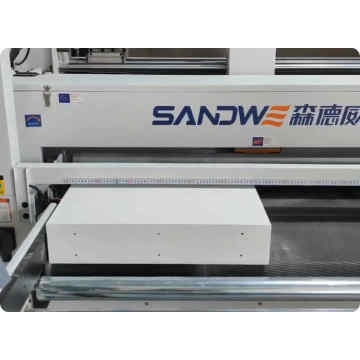

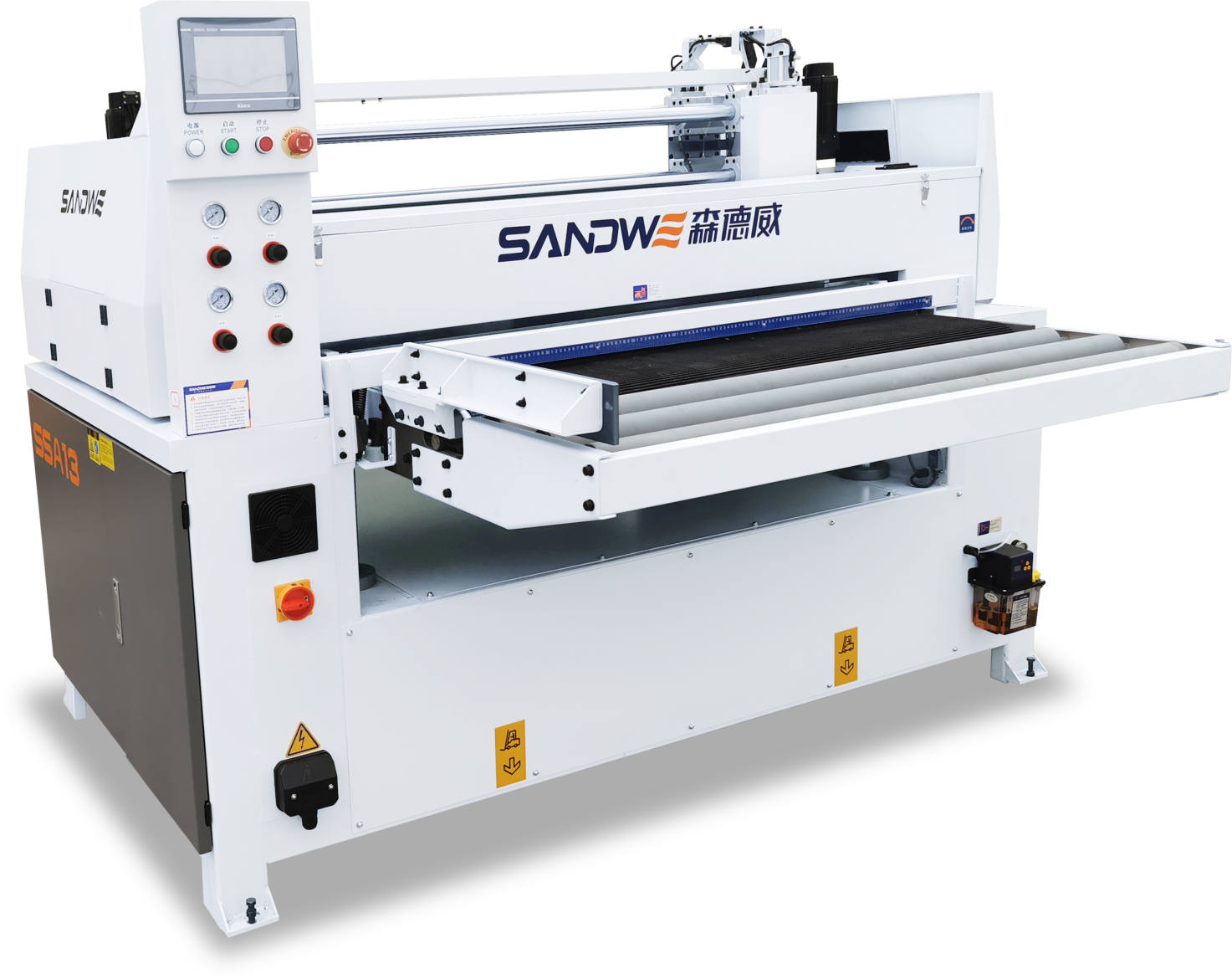

1、PHOTO：

1. Equipment application: It is suitable for various materials such as solid wood, density board, and veneer board. This equipment is ideal for rough and fine sanding, polishing, and priming the surface of conventional wooden boards. By combining different components and abrasives, it can achieve white blank and primer polishing on the surface.

3.1. Mechanical configuration diagram:

 1. Mechanical configuration specification: The NC sanding parts - H2 (forward and reverse groups) offer adjustable CNC sanding pressure and speed to effectively sand the surface of the workpiece, enabling targeted treatment of deformed plates, plates with significant dimensional errors, paint sagging or particles on the surface, orange peel effect, uneven grinding, or paint surface breakage while ensuring superior sanding results.

6. Equipment characteristics:

1) This series offers a wide range of capabilities for sanding processing. It can be used for sanding solid wood, multilayer boards, density boards, white embryos, wood veneers as well as primers on flat boards.

2) The machine features one-key start functionality along with fully automatic digital control and adjustment for simple and convenient operation.

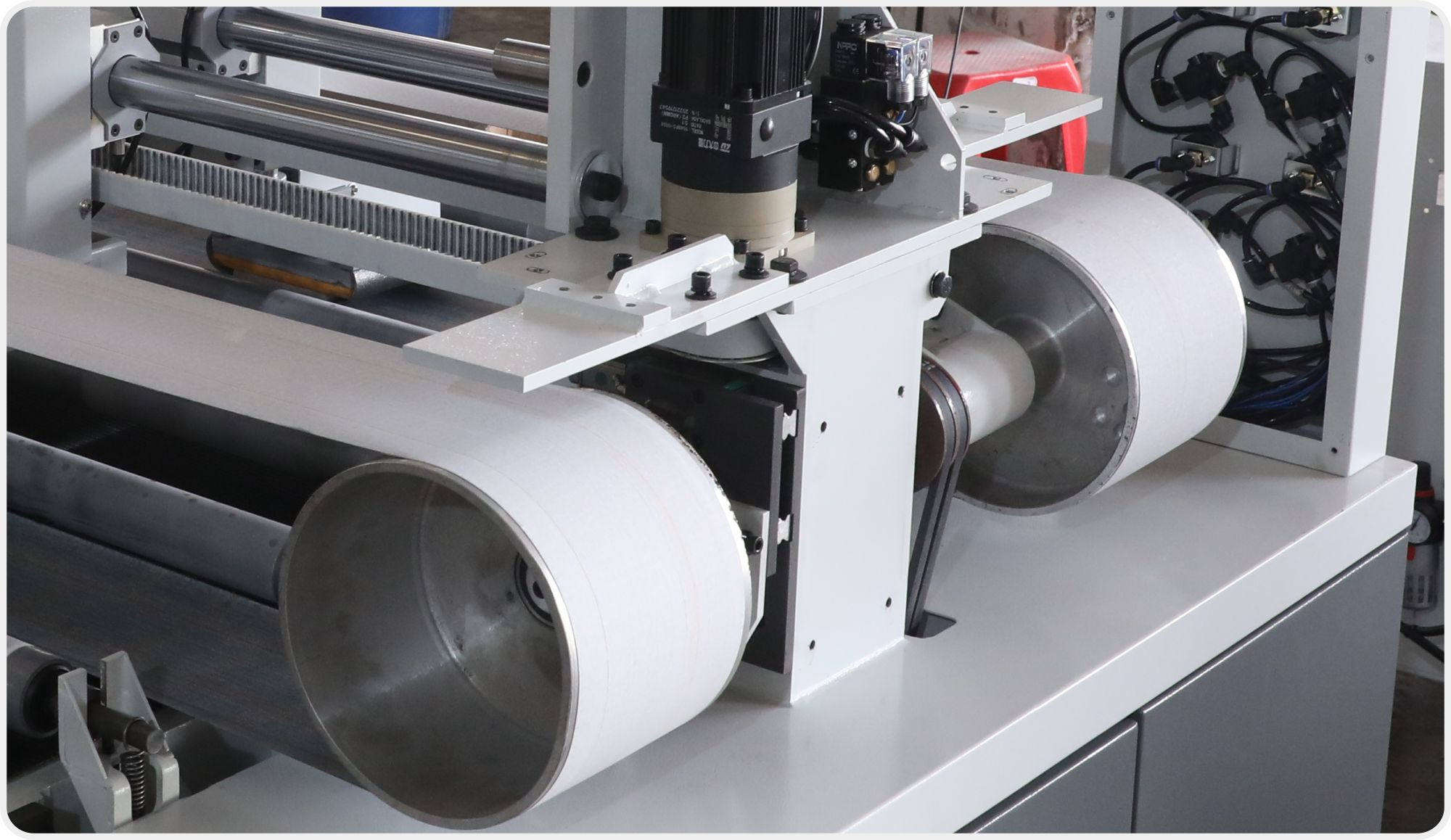

3) The two sand heads are driven by servos to ensure accurate positioning while effectively protecting the head,tail,and sides of the plate from abrasive material penetration.

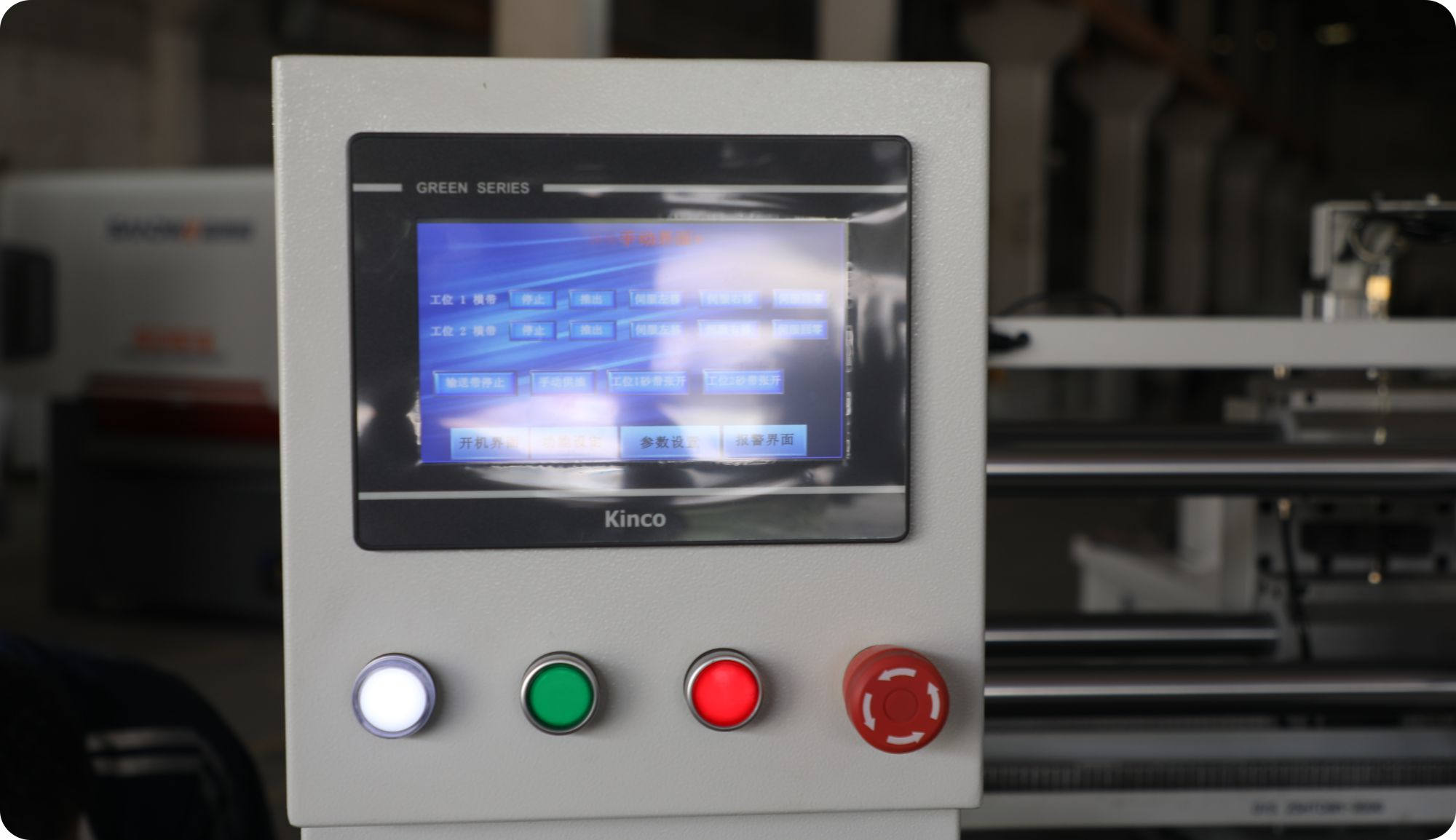

4) The system adopts PLC programming to control touch screen communication frequency converters.This allows visual display operations such as adjusting settings or performing maintenance tasks.

.7、Mechanical parameter description：
