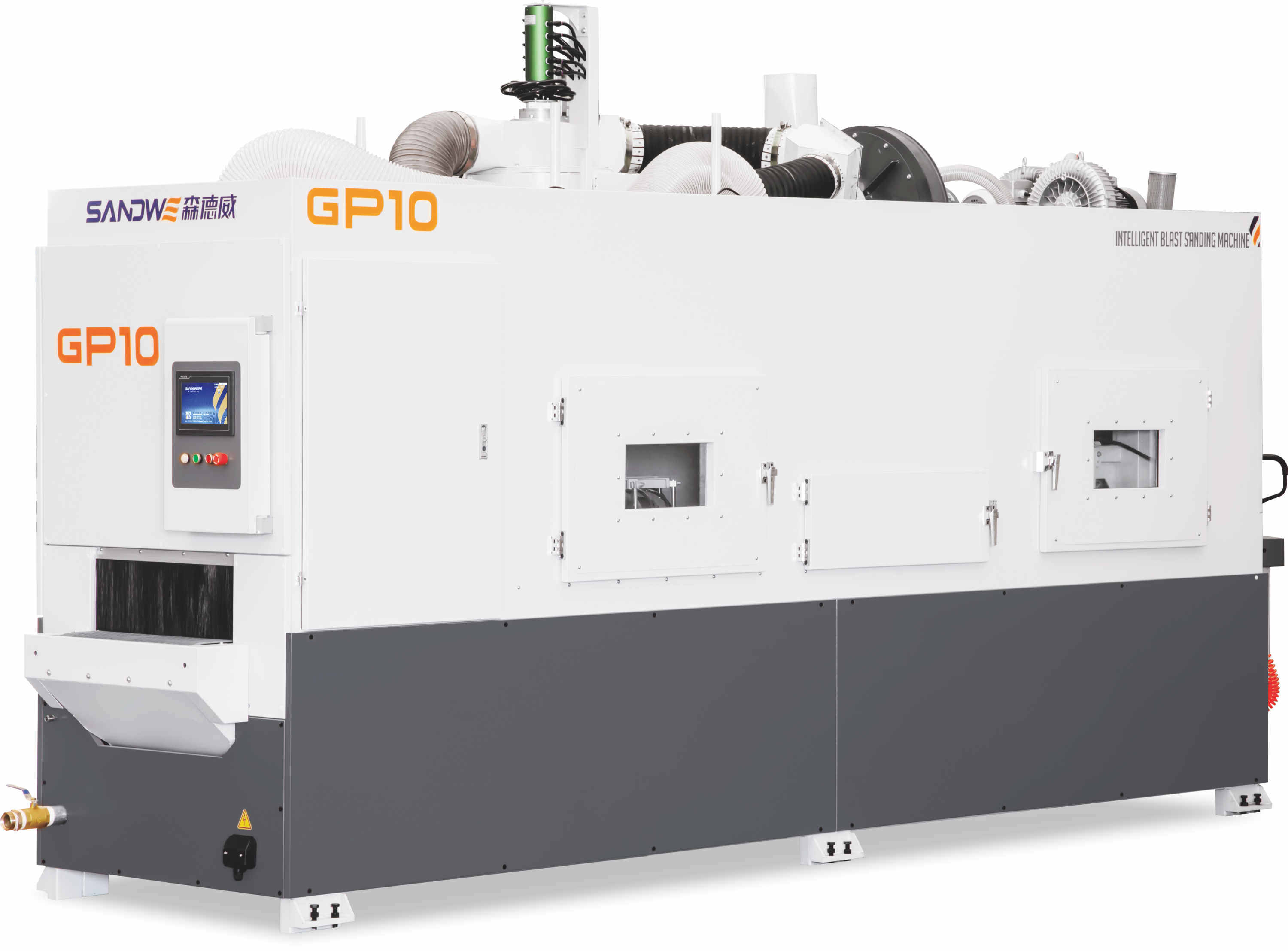

Woodworking round sander Bent wood stick Sanding machine

1. Mechanical characteristics:

   1) Stirring cage recovery system: High-pressure air jets contact the workpiece surface, causing sand grains to fall into storage by gravity. The sand tank and stirring cage sand and dust conveyance system gather them and transport them to the sand and dust separation system for recycling, increasing the contrast sand granule usage rate.

   2) Sand and dust separation system: When some abrasives come into contact with one other during the grinding process, they produce dust. The separation system's primary role is to separate and discharge dust from the recovered sand-dust combination while recycling usable sand grains. This cycle continues until the product is consumed.

   3) An independent lifting control and adjustment system with a rotating spray gun (10). To adjust the spray gun, lift it at various angles according to the thickness of the workpiece, ensuring an optimal fit between the spray gun and machined parts within a range of 650mm for optimal sandblasting grinding.

Comparative advantages:

1. Rapid adjustment facilitates easy conversion between production products, ensuring an ideal sanding effect.

2. Efficiently saves air source, reduces working pressure, and minimizes power consumption of air compressor.

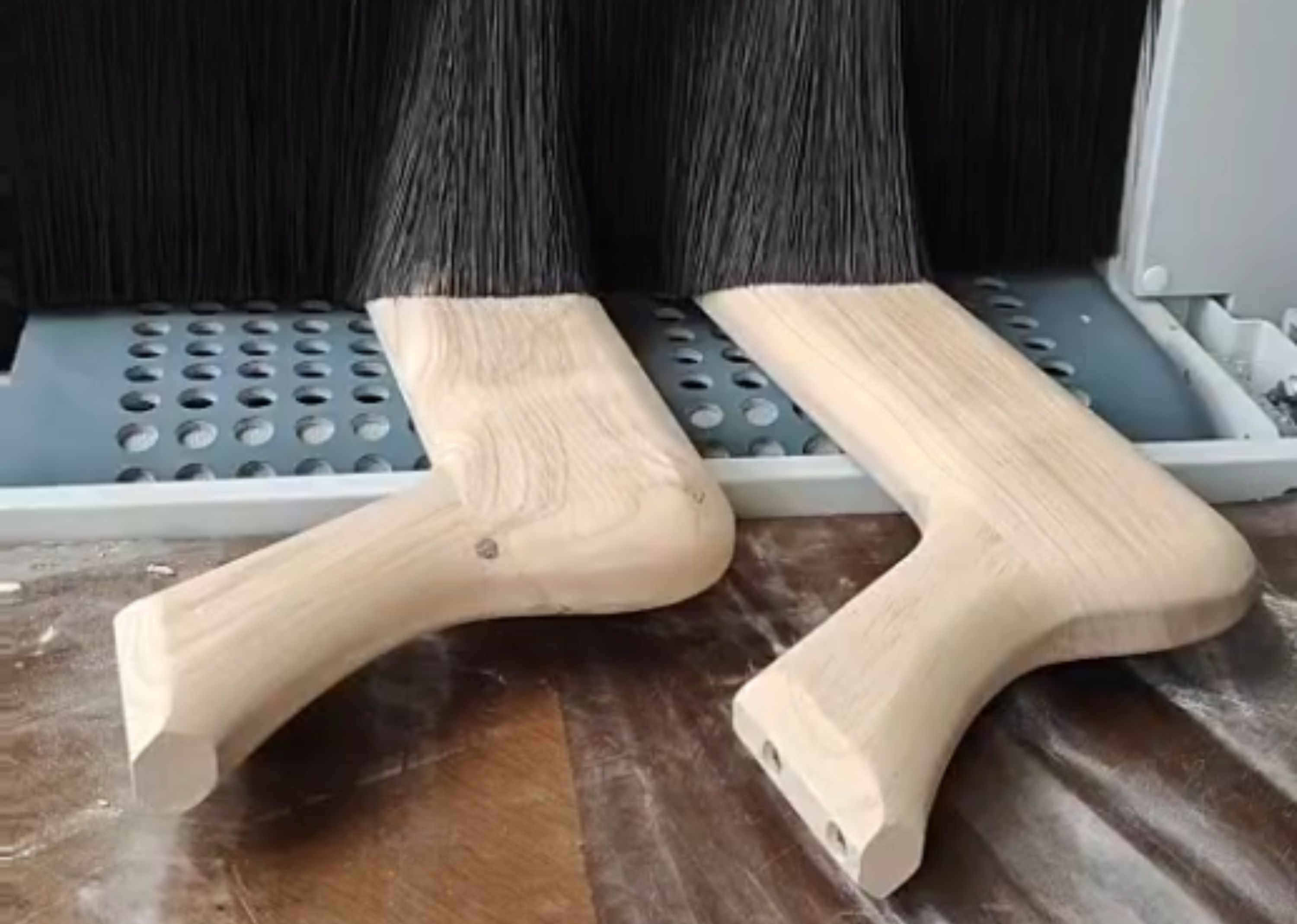

4) Double polishing special-shaped sand roller: Significantly improves sanding effect while reducing manual grinding workload.

5) Belt conveyor system: Using a perforated belt conveying system for irregular or small workpieces results in smoother conveyance, a larger application range, a complete recovery cycle of sand grains, and less backlog trash.

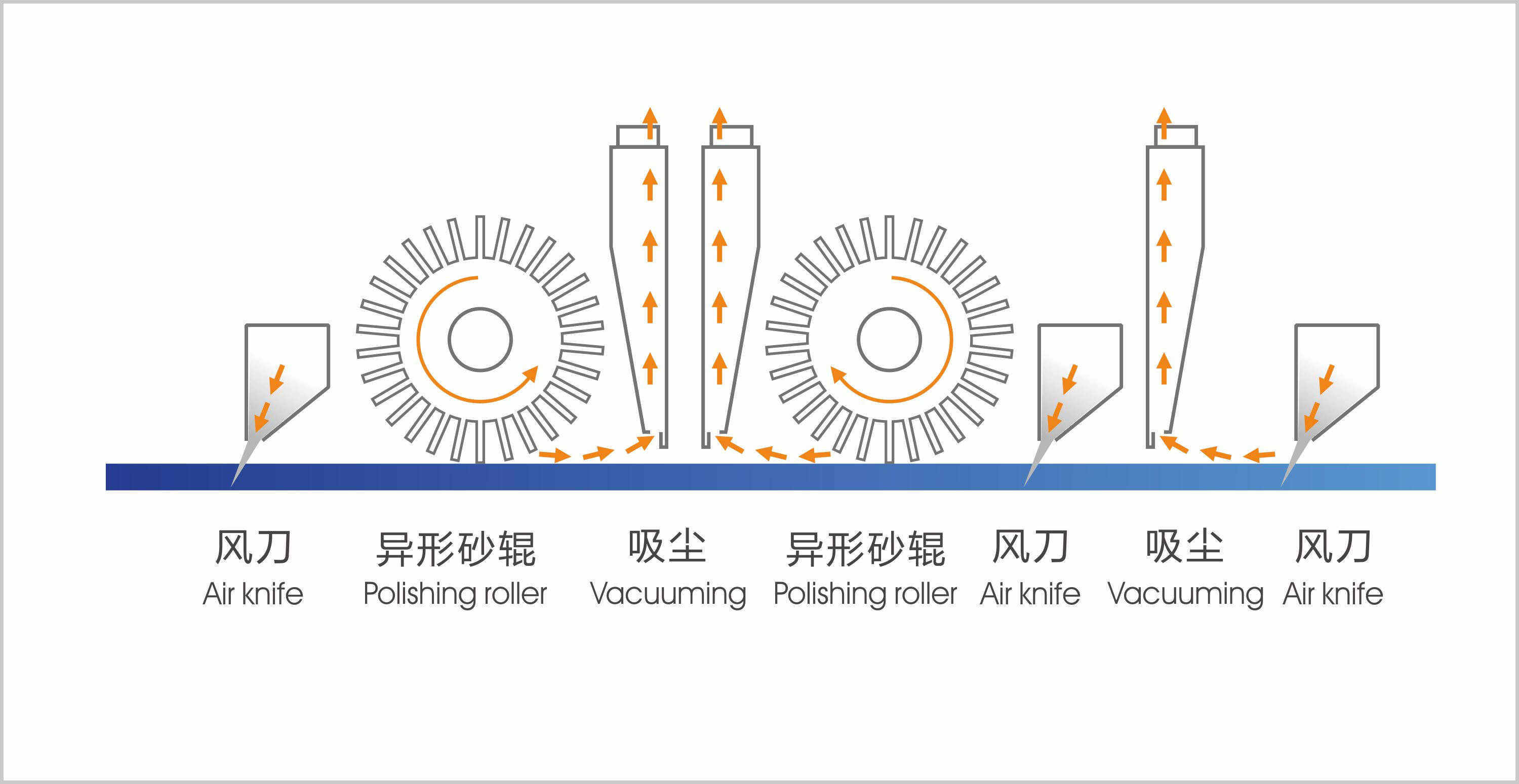

6) Air knife dust removal system: Three air knives, two special-shaped sand rollers, and an independent lifting pressing system work together with independent airflow to effectively remove dust from cavities, resulting in excellent results.

7) PLC touch screen man-machine interface: A simple but clear touch screen interface for easy operation.

 5. Description of mechanical parameters:
