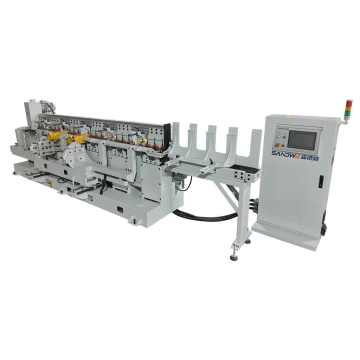

Furniture Sanding Machine 4 Sided Profile Sander Machine

Payment Type:
T/T,L/C
Incoterm:
FOB,EXW
Min. Order:
1 Set/Sets
Transportation:
Land,Ocean
Share:
  • Product Description
Overview
Product Attributes

Model No.SLH1510

BrandSANDWELL

Place Of OriginChina

StatusNew

Machine TypeWood Sanding Machine

Video Factory InspectionProvided

Mechanical Test ReportProvided

Marketing TypeOrdinary Product

Core Component Warranty Period1 Year

Core ComponentsMotor, Gearbox, Bearing, Plc

Warranty Period1 Year

Core Selling PointHigh Safety Level, High-Accuracy, Energy Saving, High Rigidity, Multifunctional, Flexible Manufacturing, Patented Product, High Productivity, Long Service Life, Easy To Operate, Competitive Price

Showroom Location (in Which Countries Are There Sample Rooms Overseas)Australia, Malaysia, Russia, Indonesia, Viet Nam

Out-of-warranty ServiceField Maintenance And Repair Service, Online Support, Video Technical Support

Applicable IndustryAdvertising Company, Other, Energy &Amp; Mining, Construction Works, Farms, Manufacturing Plant

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets)Russia, Malaysia, Viet Nam

Workpiece Width Range30-150mm

Workpiece Min Length300mm

Workpiece Thickness Range5-100mm

Feeding Speed3-15m/min

Triangle Sanding Belt Size1200X150mm, 1200X100mm

Polishing Sanding Wheel 1Φ190×φ25.4×150mm X 2pcs

Polishing Sanding Wheel 2Φ190×φ25.4×100mm X 2pcs

Dust CollectorΦ100 × 12 pcs

Work Pressure0.6mpa

Supply Ability & Additional Information

TransportationLand,Ocean

Place of OriginCHINA GUANGDONG

Payment TypeT/T,L/C

IncotermFOB,EXW

Packaging & Delivery
Selling Units:
Set/Sets

Four- Side Milling Angle Sander:
Shaped sand blasting machine

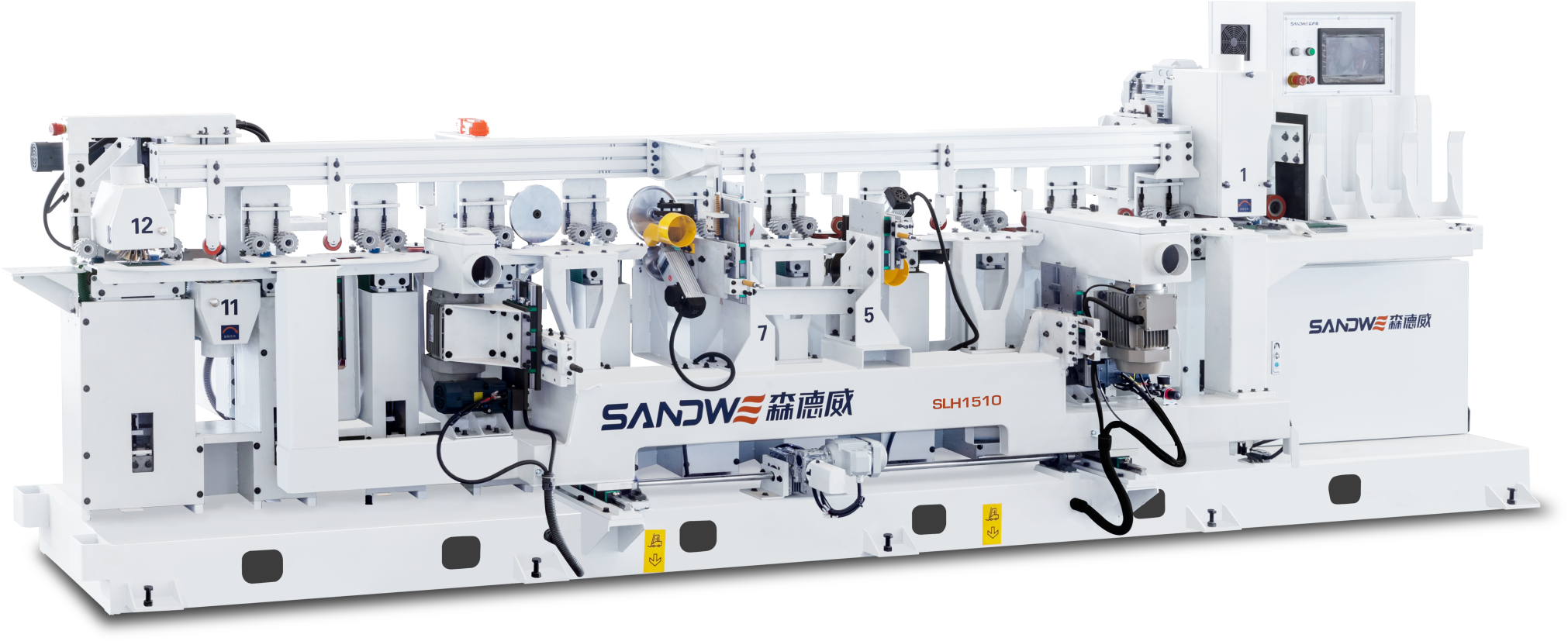

SLH1510

4 Side milling angle sander

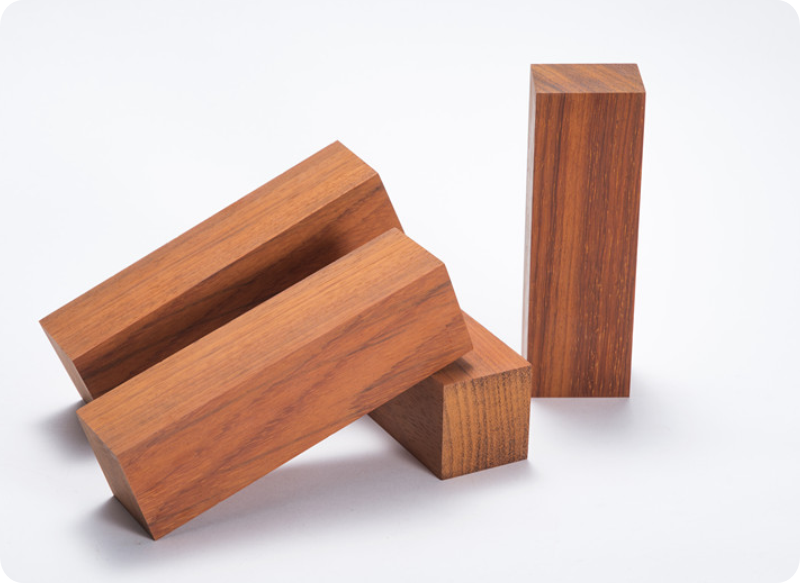

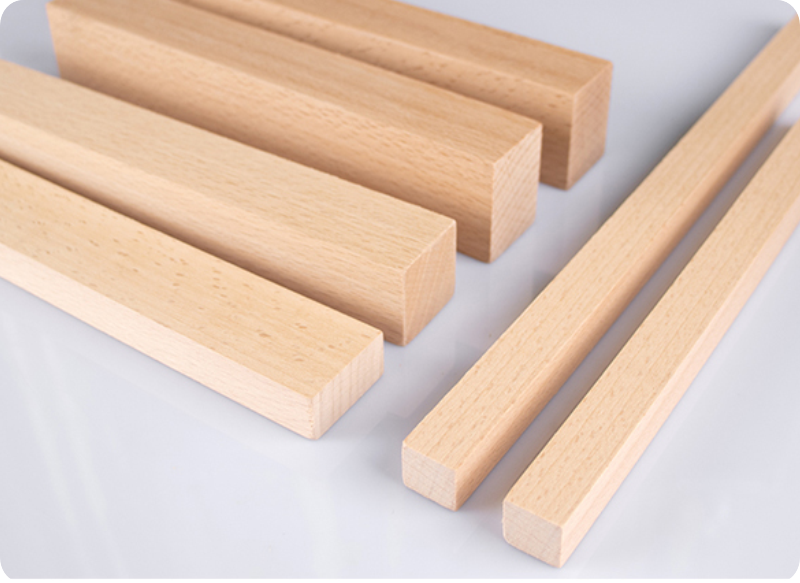

Before sanding  vs  After sanding


Sander wood    Before the wood is sanded  VS  Sanding machine after wood  After sanding the wood

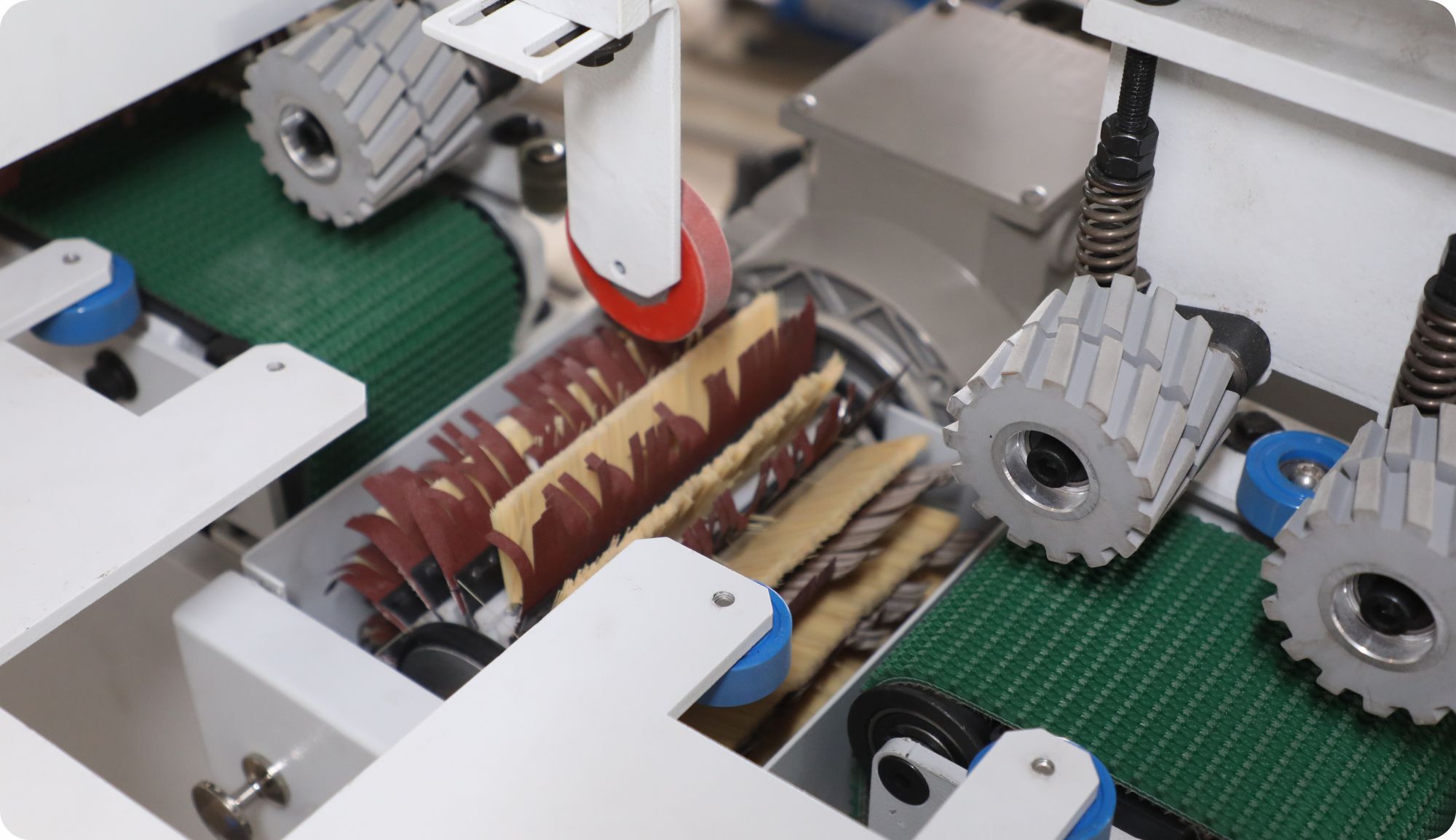

Abrasive belt:

Abrasive belt with automatic swing function, and has automatic telescopic function, protect the head and tail of the workpiece, easy to operate, easy to replace the belt. Strong grinding capacity and good flatness.

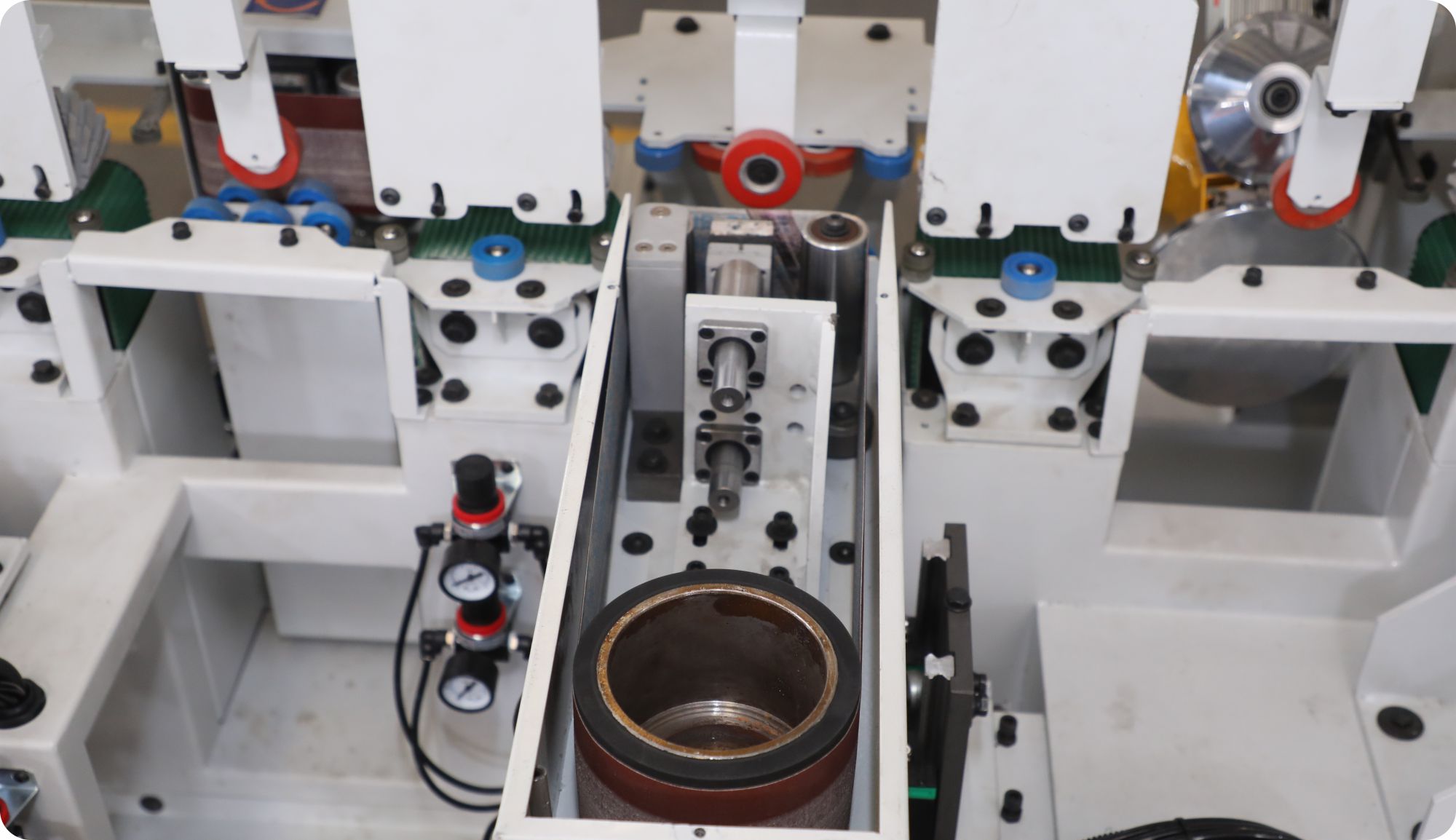

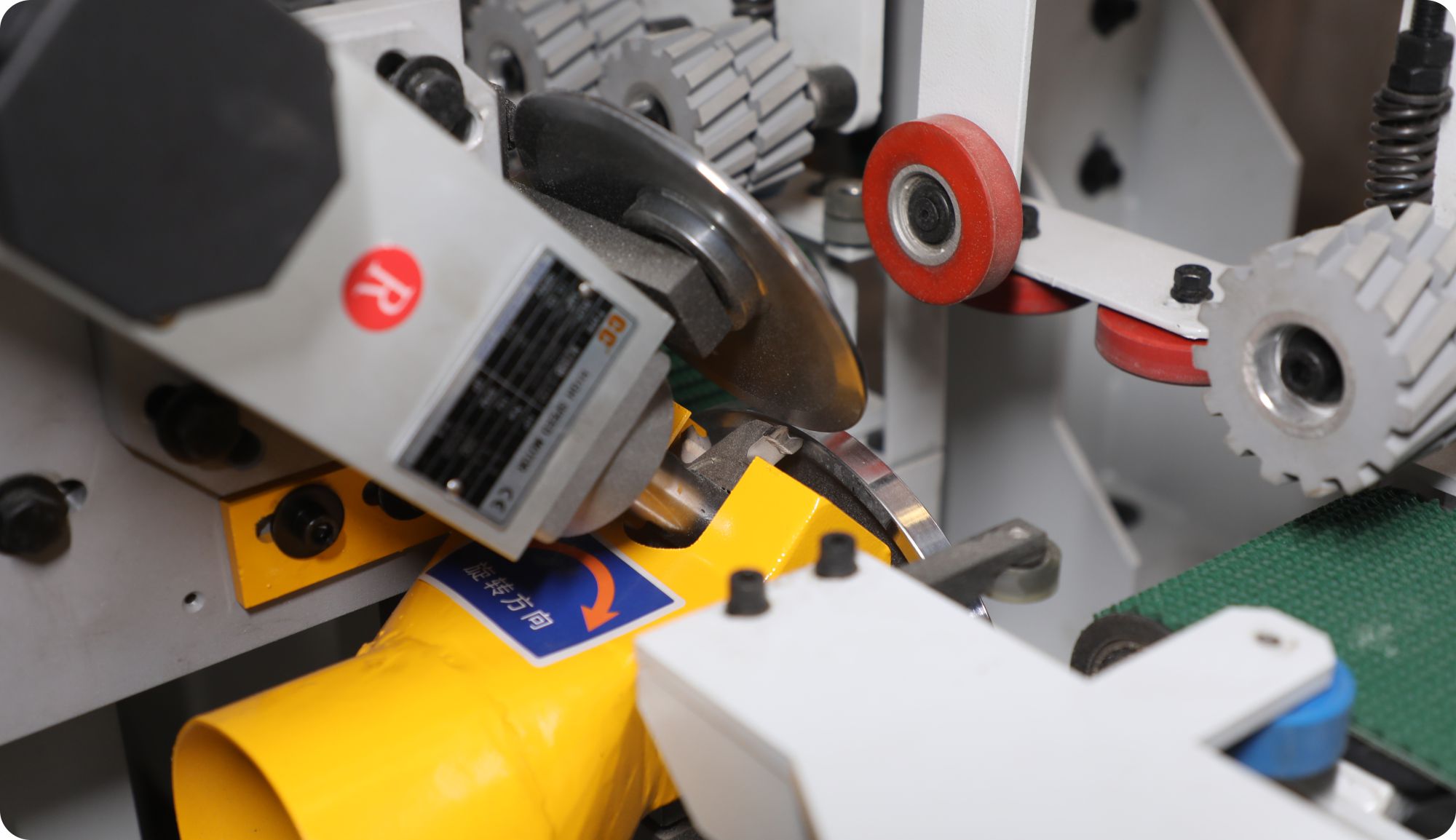

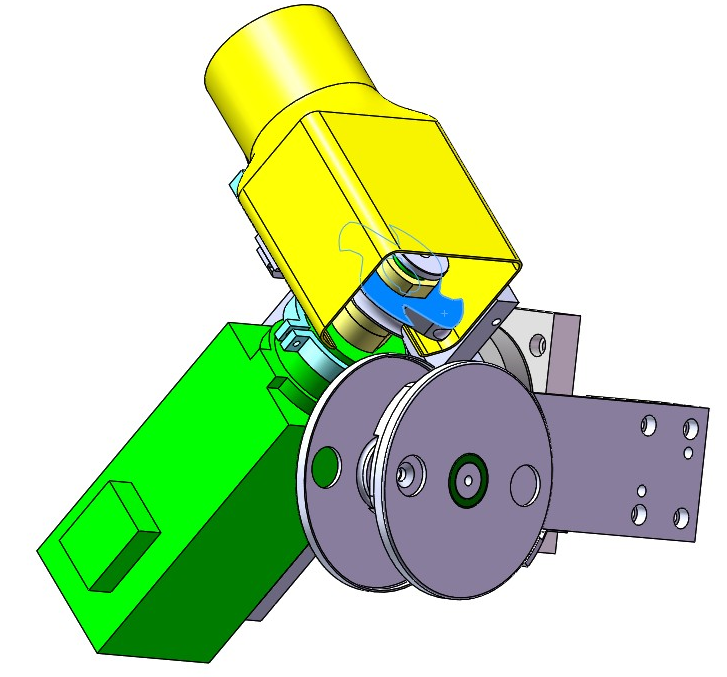

J Milling Cutter Components:

12000 RPM high speed motor, can be on the workpiece edge R2, R3 chamfering.

sander part

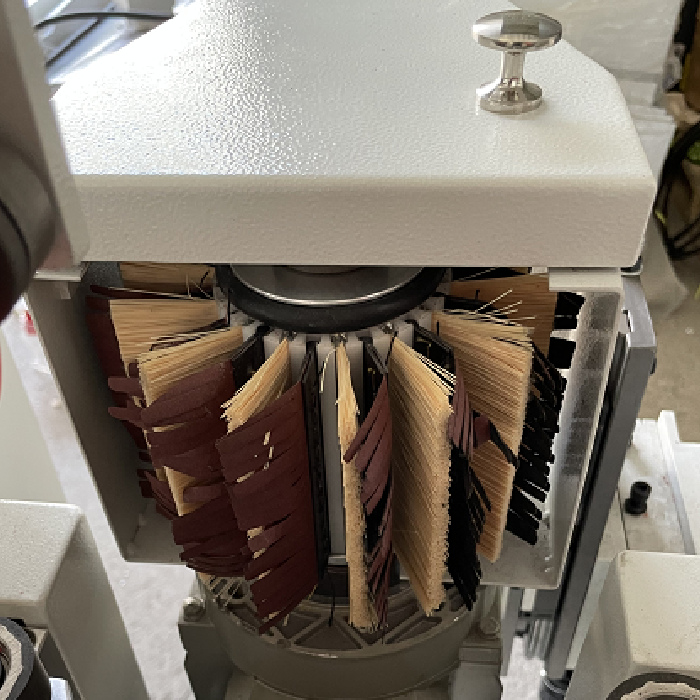

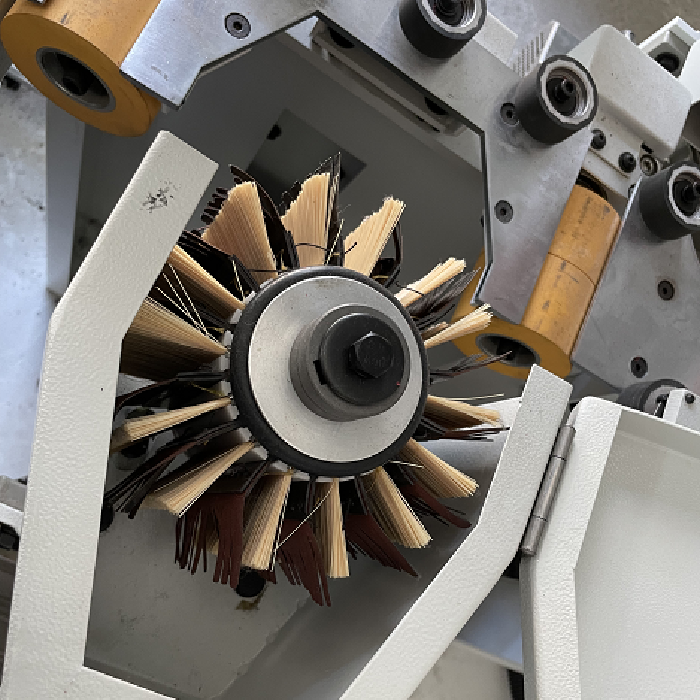

Special-shaped grinding wheel part:

This part is a special-shaped grinding wheel part, which can be used for polishing plane and special-shaped surface, and has channeling function. It can sand wood surface with high efficiency and high quality, and the sand head can independently adjust the speed of abrasive belt by frequency conversion.

sanding machine  brush sander

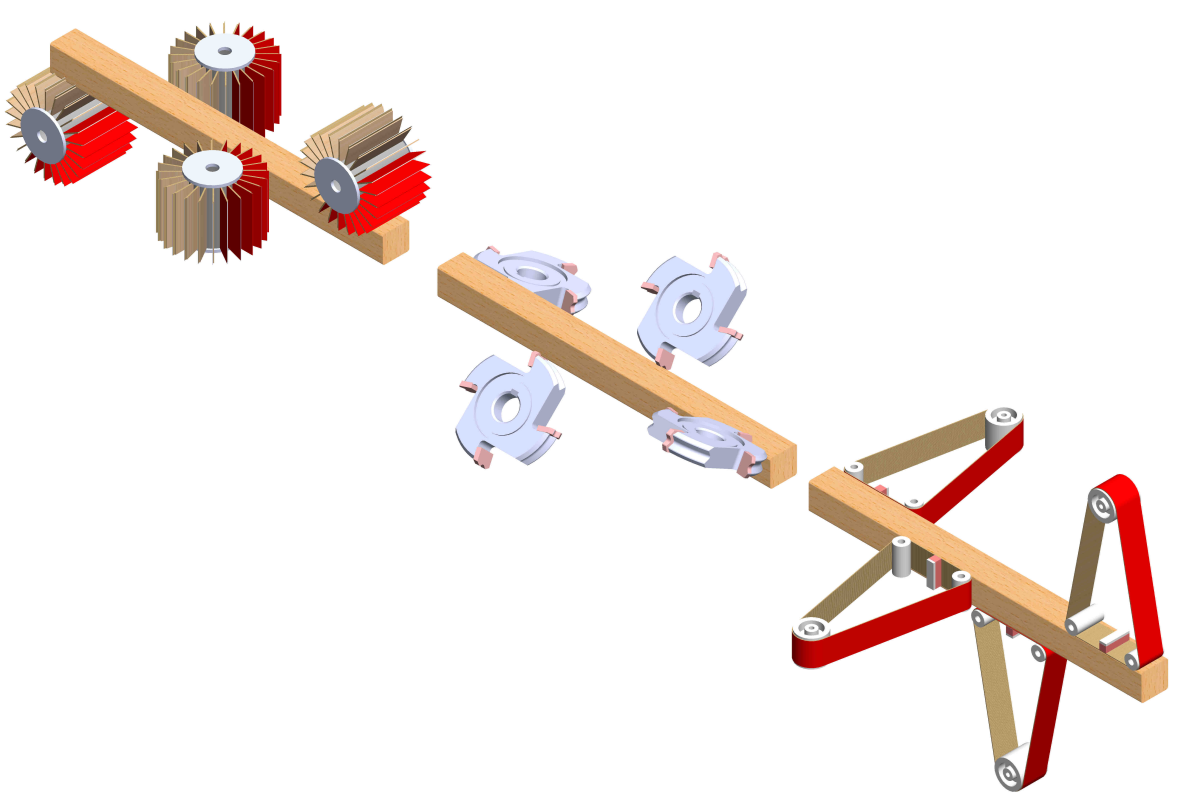

4 Sides Wood Edge Sanding Machine process layout::

Sanding process

Characteristics of the equipment:

  • According to different technological requirements, the sand heads of various sand racks are freely arranged and configured
  • Rubber wheel sand head and special-shaped grinding wheel have independent swing function
  • Electric width adjustment, electric lifting and pressing, spring load, reliable pressing and no damage to workpieces.

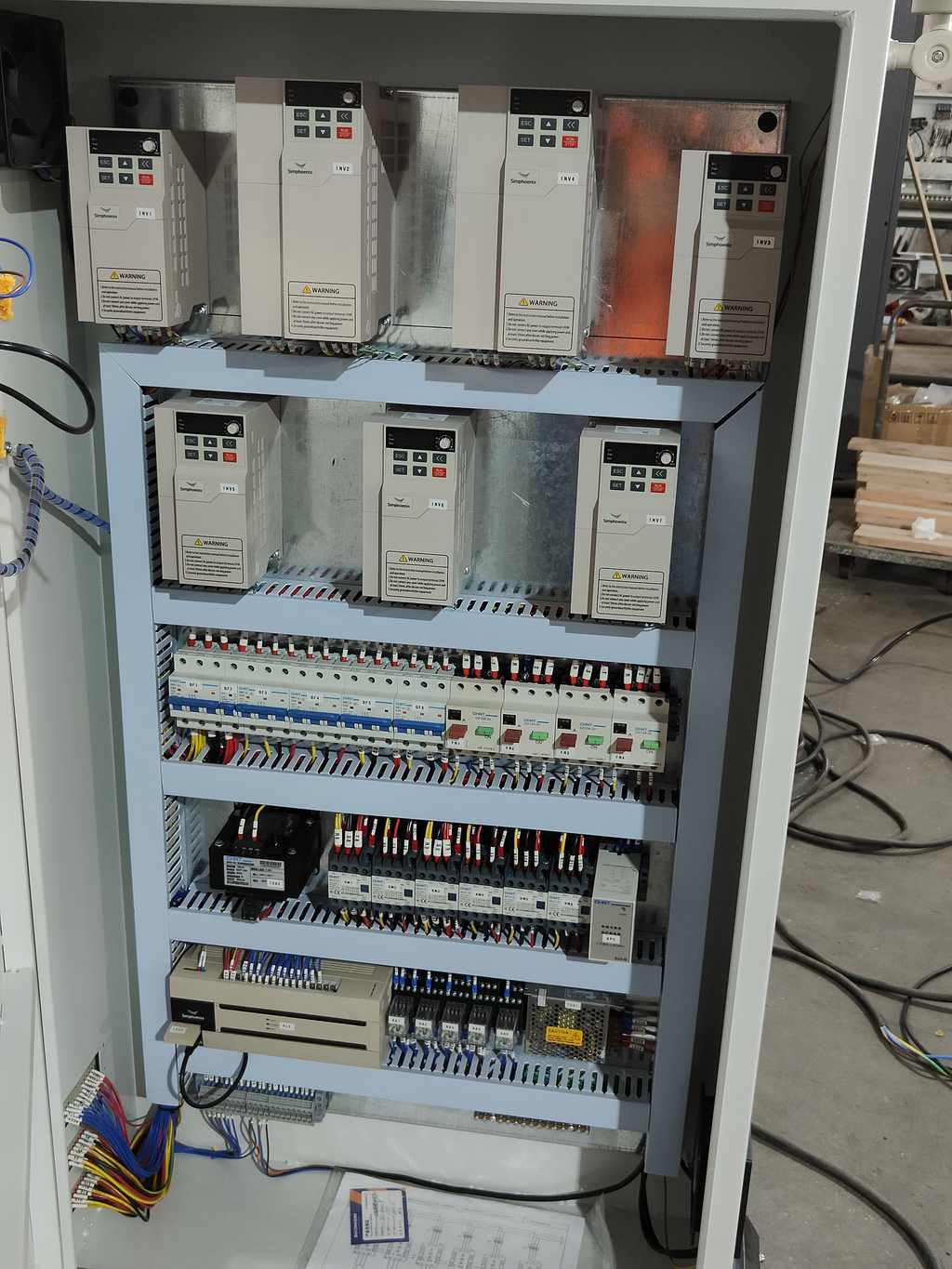

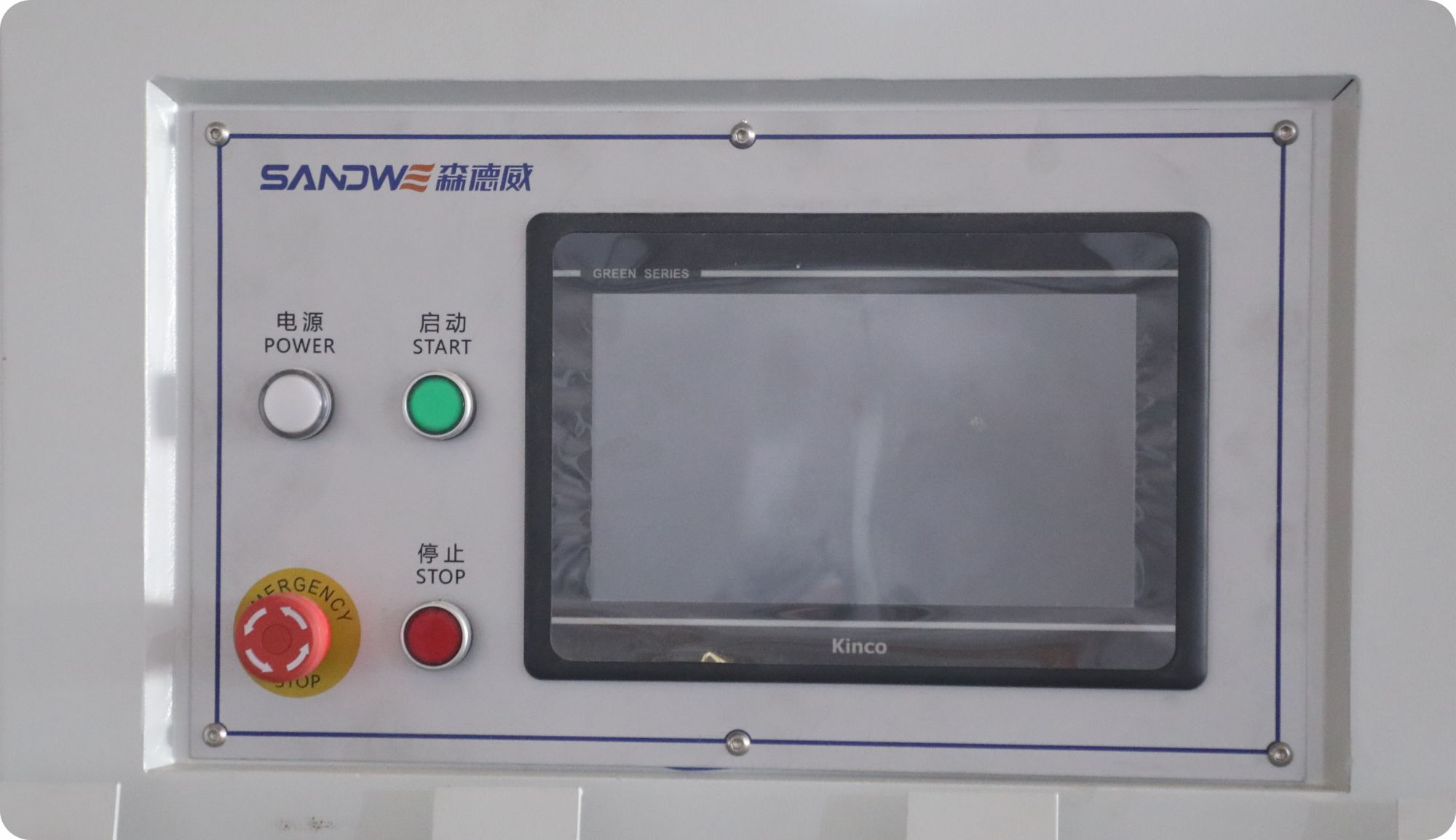

  • PLC precise control, easy to adjust.
  • The speed of conveying and abrasive belt is regulated by frequency conversion



Four-Side Milling Equipment technical parameters:



Model

SLH1510

Workpiece width range

30-150mm

Workpiece min length

300mm

Workpiece thickness range

5-100mm

Feeding speed

3-15m/min

Triangle sanding belt size

1200X150mm

Triangle sanding belt size

1200X100mm

Polishing sanding wheel

Φ190×φ25.4×150mm X 2pcs

Polishing sanding wheel

Φ190×φ25.4×100mm X 2pcs

Dust collector

Φ100 × 12 pcs

Work pressure

0.6mpa

Total power

19.06 KW

oversize

6000×1300×1350mm

Weight

3000KG



Product Categories : Four- Side Milling Angle Sanding Machine
