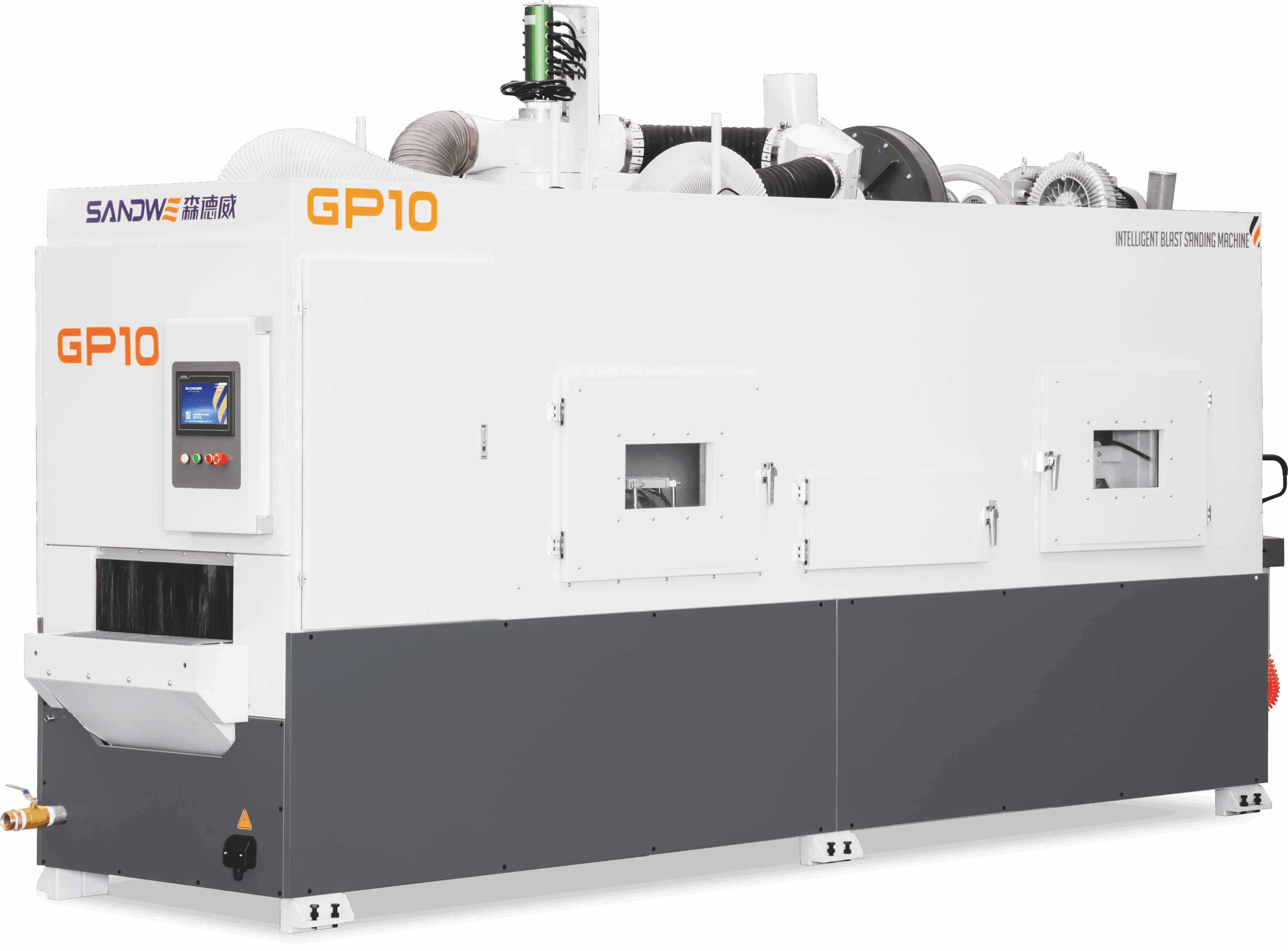

1. Mechanical characteristics:
1) Stirring cage recovery system: High-pressure air jets are used to strike the workpiece surface, causing sand grains to fall into storage by gravity. The sand tank and stirring cage sand and dust conveyance system collect and deliver them to the sand and dust separation system for recycling, thereby enhancing the utilization rate of contrast sand granules.
2) Sand and dust separation system: During the grinding process, when certain abrasives come into contact with each other, it generates dust. The principal function of the separation system is to effectively separate and discharge dust from the recovered sand-dust mixture while also reusing usable sand grains. This cycle continues until all usable product has been consumed.
3) An independent lifting control and adjustment system includes a revolving spray gun (10). To adjust the spray gun: lift it at various angles according to the thickness of the workpiece, ensuring an optimal fit between the spray gun and machined parts within a range of 650mm for optimal sandblasting grinding.
Comparative advantages:
1. The rapid adjustment feature facilitates seamless conversion between production products, ensuring optimal sanding results.
2. It efficiently conserves air source, reduces working pressure, and minimizes power consumption of the air compressor.

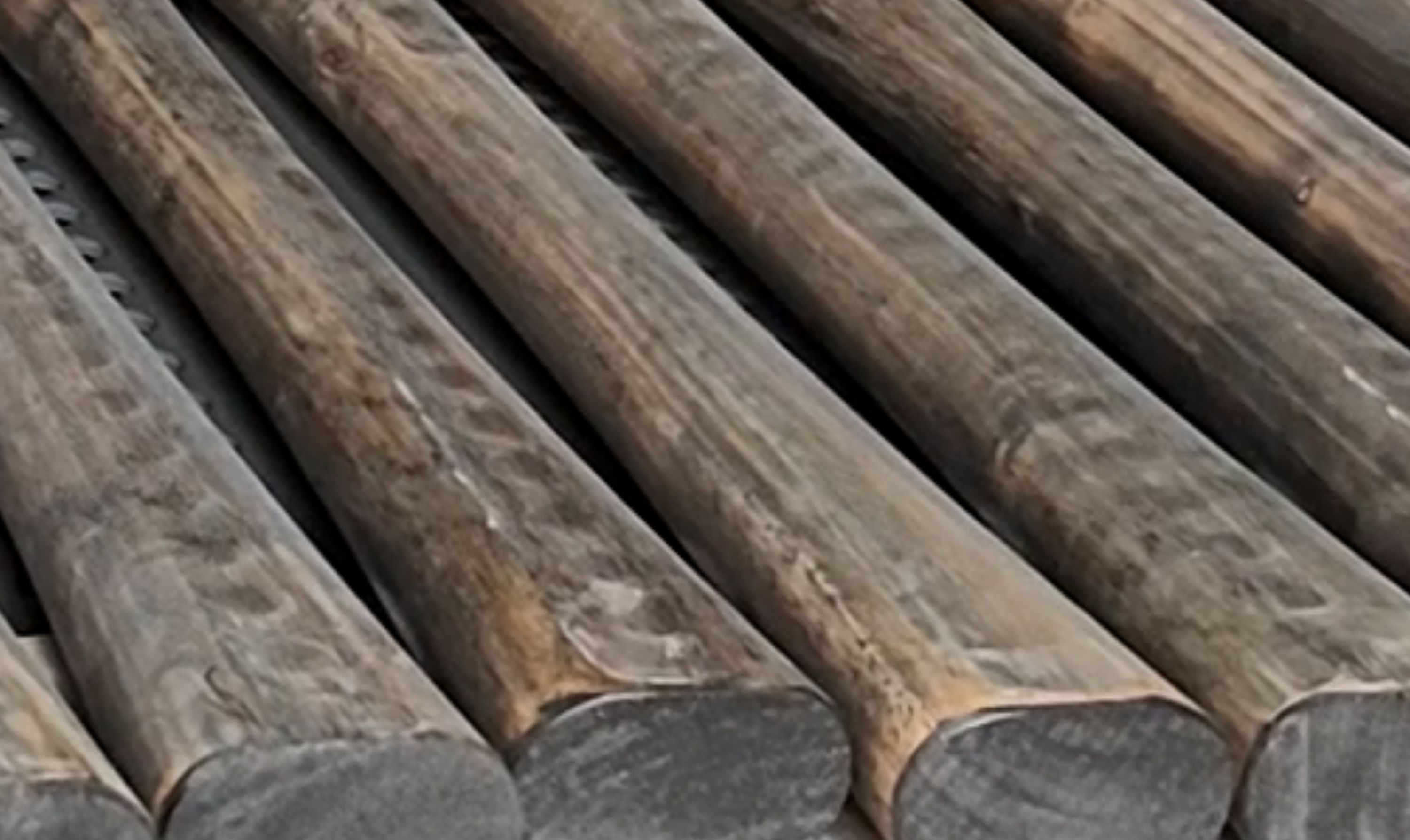

3. The double polishing special-shaped sand roller significantly enhances sanding effectiveness while reducing manual grinding workload.

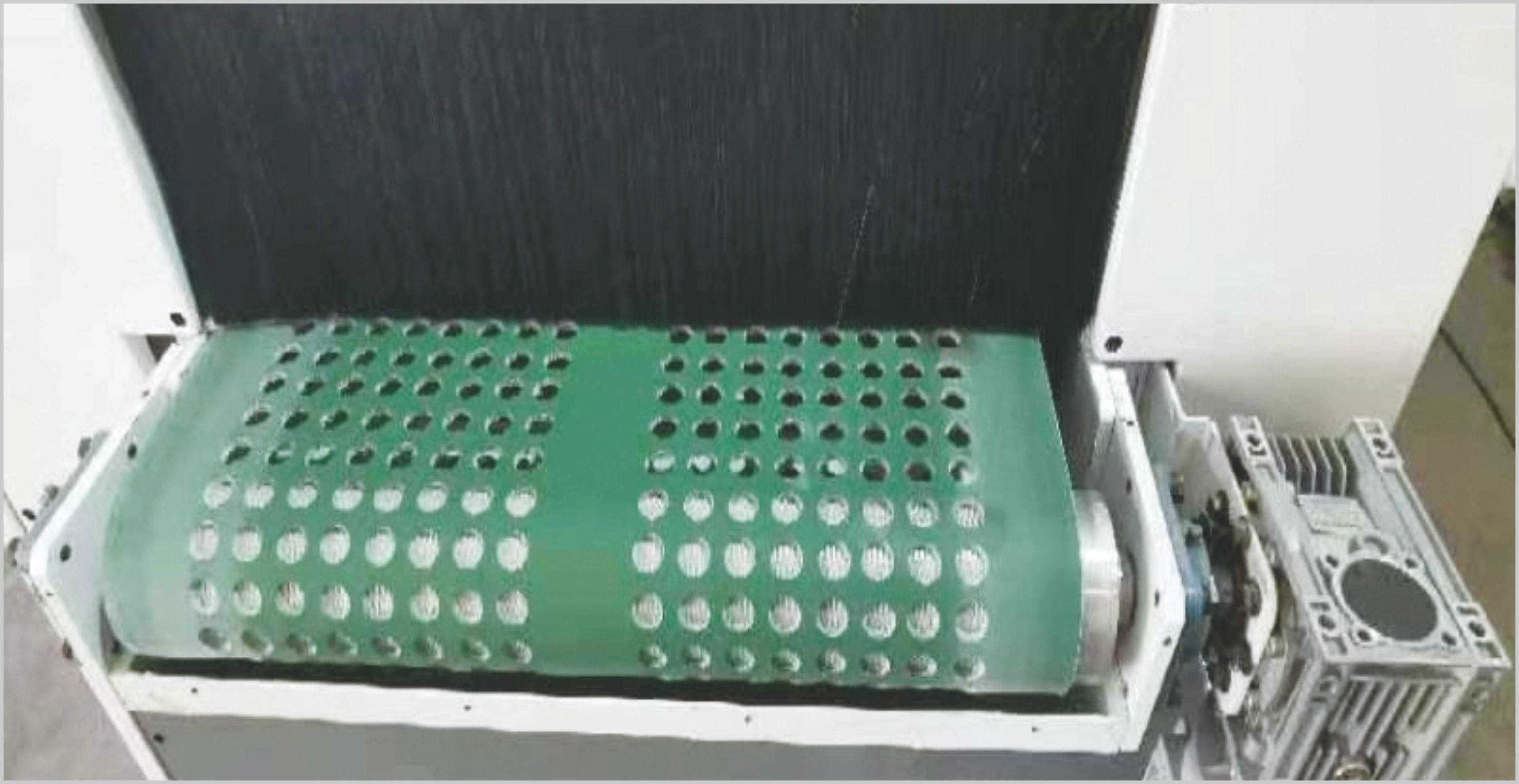

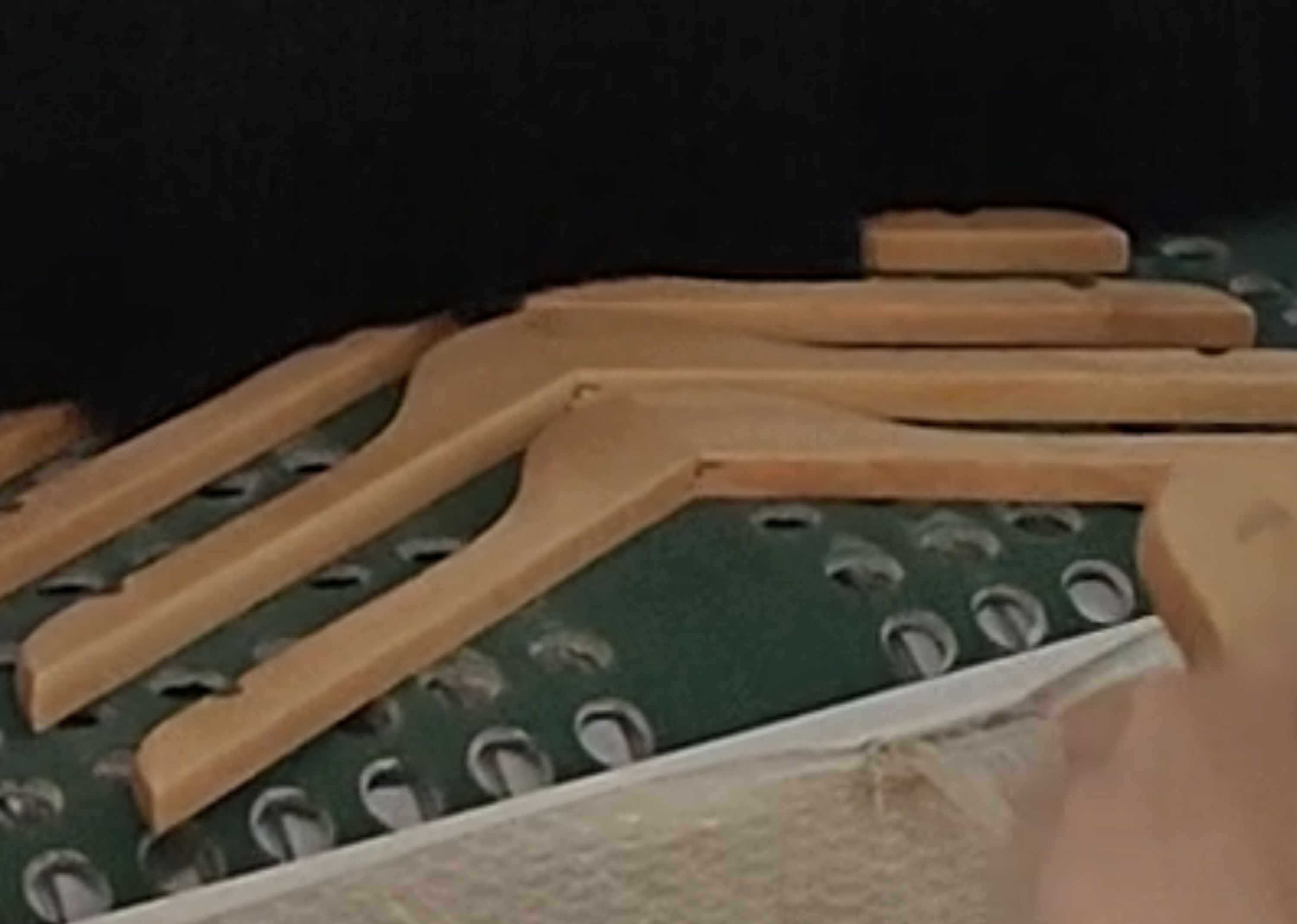

4. The belt conveyor system utilizes a perforated belt conveying system for irregular or small workpieces, resulting in smoother conveyance, wider application range, complete recovery cycle of sand grains, and reduced accumulation of waste material.
5. The air knife dust removal system consists of three air knives, two special-shaped sand rollers, and an independent lifting pressing system that effectively eliminates dust from cavities to achieve excellent results.

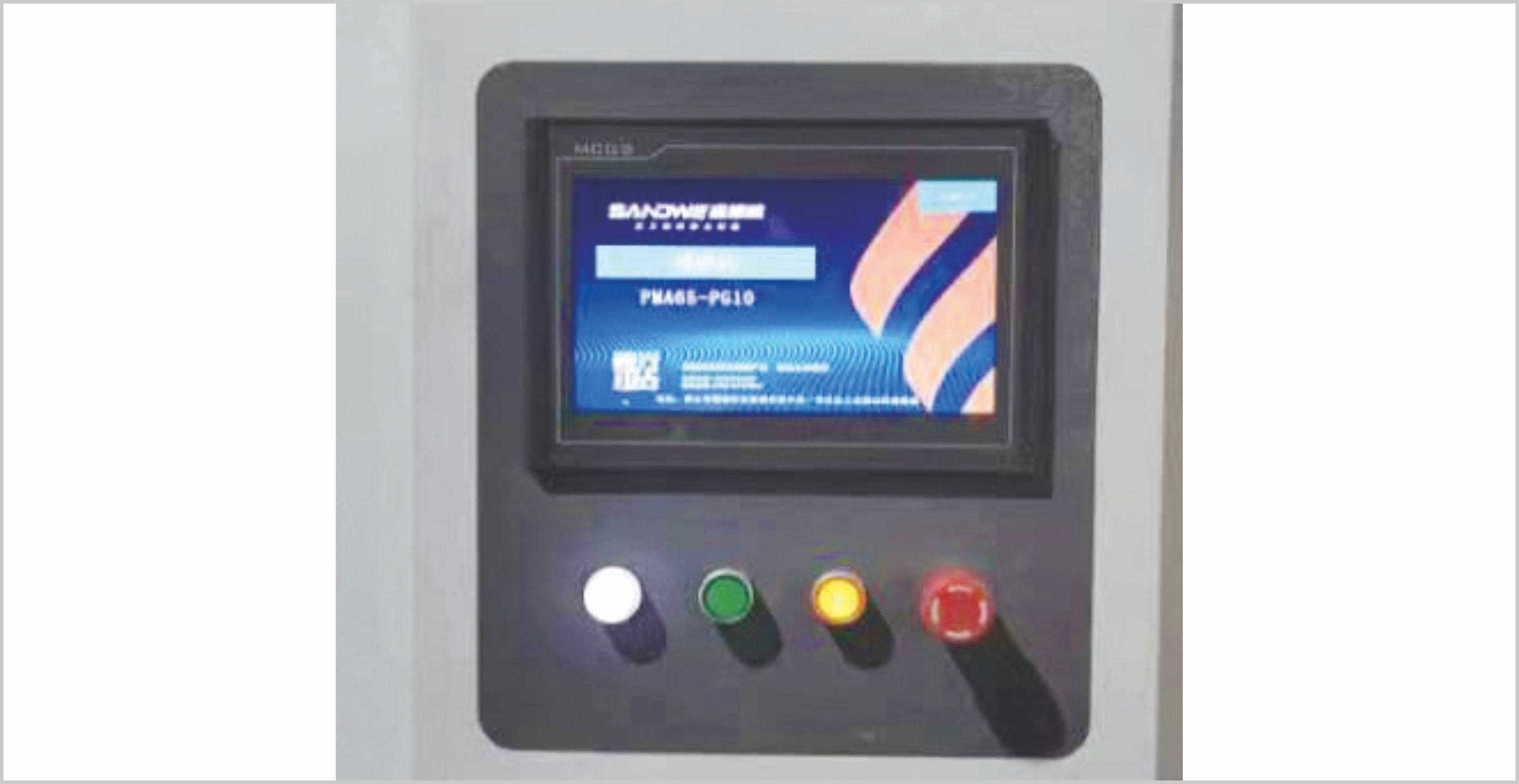

6. The PLC touch screen man-machine interface provides a user-friendly touch screen interface for easy operation.
5. Description of mechanical parameters:
| 设备型号 | Model | PM65-GP10 |
| 工件宽度 | workpiece width | ≤650 mm |
| 工件最小长度 | minimum length of workpiece | ≥350 mm |
| 工件厚度范围 | workpiece thickness | ≤180 mm |
| 送料速度 | feeding speed | 1 ～ 6 m/min (推荐2.5左右） |
| 除尘滤芯 | Filter cartridges | Φ320×660mm ×5条 |
| 输送台面高度 | Conveying table height | 850 mm |
| 电源 | Power supply | 380V, 50HZ |
| 工作气压 | Working pressure | 0.6-0.8 Mpa |
| 总功率 | total power | 19.3 KW/380V 50HZ |
| 外形尺寸 | overall size | 5100×1400×2800mm |
| 主机重量 | weight | 4000kg |
