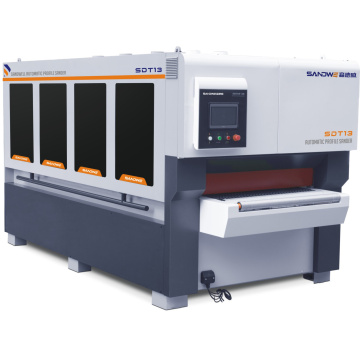

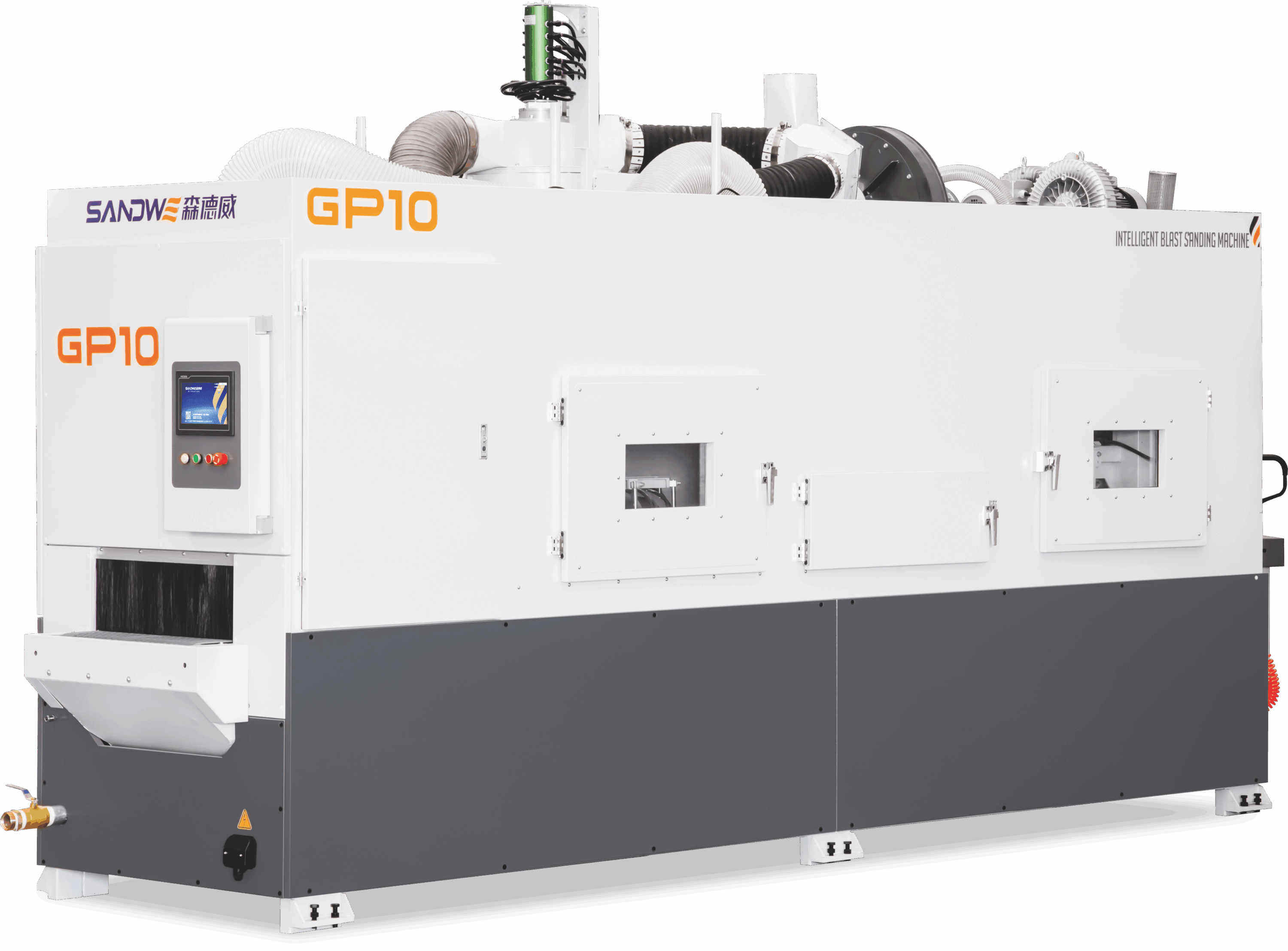

Thicknesser Furniture Wood Frame Profile Line Machine

1. Mechanical characteristics:

   1) Stirring cage recovery system: High-pressure air jets impact the workpiece surface, causing sand grains to fall into storage by gravity. The sand tank and stirring cage sand and dust conveying system collect them and send them to the sand and dust separation system for recycling, thereby improving the utilization rate of contrast sand granules.

   2) Sand and dust separation system: During the grinding process, some abrasives turn into dust upon impact. The main function of the separation system is to separate and discharge the dust from the recovered sand-dust mixture while recycling reusable sand grains. This cycle repeats until consumed.

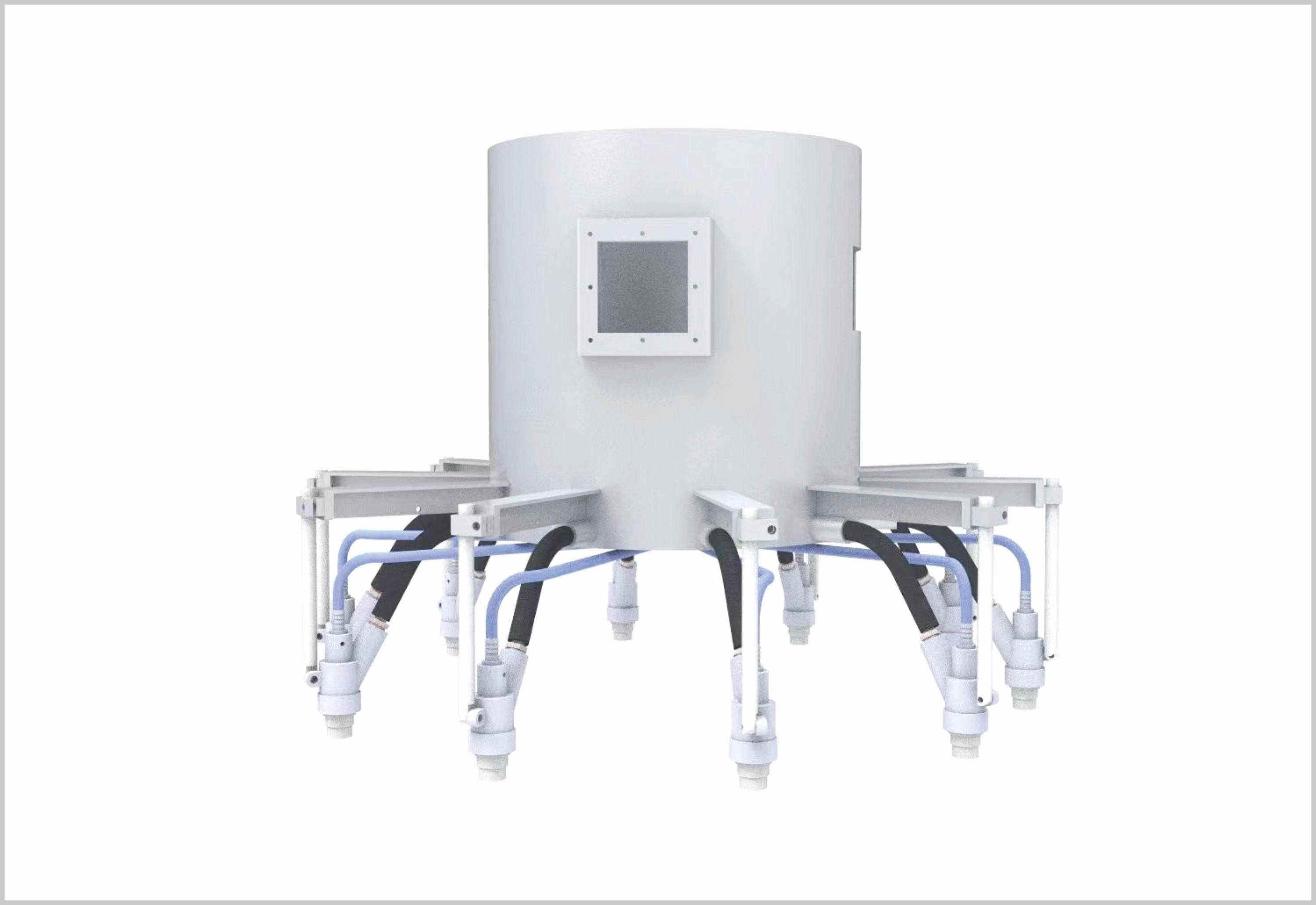

   3) Independent lifting control and adjustment system with a rotary spray gun (10): The spray gun can be adjusted by lifting it at various angles according to the thickness of the workpiece, ensuring an optimal fit between the spray gun and machined parts within a range of 650mm for optimal sandblasting grinding.

Comparative advantages:

1. Rapid adjustment facilitates easy conversion between production products, ensuring an ideal sanding effect.

2. Efficiently saves air source, reduces working pressure, and minimizes power consumption of air compressor.

4) Double polishing special-shaped sand roller: Significantly improves sanding effect while reducing manual grinding workload.

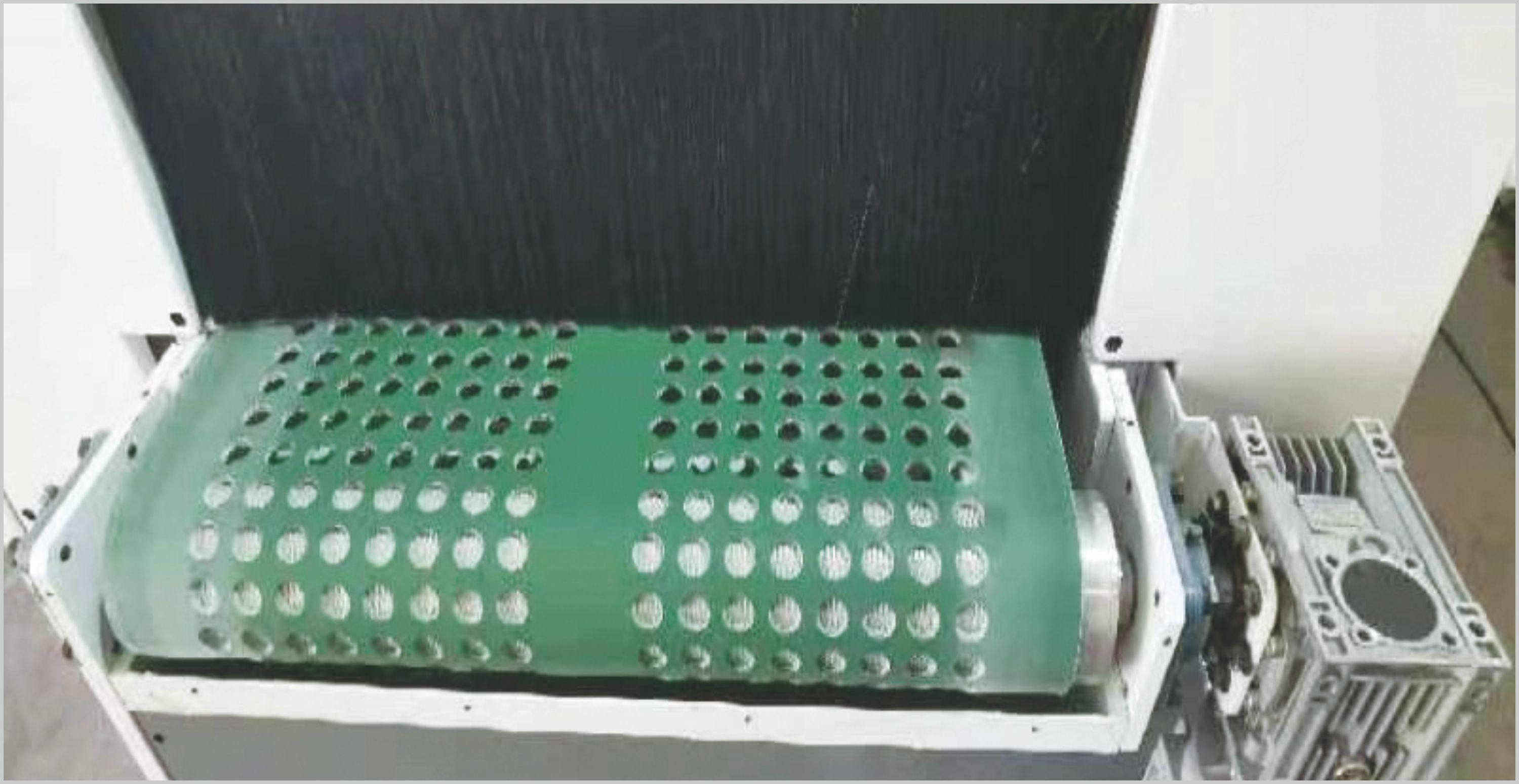

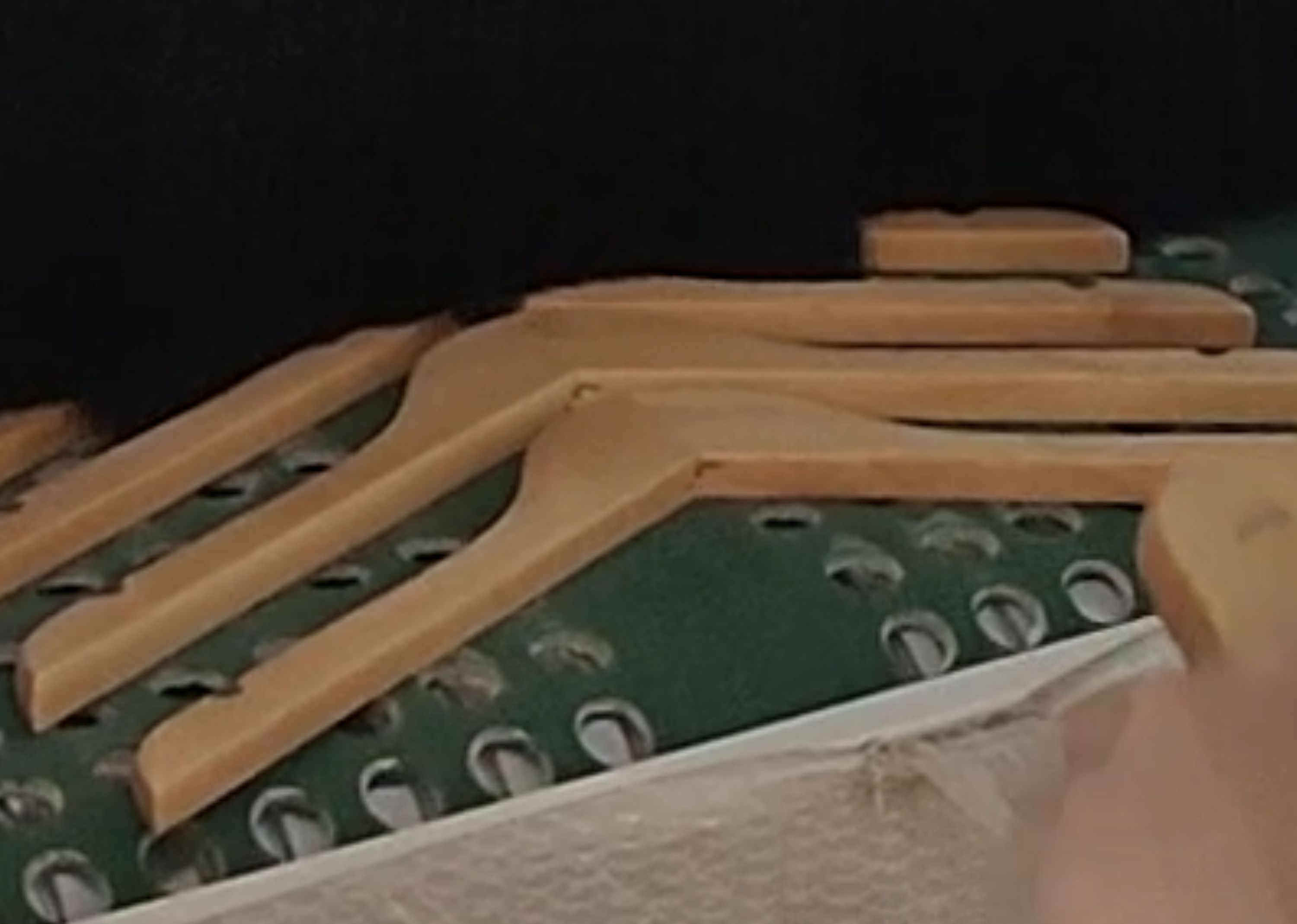

5) Belt conveyor system: Utilizing a perforated belt conveying system for irregular or small workpieces ensures smoother conveyance, wider application range, thorough recovery cycle of sand grains, reduced backlog waste.

6) Air knife dust removal system: Comprising three air knives, two special-shaped sand rollers, and an independent lifting pressing system that collaborates with independent airflow to effectively remove dust from cavities achieving perfect results.

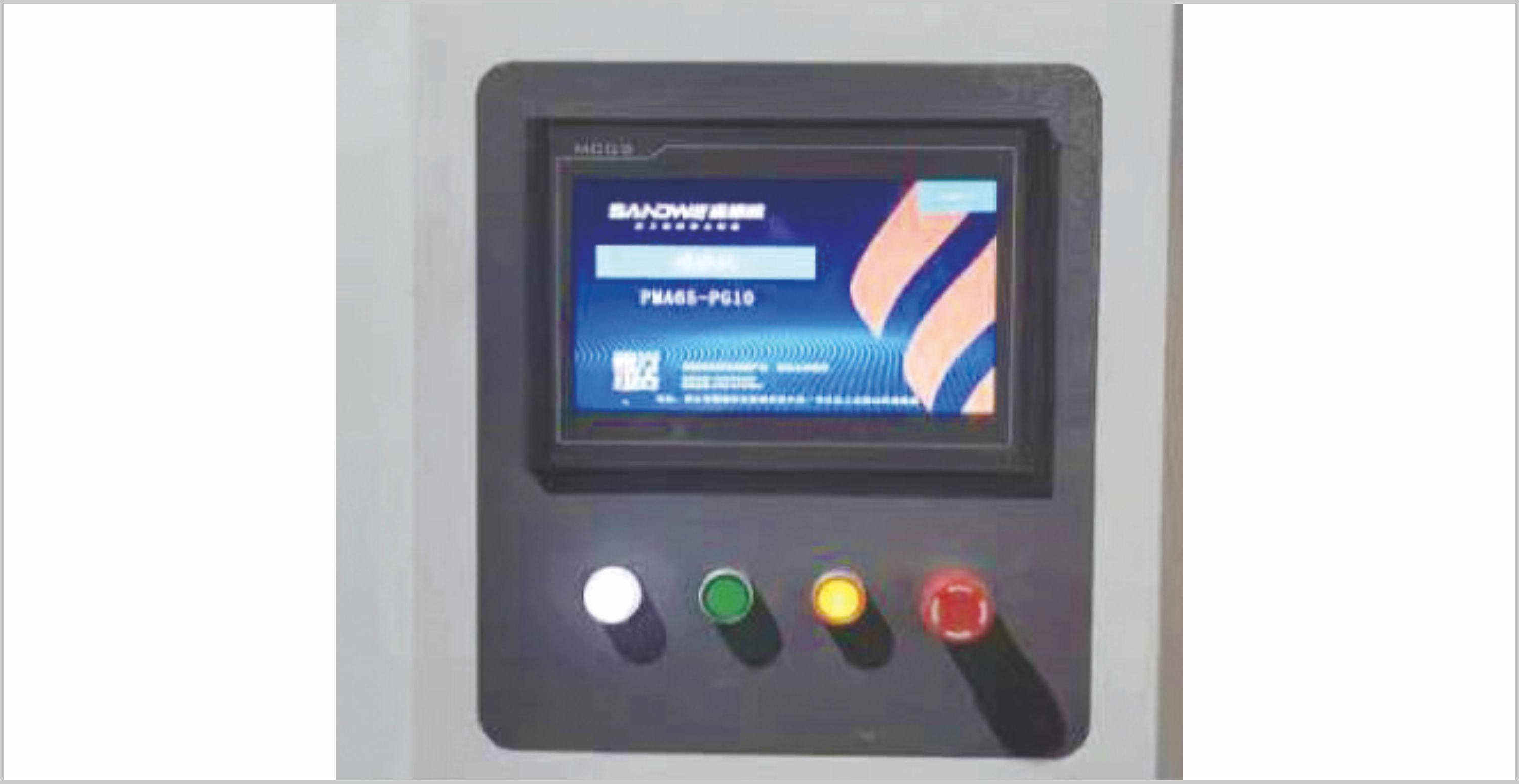

7) PLC touch screen man-machine interface: A simple yet clear touch screen interface facilitating operation.

 5. Description of mechanical parameters:
