  • Product Description
Overview
Product Attributes

BrandSANDWELL

Machine TypeWood Sanding Machine

Video Factory InspectionProvided

Mechanical Test ReportProvided

Marketing TypeOrdinary Product

Core Component Warranty Period1 Year

Core ComponentsPlc, Bearing, Gearbox, Motor

Warranty Period1 Year

Core Selling PointEasy To Operate, High Productivity, High Safety Level, High-Accuracy, Competitive Price, Patented Product, Long Service Life, High Rigidity, Multifunctional, Flexible Manufacturing, Energy Saving

Showroom Location (in Which Countries Are There Sample Rooms Overseas)Viet Nam, Russia, Indonesia, Malaysia, Australia

Out-of-warranty ServiceVideo Technical Support, Online Support, Field Maintenance And Repair Service

Applicable IndustryAdvertising Company, Construction Works, Energy &Amp; Mining, Farms, Manufacturing Plant, Other

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets)Viet Nam, Russia, Malaysia

Supply Ability & Additional Information

TransportationOcean,Land

Place of OriginCHINA GUANGDONG

Payment TypeL/C,T/T

IncotermFOB,EXW

Packaging & Delivery
Selling Units:
Set/Sets

Sandwell Profile Sanding Machine



SDM10 series



Excellent characteristics

1 This machine is suitable for the sanding treatment of all kinds of processing parts such as wood doors and windows, handicrafts, composite plates, panel furniture and other flat and concave processing.

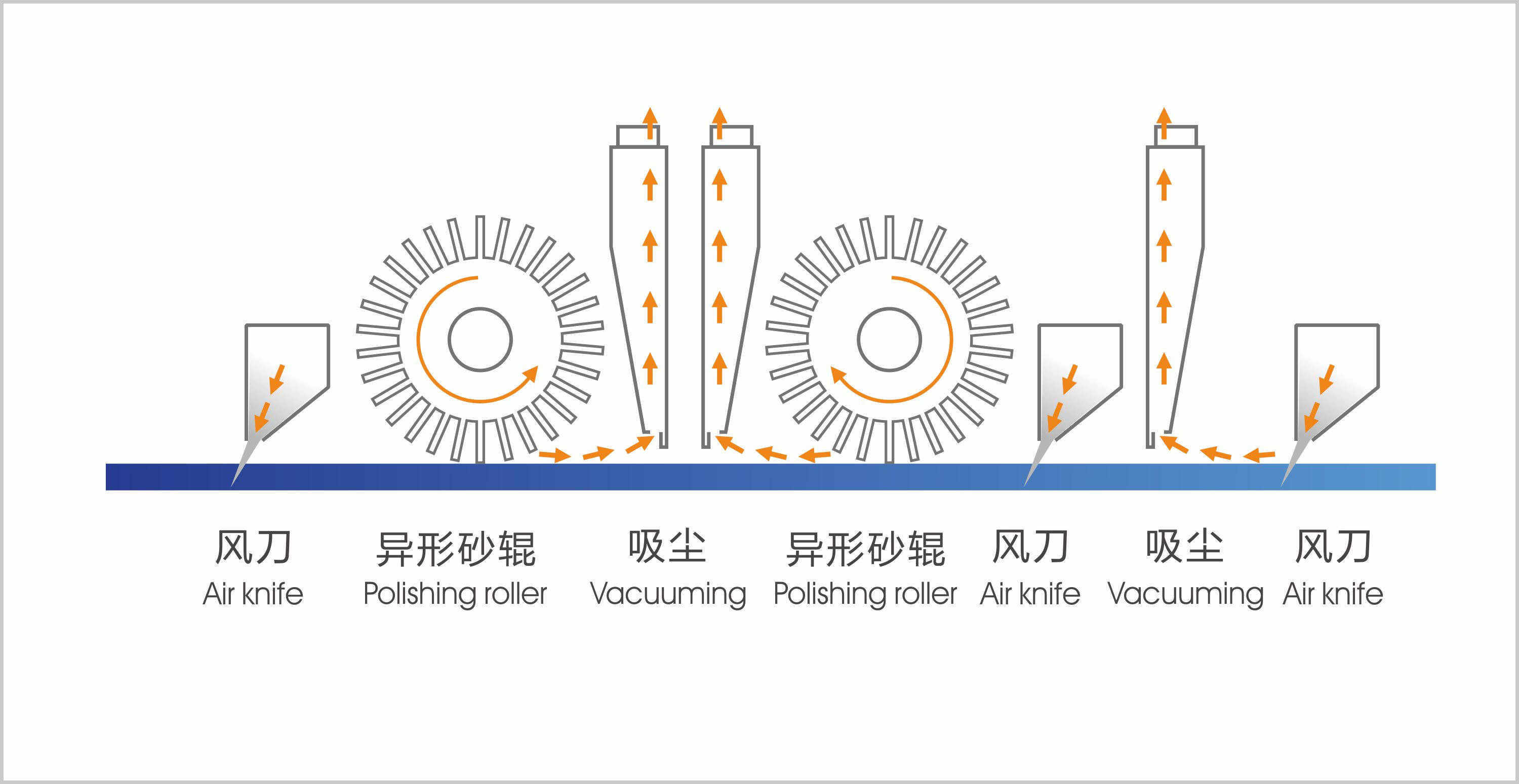

2 Use a large-diameter flat sanding roller to match the brush sanding roller to deeply polish the surface of the concave workpiece.

3 It is fixed by working conveyor, and the transmission speed is controlled by frequency conversion, which is convenient for connection.

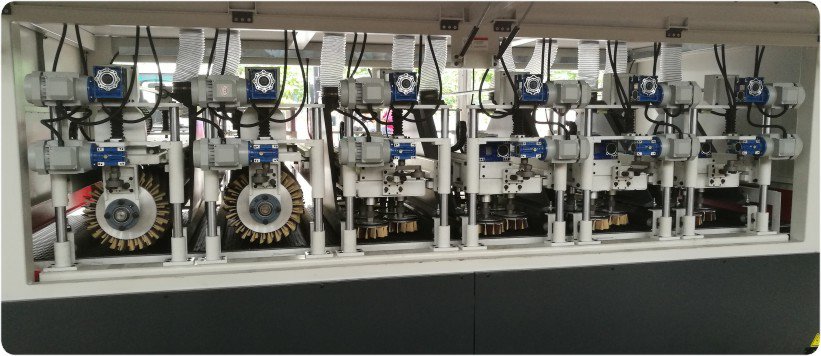

4 Each sanding unit can be easily replaced with abrasives of various specifications according to the needs.

5 Each group of sanding units adopts independent frequency conversion control speed regulation, which can effectively adjust to the grinding effect.

6 Adopt imported electrical PLC automatic control, touch screen operating system.



Equipment model   SDM10-DDPPCC



Workpiece width  201000 mm



Minimum length of workpiece  450 mm



Workpiece thickness range  5 100 mm



Feed rate  1 18 m/min



Working bench height 845MM



Flat sand roll  2  Φ380×1000mm



Rotating disk sand 2组Φ 9×Φ180mm



Straight sand roller brush belt 2组Φ380×1000mm



Dust collector   Φ125×10



Total power   36 KW/380V 50HZ



Outline  dimension 5000×1900/2200×2300mm



Weight  4800/5000kg
