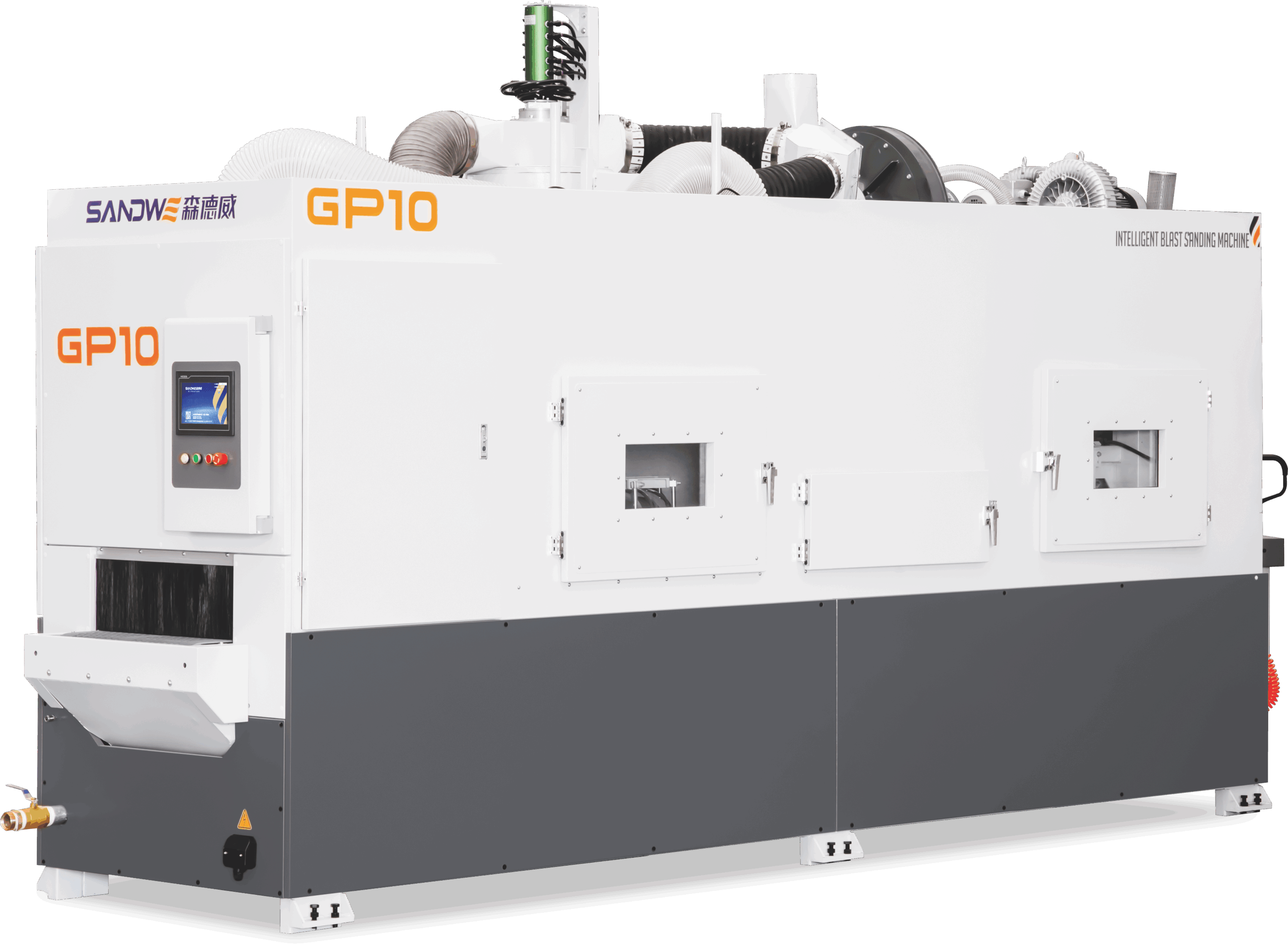

1、 Mechanical characteristics:
1) Stirring cage recovery system
Sand grains are jetted by high-pressure air, impact the surface of workpiece, and then fall into storage under the action of gravity
Sand tank and stirring cage sand and dust conveying system collect them and send them to sand and dust separation system. Contrast sand
The recycling of granules improves the utilization rate.
2) Sand and dust separation system
In the grinding process, some abrasives will turn into dust under impact. The main functions of the separation system are
The dust in the recovered sand-dust mixture is separated and discharged, and the reusable sand grains are recycled at the same time.
Repeat the cycle until it is consumed.
3) Independent lifting control and adjustment system, rotary spray gun (10)
The spray gun can be adjusted by lifting and multi-angle according to the thickness of the workpiece, and the sandblasting grinding range
Within 650mm, to ensure the perfect fit between the spray gun and the machined parts.
Comparative advantages: 1. Rapid adjustment and conversion of production products make it easier to ensure the most ideal sanding effect.
2. Save air source efficiently, reduce working pressure and reduce power consumption of air compressor.
4) Double polishing special-shaped sand roller
Comparative advantage: Greatly improve sanding effect and reduce manual grinding
Workload

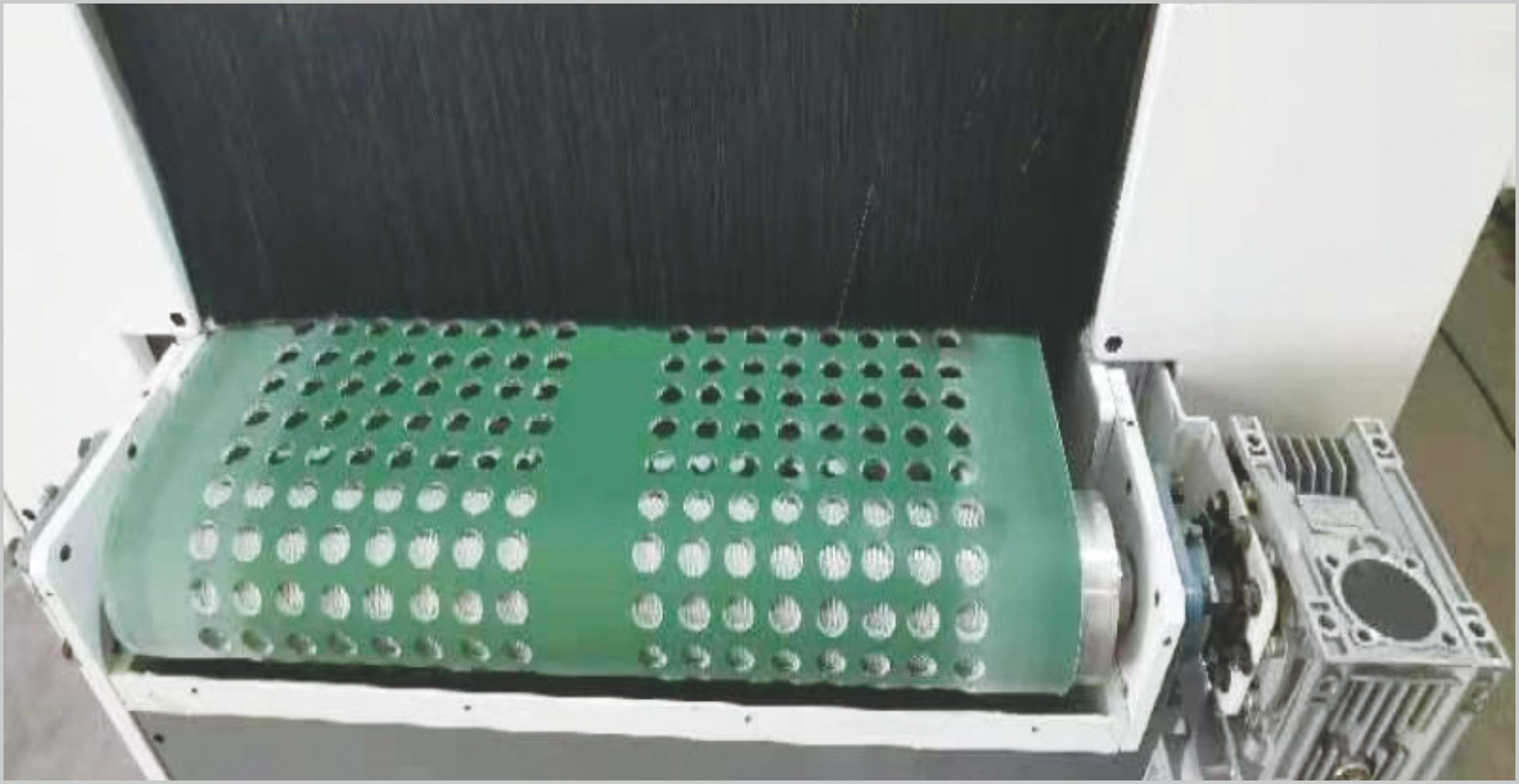

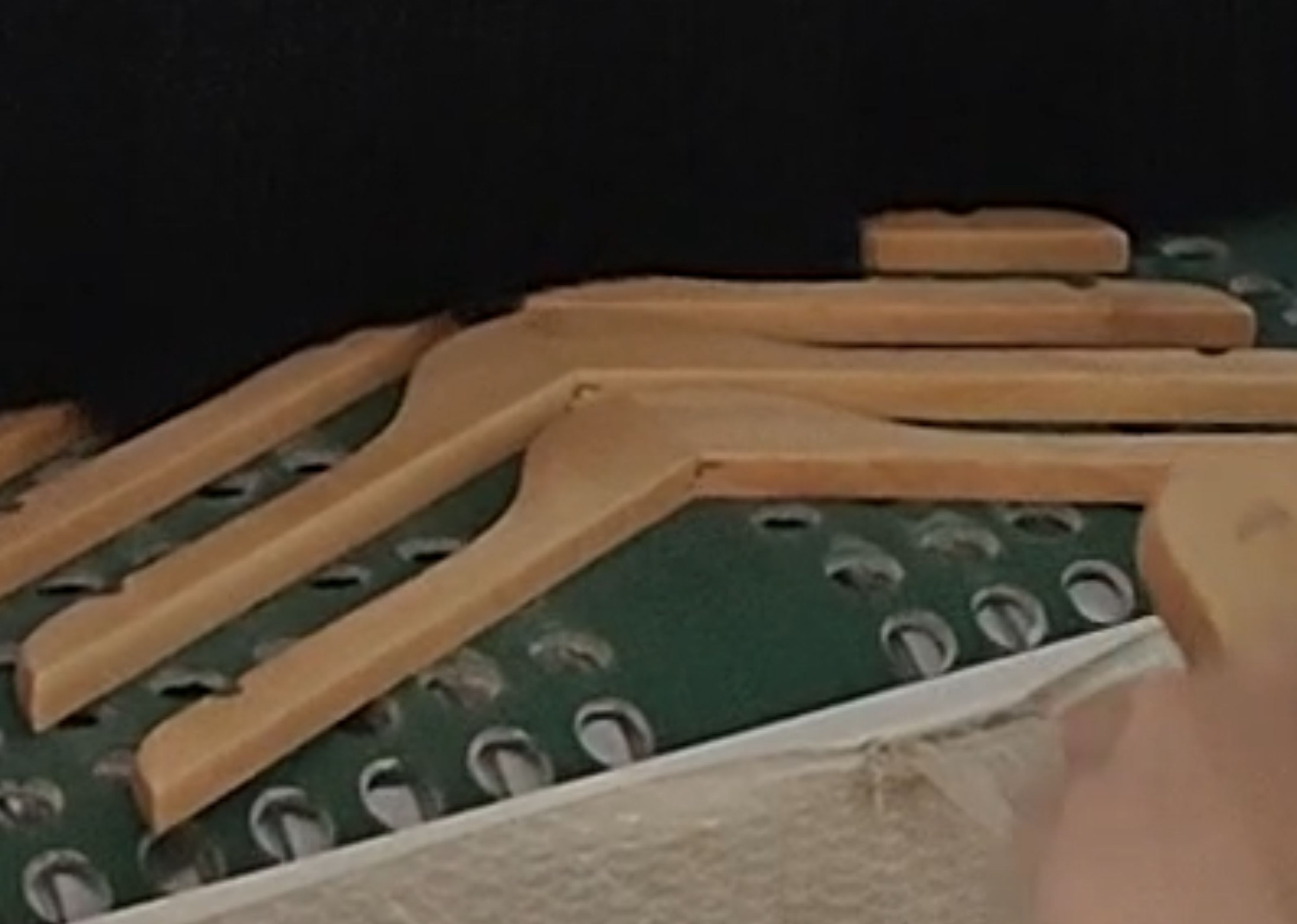

5) Belt conveyor system
Perforated belt conveying system for irregular workpieces and small workpieces
The conveying is smoother, the application range is wide, and the recovery cycle of sand grains is more thorough.
Reduce backlog and waste.
6) Air knife dust removal system
It consists of 3 air knives, 2 special-shaped sand rollers and independent lifting pressing system
Cooperate with independent airflow to run the cavity to achieve perfect dust removal effect.

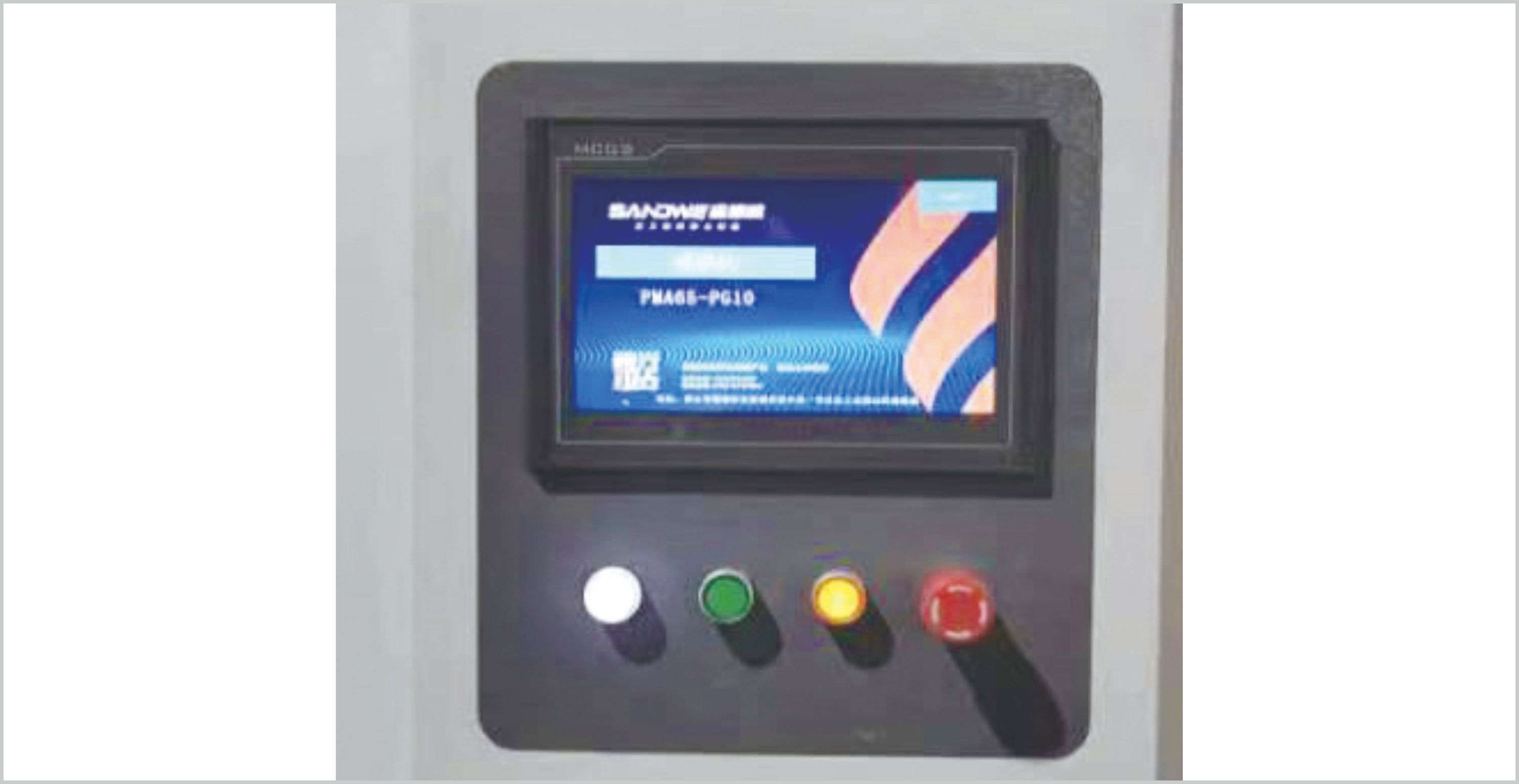

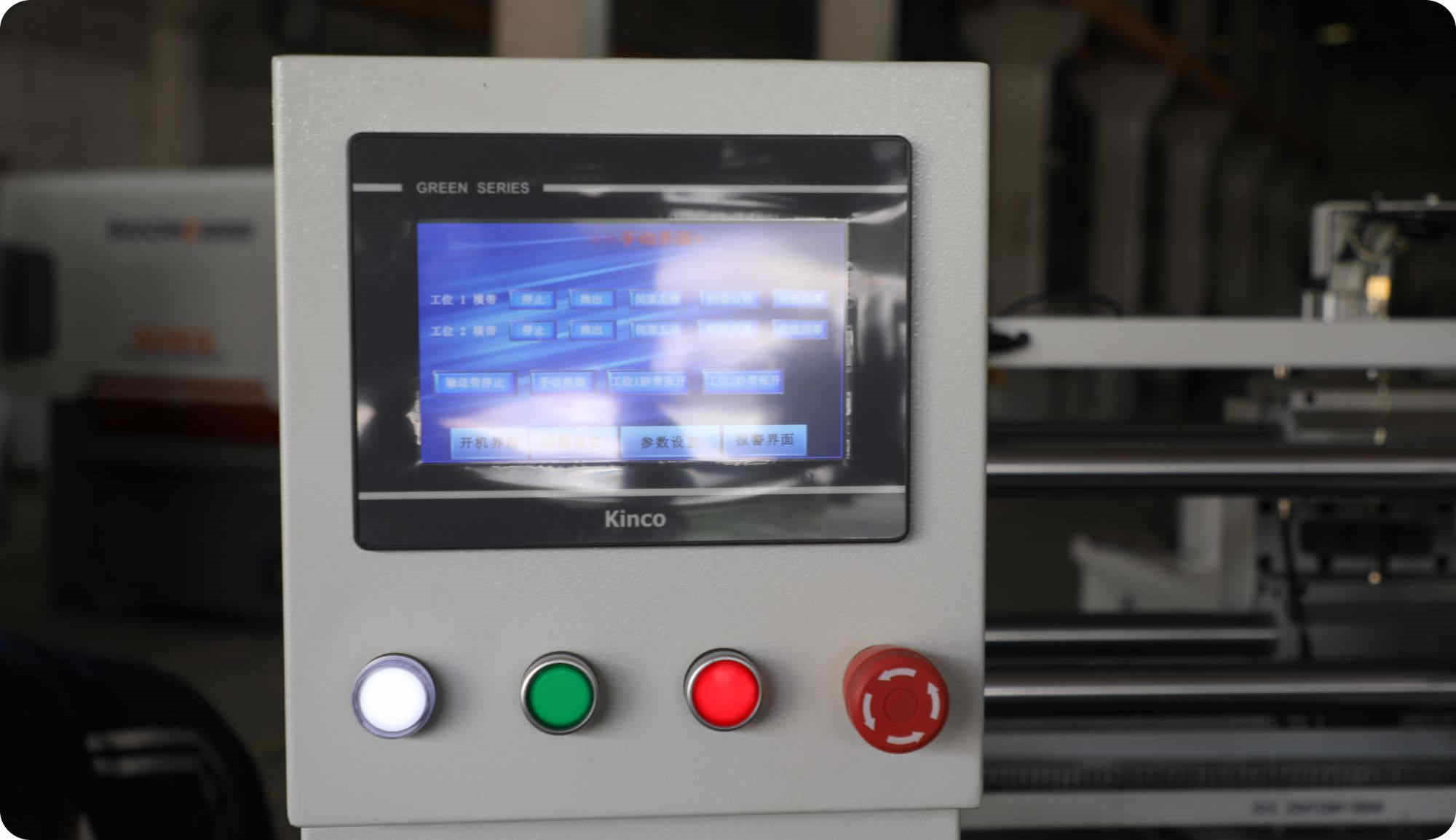

7) PLC, touch screen man-machine interface
Touch screen man-machine interface, simple and clear operation, clear operation display and fault display. PLC and frequency converter control system can realize accurate control and store a large number of sanding parameters for calling at any time
8) Multiple surfaces can be polished at the same time, which saves labor to a greater extent.
9) Sanding cover evenly, which can polish uneven paint surface evenly.
5. Description of mechanical parameters:
| 设备型号 | Model | PM65-GP10 |
| 工件宽度 | workpiece width | ≤650 mm |
| 工件最小长度 | minimum length of workpiece | ≥350 mm |
| 工件厚度范围 | workpiece thickness | ≤180 mm |
| 送料速度 | feeding speed | 1 ～ 6 m/min (推荐2.5左右） |
| 除尘滤芯 | Filter cartridges | Φ320×660mm ×5条 |
| 输送台面高度 | Conveying table height | 850 mm |
| 电源 | Power supply | 380V, 50HZ |
| 工作气压 | Working pressure | 0.6-0.8 Mpa |
| 总功率 | total power | 19.3 KW/380V 50HZ |
| 外形尺寸 | overall size | 5100×1400×2800mm |
| 主机重量 | weight | 4000kg |
