The parts can be rolled out integrally so as to facilitate the replacement of abrasives
Patent technology, sand disk design

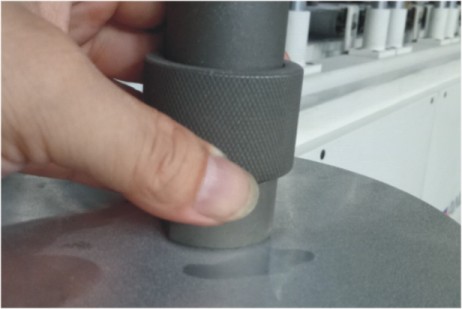

Easy and quick change structure
Super sanding height
Digital automatic height setting
PLC system control
1, this machine for solid wood furniture, solid wood flooring, wooden doors and windows, cabinets and other industries of China, primer sanding, especially has a good effect on the heterogeneous surface is polished, reduce labor intensity, reduce labor, improve the capacity of the best choice.

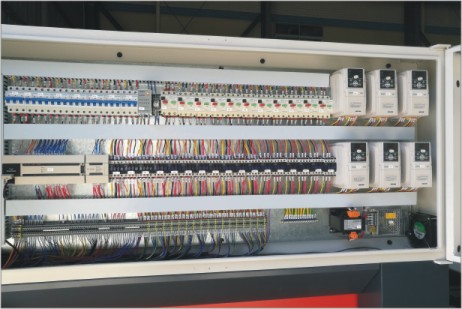

2 、 this machine adopts PLC control, touch screen operation interface, conveying and independent frequency conversion speed regulation of each group. The operation is stable and can be used for different materials. With good man-machine interface, easy to operate and convenient.

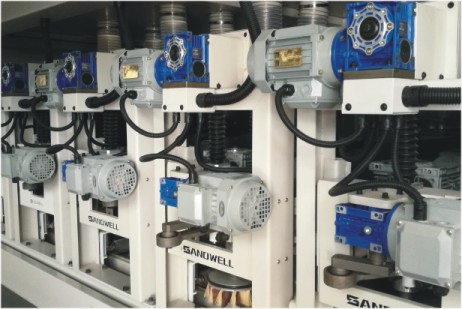

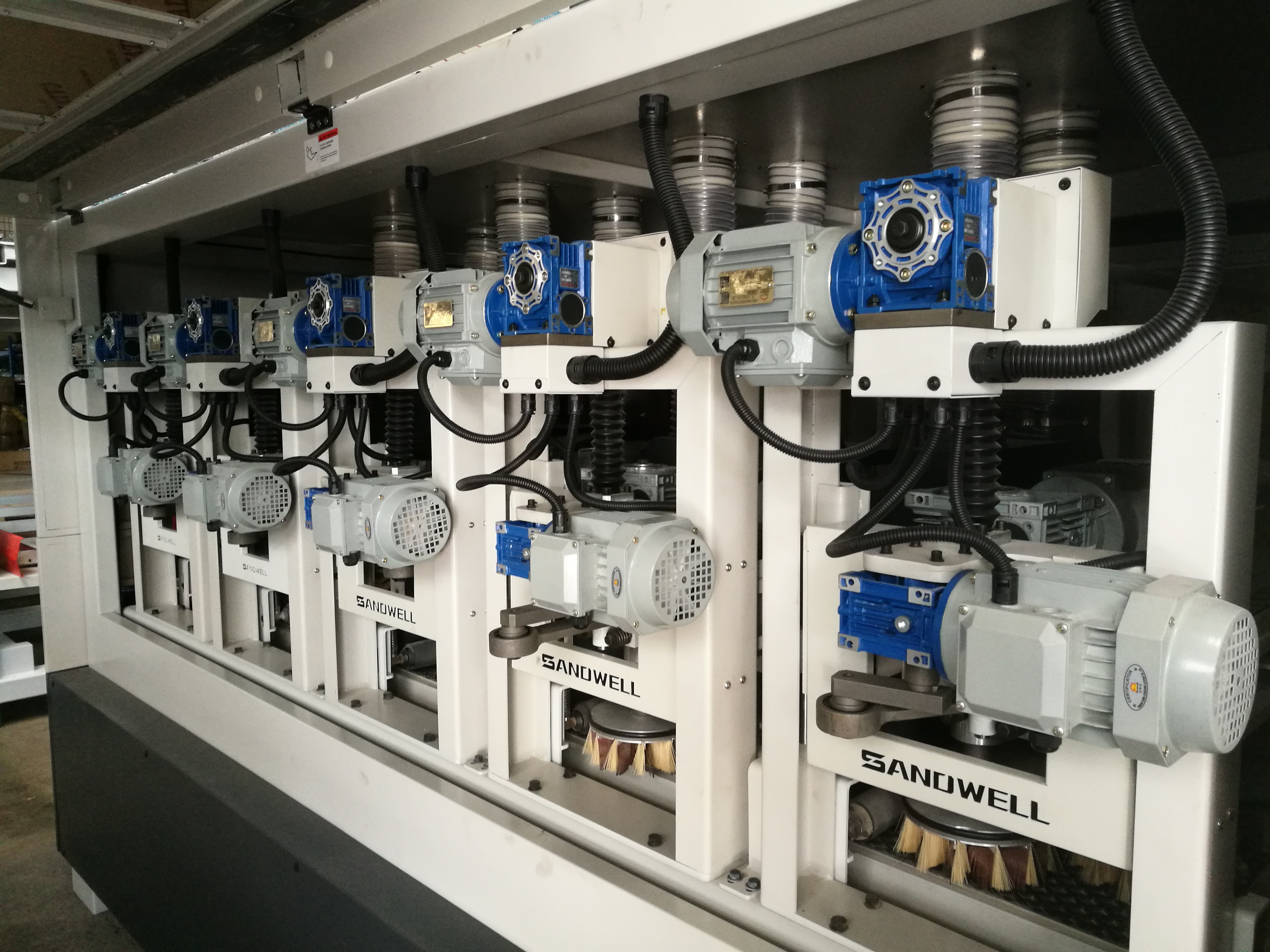

3, equipment adjustment mode as follows: first, the work table is not moving, the working group independent lifting, namely floating structure, can connect production line use.
The pressure roller and the working group are separated and adjusted independently, and the plates with deep sanding grooves are adjusted.
4 、 the sanding parts of this machine are made of aluminum profile, and they can never deform and have long service life.

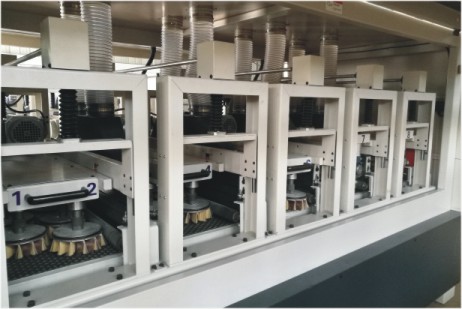

5 、 the disc adopts quick change device, sanding parts can be pulled out as a whole, and the abrasive parts can be replaced conveniently.

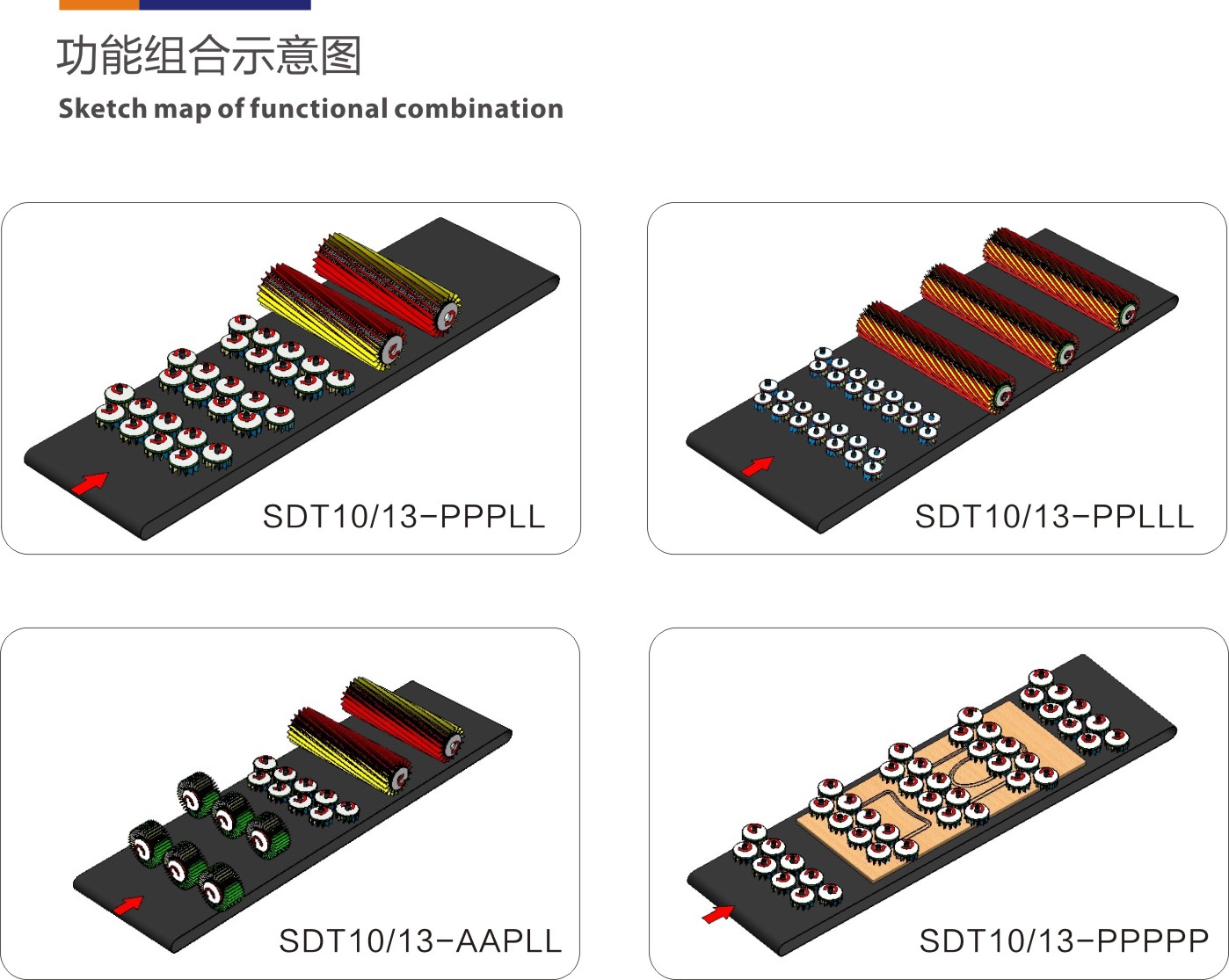

6. Sanding parts are produced by general modular production. Customers can customize the layout of equipment and components according to the different requirements of material, shape and process, so as to achieve the best sanding effect.
Equipment model SDT10/13-APPLL
Workpiece widthMinimum 50～1000/1300 mm
length of workpiece 450 mm
Workpiece thickness range 10～ 150 mm
Feed rate 1 ～ 18 m/min
Transverse round roll sand 2组 4x φ280mm
Rotating disk sand 1组9/11×Φ180mm
Spiral sand roller brush belt 2组 Φ380×1000/1300mm
Dust collector Φ125×8个
Total power 12.2KW/380V 50HZ
Outline dimension 4000×1800/2100×2000mm
Weight 2800/3200kg
