Foshan Sandwell Machinery Co.,ltd

Automatic Wooden Flat Sheet Polishing Sander Machine

Payment Type:
L/C,T/T
Incoterm:
FOB,EXW
Min. Order:
1 Set/Sets
Transportation:
Ocean,Land
Share:
  • Product Description
Overview
Product Attributes

BrandSANDWELL

Place Of OriginChina

StatusNew

Machine TypeWood Sanding Machine

Video Factory InspectionProvided

Mechanical Test ReportProvided

Marketing TypeOrdinary Product

Core Component Warranty Period1 Year

Core ComponentsPlc, Bearing, Gearbox, Motor

Warranty Period1 Year

Core Selling PointEasy To Operate, High Productivity, High Safety Level, High-Accuracy, Competitive Price, Patented Product, Long Service Life, High Rigidity, Multifunctional, Flexible Manufacturing, Energy Saving

Showroom Location (in Which Countries Are There Sample Rooms Overseas)Viet Nam, Russia, Indonesia, Malaysia, Australia

Out-of-warranty ServiceVideo Technical Support, Online Support, Field Maintenance And Repair Service

Applicable IndustryAdvertising Company, Construction Works, Farms, Energy &Amp; Mining, Manufacturing Plant, Other

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets)Viet Nam, Russia, Malaysia

Supply Ability & Additional Information

TransportationOcean,Land

Place of OriginCHINA GUANGDONG

Payment TypeL/C,T/T

IncotermFOB,EXW

Packaging & Delivery
Selling Units:
Set/Sets

1. This series has a wide range of sanding processing. Solid wood, multilayer board, density board, white embryo, wood veneer and primer of flat board can be sanded.

2. One-key start, full-automatic digital control and adjustment of the whole machine, simple and convenient operation.

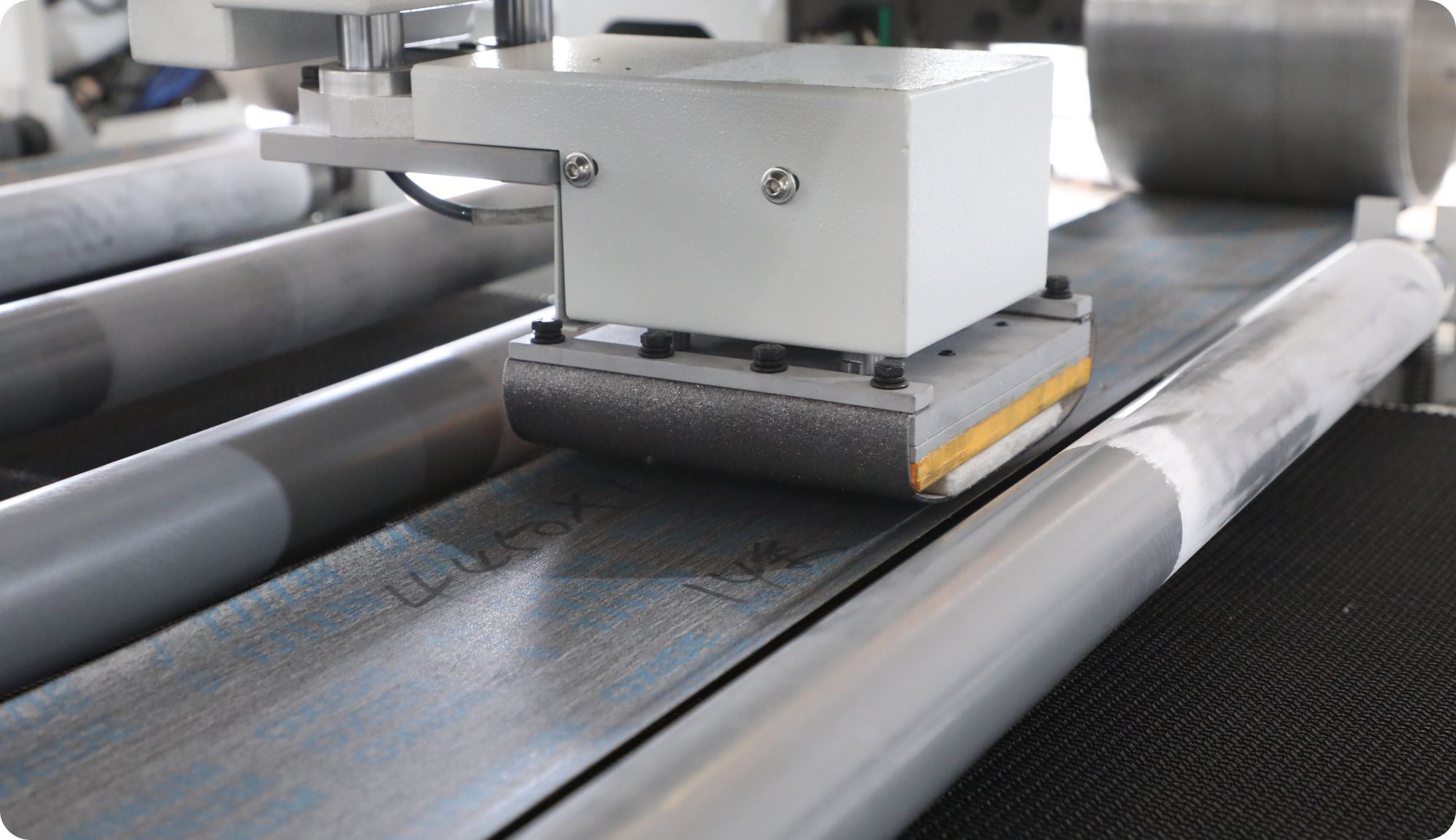

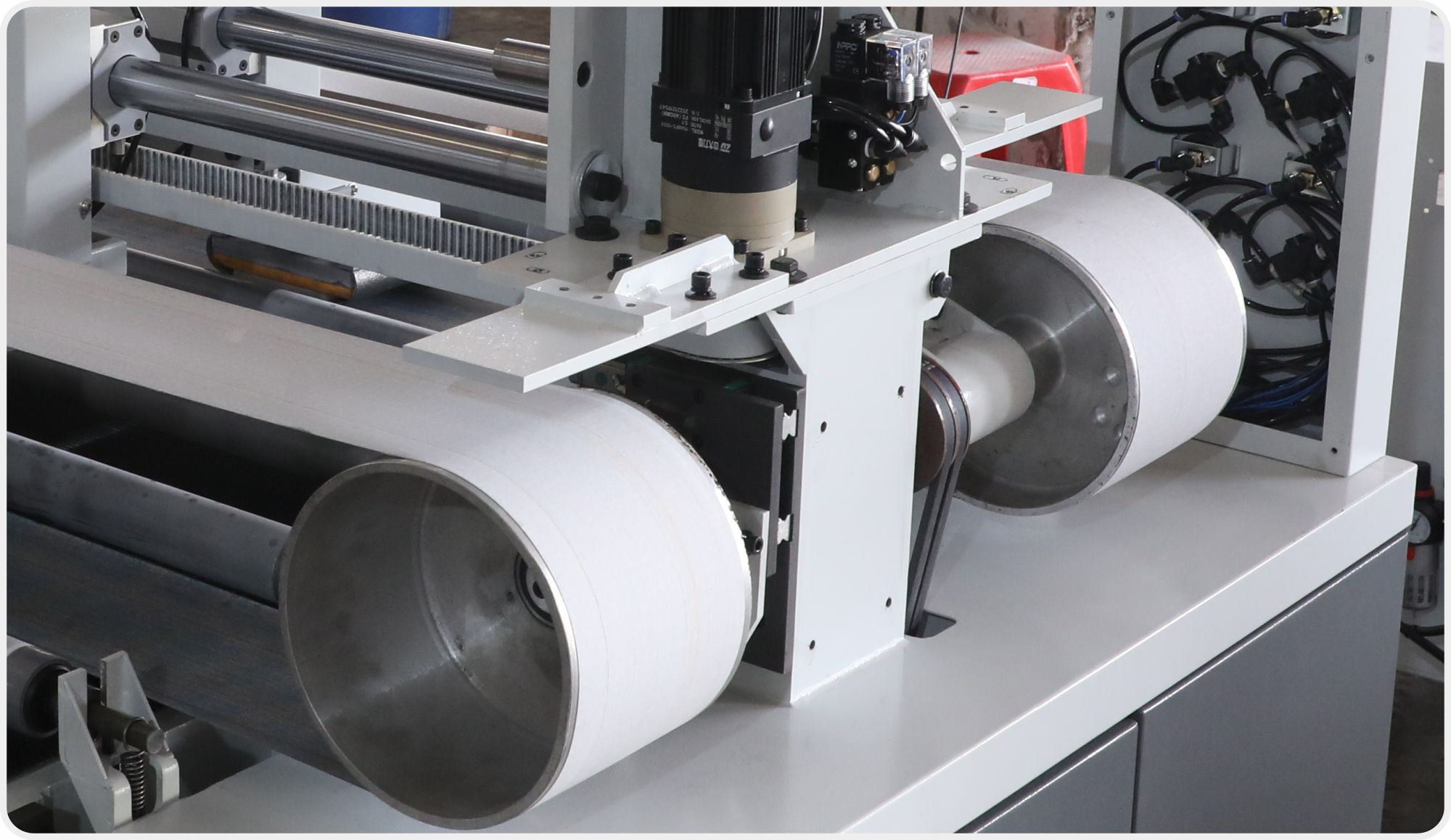

3. The two sand heads are driven by servo, and the position is accurate, which can well protect the head, tail and side of the plate from sand penetration.

4. The system adopts PLC program to control touch screen communication frequency converter, which can visually display, operate, adjust, maintain and indicate.



Cabinet Wood Profile sanding machineMDF Profile Sanding Machine

Equipment model

SSA13-H2

Machining width

301300 mm

Minimum machining length

300 mm

Machining thickness

5 250 mm

Feeding speed

1 10 m/min

Conveying motor power

1.5kw

Power of sand pressing servo motor

2×1.0kw

Lifting motor power

1×0.55kw

Power of transverse sand main motor

2×2.2kw

Abrasive belt size

4450x180mm


Conveyor belt width

1300mm

Power supply requirements

3/N/PE  380/220V   50Hz

Gas source pressure

4-6MPa

Velocity of dust collection

22n/s

Vacuum suction port

Φ125mm×2

Total power

8.45kw

Overall dimension

2150×2180×1650mm

Packaging size

1750×2180×1650

Weight

1200kg
