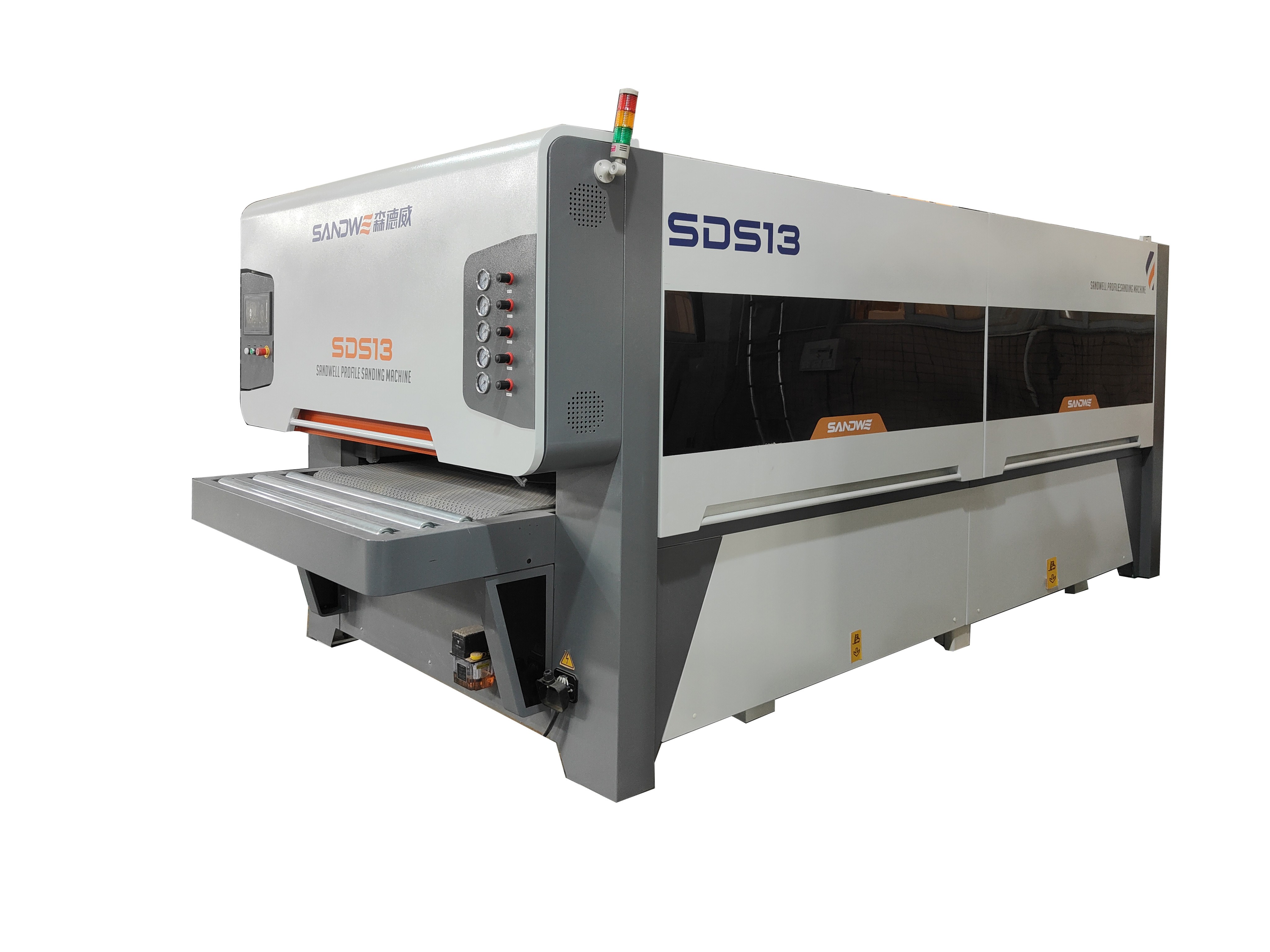

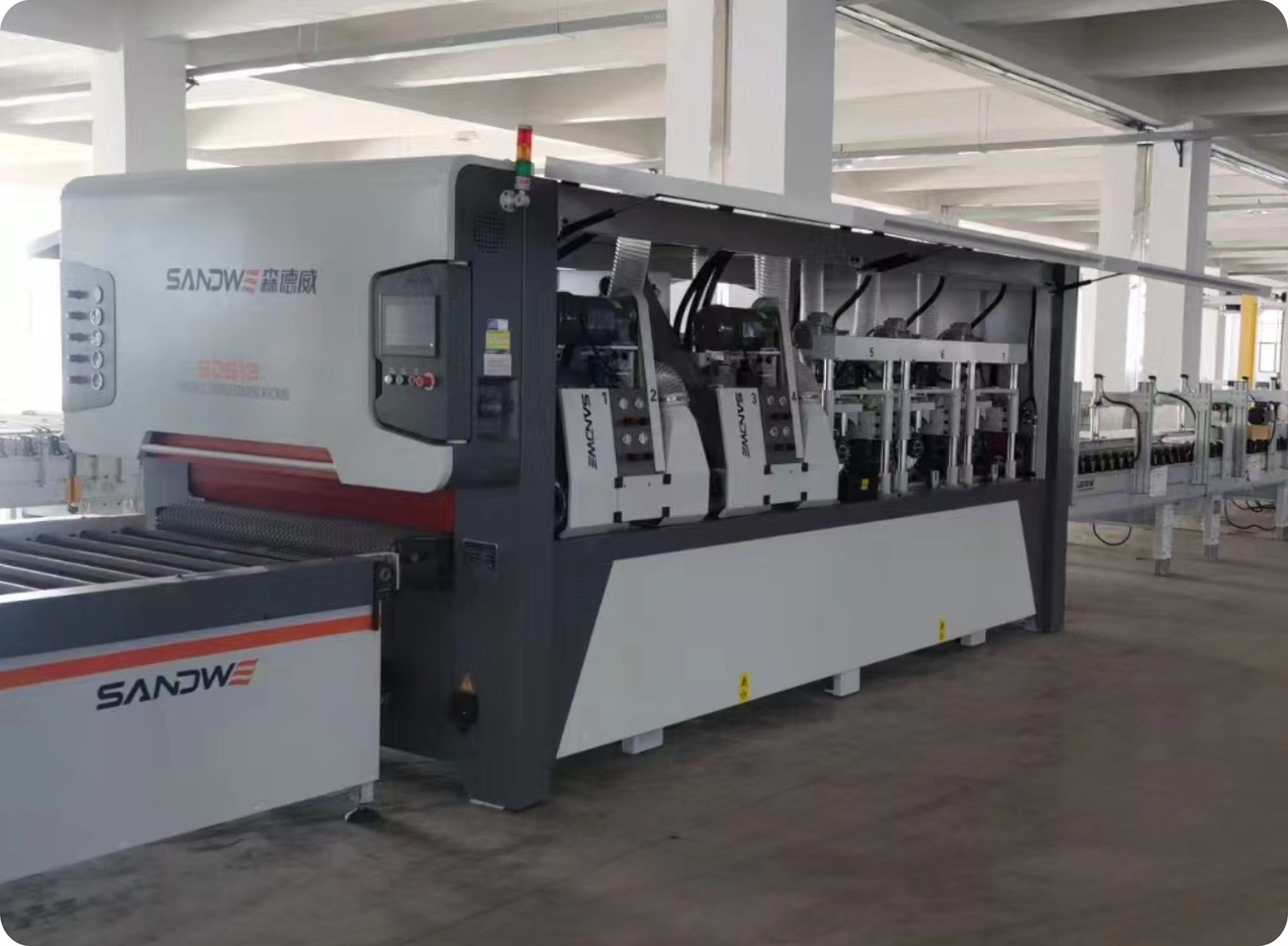

CNC Plane-Profiled Sanding Machine SDS13-H4L3
This Intelligent Furniture Profiled Sanding is suitable for flat surface shaped blanks and paint sanding of flat door, flat carved door, painted door, solid wood frame door,etc. In addition to category products sanding,it can also be used for all kinds of plane products (such as window, photo frame, cabinet, bed, wood line, etc.) surface white billet, paint sanding.
Modular sanding parts design can be diversified according to different processes
Improve sanding efficiency by 3-10 times and reduce labor by more than 70%.
The equipment adopts heavy-duty structure and integral frame to ensure stable operation and sanding precision.
Functional features:
1) This series of Plywood Profile Sander Machine has a wide machining range, with a sanding height of 150mm and a width of 1300mm.
2) The whole machine fully automatically controls all adjustments, which is simple and convenient to operate and starts with one click.

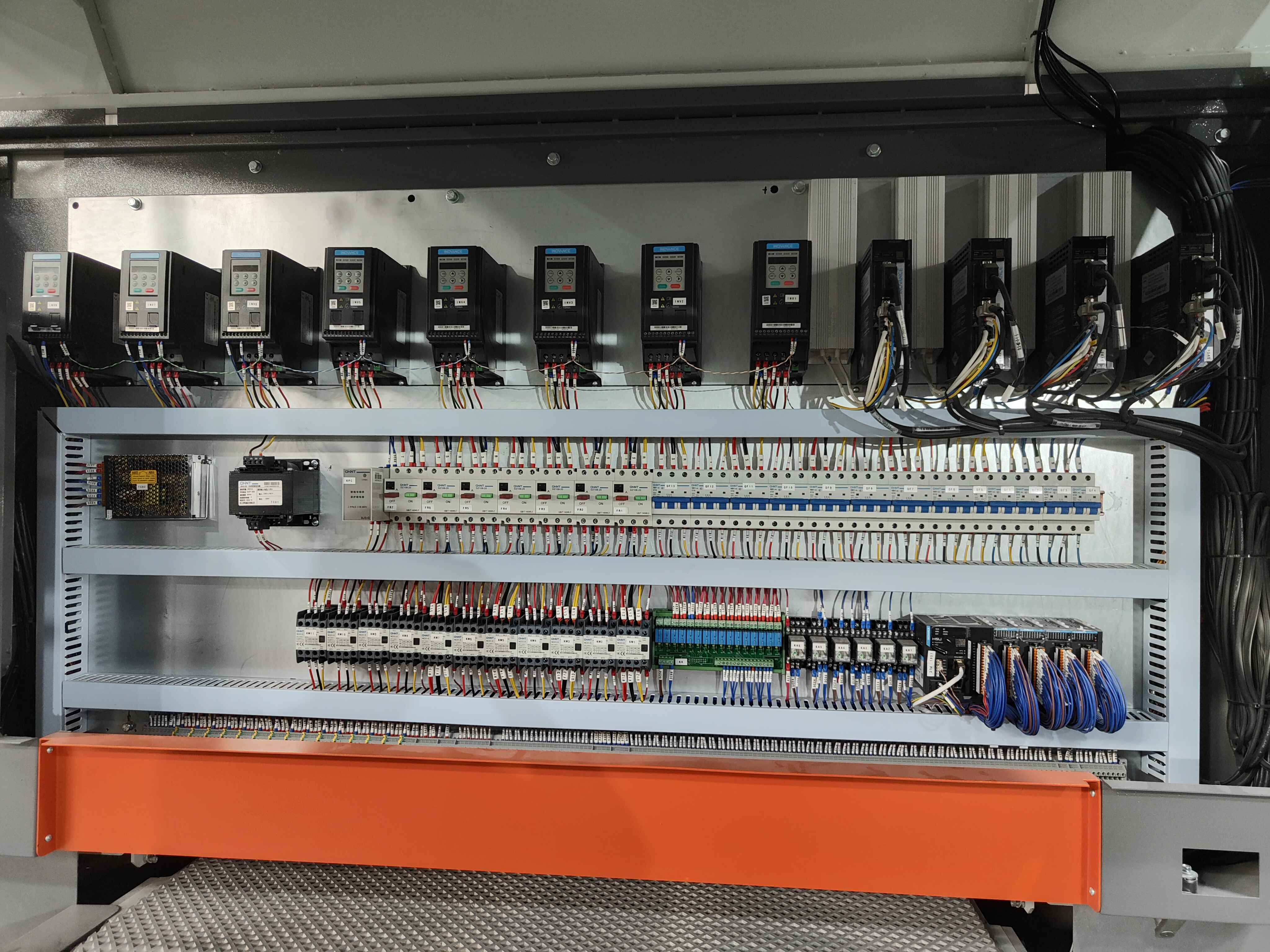

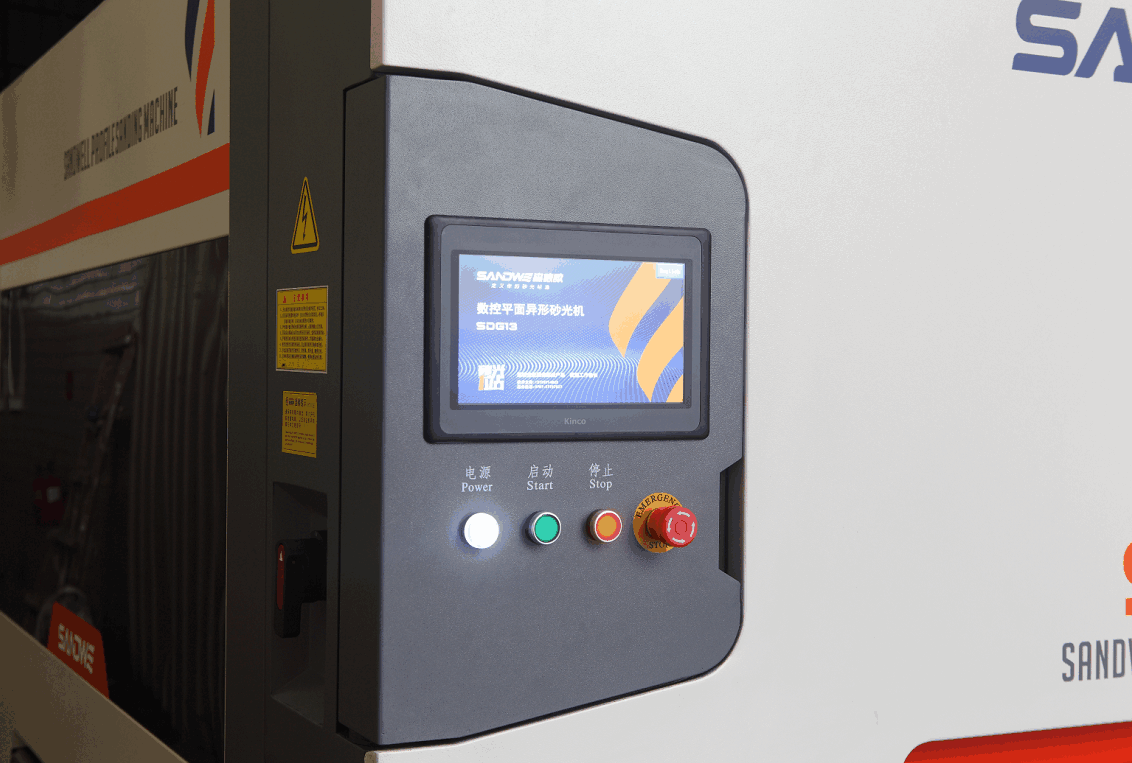

3) The system adopts PLC to connect the high-definition touch screen communication frequency converter to intuitively display, operate, adjust, maintain and instruct.
4) One-click tuner, hundreds of product code memory storage, suitable for the rapid adjustment of sanding of a variety of different workpieces.
5) Automatic induction of feeding position, automatic deceleration of sand roller, effective protection of the head and tail of the workpiece.

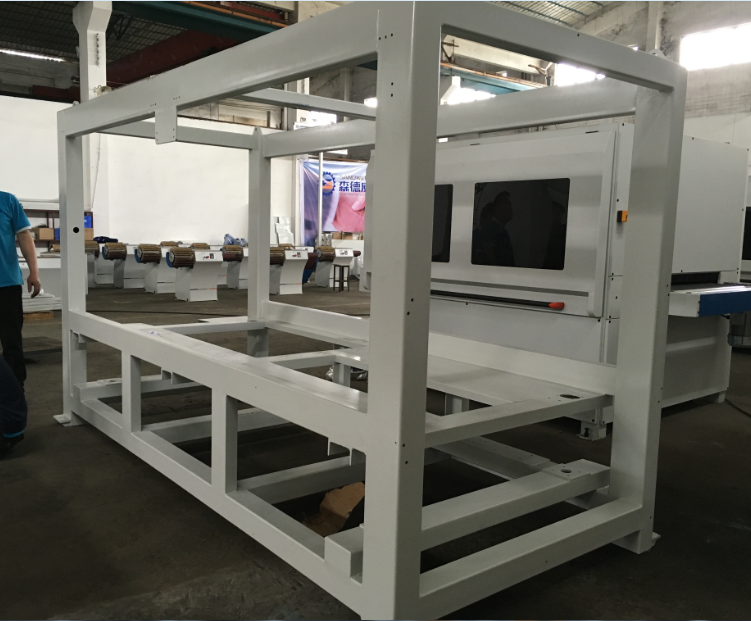

6) Welding and annealing aging of the overall rack structure profile to ensure the stable operation of the equipment and the sanding accuracy.
7) Modular production of sanding components, independent frequency conversion speed regulation, independent lifting control, independent oscillating swing, according to the different requirements of customer products for sanding, the process configuration and layout of equipment components can be customized to achieve the best sanding effect.
8) The conveying workbench is fixed, the sanding unit is floating on the whole, and the pressing is independent, which is convenient for multi-machine automatic connection.
Parameter:
| Equipment model | SDG13-H4L3 |
| Workpiece width | 50～1300 mm |
| Minimum length of workpiece | 600 mm |
| Workpiece thickness range | 10 ～ 150 mm |
| Lifting power | 1.1 kw |
| Feeding power | 2.2kw |
| Feeding speed | 1 ～ 12m/min |
| Servo motor power | 2.6kw |
| Horizontal band sand | 4×1.5 kw |
| Sand abrasive belt brush roller | 3×1.5 kw Φ380×1300mm |
| Vacuum cleaner | Φ125×10 unit |
| Total power | 19.7KW/380V 50HZ |
| Outline dimension | 5500×2150×2000mm |
| Weight | 5500kg |
Mechanical configuration specification：
Feed detection device
72 sets of induction switches， detection of sheet width， length and other position parameters. FEED position 3D data scanning， sand roller automatic
C deceleration， effective protection of workpiece head and tail.
Description of CNC flat sand components: (two groups in forward and reverse directions)
The movement mode is based on the principle of horizontal strip sanding, which is equipped with a CNC swing head inside. According to the needs of the board surface, sanding can automatically identify the size and position of the board, and the pressure and speed of CNC sanding can be adjusted! Sanding the surface of the workpiece, smoothing out deformed boards, boards with large size errors, paint sags, paint surface particles, orange peel, and uneven surfaces, and breaking the paint surface. Good sanding effect !

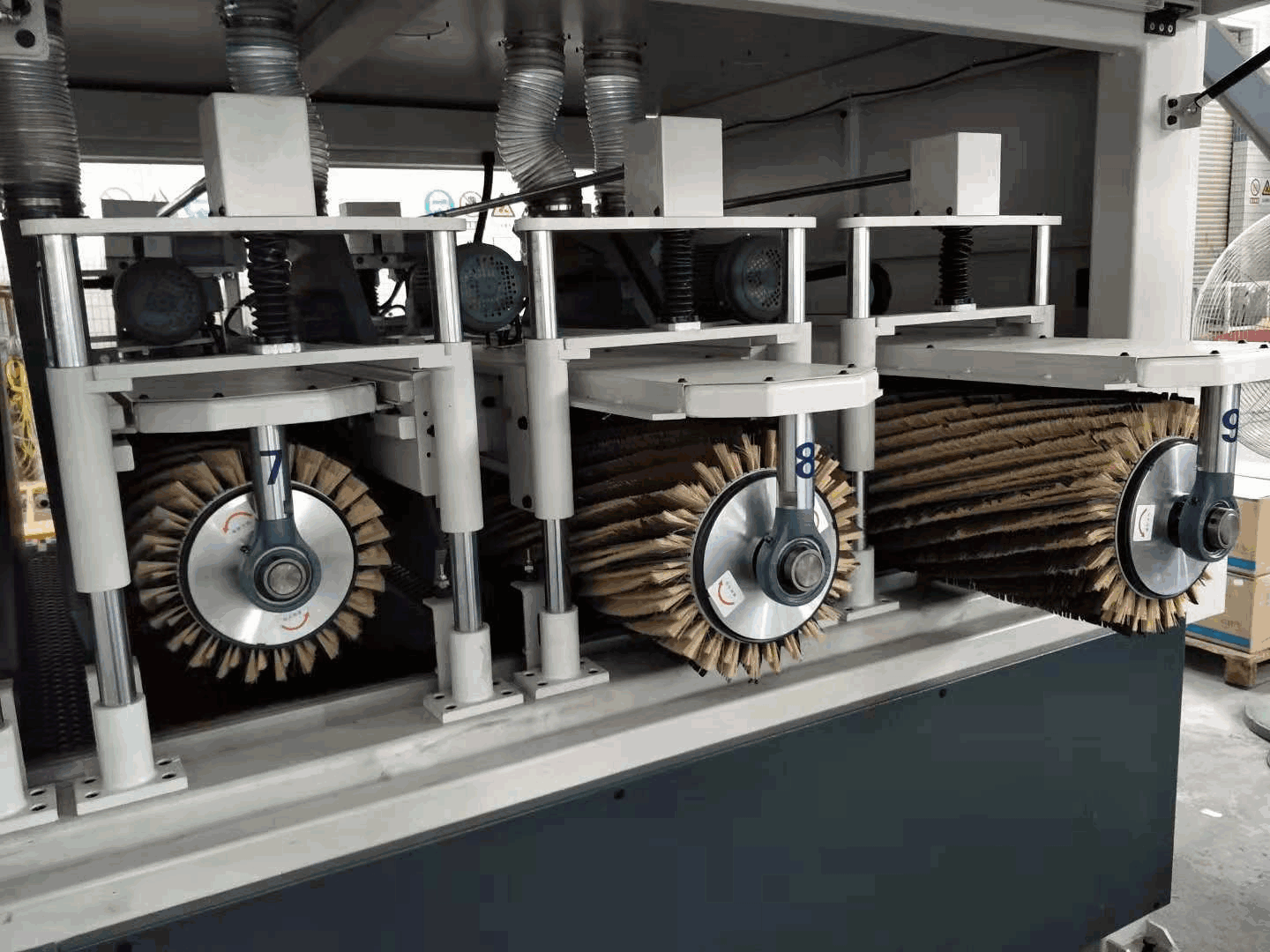

Spiral roller sanding unit
Two or three sets of sanding units, with positive and negative effects, with large diameter sanding rollers for large-scale sanding, comprehensively smoothing the sand lines of the first few sanding passes. And sand polish the concave and convex surfaces.
High Pressure Dust Blowing Device
Using compressed air to clean the surface after sanding.
