Product description:

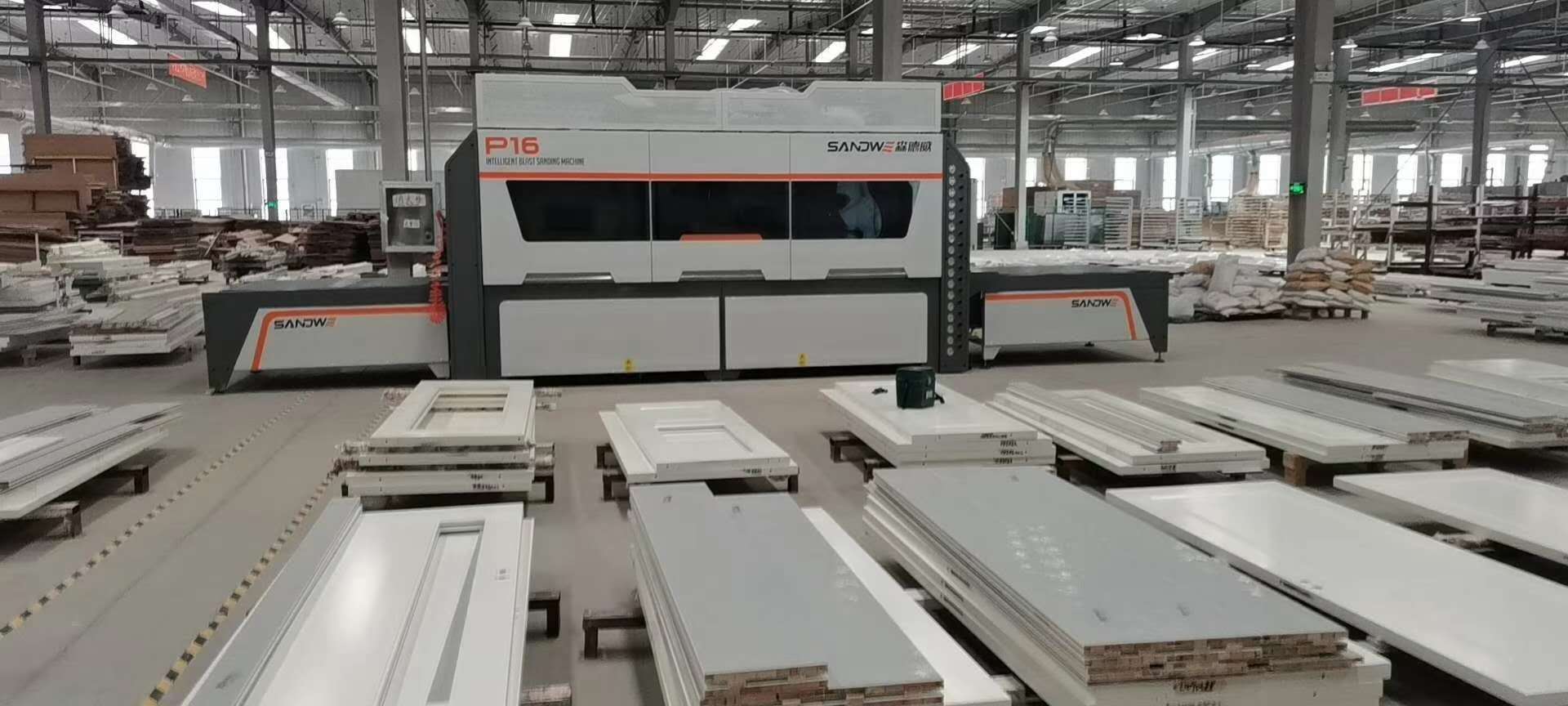

Intelligent Blast Sanding Machine
Model: PM65-GP16
Solve the problem of incomplete sanding in one go and achieve perfect sanding effect for irregular parts. Solid wood doors, cabinet doors, bathroom panels, and wiring
Conditions, whole house customization, painting and sanding operations for multi sided and irregular surfaces of panel furniture and other workpieces.

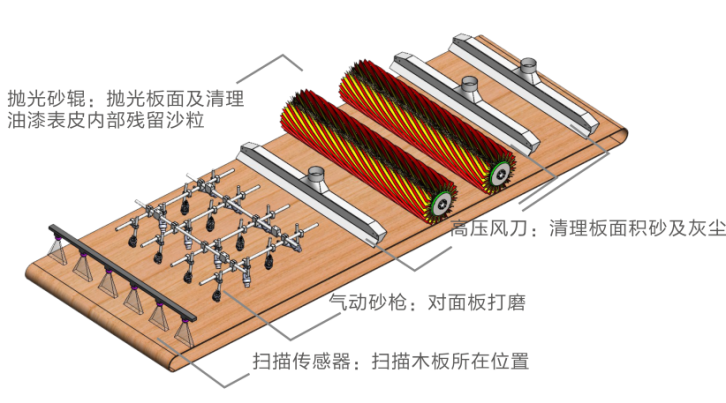

Special-shaped sand blasting machine configuration:
Polishing sand roller: Polishing the surface of the board and cleaning residual sand particles inside the paint surface
High pressure air knife: Clean the sand and dust on the surface of the board
Pneumatic sand gun: polishing the panel
Scanning sensor: scans the position of the wooden board
Automated sand blasting machine Function Description：
Two closed enclosures
Advantages of Two Layer Enclosed Shell Comparison: Two layer mechanical sealing can greatly reduce the rate of dust leakage.
Dual sand and dust separation system
The dual sand and dust separation system separates the sand particles and dust from the recovered sand and dust mixture. During the polishing process, some abrasives will become dust under impact. The dual sand and dust separation system uses negative pressure to recover the dust, with a maximum recovery rate of 99%.
Double polished sander
Comparative advantage of double polishing sand stick: significantly improves sanding effect and reduces manual grinding workload (note: polishing will improve polishing effect by 30%)
Independent lifting control adjustment of spray gun
16-20 spray guns can be adjusted according to thickness and multiple angles to ensure a perfect fit between the spray gun and the workpiece.
1. Rapid adjustment of production products makes it easier to ensure the best sanding effect.
2. Efficiently saving air sources, reducing working air pressure, directly affecting the power consumption of the air compressor and the matching mileage of the air compressor.
One click start and program storage function
PLC touch screen human-machine interface, simple and clear operation, clear operation display, and fault display. The PLC frequency converter control system can achieve precise control and store a large number of sanding parameters for easy access and rapid production conversion.
Automatic sand addition function
It does not cause inconvenience due to the use of sand, reducing the difficulty of worker operation. It can automatically supply sand addition by machinery, without the need for sand waste caused by improper worker operation. Ensure uniform and stable sanding effect.
Intelligent solar term system
By using a feed sensing system, the corresponding spray gun is automatically turned on and off to save gas and sand. Save air compressor costs and power consumption.
Double churn system
At the same time as the dust in the double stirring cage system is recovered, the abrasive falls into the sand storage tank under the action of gravity. The abrasive recycling system recovers and recycles it, improving utilization efficiency and greatly reducing material costs. Two sets of agitation cage sand and dust conveying systems are more efficient in sending sand and dust into the separation system.
Blade dust removal system
By using 3 air knives, 2 cleaning rollers, and an independent lifting and pressing system in conjunction with independent airflow to operate the chamber, the perfect dust removal effect is achieved.
Forward feed conveyor and rear discharge conveyor
Suitable for situations where there is no connecting operation or no connecting operation conditions, the front and rear feeding and discharging belts selected to reduce labor intensity can be selected separately, that is, single feeding or single discharging.
Size: 1850 X 1600
Independent dust removal box system
In the absence of central vacuum or poor vacuum conditions, this component can be selected to temporarily collect dust.
Size: 2200 X 950 X 1700
Before sanding vs After sanding
Automated Sandblasting Systems Mechanical parameter description:
| Machine type | PM65-GP16 |
| minimum length of workpiece | ≥300mm / 450mm |
| Workpiece width range | ≤1100mm |
| Workpiece thickness range | ≤200mm |
| Conveyor speed | 1-5m/min (About 2.5 is recommended） |
| Front and rear conveyor(Optional) | 1850x1600x900mm |
| Power supply | 380V,50Hz |
| Working pressure | 0.6-0.8Mpa |
| Total power | 18.55kw |
| Dimensions | 5600x2100x2600mm |
| Weight | 5500kg |
