Automated Sand Blaster for Wooden Polishing

Get Latest Price

Payment Type:

L/C,T/T

Incoterm:

FOB,EXW

Min. Order:

1 Set/Sets

Transportation:

Ocean,Land

Contact Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: PM65-GP10

Brand: SANDWELL

Place Of Origin: China

Status: New

Machine Type: Wood Sanding Machine

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Bearing, Gearbox, Motor

Warranty Period: 1 Year

Core Selling Point: Easy To Operate, High Productivity, Flexible Manufacturing, Multifunctional, Energy Saving, High Safety Level, High-Accuracy, High Rigidity, Long Service Life, Patented Product

Showroom Location (in Which Countries Are There Sample Rooms Overseas): Viet Nam, Russia, Malaysia, Australia, Indonesia

Out-of-warranty Service: Video Technical Support, Online Support, Field Maintenance And Repair Service

Applicable Industry: Farms, Construction Works, Energy &Amp; Mining, Advertising Company

Workpiece Width: ≤650 mm

Minimum Length Of Workpiece: ≥350 mm

Workpiece Thickness: ≤180 mm

Feeding Speed: 1 ～ 6 m/min ( About 2.5 is recommended ）

Filter Cartridges: Φ320×660mm ×5 pieces

Conveying Table Height: 850 mm

Power Supply: 380V, 50HZ

Working Pressure: 0.6-0.8 Mpa

Total Power: 19.3 KW/380V 50HZ

Overall Size: 5100×1400×2800mm

Supply Ability & Additional Information

Transportation: Ocean,Land

Payment Type: L/C,T/T

Incoterm: FOB,EXW

Packaging & Delivery

Selling Units:: Set/Sets

Automated sand blasting machine Product description:

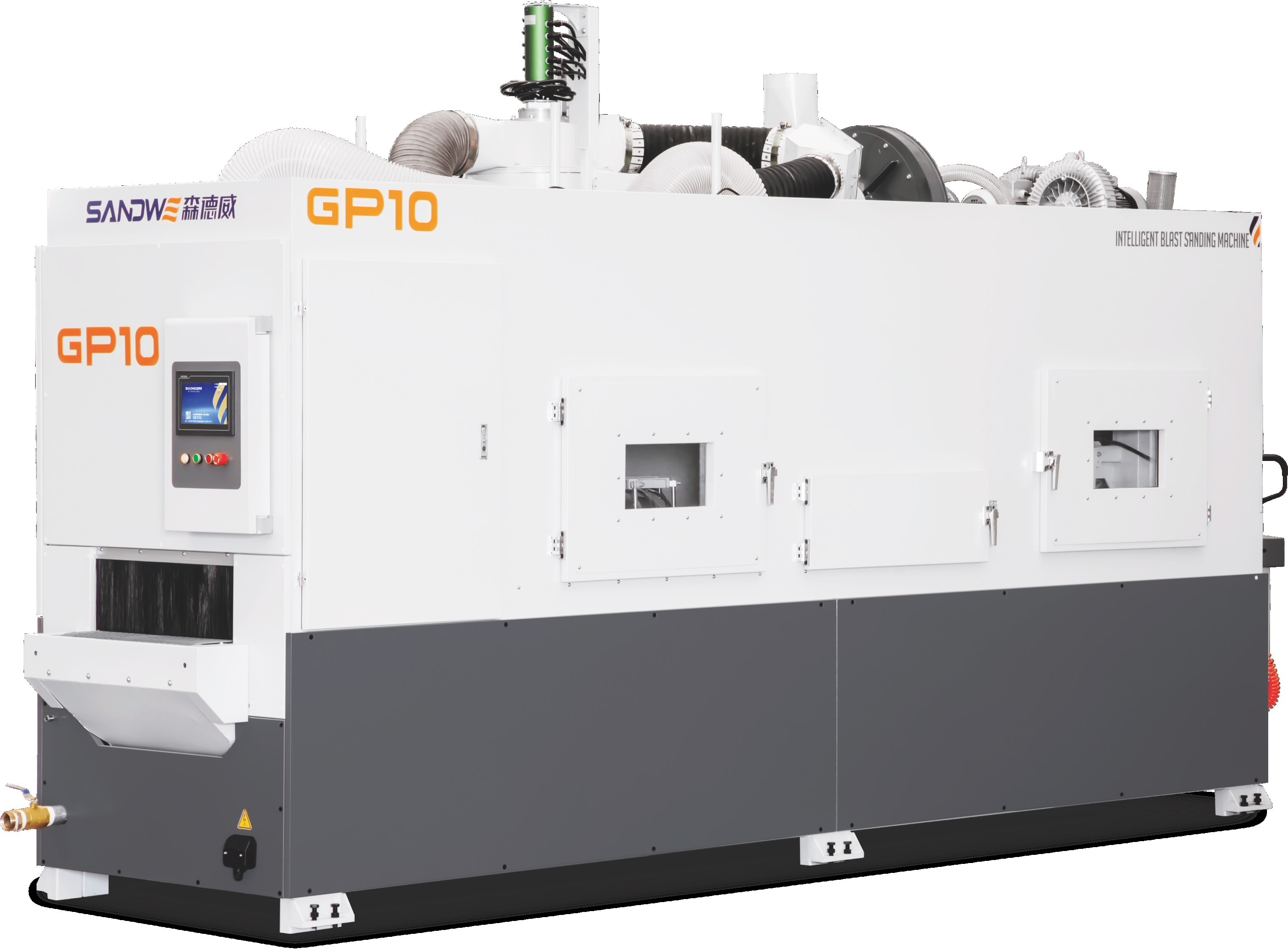

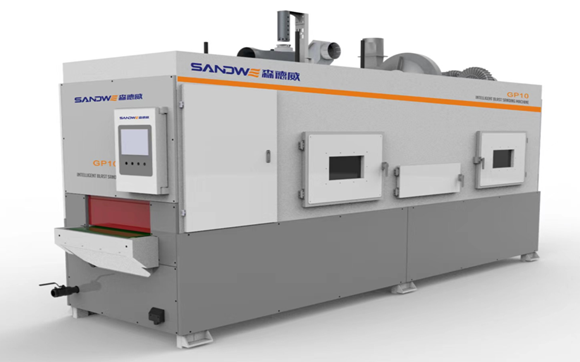

Shaped sand blasting machine PM65-GP10

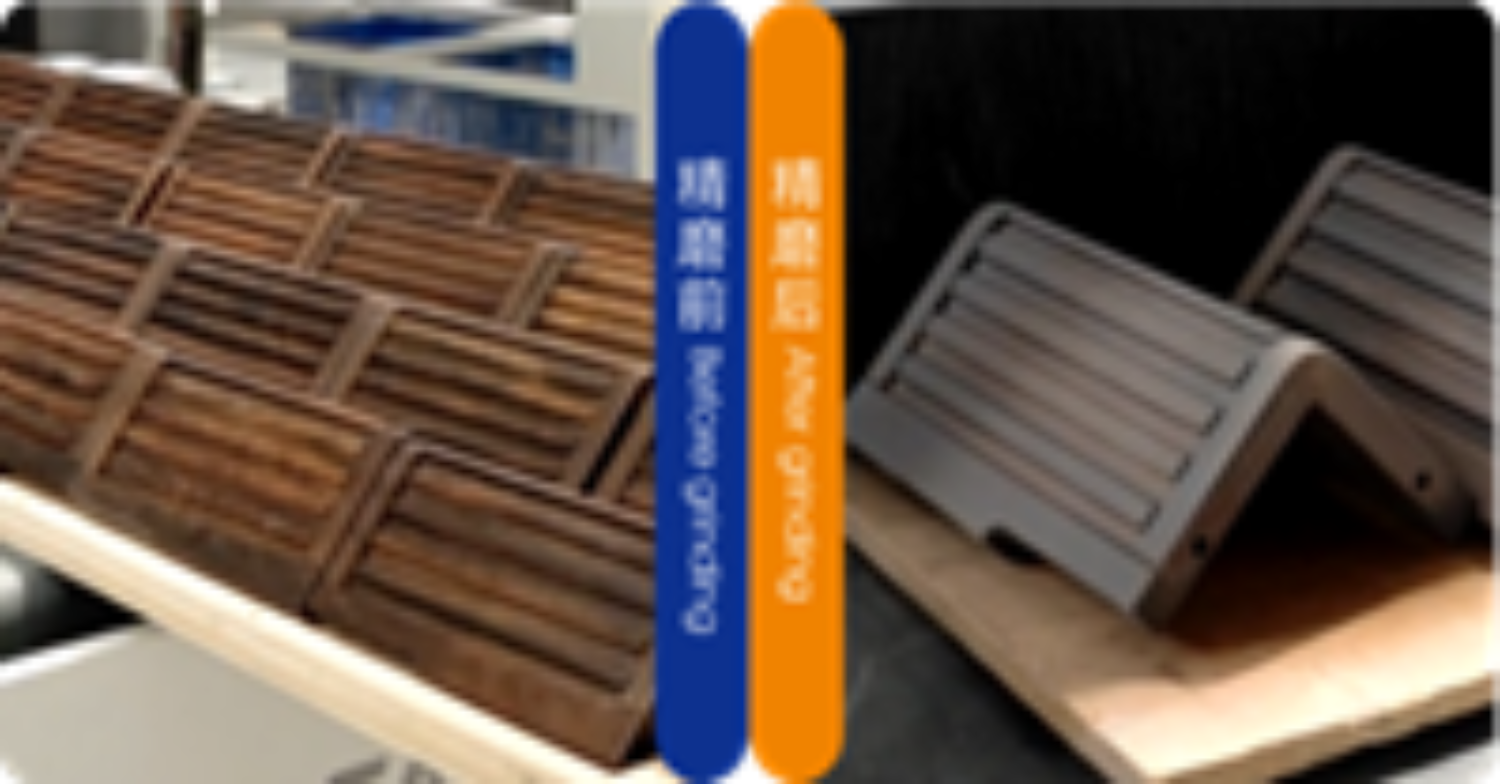

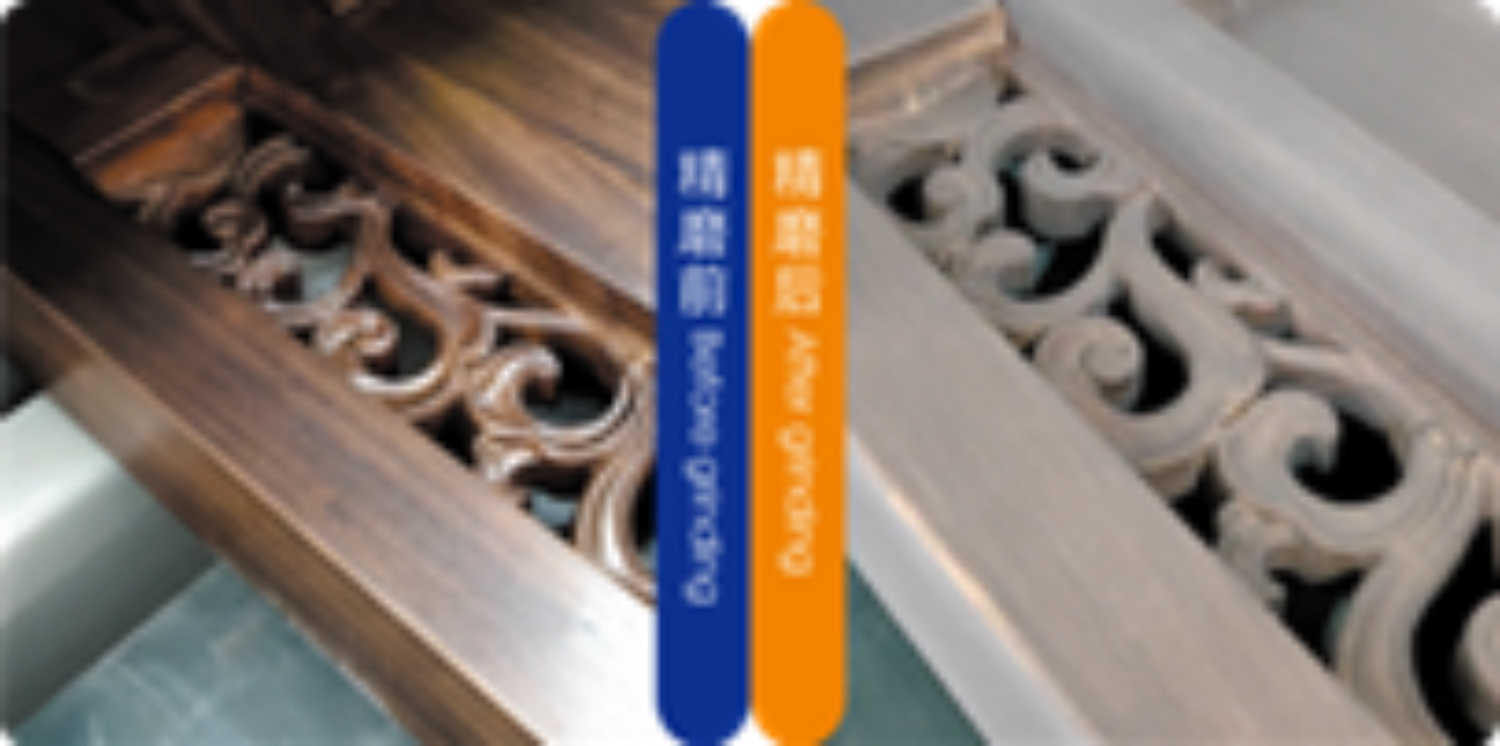

Before sanding vs After sanding

sandblasting machine characteristics：

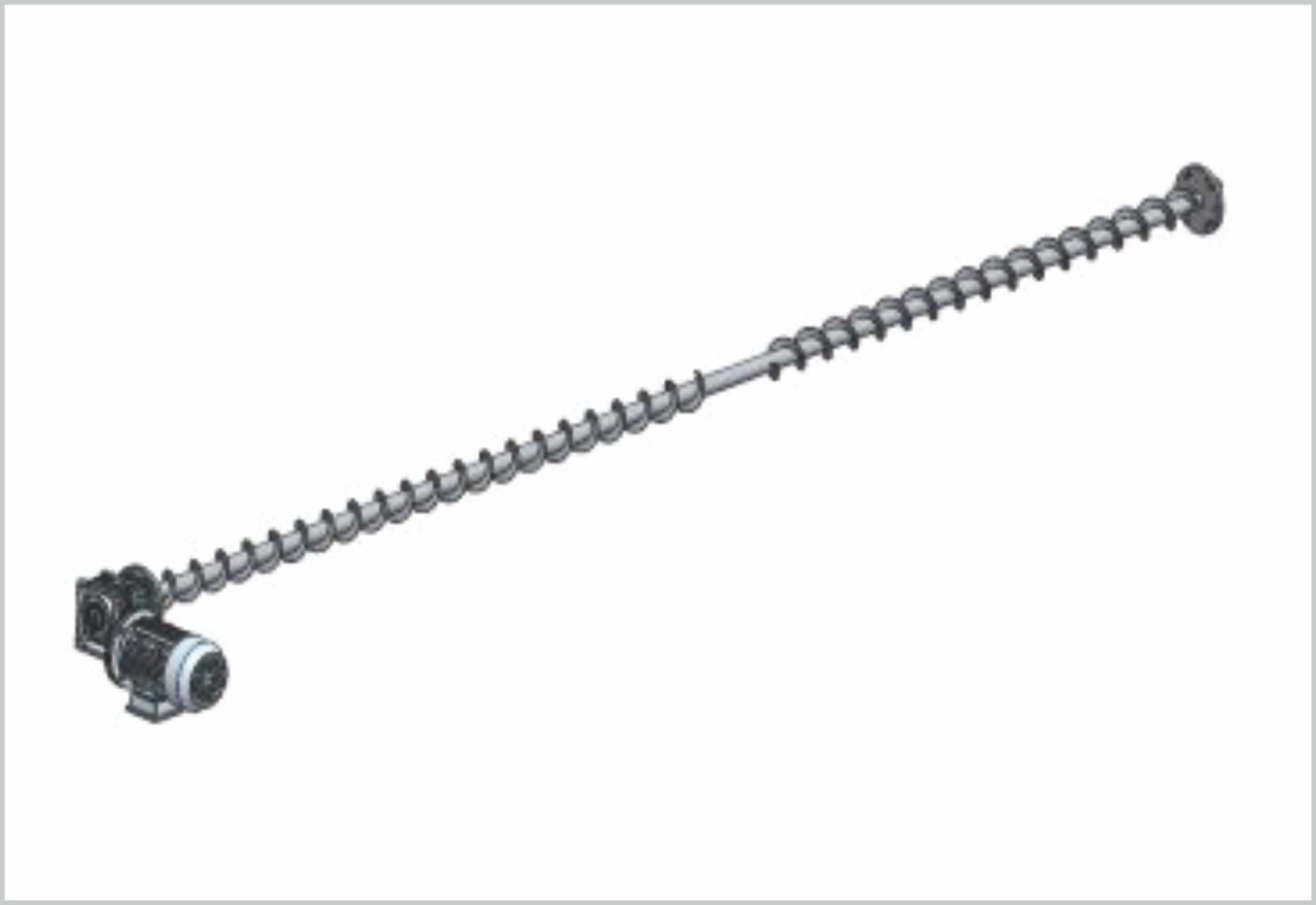

1) Stirring cage recovery system

Sand grains are jetted by high-pressure air, impact the surface of workpiece, and then fall into storage under the action of gravity

Sand tank and stirring cage sand and dust conveying system collect them and send them to sand and dust separation system. Contrast sand

The recycling of granules improves the utilization rate.

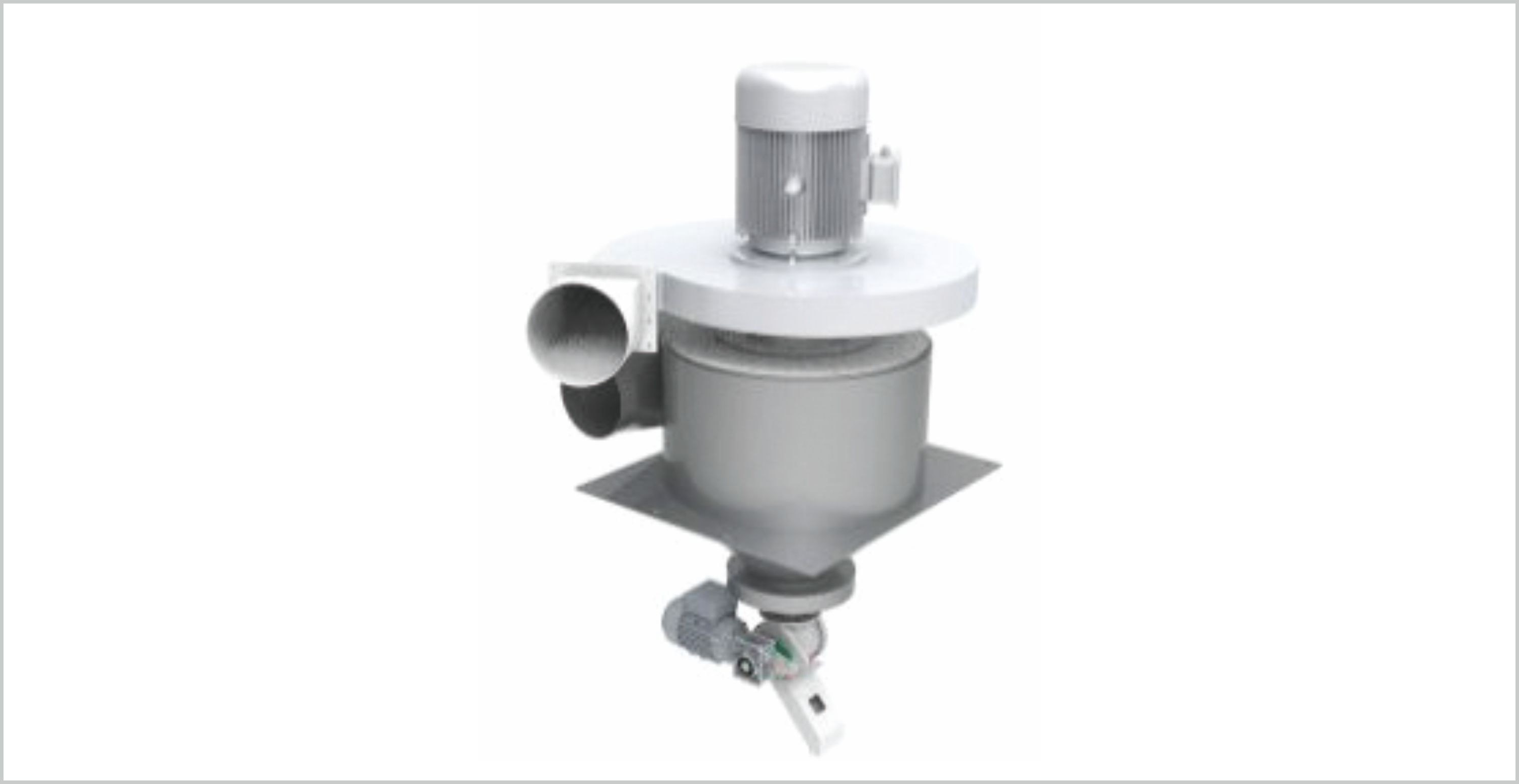

2) Sand and dust separation system

In the grinding process, some abrasives will turn into dust under impact. The main functions of the separation system are

The dust in the recovered sand-dust mixture is separated and discharged, and the reusable sand grains are recycled at the same time.

Repeat the cycle until it is consumed.

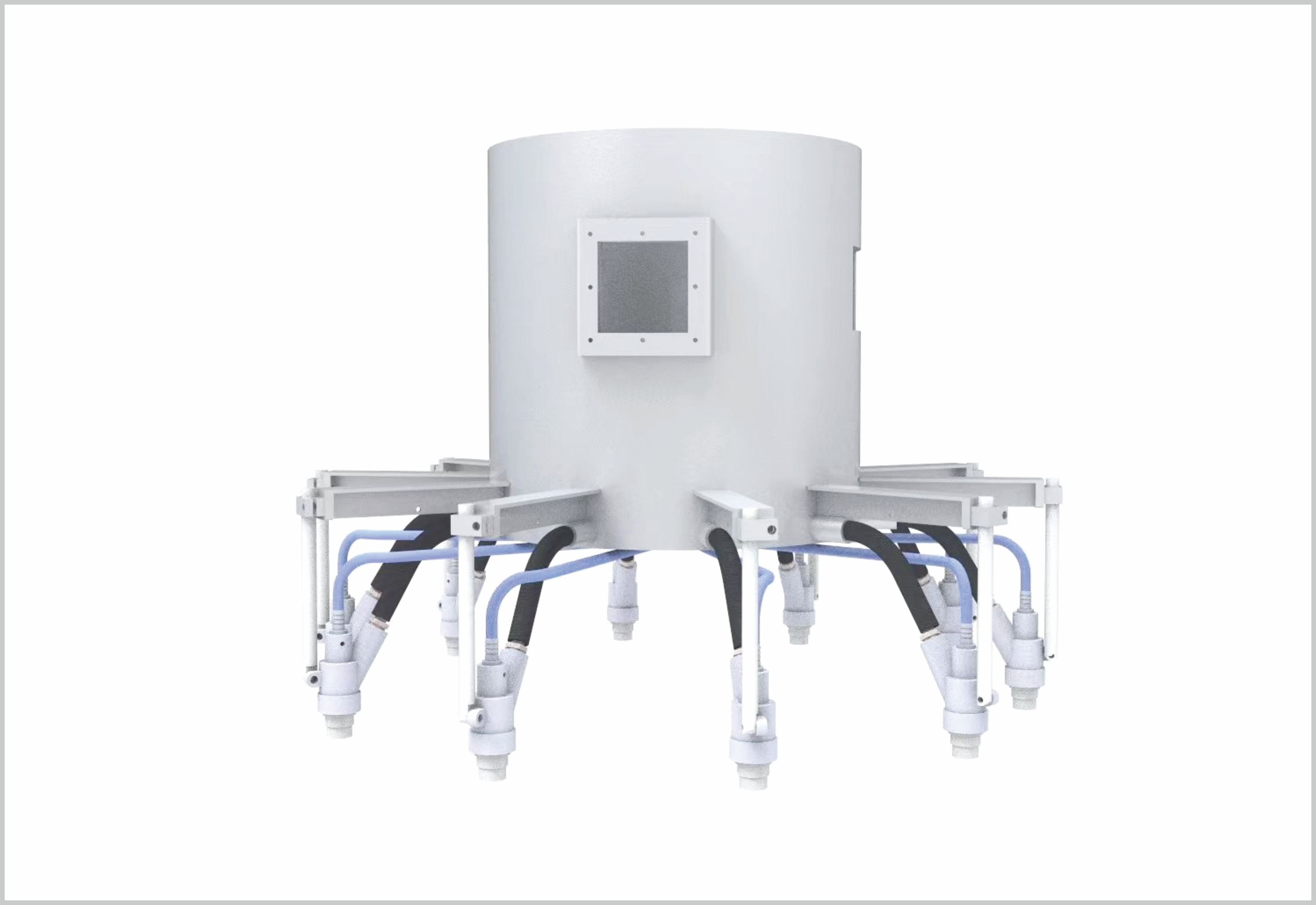

3) Independent lifting control and adjustment system, rotary spray gun (10)

The spray gun can be adjusted by lifting and multi-angle according to the thickness of the workpiece, and the sandblasting grinding range

Within 650mm, to ensure the perfect fit between the spray gun and the machined parts.

Comparative advantages:

1. Rapid adjustment and conversion of production products make it easier to ensure the most ideal sanding effect.

2. Save air source efficiently, reduce working pressure and reduce power consumption of air compressor.

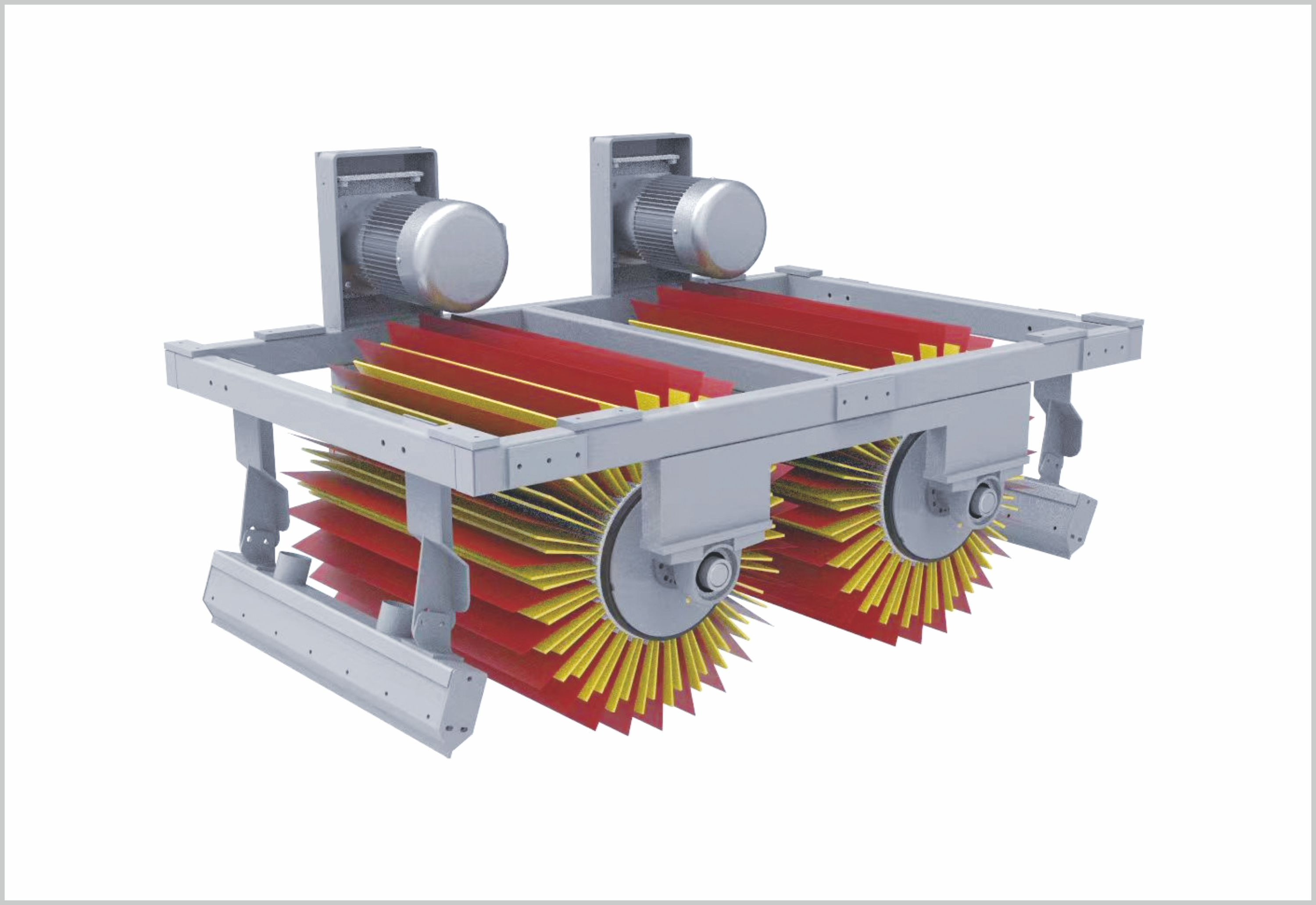

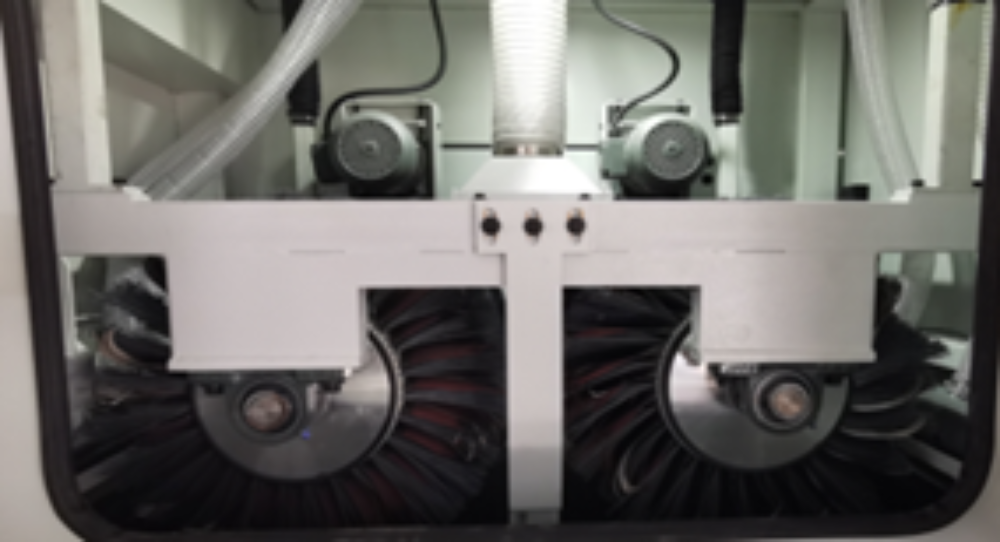

4) Double polishing special-shaped sand roller

Comparative advantage: Greatly improve sanding effect and reduce manual grinding Workload.

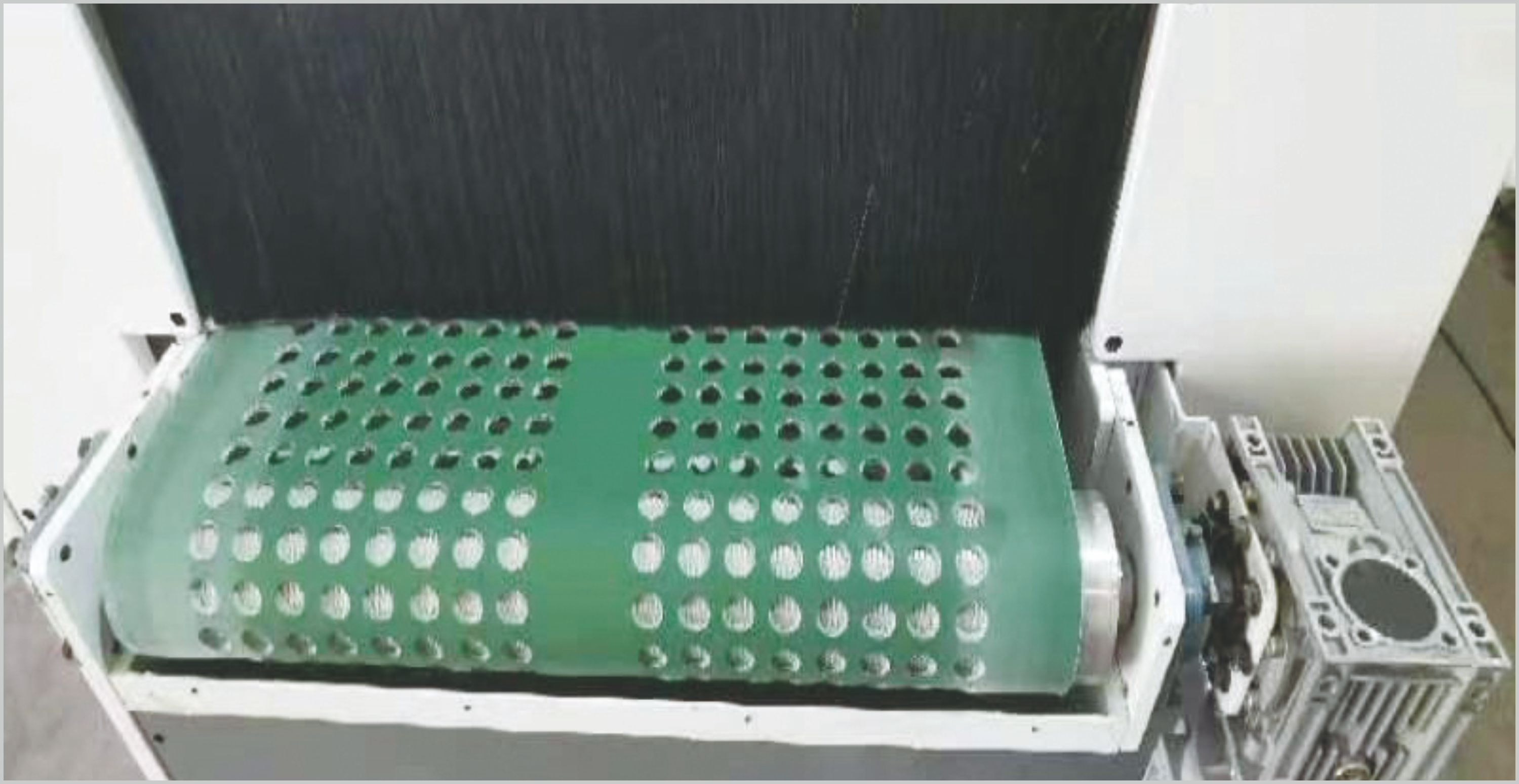

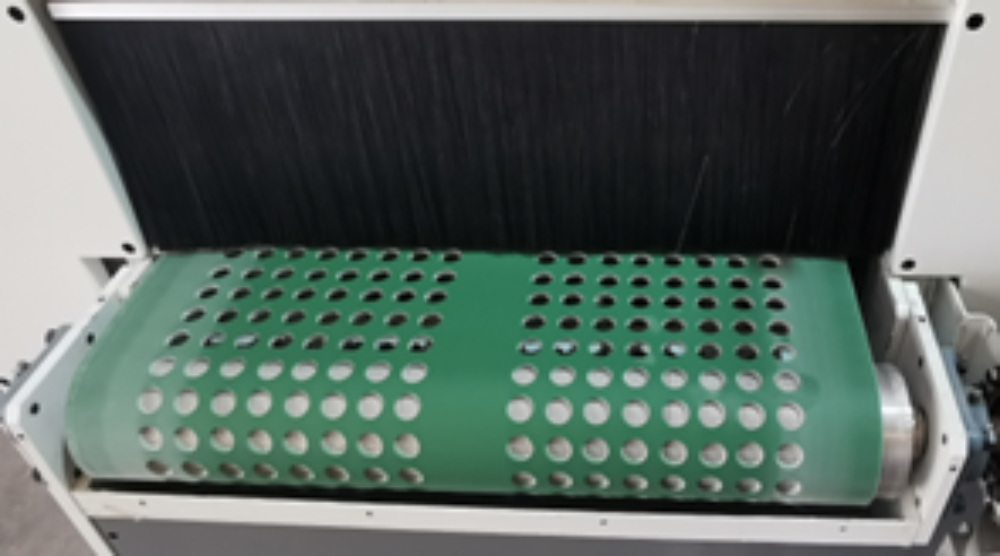

5) Belt conveyor system

Perforated belt conveying system for irregular workpieces and small workpieces.

The conveying is smoother, the application range is wide, and the recovery cycle of sand grains is more thorough.

Reduce backlog and waste.

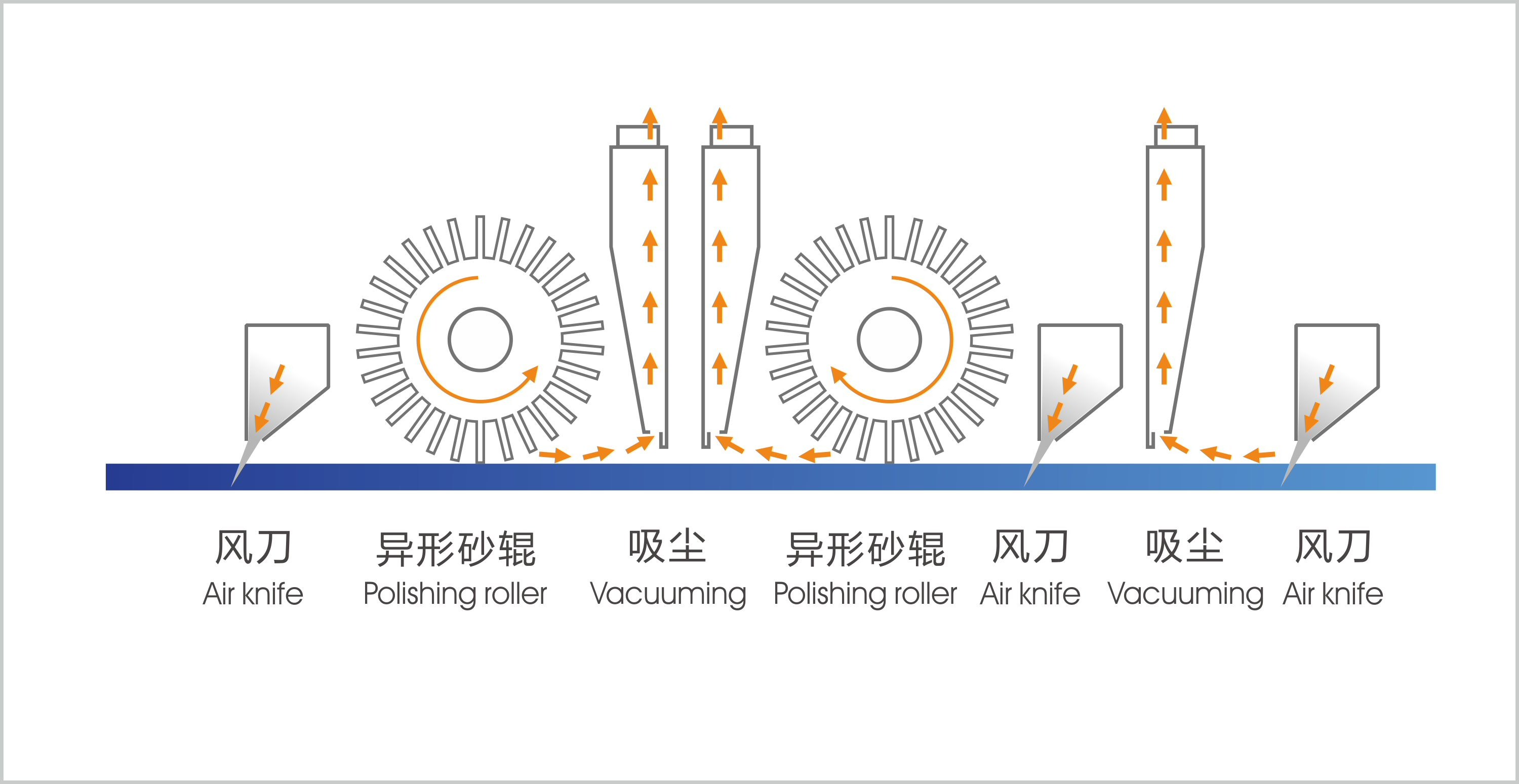

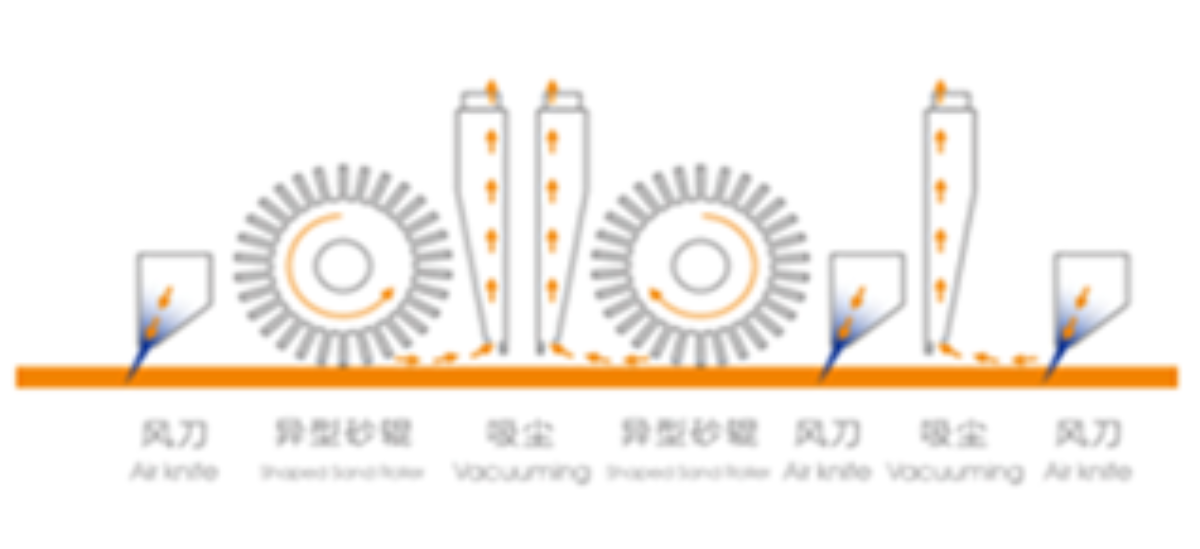

6) Air knife dust removal system

It consists of 3 air knives, 2 special-shaped sand rollers and independent lifting pressing system.

Cooperate with independent airflow to run the cavity to achieve perfect dust removal effect.

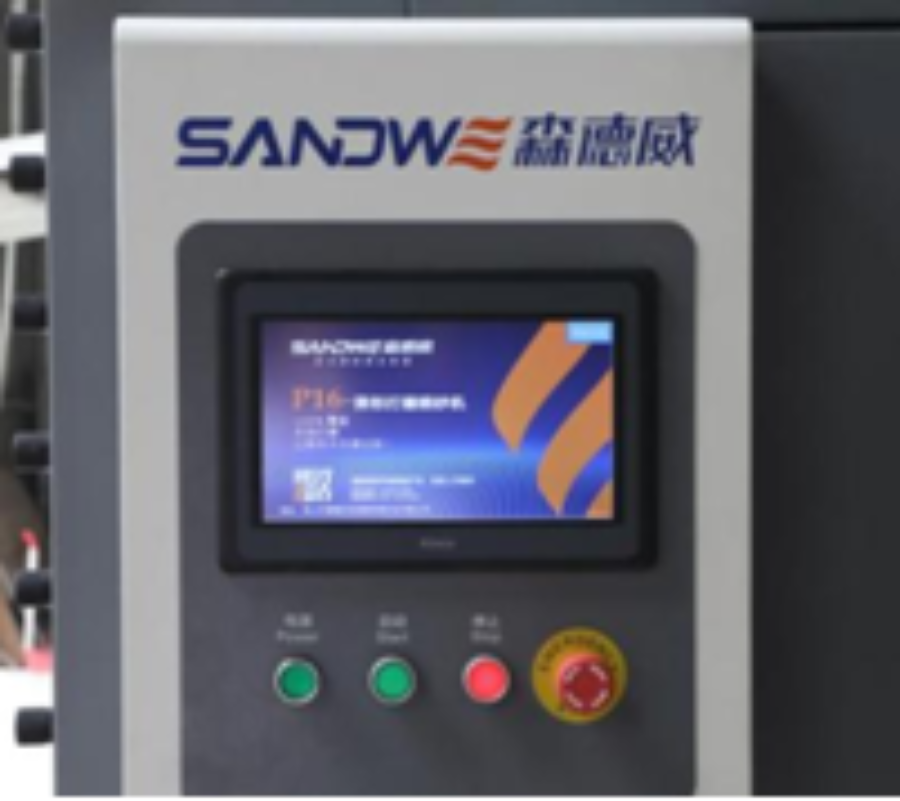

7) PLC, touch screen man-machine interface

Touch screen man-machine interface, simple and clear operation, clear operation display and fault display. PLC and frequency converter control system can realize accurate control and store a large number of sanding parameters for calling at any time.

8) Multiple surfaces can be polished at the same time, which saves labor to a greater extent.

9) Sanding cover evenly, which can polish uneven paint surface evenly.

Special-shaped sand blasting machine Description of mechanical parameters:

Model	PM65-GP10
workpiece width	≤650 mm
minimum length of workpiece	≥350 mm
workpiece thickness	≤180 mm
feeding speed	1 ～ 6 m/min ( About 2.5 is recommended ）
Filter cartridges	Φ320×660mm ×5 pieces
Conveying table height	850 mm
Power supply	380V, 50HZ
Working pressure	0.6-0.8 Mpa
total power	19.3 KW/380V 50HZ
overall size	5100×1400×2800mm
weight	4000kg
