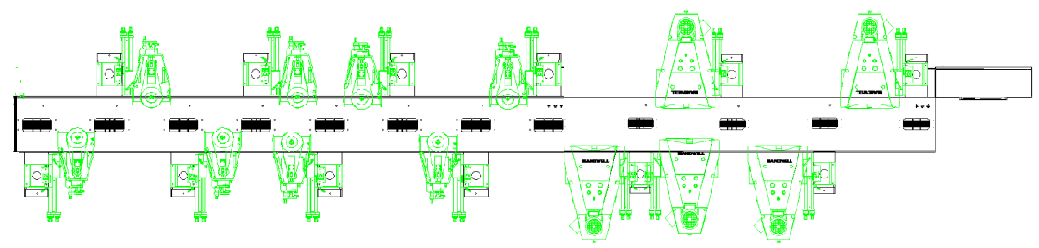

1. The first to Fifth stations are 380 sand frame units, which are suitable for sanding of plane or arc surfaces.

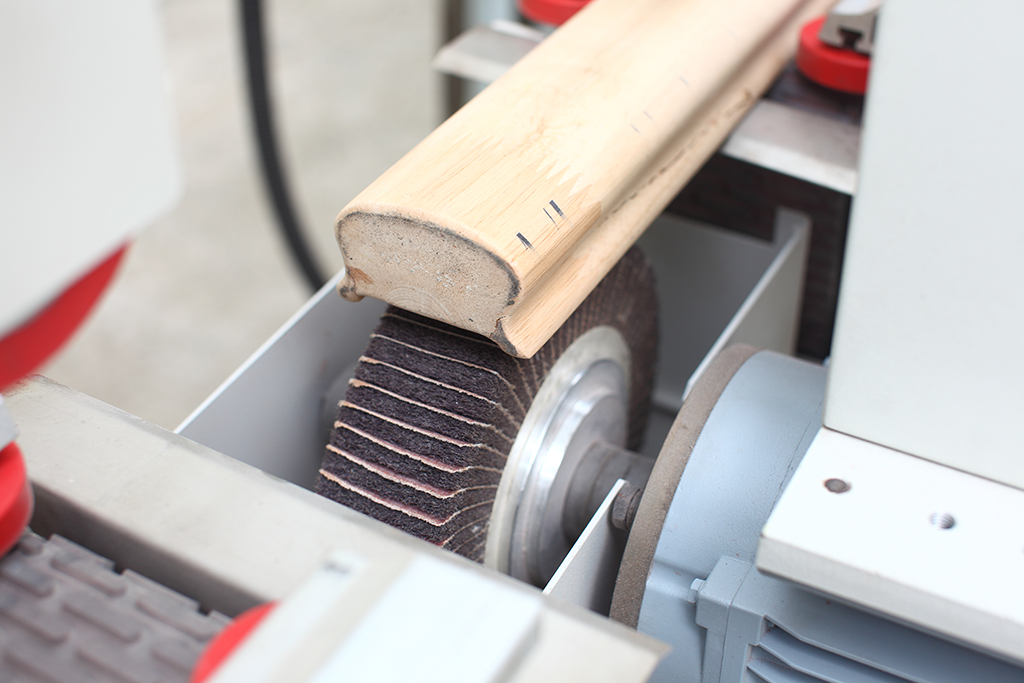

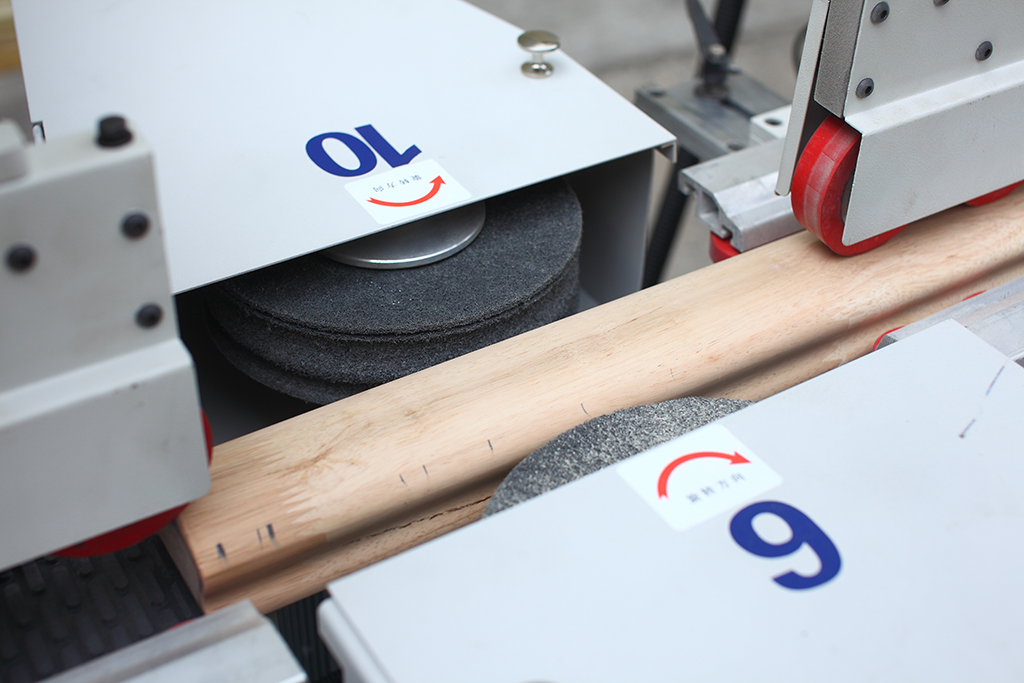

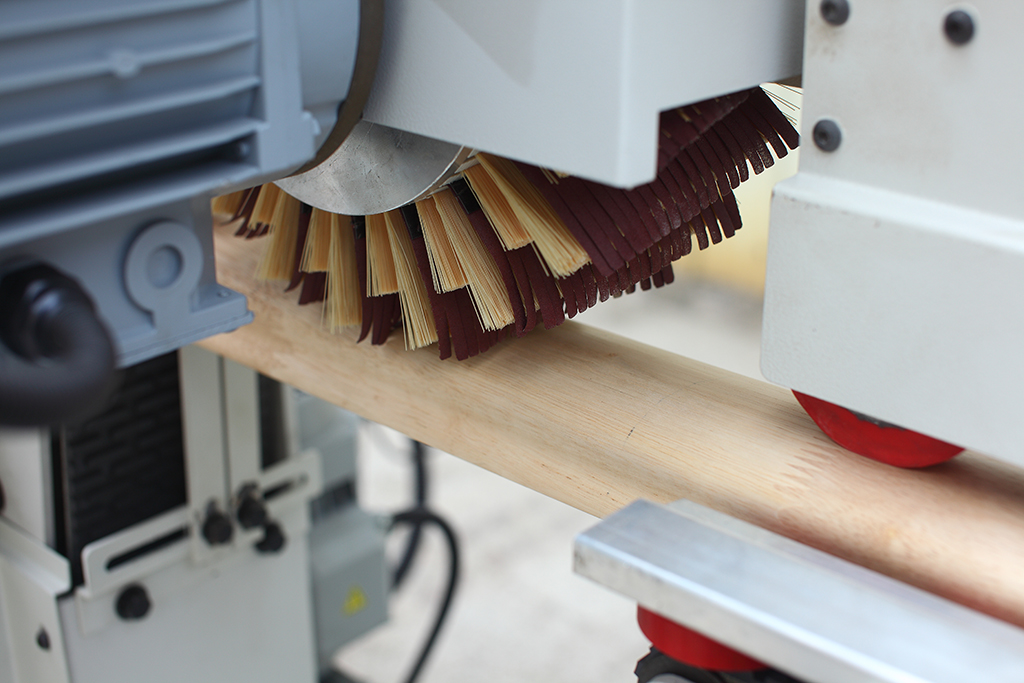

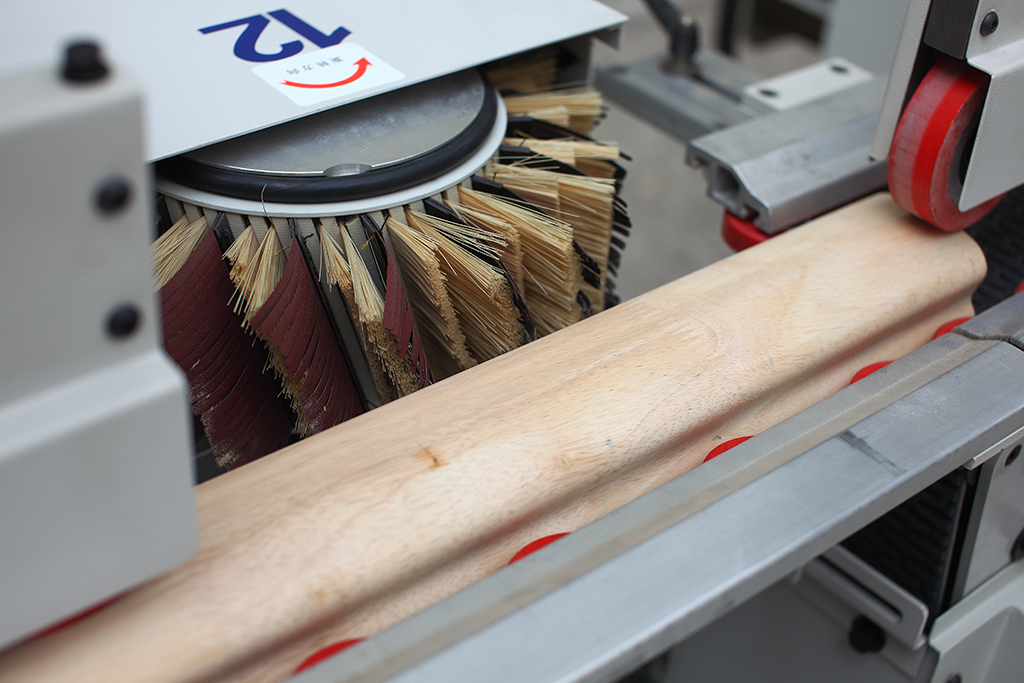

2. Work stations 6 to 13 are grinding head units, which can be equipped with sponge wheel, abrasive wheel, octagonal sand and other abrasives to finish various shapes of sanding.
Linear Sander Machine description of the process:
Mechanical features:

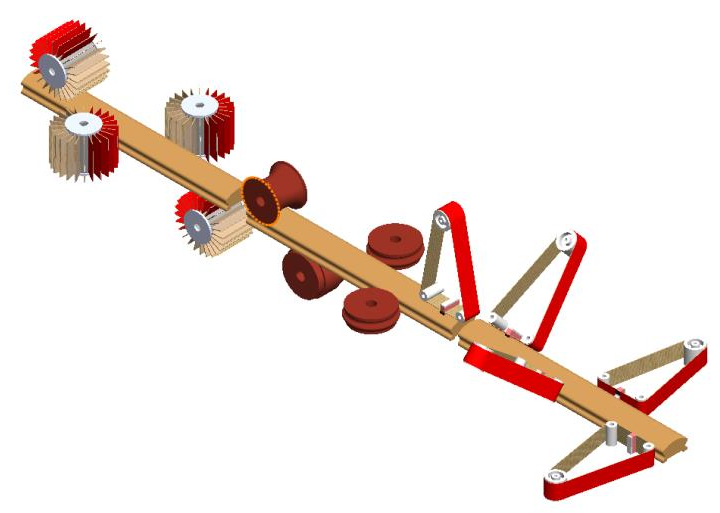

Various sand units can be arranged and configured freely according to different technological requirements

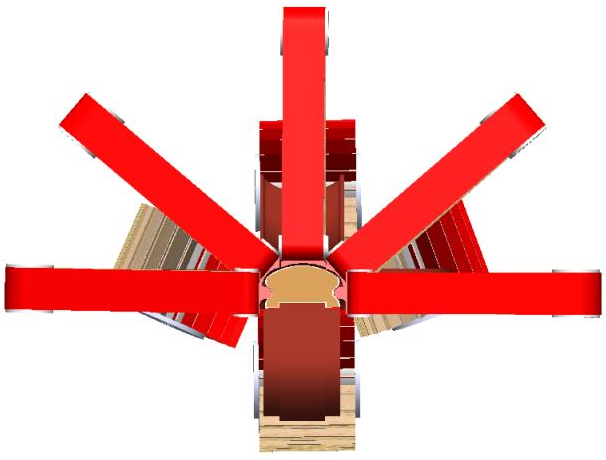

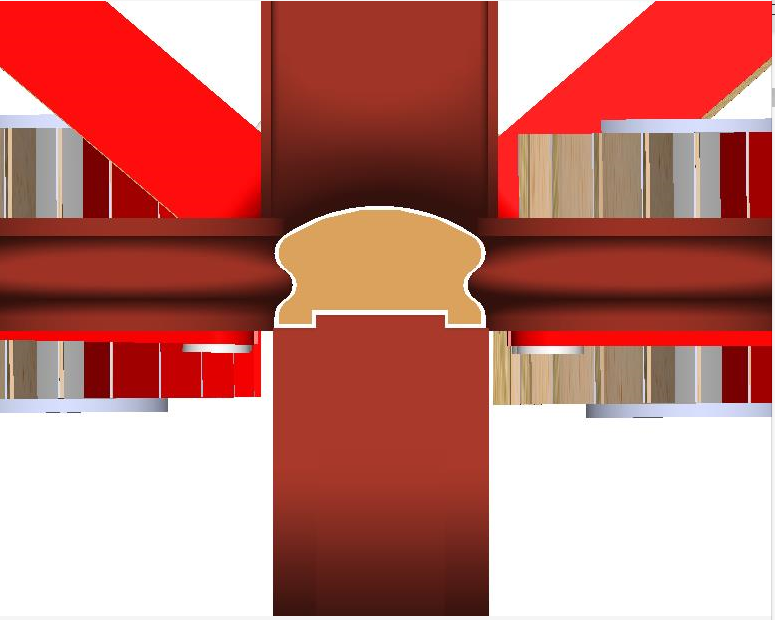

Sanding units can be adjusted - 90 ° ~ + 90 °, is suitable for linear profile sanding
Triangle sander with oscillating device, wheel sander with automatic compensation function, induction back and forth function, to ensure that the head and tail of the workpiece do not sand through, not sand round
Use pneumatic pressure material, spring load, reliable pressure material, do not damage the workpiece
Accurate PLC control, convenient adjustment.
The conveyance and sand-belt speed are adjusted by frequency conversion to suit the sanding of different wood products.(wooden, veneer, MDF, painting)
According to the different shapes of the workpiece, select different power motors and various shapes, functions of abrasive material
Technical specification:

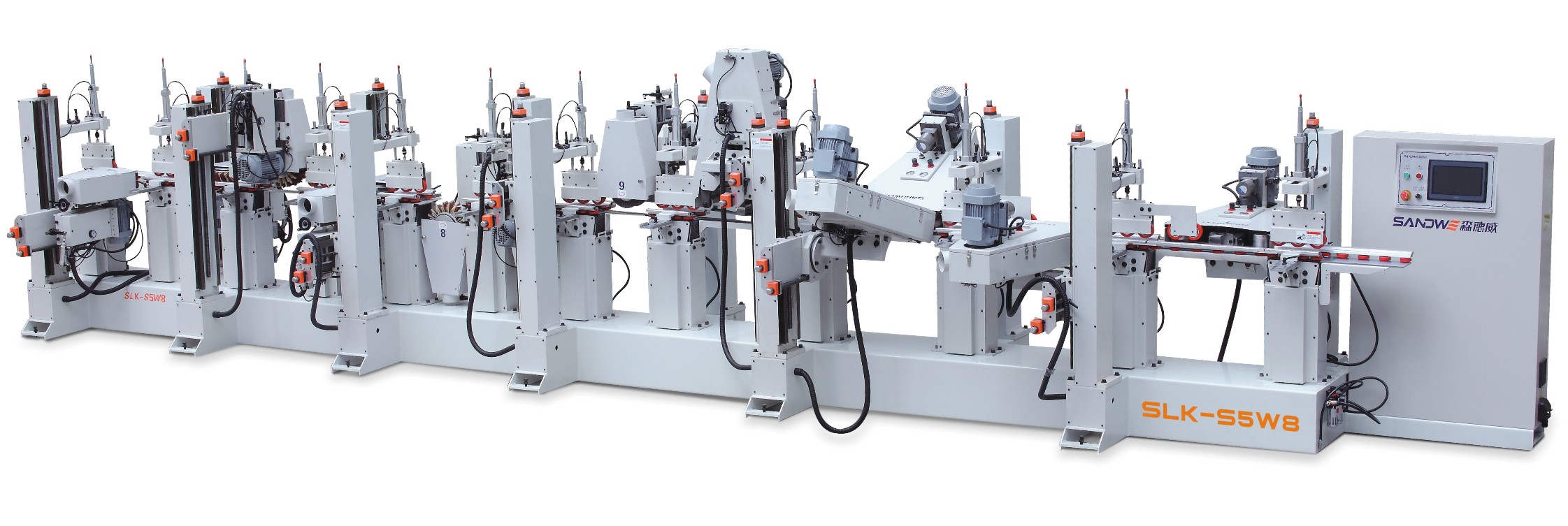

Model | SLK-S5W8 |
Workpiece width range | 30~220mm |
Workpiece min length | 680mm |
Workpiece thickness range | 10-65mm |
Feeding speed | 3-25m/min |
Profile sanding wheel size | 76×100mm |
Sponge wheel size | 25.4×100mm |
Feeding motor | 12sets,380V、50Hz、0.25KW、1430r/min |
Triangle sanding motor | 5sets,380V、50HZ、1.5KW、1430r/min |
Wheel sanding motor | 8sets,380V、50Hz、1.5KW、1430r/min |
Sanding unit tilt angle | -90°~+90° |
Triangle sanding belt size | 2160X80mm |
Wheel sanding belt size | 960X100mm |
Work pressure | 0.6mpa |
Total power | 22.625KW |
oversize | 9000mmX1800mm(1500mm)X1500mm |
