Wood batten sanding polishing machine

Payment Type:
L/C,T/T
Incoterm:
FOB,EXW
Min. Order:
1 Set/Sets
Transportation:
Ocean,Land
Share:
  • Product Description
Overview
Product Attributes

Model No.SLK-S4W4

BrandSANDWELL

Place Of OriginChina

StatusNew

Machine TypeWood Sanding Machine

Video Factory InspectionProvided

Mechanical Test ReportProvided

Marketing TypeOrdinary Product

Core Component Warranty Period1 Year

Core ComponentsPlc, Bearing, Gearbox, Motor

Warranty Period1 Year

Core Selling PointEasy To Operate, High Productivity, Flexible Manufacturing, Multifunctional, Energy Saving, High Safety Level, High-Accuracy, High Rigidity, Long Service Life, Patented Product

Showroom Location (in Which Countries Are There Sample Rooms Overseas)Viet Nam, Russia, Malaysia, Australia, Indonesia

Out-of-warranty ServiceVideo Technical Support, Online Support, Field Maintenance And Repair Service

Applicable IndustryFarms, Construction Works, Energy &Amp; Mining, Advertising Company

Supply Ability & Additional Information

TransportationOcean,Land

Payment TypeL/C,T/T

IncotermFOB,EXW

Packaging & Delivery
Selling Units:
Set/Sets

Product Description:

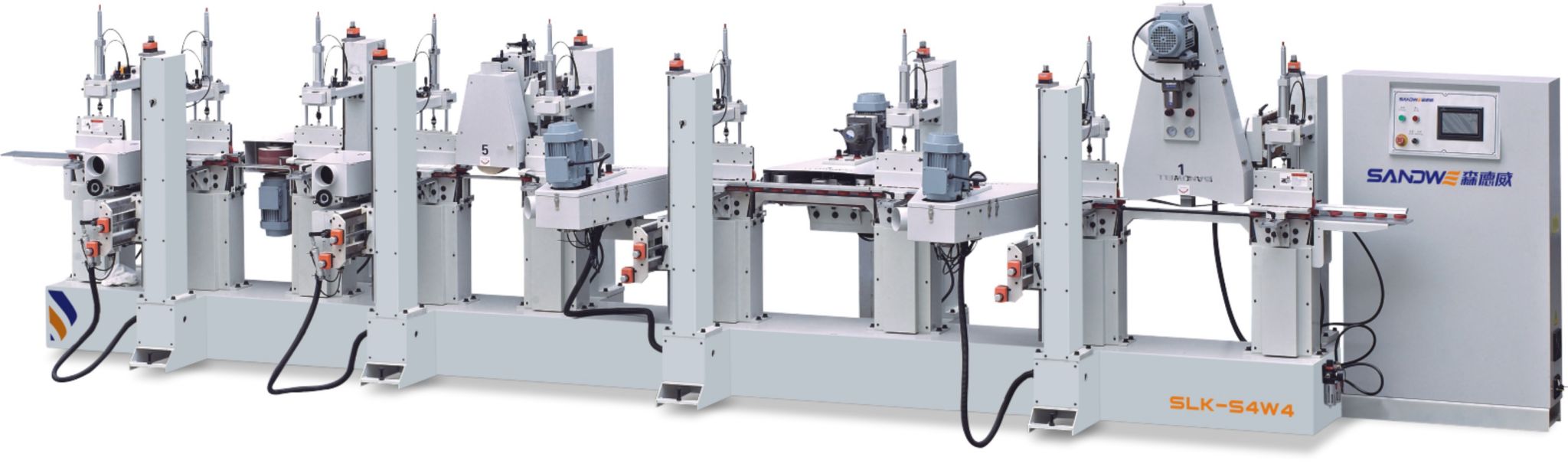

Profile Sander for Wood Line SLK-S4W4

Wood Moulding Sanding Machine is a kind of special-shaped narrow material four-sided sanding treatment equipment, which is widely used in solid wood, FDM, aluminum and other materials. It can be used for sanding all kinds of lines such as shutters. Different Abrasives can be replaced to sanding white body or primer.

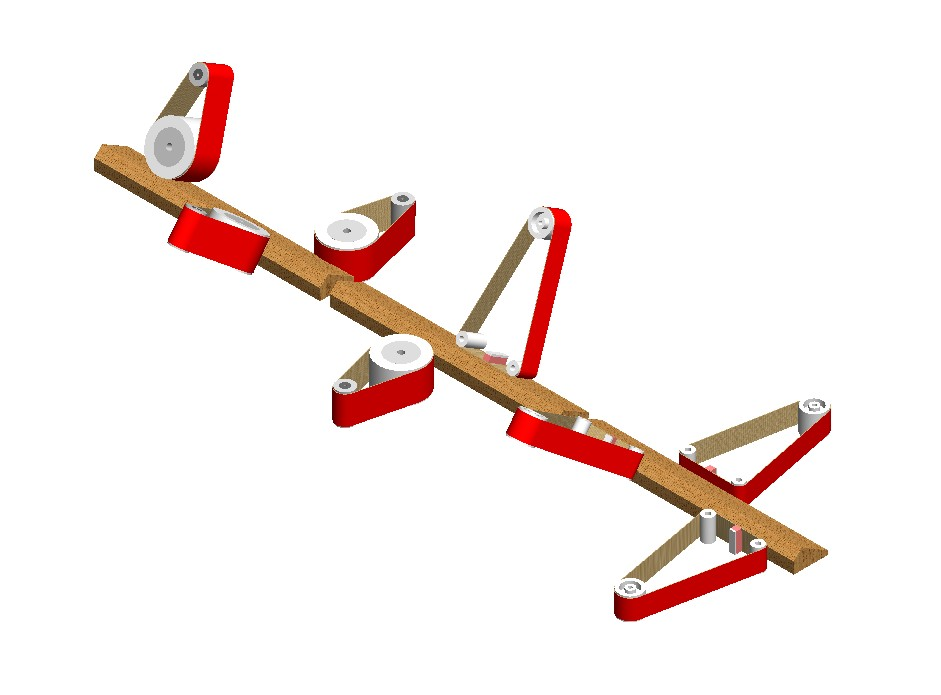

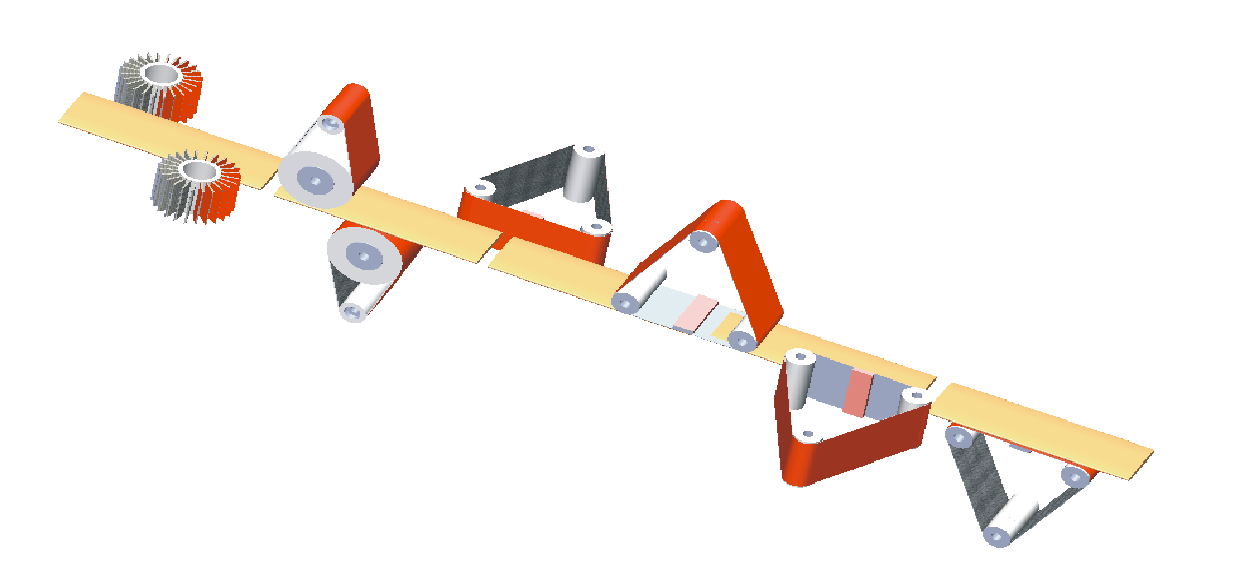

Profile Linear Sander Equipment Configuration Chart:

sander

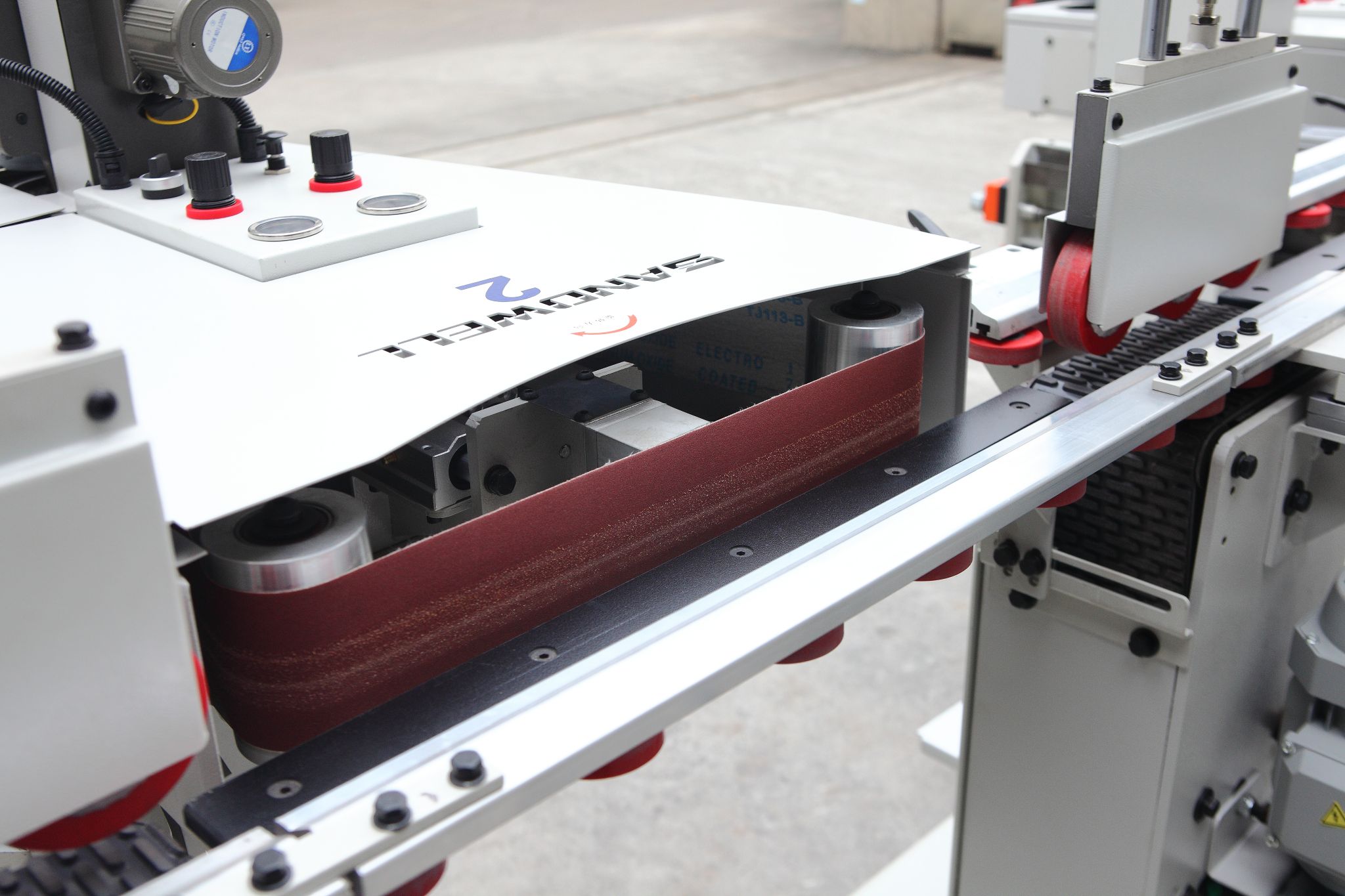

1. Work stations 1, 2, 3 and 4 are 380 sand frame units, which are suitable for sanding of plane or large arc surfaces.

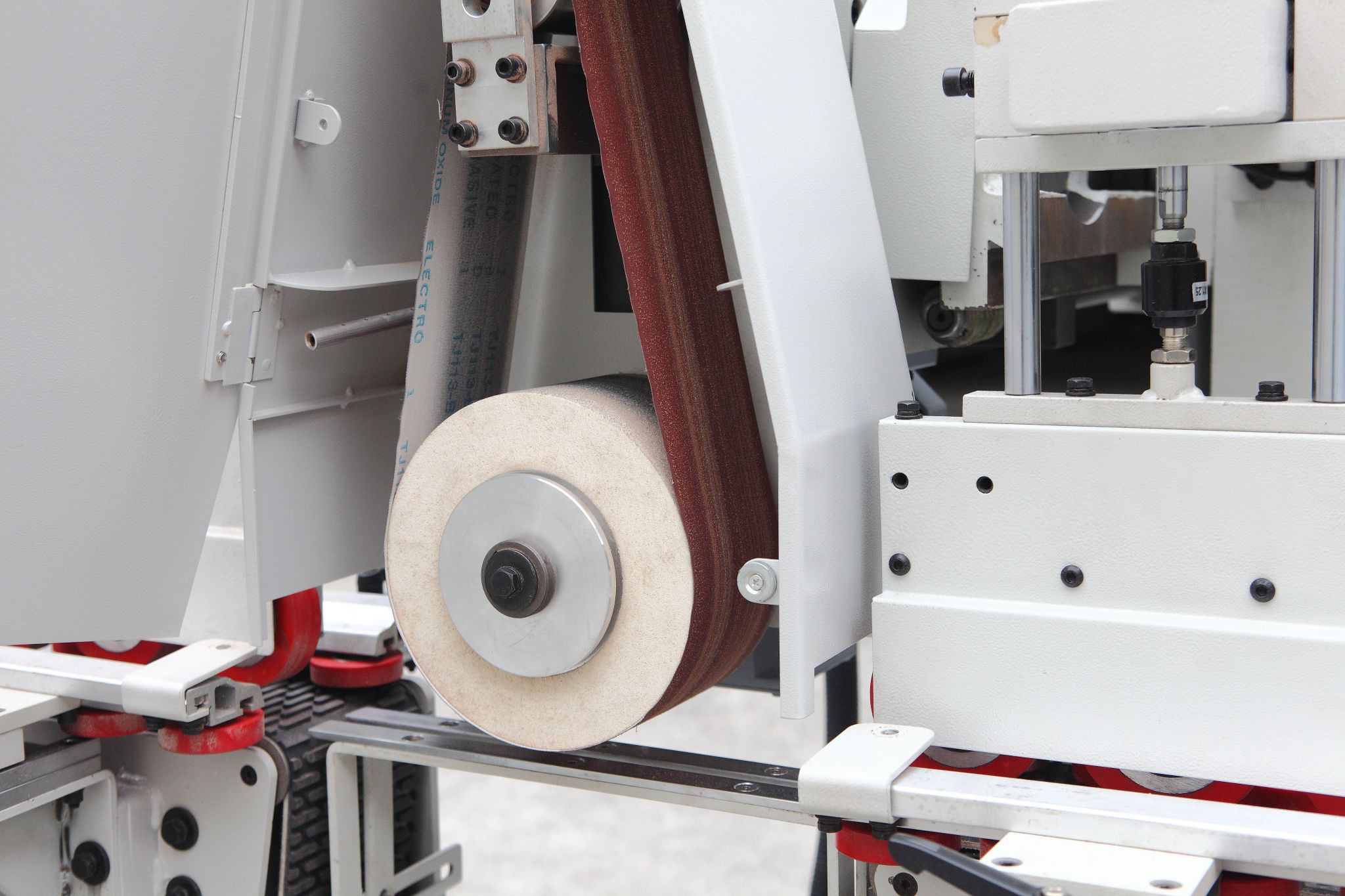

2. Work stations 5, 6, 7 and 8 are grinding head units, which can be equipped with various abrasives such as sponge wheel, abrasive wheel and octagonal sand to finish grinding of various shapes.

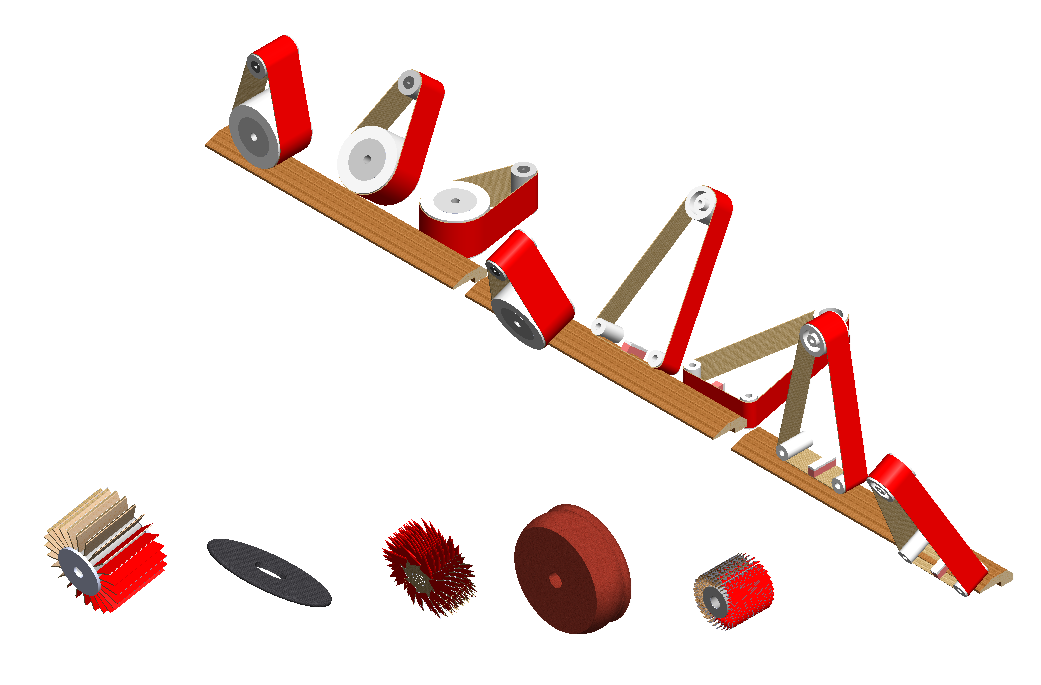

Linear Sander Machine description of the process:

wooden sanding
sander for wooden

             wooden sander     sanding polishing
Mechanical features:

According to different process requirements, various sand heads are arranged and disposed freely.

The sand head can be adjusted from - 90 +90, which is suitable for straight line profiling sanding.

Sand head with automatic compensation function, induction forward and backward function, to ensure that the head and tail of the workpiece is not sand pierced, not sand round;

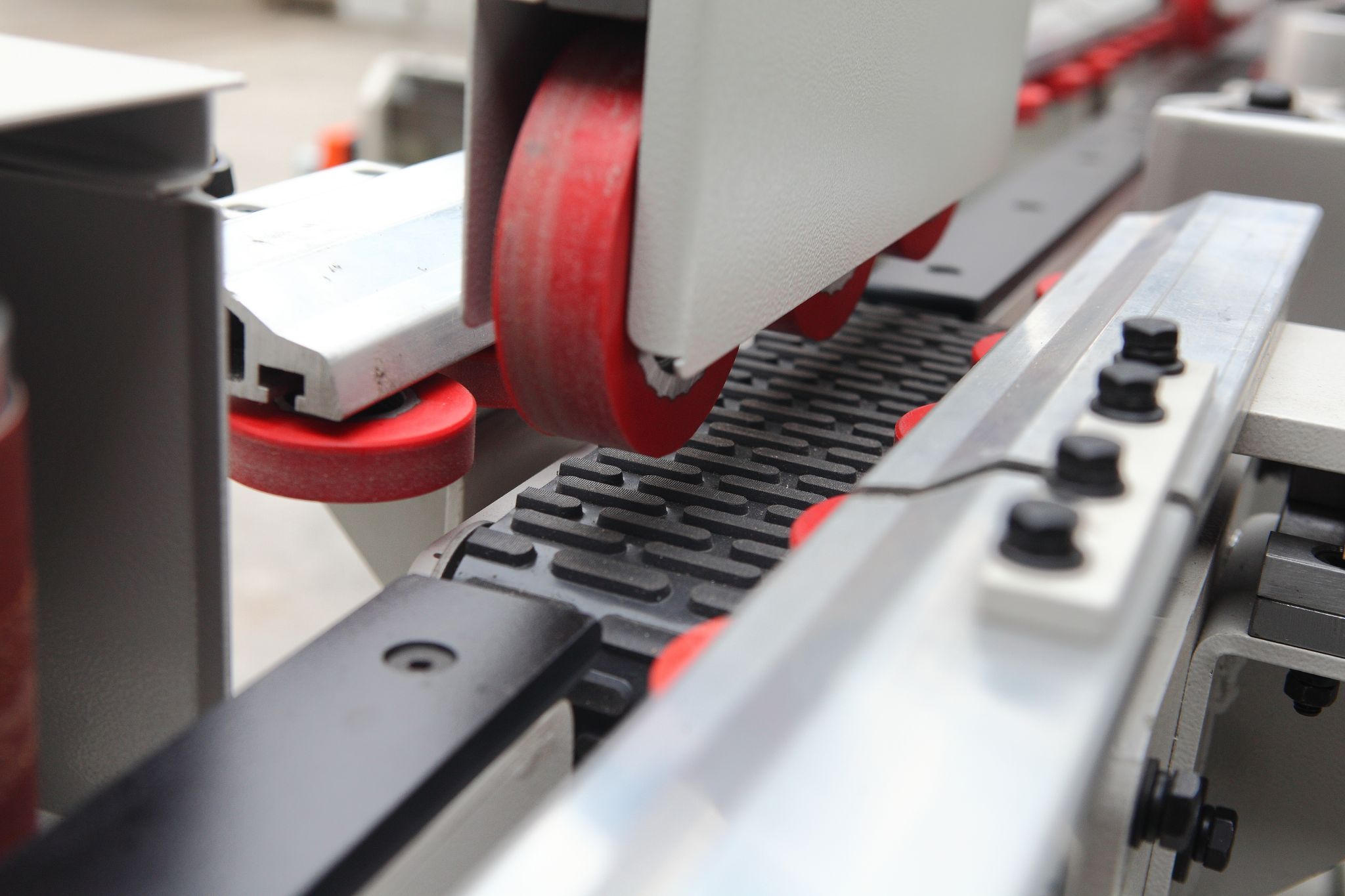

Pneumatic pressing material is used for pressing material, spring load, reliable pressing material, no damage to the workpiece;

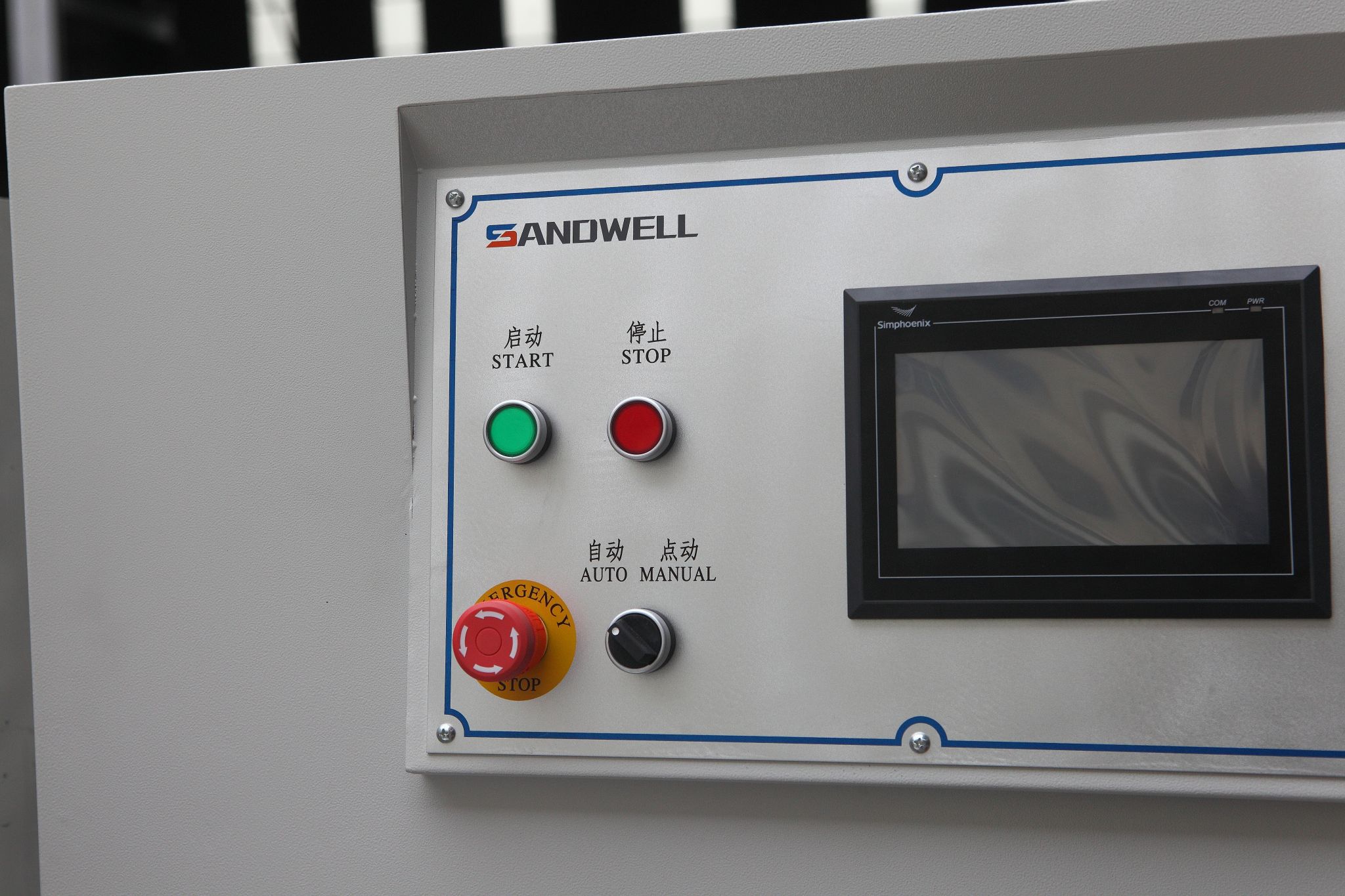

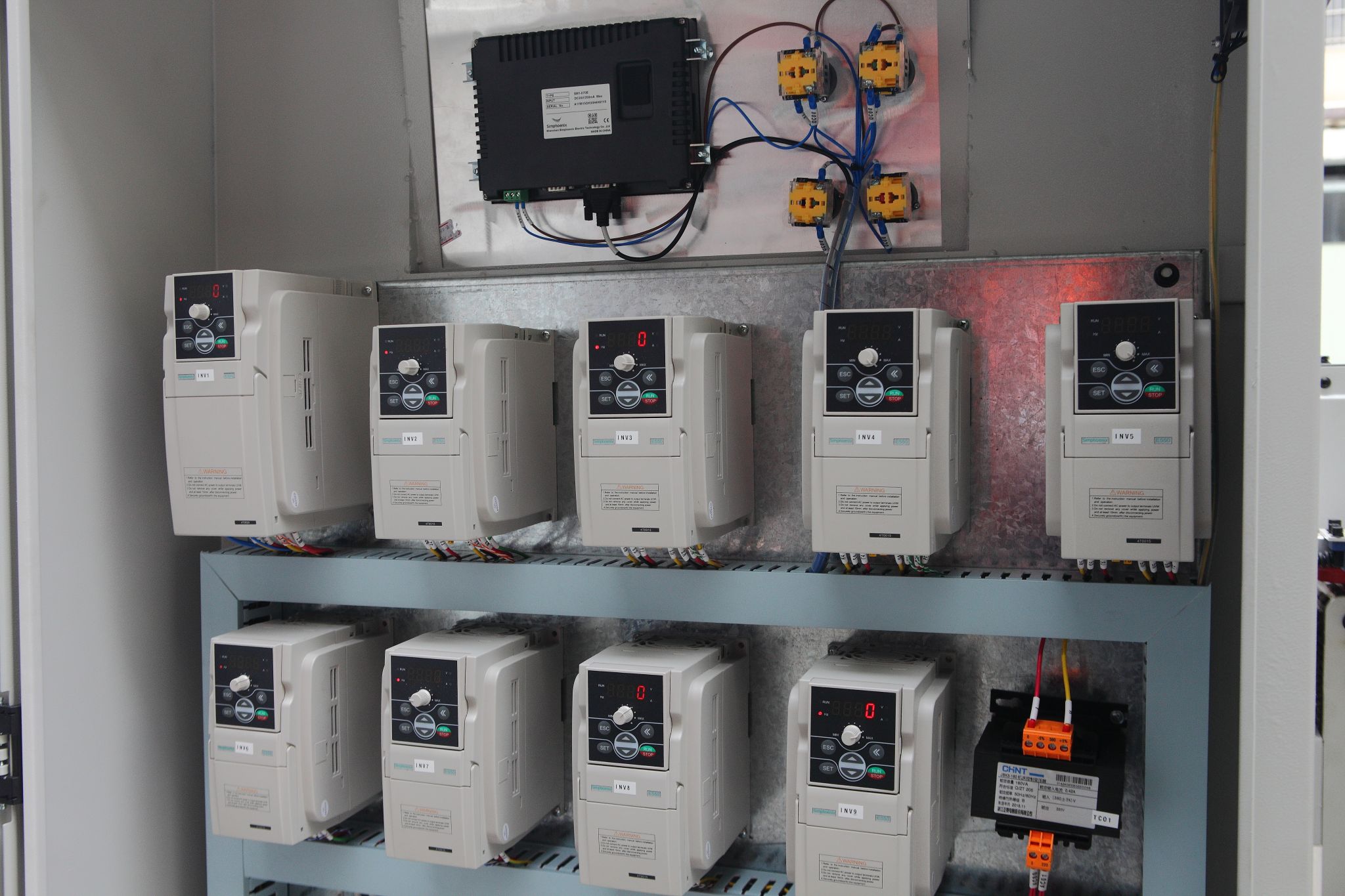

PLC precise control, easy to adjust;

Different power motors and abrasives with different shapes and functions can be selected according to different shapes.

Single sand head can install more than four kinds of abrasives.

Sand head has independent swing function.

Sand head has independent automatic compensation and automatic feeding function.



Technical specification:

Model

SLK-S4W4

Workpiece width range

30~220mm

Workpiece min length

680mm

Workpiece thickness range

10-65mm

Feeding speed

3-25m/min

Profile sanding wheel size

76×100mm

Sponge wheel size

25.4×100mm

Feeding motor

9sets380V50Hz0.25KW1430r/min

Triangle sanding motor

4sets380V50HZ1.5KW1430r/min

Wheel sanding motor

4sets380V50Hz1.5KW1430r/min

Sanding unit tilt angle

-90°~+90°

Triangle sanding belt size

2160X80mm

Wheel sanding belt size

960X100mm

Work pressure

0.6mpa

Total power

14.25KW

oversize

6000mmX1800mm1500mmX1500mm
