Product description:
SANDWELL profile Sander Model: SDS13-PPPLL
The Plastic uptake door panel sanding machine can be used for frame, white line and paint sanding made of various kinds of solid wood, wrapping wood and other materials.
The combined grid frame, glass frame, image frame, etc.
Configuration description:

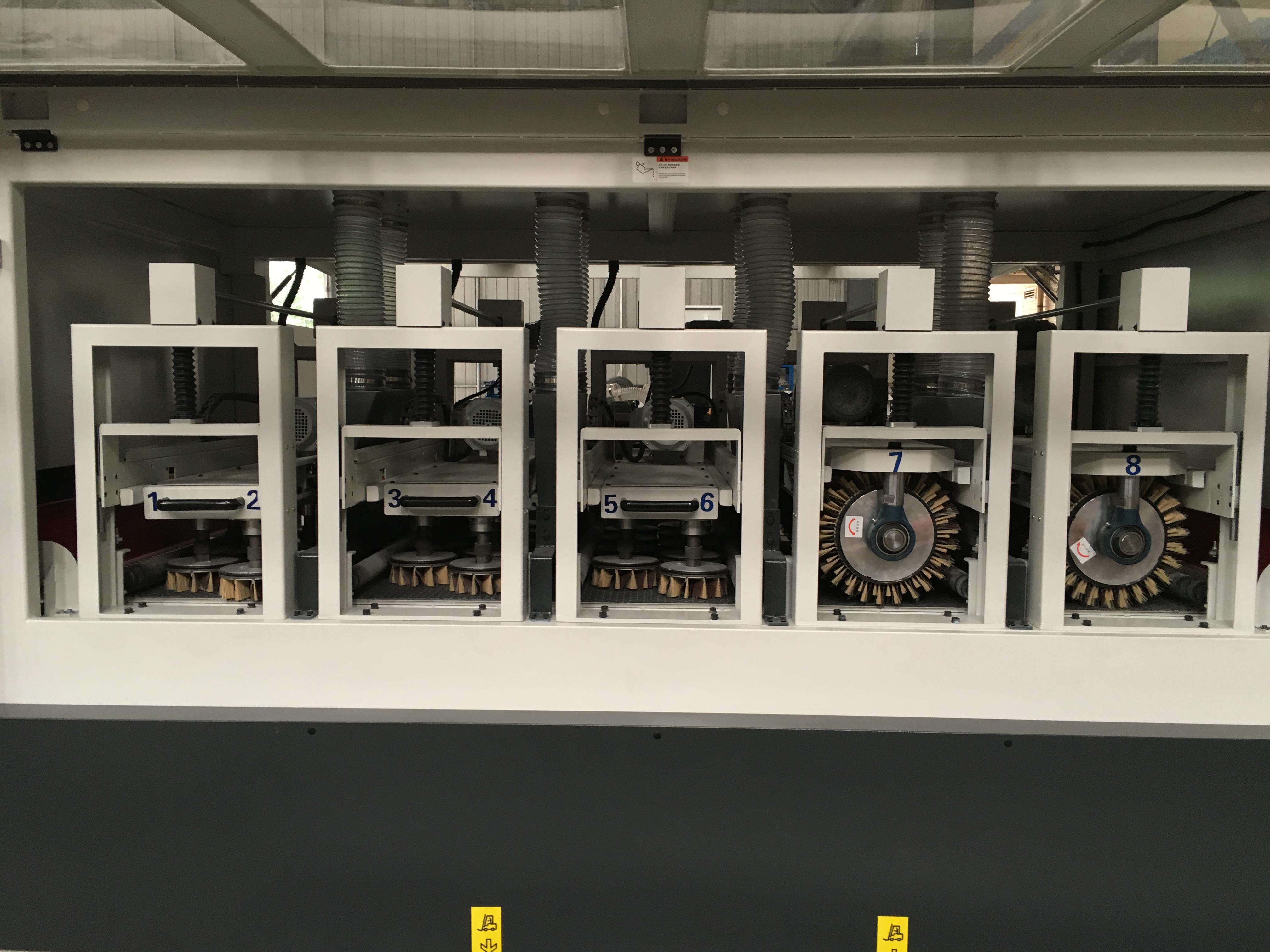

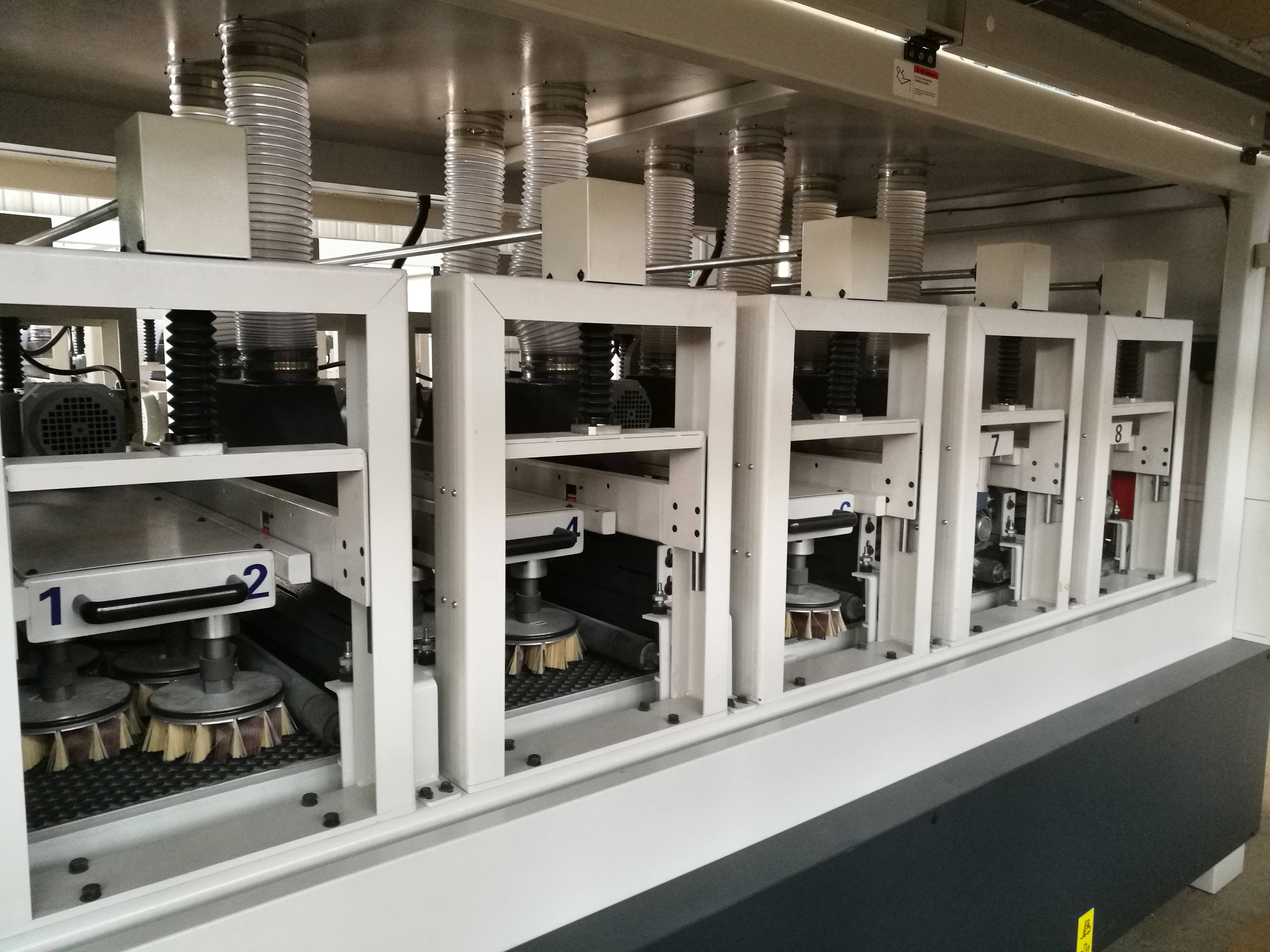

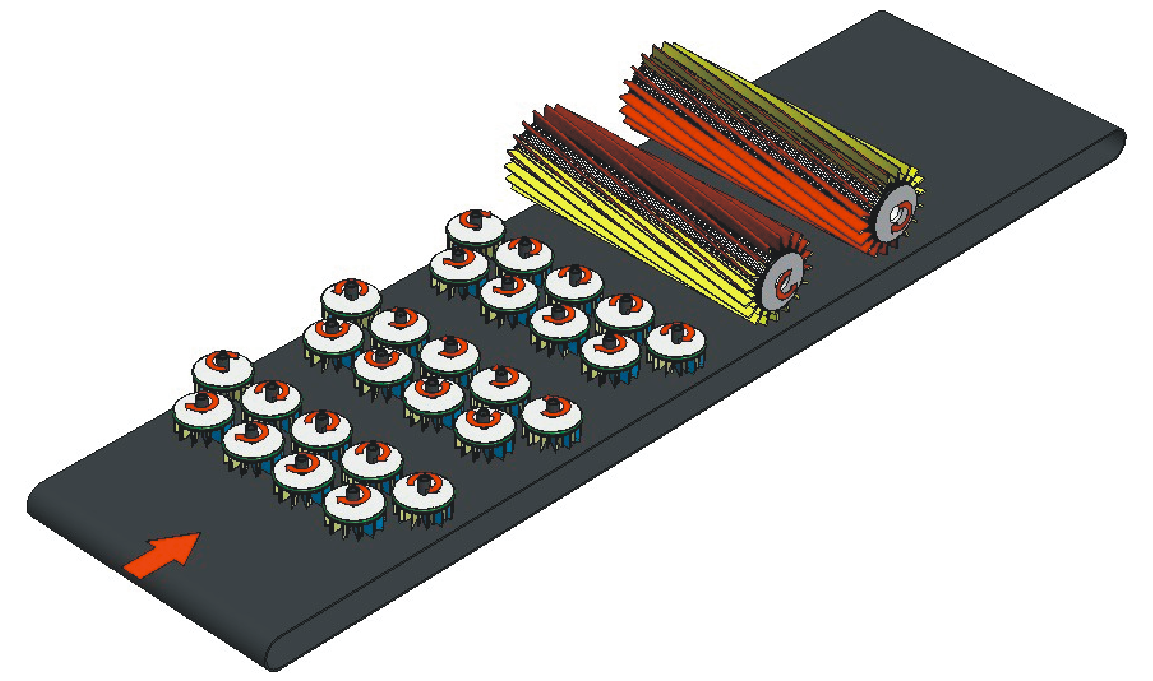

1. This UV primer cabinet door sanding machine is equipped with 8 sets of sanding units, which are composed of five sets of sanding components.
2. First, second, third, set of sanding parts, six groups of sanding units, respectively, 360 degrees forward and 360 degrees reverse, all corners of the workpiece are sanded and sanded in an all-round way.

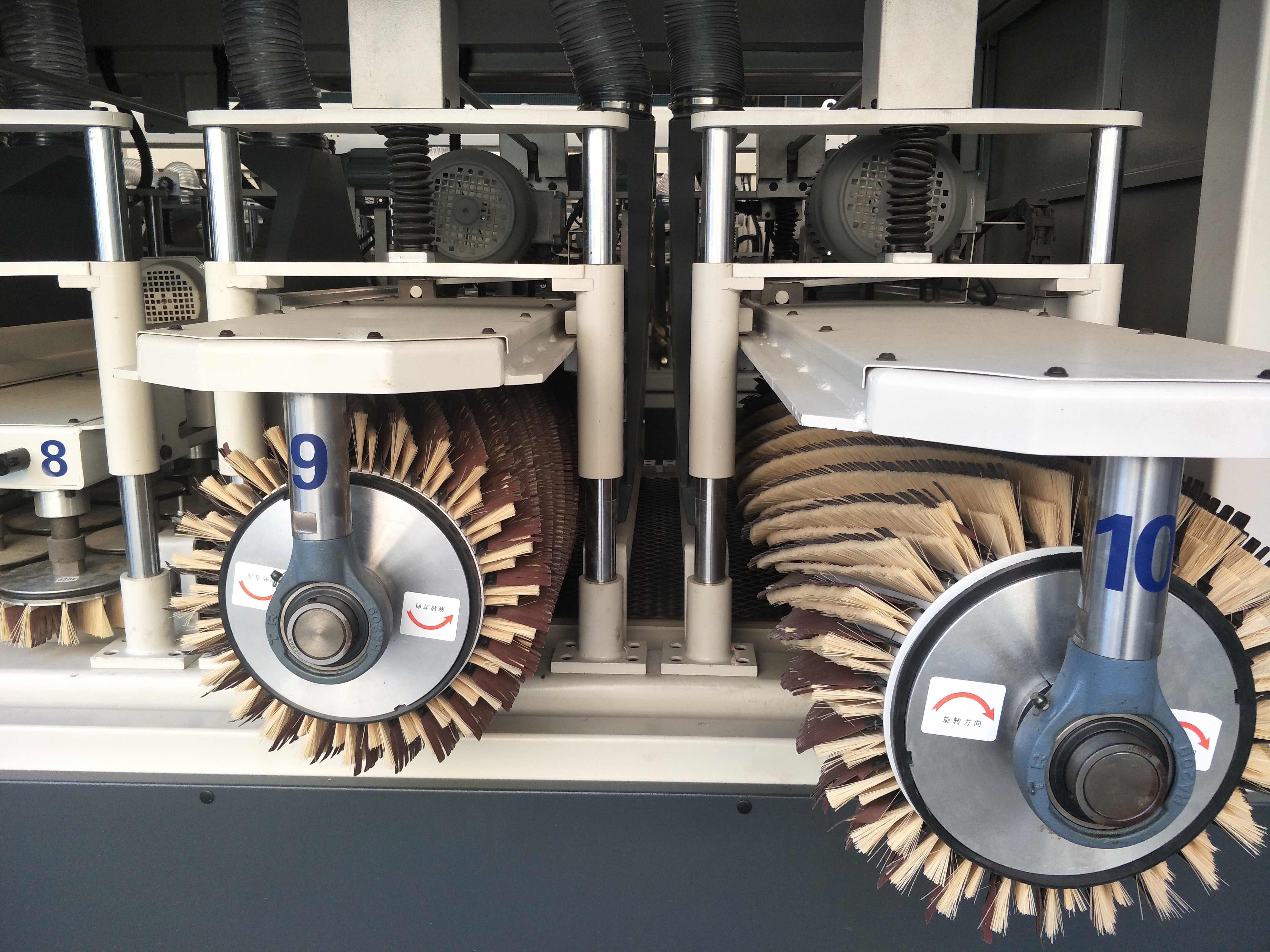

3. Fourth and fifth sets of sanding parts, two groups of sanding units, one positive and the other negative, large diameter spiral sand rollers large area sanding, the first several sanding lines are comprehensively sorted out. The concave and convex surfaces are sanded.
Multifunctional sanding machine characteristics：
1. This series of sanding machine has a wide range of processing and complete functions. It can sanding the surface of various frames, lines and paints. It is the best choice to reduce labor intensity, reduce labor and improve productivity.
2. The machine standard is equipped with 8 sets of sanding units, which are composed of 5 sets of component modules. Each set of components can be interchangeable. The manufacturer can configure different components according to customers and form 5 to 10 groups of sanding units to achieve sanding effect.

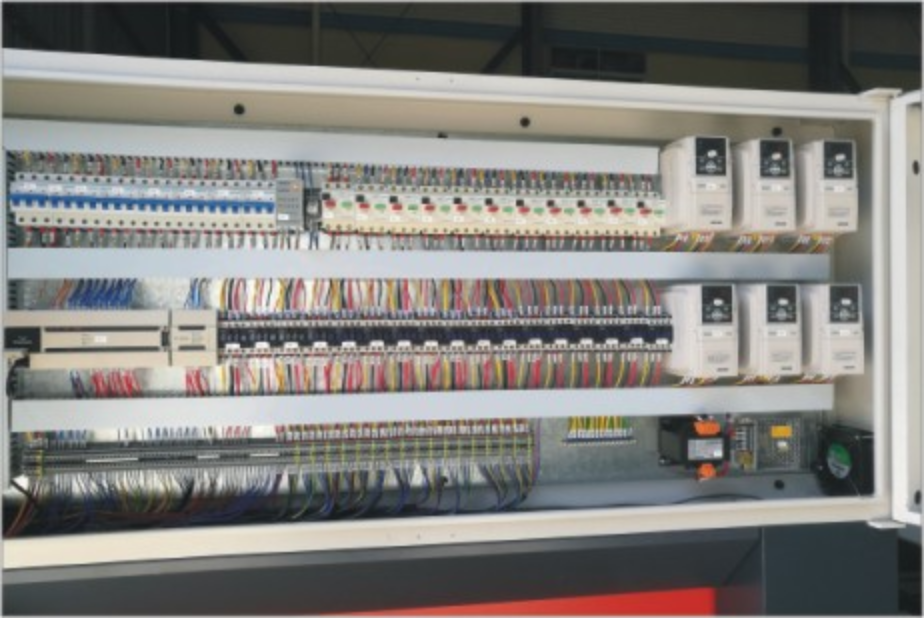

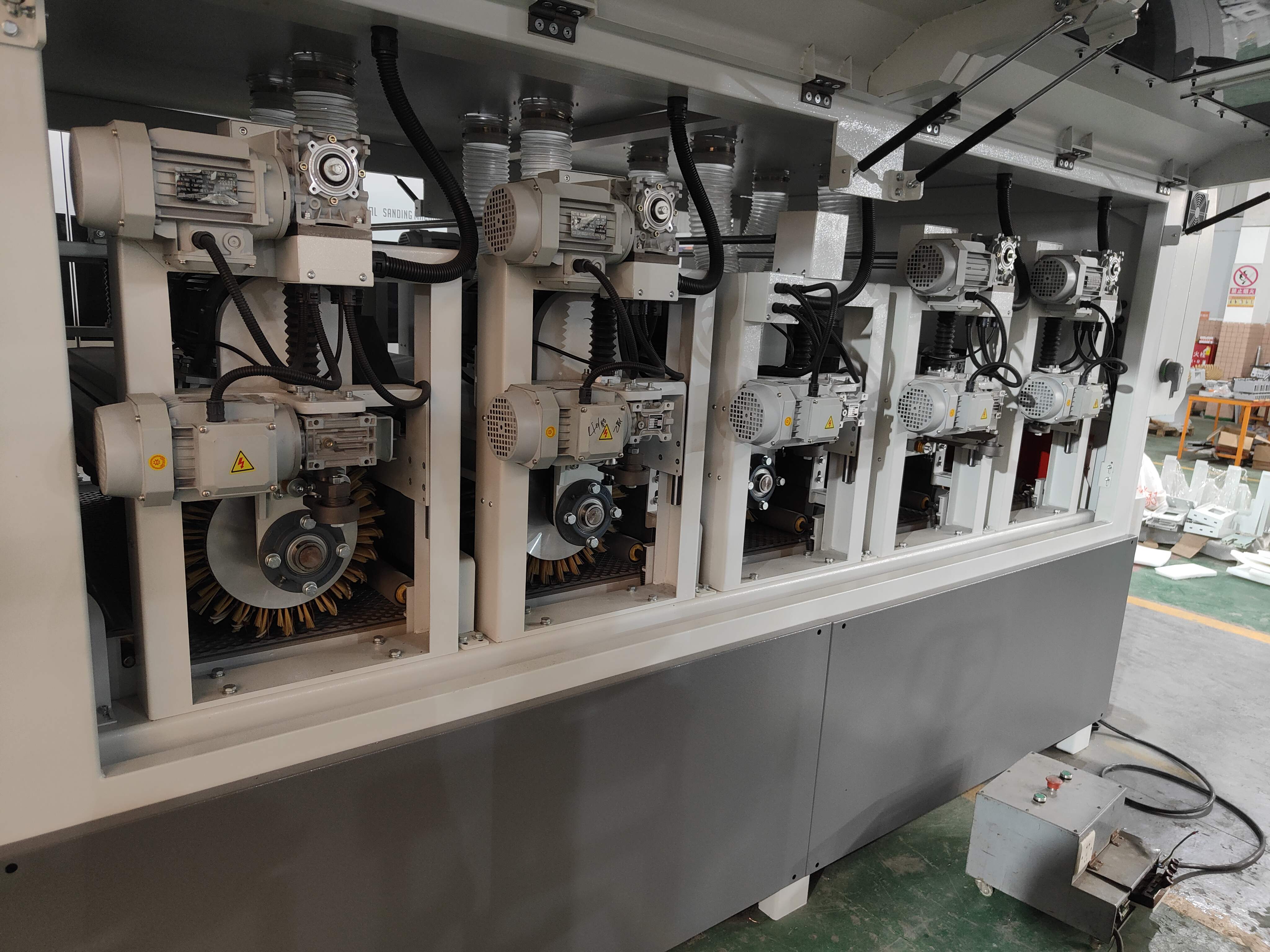

3. PLC system control, touch screen operation interface, transmission and independently variable frequency speed regulation of each set of sanding components. The operation is stable and can be used for different materials. It has a good man-machine interface.
4. PLC can store hundreds of processing parameters of workpieces, and adjust the machine with one key, which is simple and convenient.
5. This UV primer office furniture sanding machine is a vibrating roller sander. It can be equipped with various sand cloth silk rollers, brown brush sand rollers, abrasive silk rollers, cloth cotton linen rollers, etc.
6. The main functional components are modularized, which makes it very convenient to replace and maintain the parts for follow-up service. The processing of the parts, the procurement of various standard parts and the appearance of the equipment are all strictly required.
Mechanical parameter description：
| Machine type: | SDS13-PPPLL |
| Maximum processing width | 50～1300 mm |
| Maximum processing height | 10～150 mm |
| Minimum processing length | 450 mm |
| Conveyor motor power | 1.5 kw |
| Integral lift motor power | 1 x 0.75 kw |
| Sand roller motor power | 2 x 1.5 kw |
| Horizontal sand main motor | |
| Disc motor power | 3 x 1.5 kw |
| Component fine-tuning motor power | 5 x 0.25 kw |
| Swing motor power | 5 x 0.25 kw |
| Feeding speed | 1-10 m/min |
| Rotary speed of sand roll | 100-280 r/min |
| Disk size | 3 x 11 x φ180 |
| Sand roll size | 2x φ380 x 1300 mm |
| Conveyor band width | 1000/1300 mm |
| Power requirements | 3/PE 380V 50Hz |
| Clean air pressure | 4~6Pa |
| Working table height | 845mm |
| Dust-collecting wind speed | 22m/s |
| Vacuum cleaner | φ125mm×8 |
| Total power supply | 13.28kw |
| Machine size | 4000 x 2100 x 2000mm |
| Machine weight | 3000 kg |
