MDF brush sanding machine

Get Latest Price

Payment Type:

L/C,T/T

Incoterm:

FOB,EXW

Min. Order:

1 Set/Sets

Transportation:

Ocean,Land

Contact Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: SDQ06-P4L2

Brand: SANDWELL

Place Of Origin: China

Status: New

Machine Type: Wood Sanding Machine

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Bearing, Gearbox, Motor

Warranty Period: 1 Year

Core Selling Point: Easy To Operate, High Productivity, Flexible Manufacturing, Multifunctional, Energy Saving, High Safety Level, High-Accuracy, High Rigidity, Long Service Life, Patented Product

Showroom Location (in Which Countries Are There Sample Rooms Overseas): Viet Nam, Russia, Malaysia, Australia, Indonesia

Out-of-warranty Service: Video Technical Support, Online Support, Field Maintenance And Repair Service

Applicable Industry: Farms, Construction Works, Energy &Amp; Mining, Advertising Company

Workpiece Width: 20～650 mm

Minimum Length Of Workpiece: 350 mm

Workpiece Thickness Range: 5 ～ 150 mm

Feeding Speed: 1 ～ 7 m/min

Rotating Disk Sand: 2 groups 8×Φ130mm

Sand Abrasive Belt Brush Roller: 2 groups Φ330×650mm

Vacuum Cleaner: Φ125×3 unit

Total Power: 3.7KW/380V 50HZ

Outline Dimension: 3400×1720×1500mm

Weight: 1800kg

Supply Ability & Additional Information

Transportation: Ocean,Land

Payment Type: L/C,T/T

Incoterm: FOB,EXW

Packaging & Delivery

Selling Units:: Set/Sets

Product description:

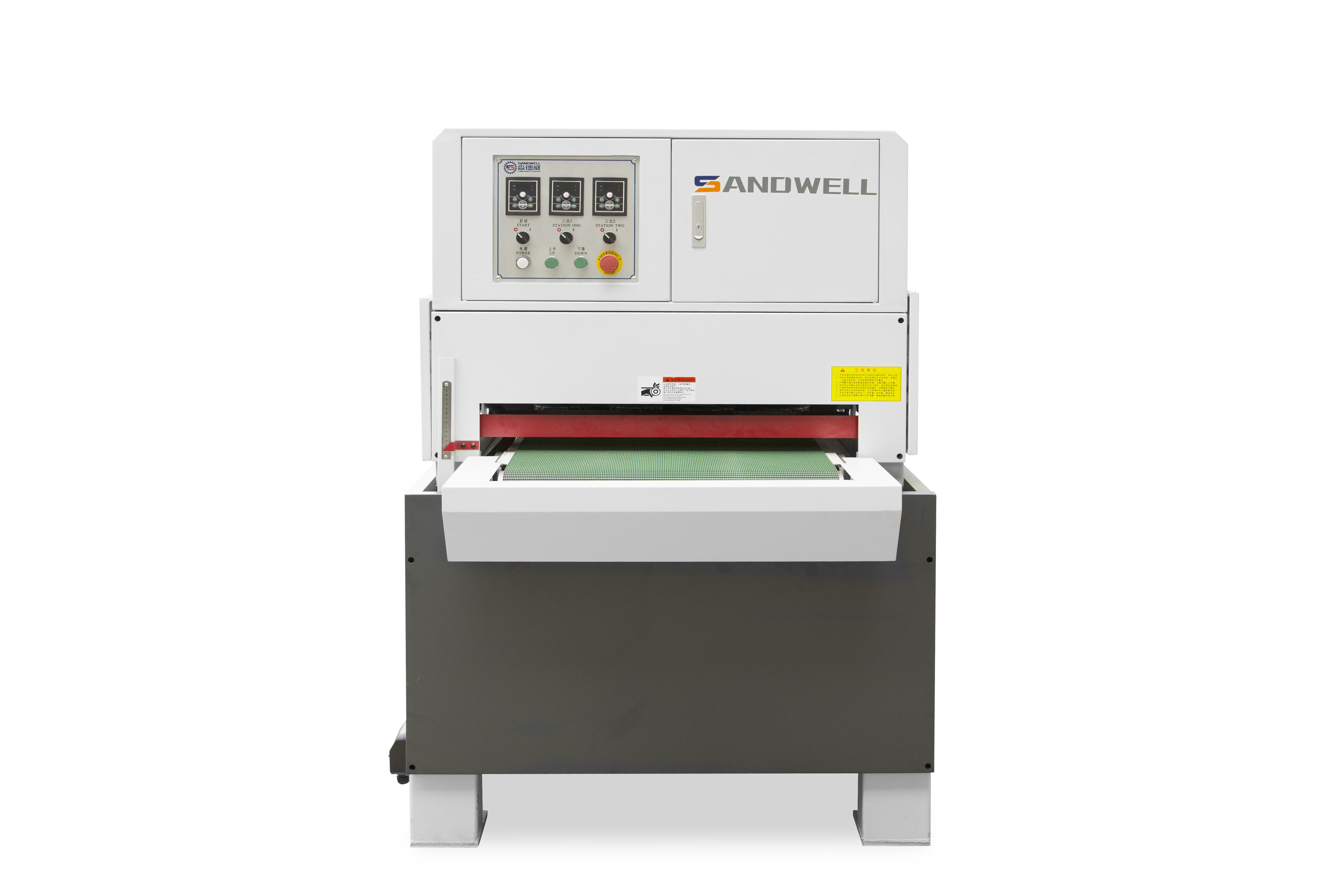

MDF hairbrush sanding machine SDQ06-P4L2

The Multifunctional sanding machine is aimed at the white blank and the primer grinding of the furniture, floor, door and window, cabinet and other products made by the MDF; the simple and practical operation interface is simple and practical operation interface, is convenient and quick to dismantle, and is convenient and quick to replace the abrasive.

Configuration description:

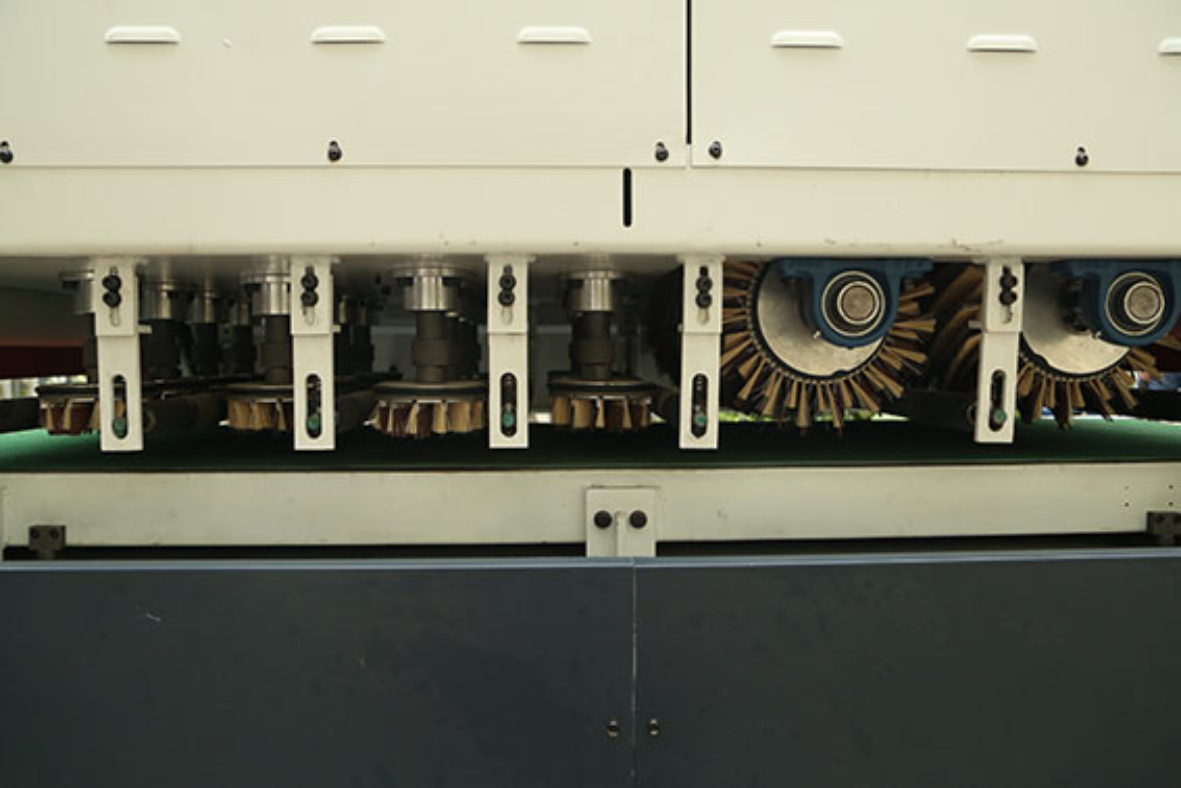

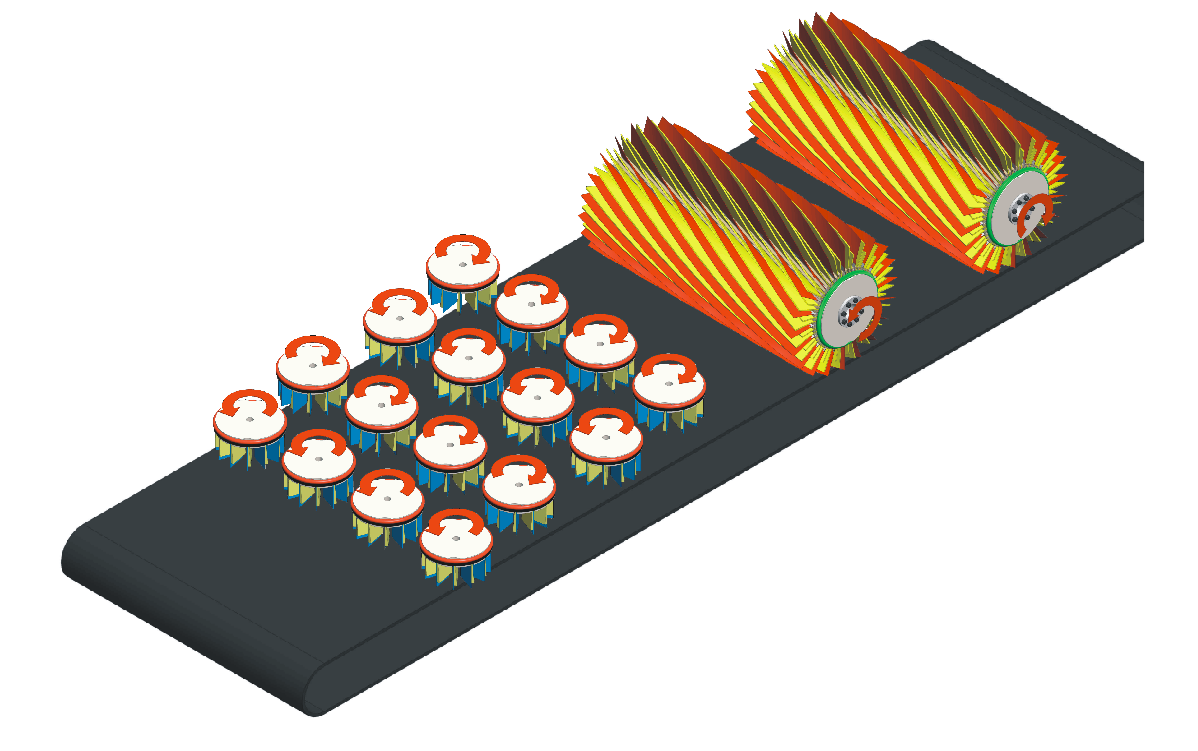

1. This UV primer cabinet door sanding machine is equipped with 6 sets of sanding units, consisting of four sets of sanding components.

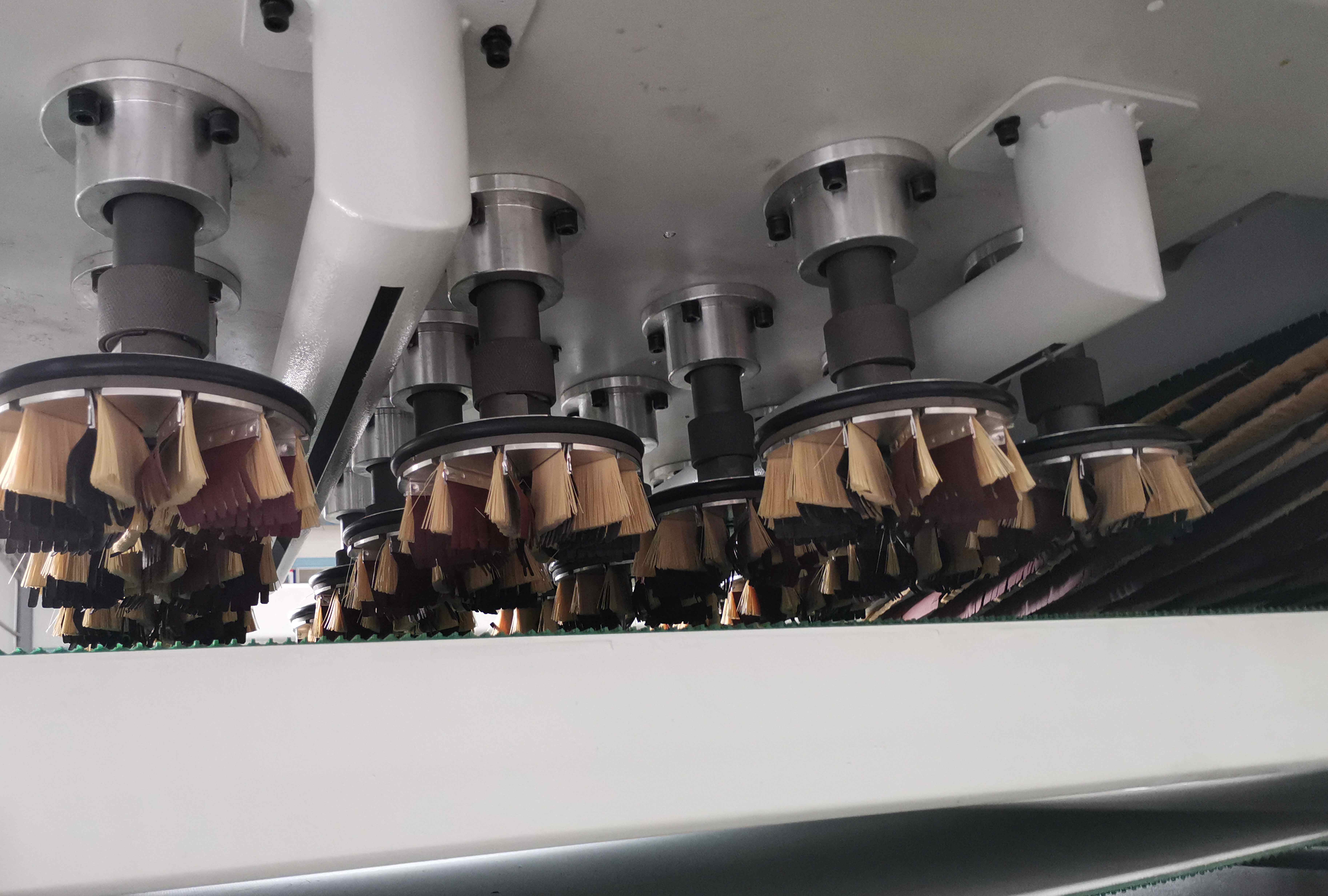

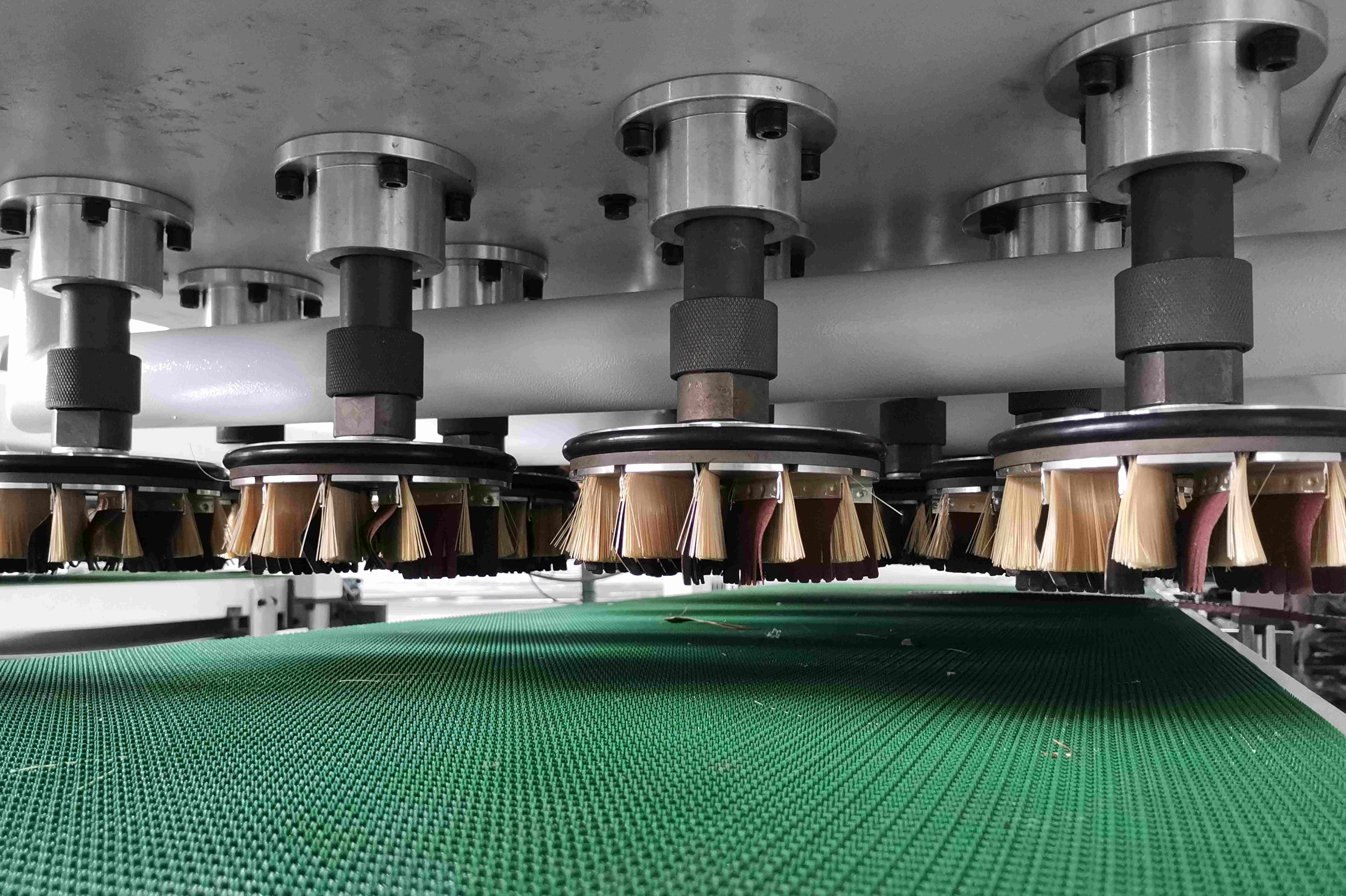

2, The first and second sets of sanding parts, four sets of sanding units, respectively, 360 degree positive rotation and 360 degree reversal, each corner of the workpiece is polished and sanded in an all-round way.

3,The third and fourth sets of sanding components, two sets of sanding units, positive and negative, large diameter sand roller large area sand grinding, the first few sanding sand lines in a comprehensive way.The smooth concave and convex surface is sanded.

Function characteristics:

1.This Plastic uptake door panel sanding machine is mainly composed of conveying parts, frame components, and corresponding sanding units (disc components, sand roller components, etc.).

Customers can be used to select the corresponding configuration and functions according to different needs.

2. Sanding surface treatment of plane or surface.

3. Each sanding unit adopts independent frequency conversion control and PLC automatic control, which makes it more convenient and effective to adjust the grinding effect.

4, Abrasive is split installation, supporting sand belt brush wire strip and sand cloth strip composition.

Wood Sanding Machine Parameter:

Equipment model	SDQ06-P4L2
Workpiece width	20～650 mm
Minimum length of workpiece	350 mm
Workpiece thickness range	5 ～ 150 mm
Feeding speed	1 ～ 7 m/min
Rotating disk sand	2 groups 8×Φ130mm
Sand abrasive belt brush roller	2 groups Φ330×650mm
Vacuum cleaner	Φ125×3 unit
Total power	3.7KW/380V 50HZ
Outline dimension	3400×1720×1500mm
Weight	1800kg

Product Categories : Profile Sanding Machine
