Product description:

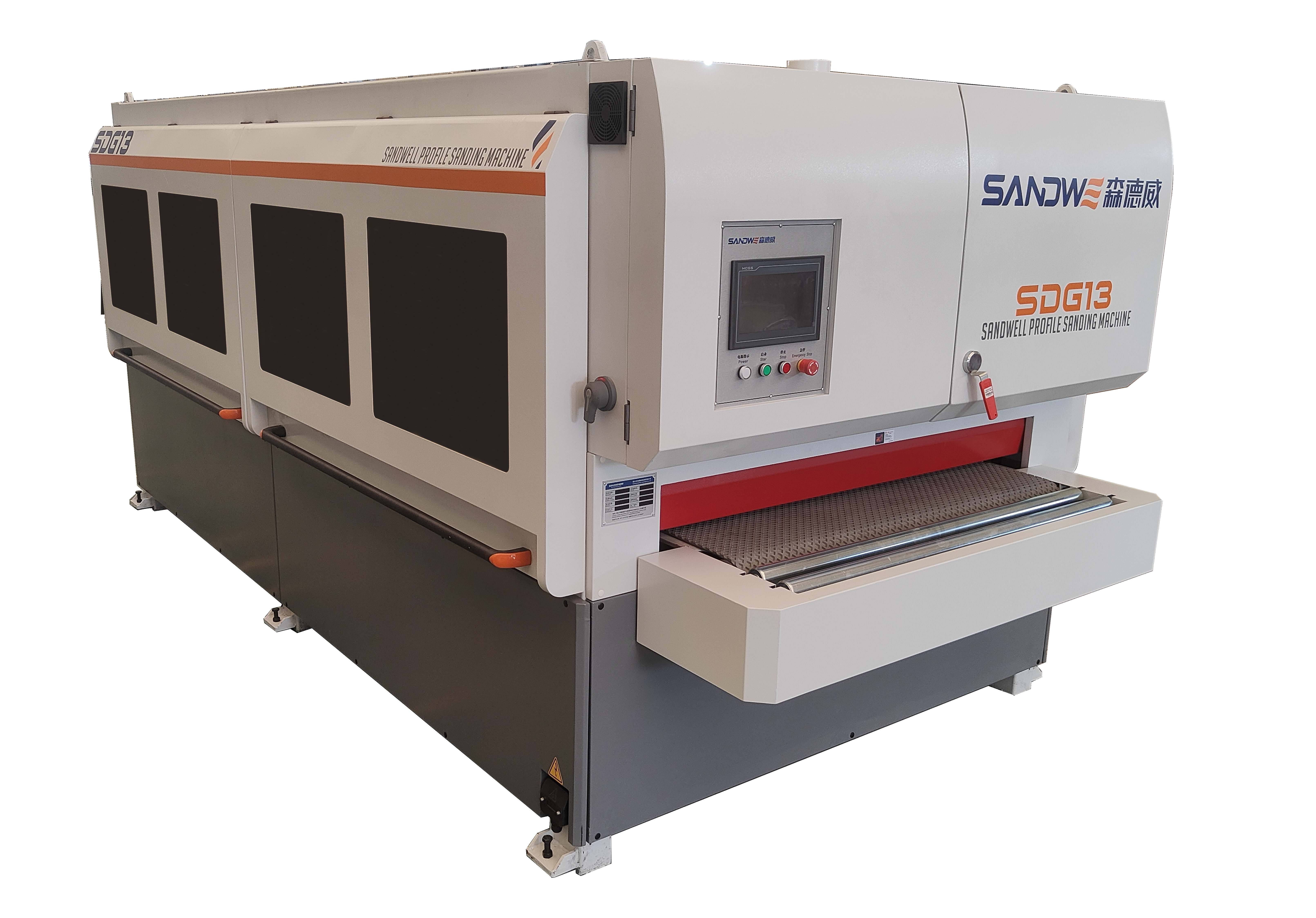

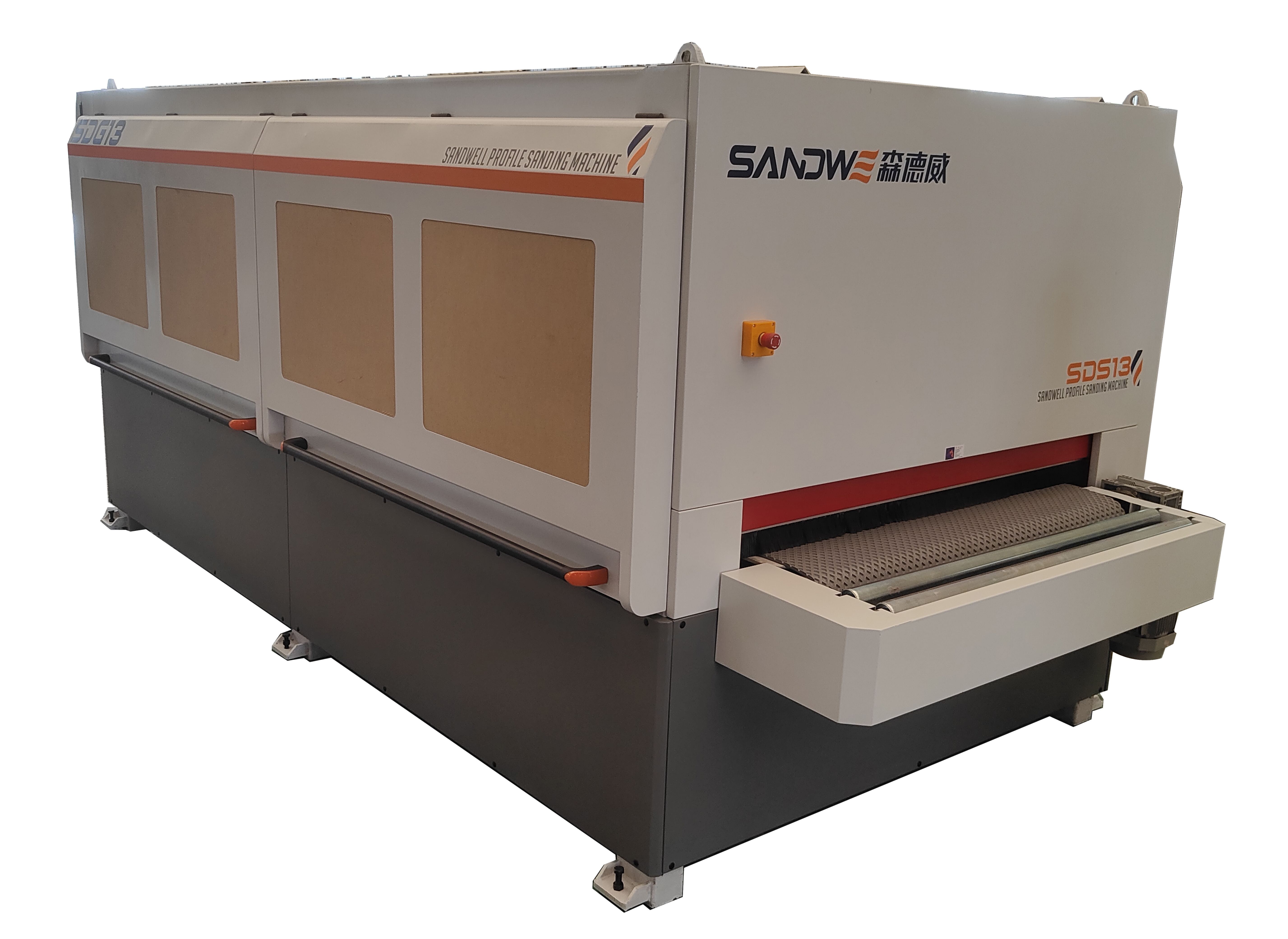

SANDWELL Multifunctional sanding machine SDG13-APPLLL
Surface sanding of furniture with flat special-shaped workpiece for various plate processing has good effect in white blank and paint sanding.
The sanding parts of the equipment are manufactured by module production , which can be exchanged or replaced according to the need to achieve different sanding effects. According to different requirements of customers' products, customized process arrangement of equipment components achieves the best sanding effect.
Sanding components adopt modular, which can improve sanding efficiency by 3-10 times and reduce manual work by more than 70%.
Configuration description:

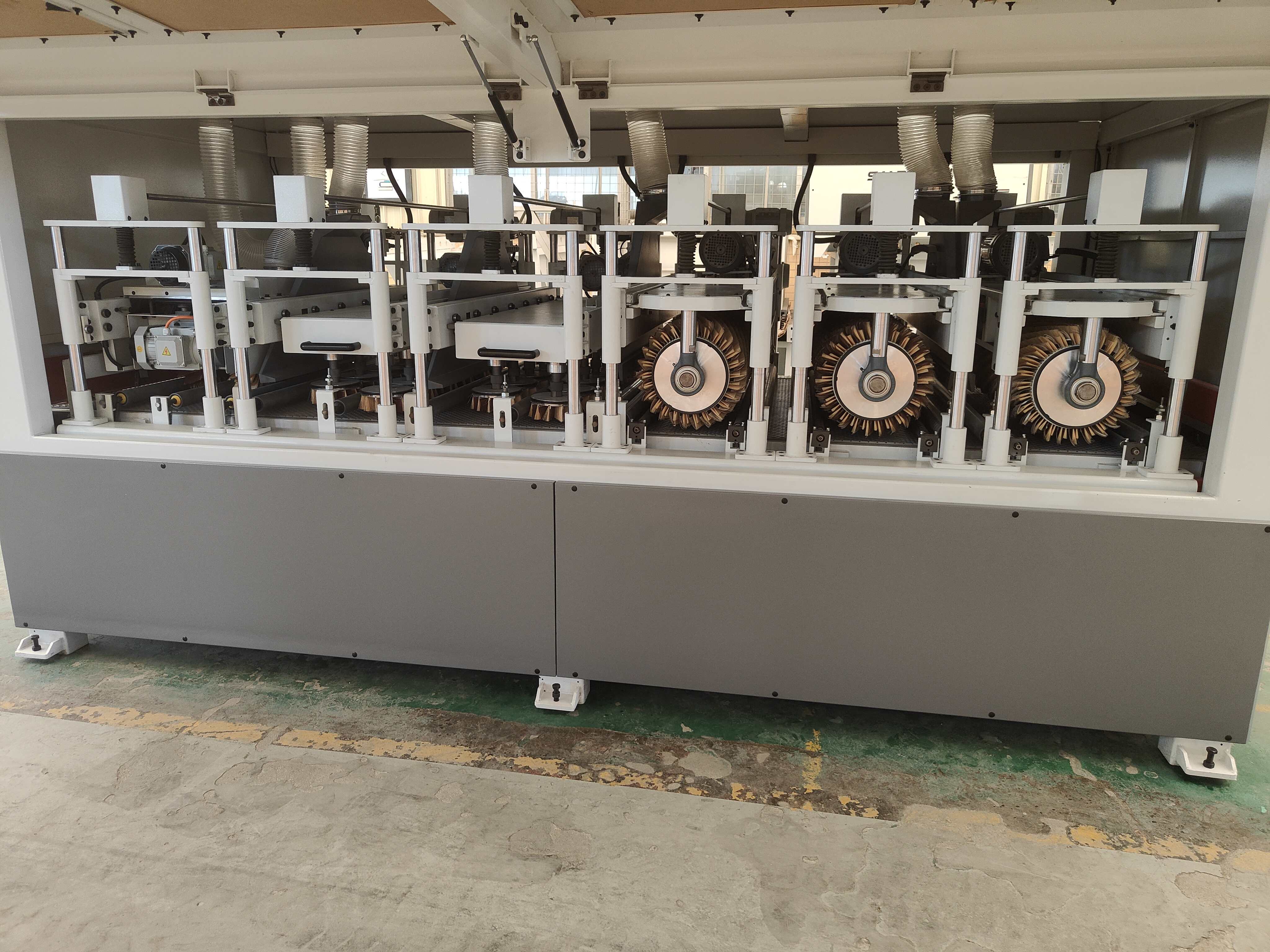

1. This UV primer office furniture sanding machine is equipped with 9 sets of sanding units, composed of six sets of sanding components, with a feeding width of 1300mm.

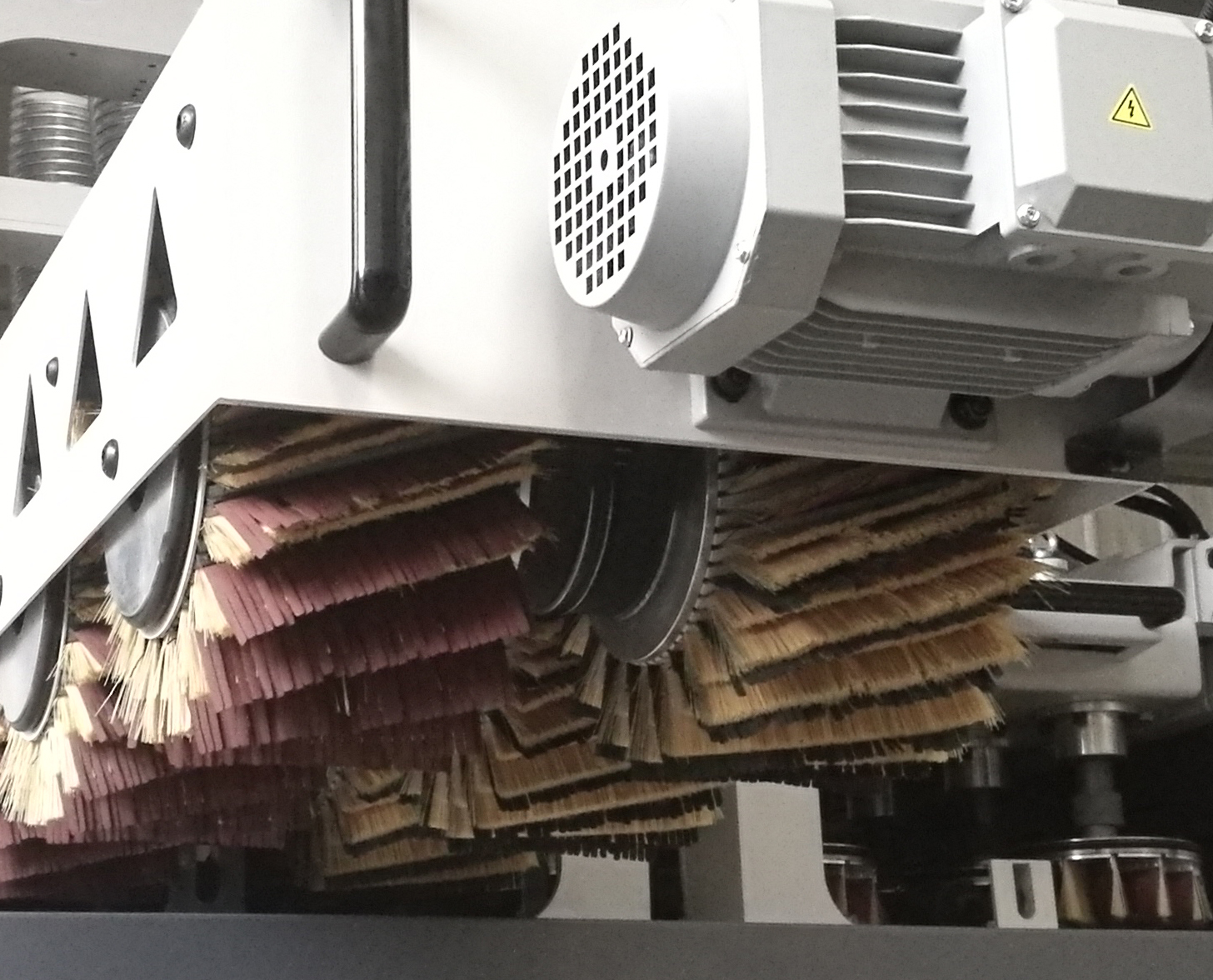

2. The first set of sanding components consists of two sets of horizontal spiral roller forward and reverse sanding groups, which sand the horizontal concave and convex surfaces of the workpiece. Both the forward and reverse sides can be sanded in place;

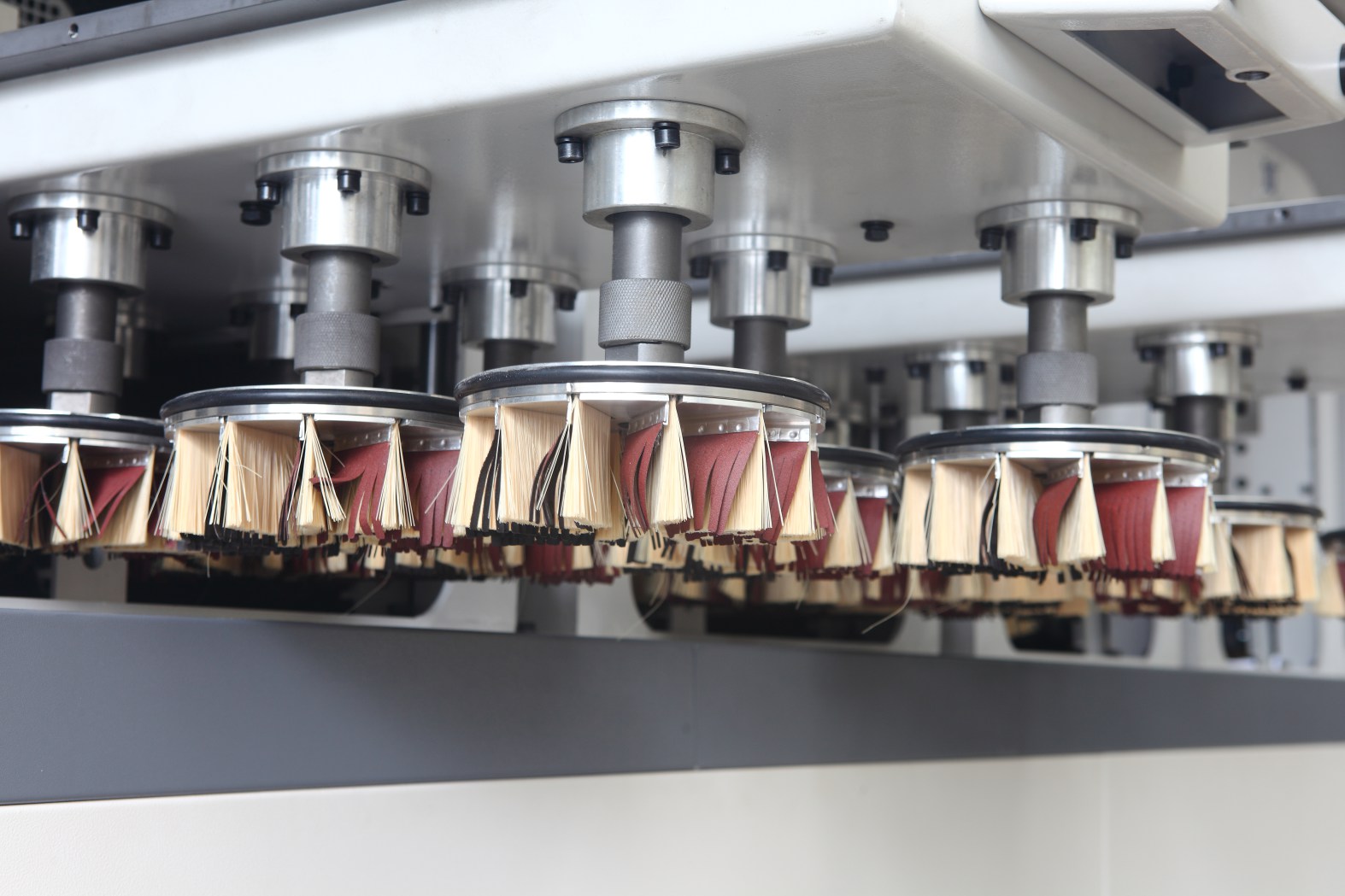

3. The second and third sets of sanding components, four sets of sanding units, with 360 degree forward rotation and 360 degree reverse rotation respectively, are used to comprehensively polish and sand all corners of the workpiece;
4. The fourth, fifth, sixth sets of sanding components, three sets of spiral roller sanding units, large-diameter sanding rollers for large-area sanding, comprehensively smoothing the sand lines on the surface of the first few sanding paint, and sanding the concave and convex surfaces.
5. Optional vacuum adsorption conveying workbench.
Sanding machine characteristics:
1. The Plastic uptake door panel sanding machine has a wide range of applications. the white blank and the paint sand light of the flat-shaped furniture processed by various materials can be prepared by the combination of different sanding and abrasive materials.
2. Structural profile fuselage of high-strength integral frame ensures stable operation of equipment and sanding accuracy.
3. The machine adopts PLC control, touch screen operation interface, transmission and independent frequency conversion speed regulation for each group. It has a good man-machine interface, simple and convenient operation, memory storage function, and can store a variety of different workpiece sanding process, and adjust the parameters.
4. The way of equipment adjustment is as follows
(1)The working table is fixed and the working group rises and falls independently, that is, the floating structure, which can be connected to the production line.
(2) Independent adjustments of rollers and working components can be made for sanding plates with deeper grooves.

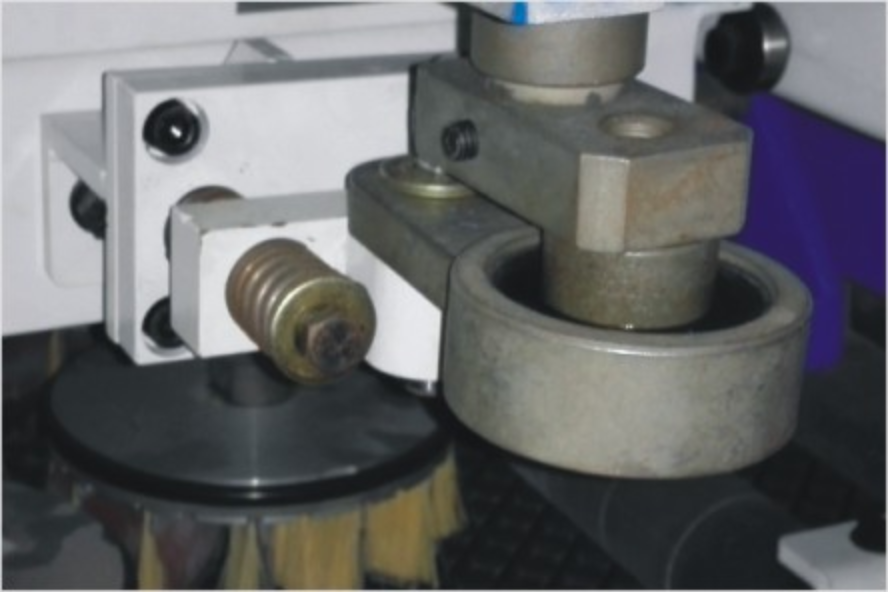

5. The abrasive replacement of the whole machine is simple and convenient. The sanding component can push out the fuselage from the side. The disc component has a patented fast-changing structure.
6. It has an input and output material detection device and a sand roll start-stop device, which can effectively protect the head and tail of the plate from being sanded.
7. 10 125MM suction outlets to ensure the effect of suction.
.
Description of mechanical parameters:
| Machine type | SDG13-APPLLL |
| Maximum processing width | 50～1300mm |
| Maximum processing height | 10～150 mm |
| Minimum processing length | 450 mm |
| Conveyor motor power | 2.2 kw |
| Integral lift motor power | 1 x 1.1 kw |
| Sand roller motor power | 3 x 1.5 kw |
| Horizontal Sand Main Motor | 2 x 1.5 kw |
| Disc motor power | 2 x 1.5 kw |
| Component fine-tuning motor power | 6 x 0.18 kw |
| Swing motor power | 6 x 0.25 kw |
| Feeding speed | 1-10 m/min |
| Rotary speed of sand roll | 100-280 r/min |
| Disk size | 2 x 11 x φ180 |
| Sand roll size | 2x φ380 x 1300 mm |
| Conveyor band width | 1300 mm |
| Power requirements | 3/PE 380V 50Hz |
| Clean air pressure | 4~6Pa |
| Working table height | 845mm |
| Dust-collecting wind speed | 22m/s |
| Vacuum cleaner | φ125mm×10 |
| Total power supply | 13.28kw |
| Machine size | 4860 x 1800/2100 x 2050mm |
| Machine weight | 4000 kg |
