Product description:
SANDWELL profile Sander Model: SDS13-AAPLL
This Plastic uptake door panel sanding machine can be used for white blank and sanding paint of bathroom cabinet made of various solid wood, wrapping wood and other materials.
The plane special-shaped bathroom cabinet doors which have been carved or processed in other ways.
The combined sanding method greatly reduces the time of artificial sanding again and improves the labor productivity.
Configuration description:

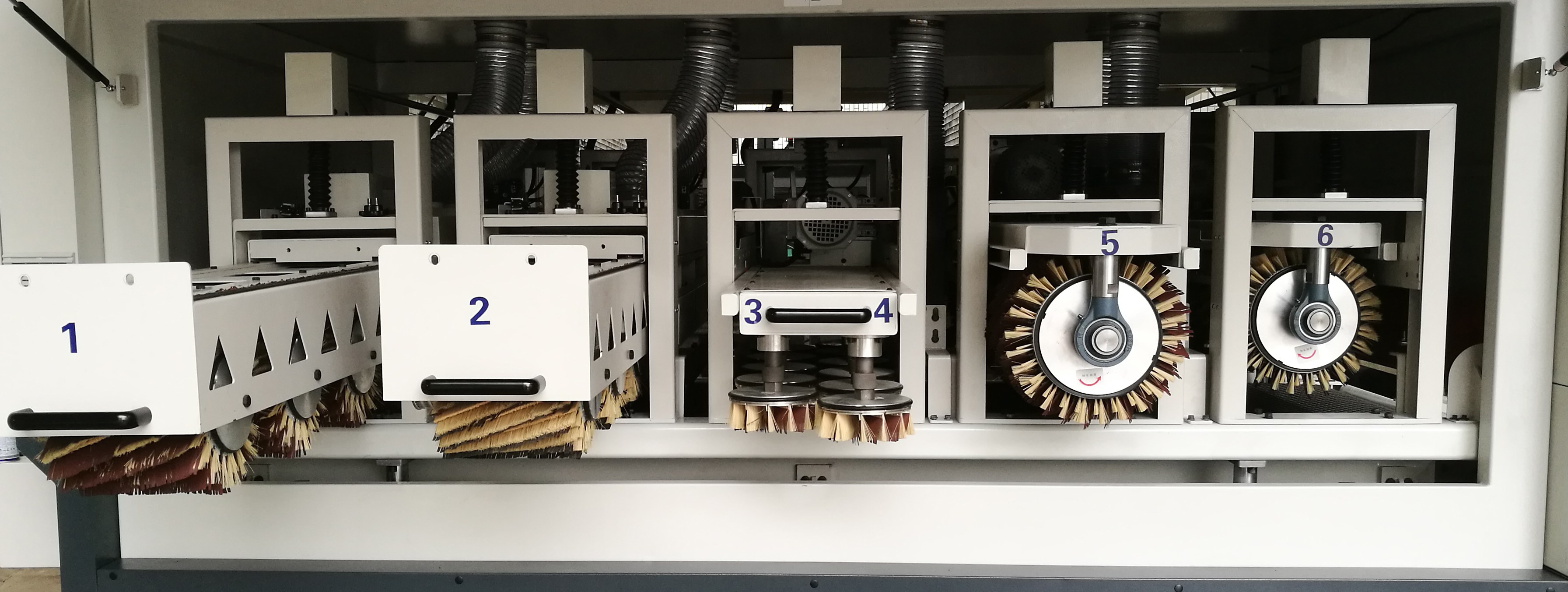

1. This UV primer office furniture sanding machine is equipped with 6 sets of sanding units, consisting of a combination of five sets of sanding components.

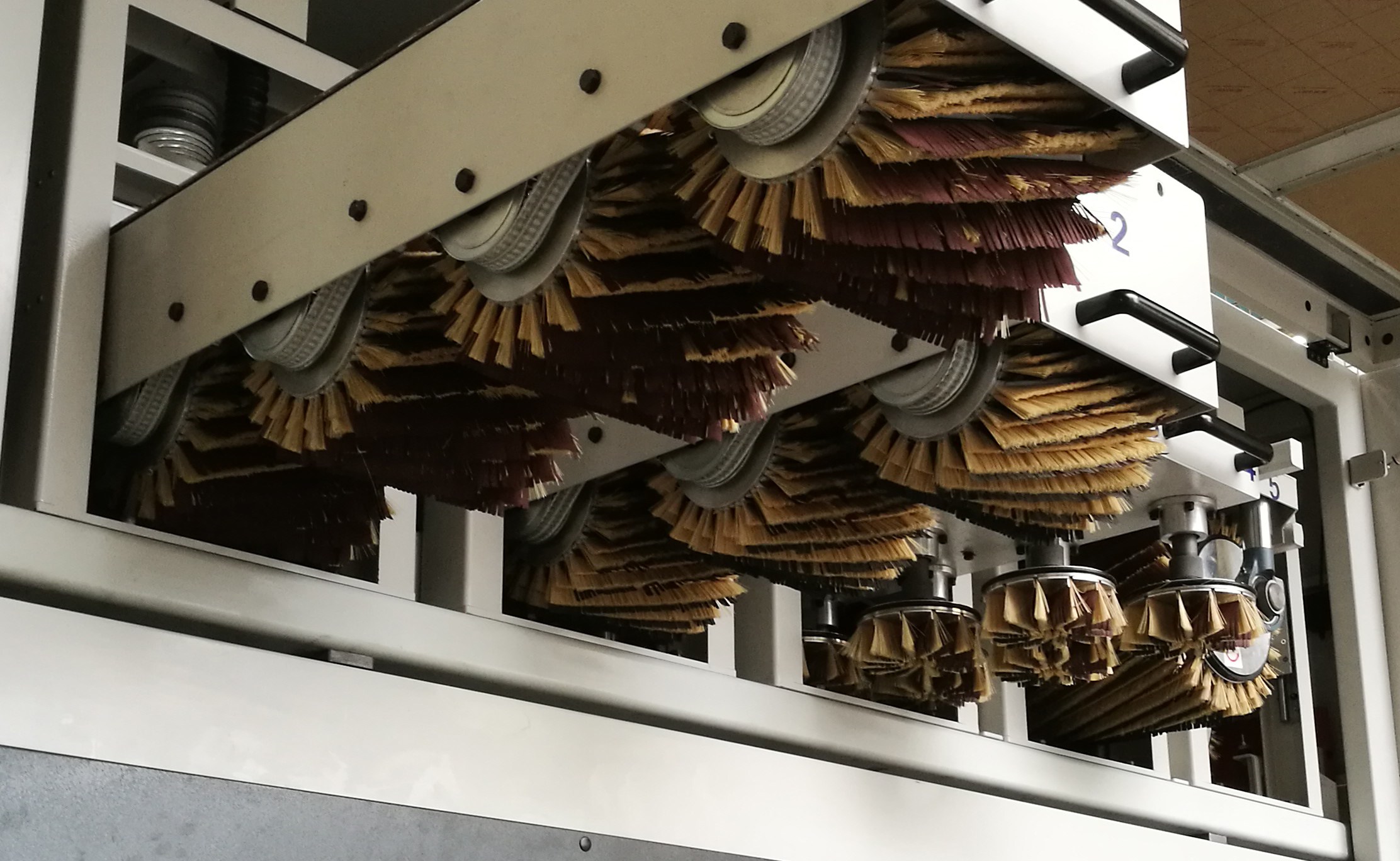

The first and second sets of sanding components consist of two sets of horizontal sanding units. The spiral shaped flexible sanding unit is composed of sand belts supported by elastic brushes, and the rotation direction is 90 degrees with the movement direction of the workpiece. And move left and right at a uniform speed, with numerical adjustments for sanding intensity, depth, and speed. Infinite speed regulation. The mechanical structure is externally pulled for easy replacement of abrasives. This component is mainly used for painting and sanding the uneven workpieces with horizontal ends. The depth of pressing is determined by the width of the abrasive.
2. The third set of sanding components consists of two sets of sanding units, each with a 360 degree forward rotation and a 360 degree reverse rotation, to comprehensively polish and sand all corners of the workpiece;
3. Four or five sets of sanding components, two sets of spiral roller sanding units, one positive and one negative, large-diameter spiral sanding rollers are used for large-scale sanding, and the first few sanding lines are comprehensively smoothed. And sand polish the concave and convex surfaces.
Multifunctional sanding machine characteristics:
1. This series of sanding machine has a wide range of processing and complete functions. It can sanding the surface of white blanks and paints for all kinds of bathroom cabinets.

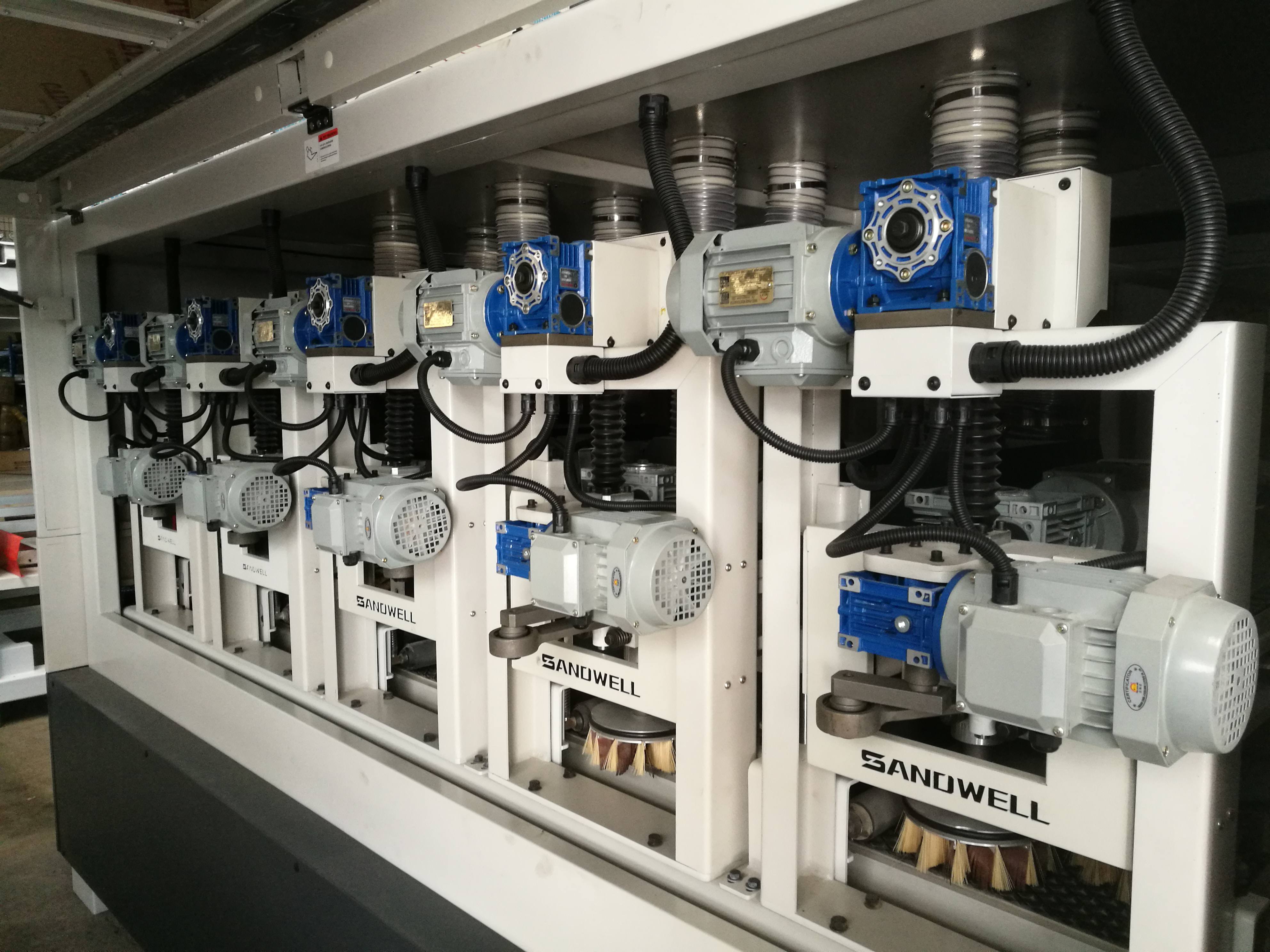

2. PLC system control, touch screen operation interface, has a good man-machine operation interface. Conveyor and independent variable frequency speed regulation for each set of sanding parts. The operation is stable. It can be used for different materials and equipped with different abrasives to achieve different sanding effects.
3. PLC can store hundreds of workpiece processing parameters, one key adjusting machine, simple and convenient.
4. Welding annealing aging treatment of integral frame structural profiles to ensure stable operation and sanding accuracy of the equipment.
5. Encoder replaces a large number of stroke switches, which makes control more accurate, debugging more convenient, low failure rate and lower maintenance cost.
6. Vacuum absorption design is selected for the worktable for sanding narrow sheet.
Mechanical parameter description：
| Machine type | SDS13-AAPLL |
| Maximum processing Width | 50～1300 mm |
| Maximum processing height | 10～150 mm |
| Minimum processing length | 450 mm |
| Conveyor motor power | 1.5 kw |
| Integral lift motor power | 1 x 0.75 kw |
| Sand roller motor power | 3 x1.5 kw |
| Horizontal Sand Main Motor | 2x1.5 kw |
| Disc motor power | 1.5 kw |
| Component fine-tuning motor power | 5 x 0.25 kw |
| Swing motor power | 5 x 0.25 kw |
| Feeding speed | 1-10 m/min |
| Rotary speed of sand roll | 100-280 r/min |
| Disk size | 11 x φ180 |
| Sand roll size | 2x φ380 x1300 mm |
| Conveyor band width | 1300 mm |
| Power requirements | 3/PE 380V 50Hz |
| Clean air pressure | 4~6Pa |
| Working table height | 845mm |
| Dust-collecting wind speed | 22m/s |
| Vacuum cleaner | φ125mm×8 |
| Total power supply | 14.08kw |
| Machine size | 4000 x 2100 x 2000mm |
| Machine weight | 3500 kg |
Equipment parameters are for reference only, subject to actual conditions
