Product description:

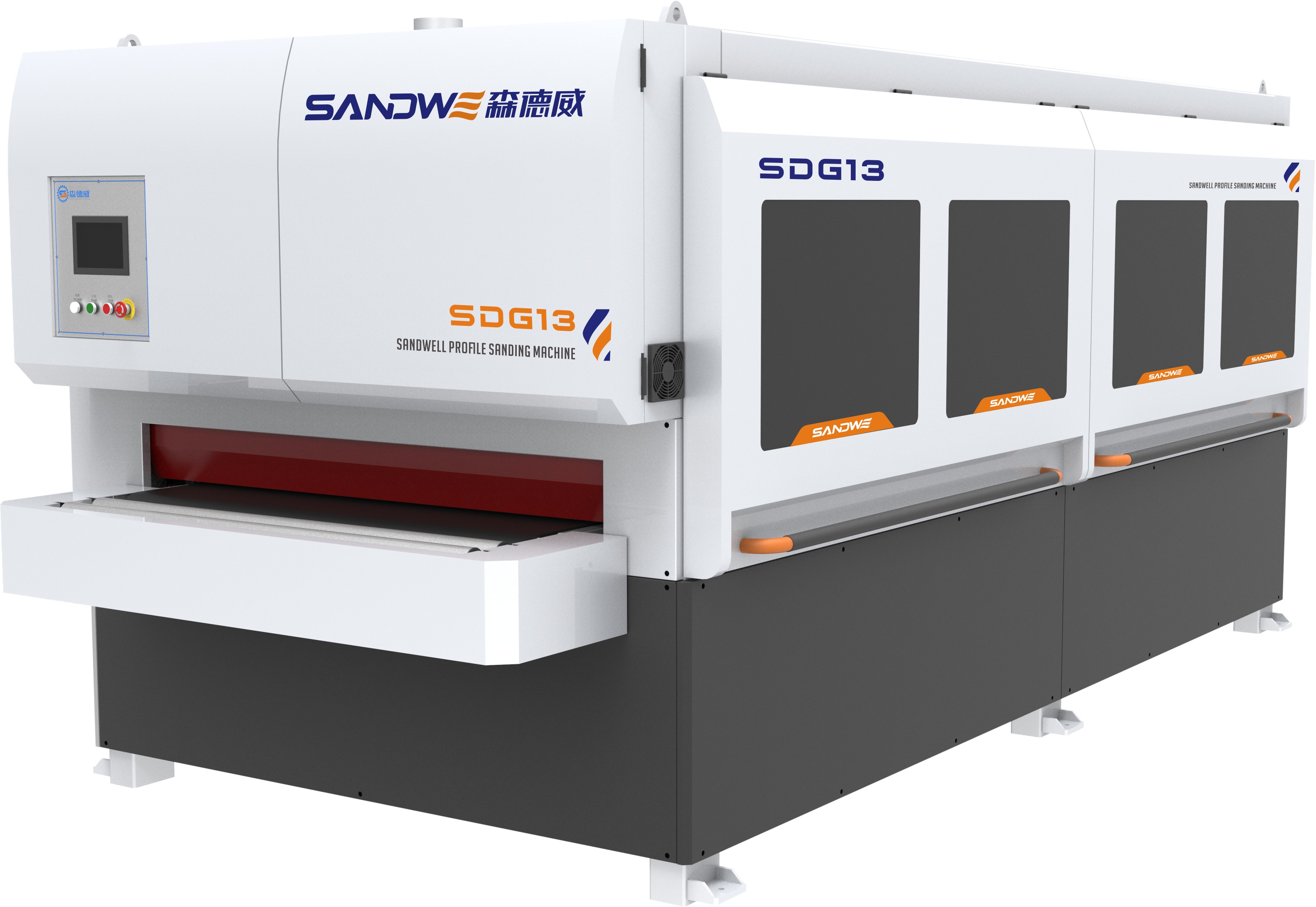

SANDWELL Profile Sander SDG13-PPPPCC
This UV primer office furniture sanding machine is used for white blank and paint sanding of all kinds of solid wood special-shaped surface workpieces.
All-round Sanding Problem Solution to Realize Mass Production
Modular design of sanding components can be arranged and combined according to different sanding processes.
Increasing sanding efficiency by 3-10 times and reducing manual work by more than 70%.
Configuration description:

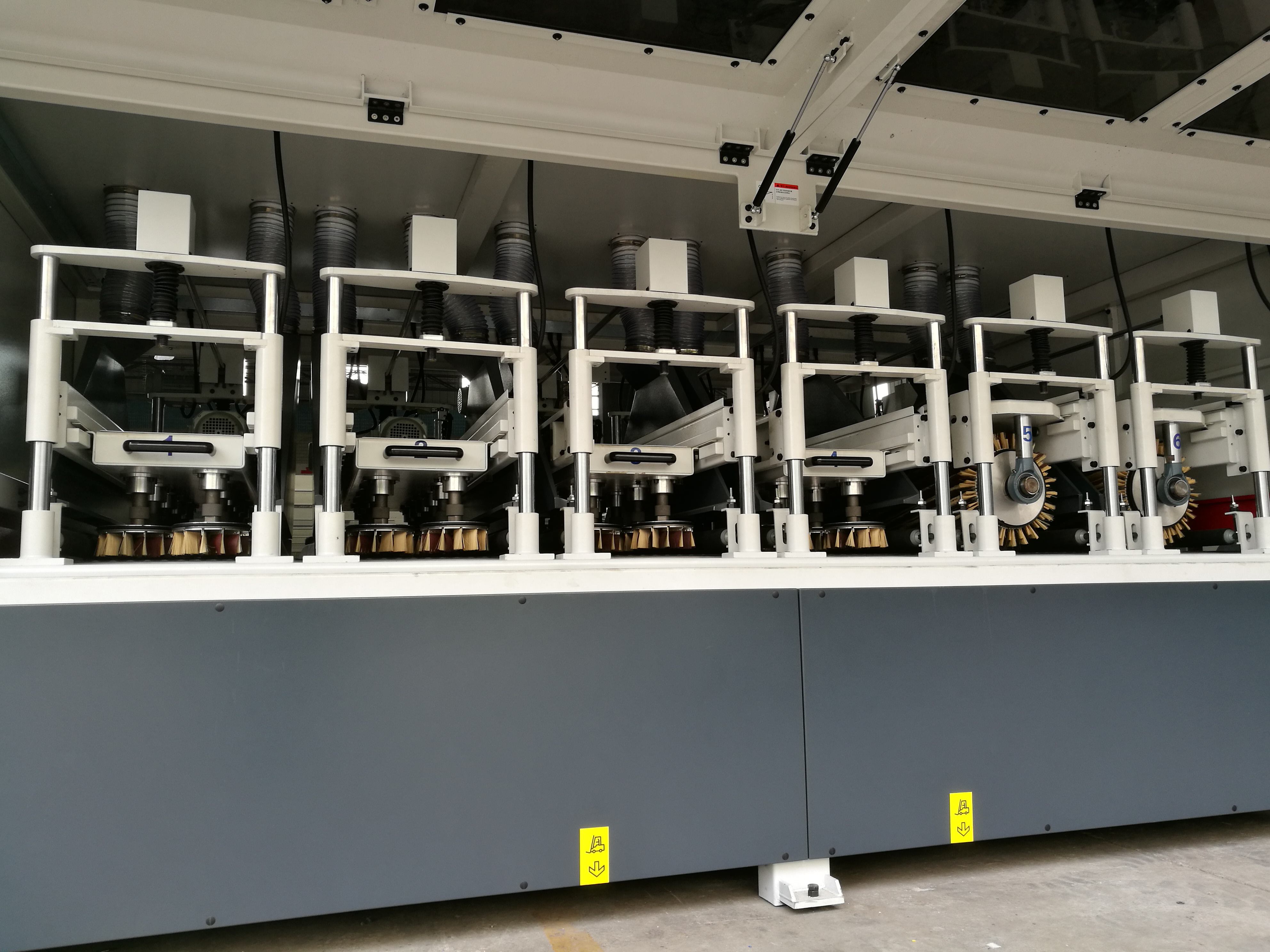

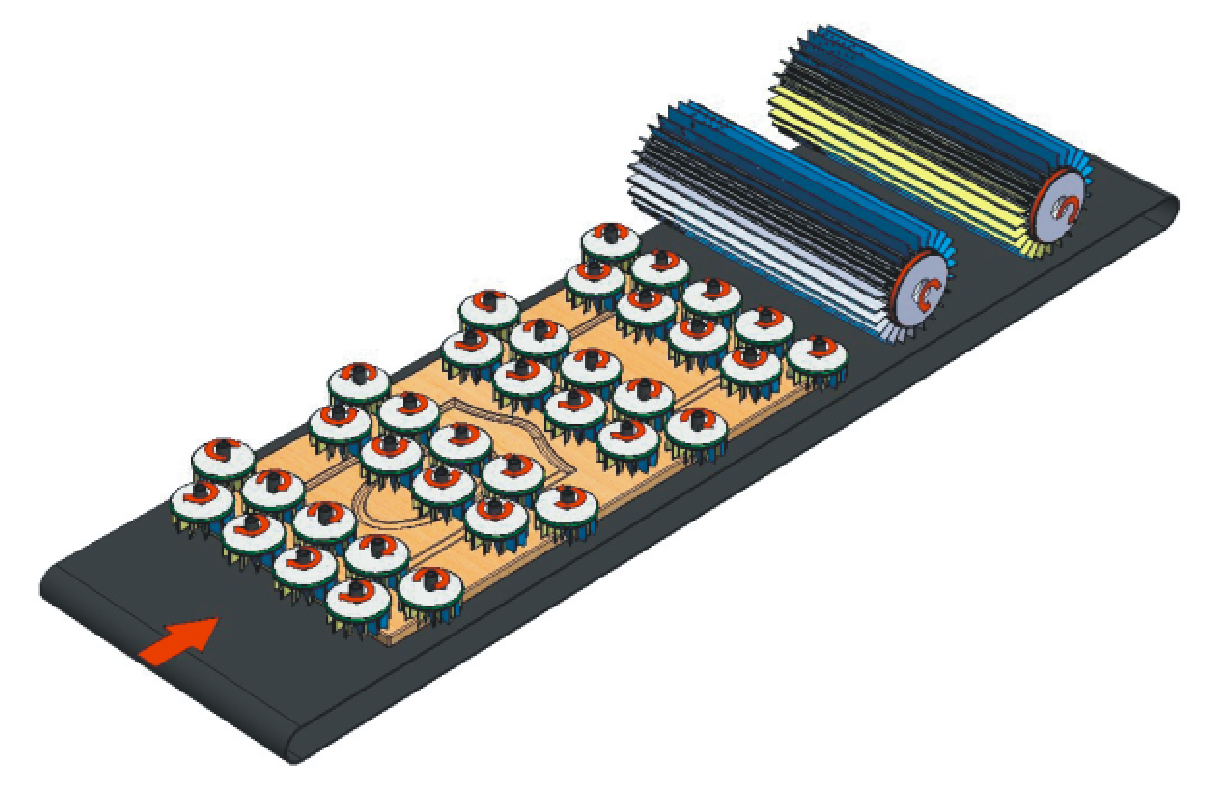

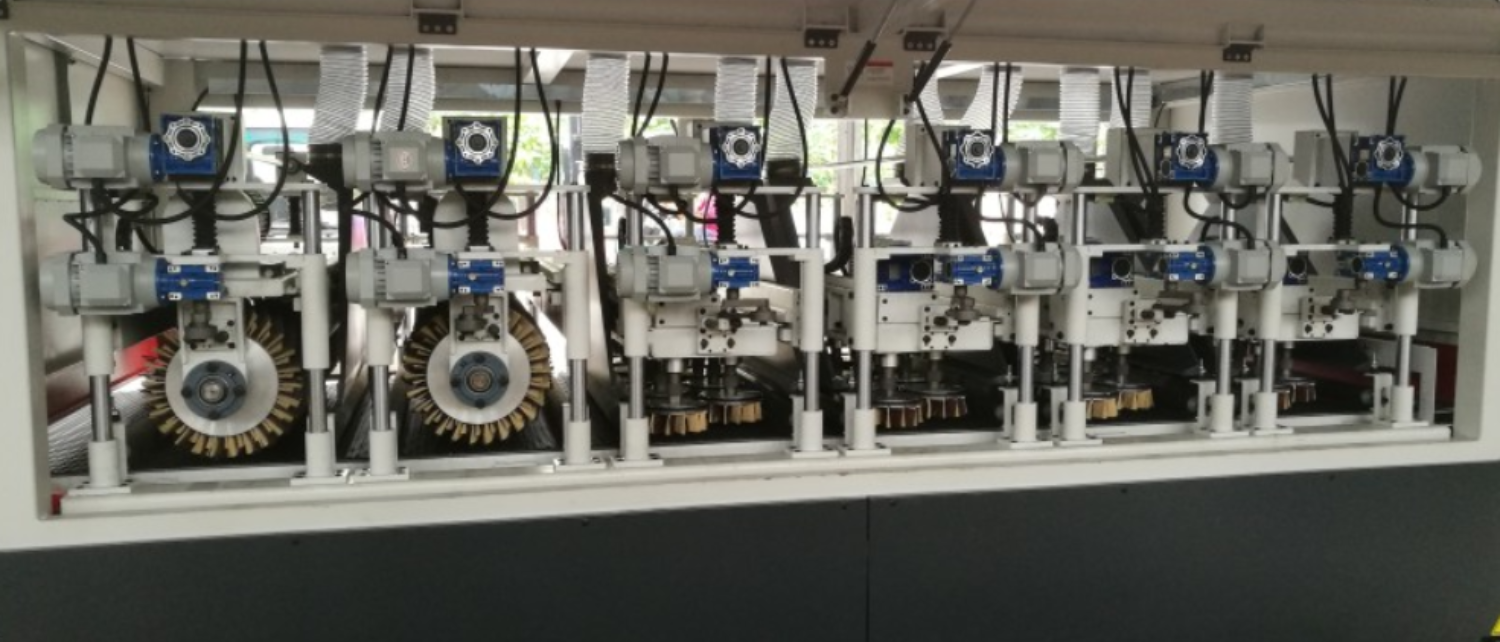

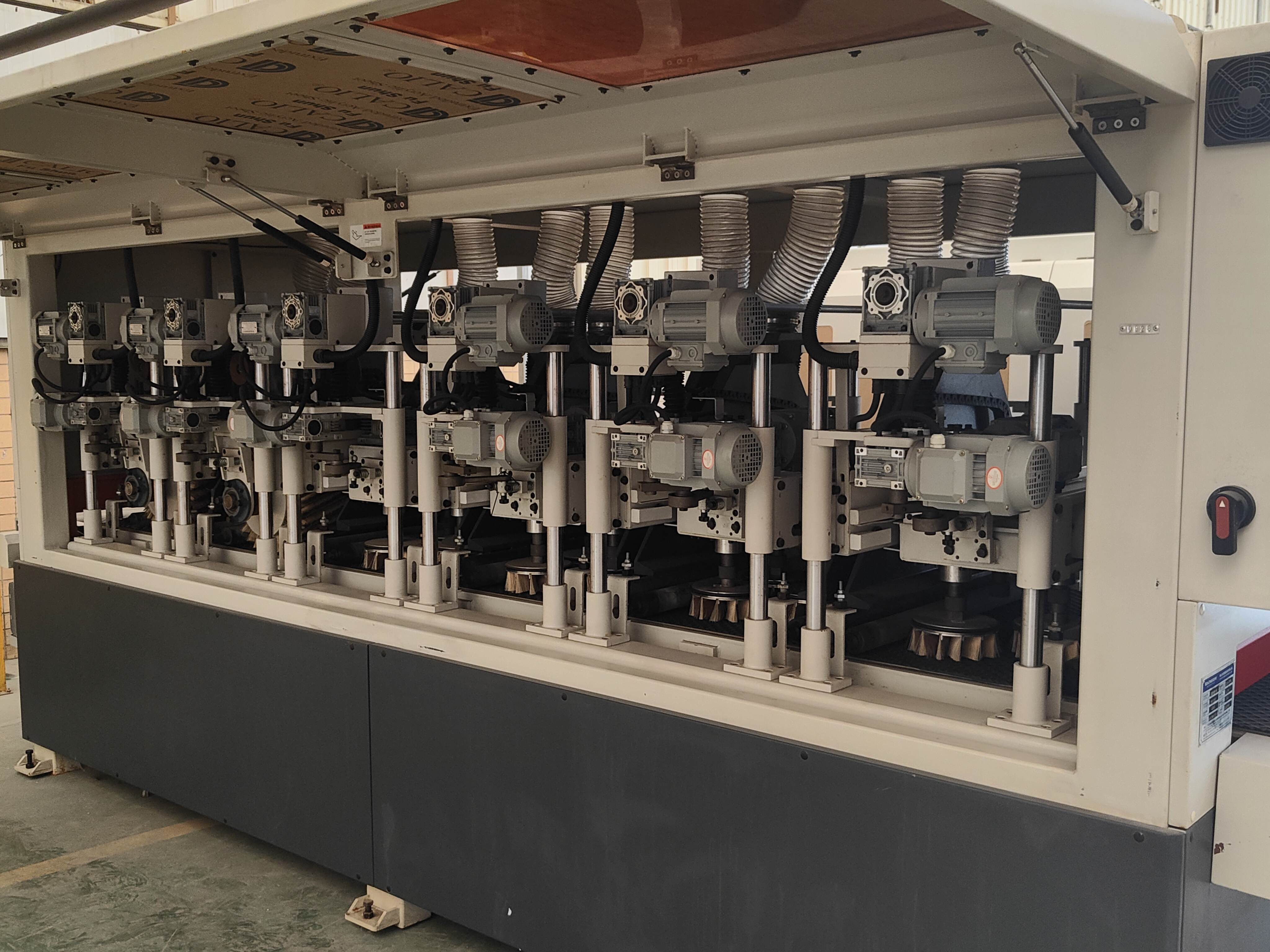

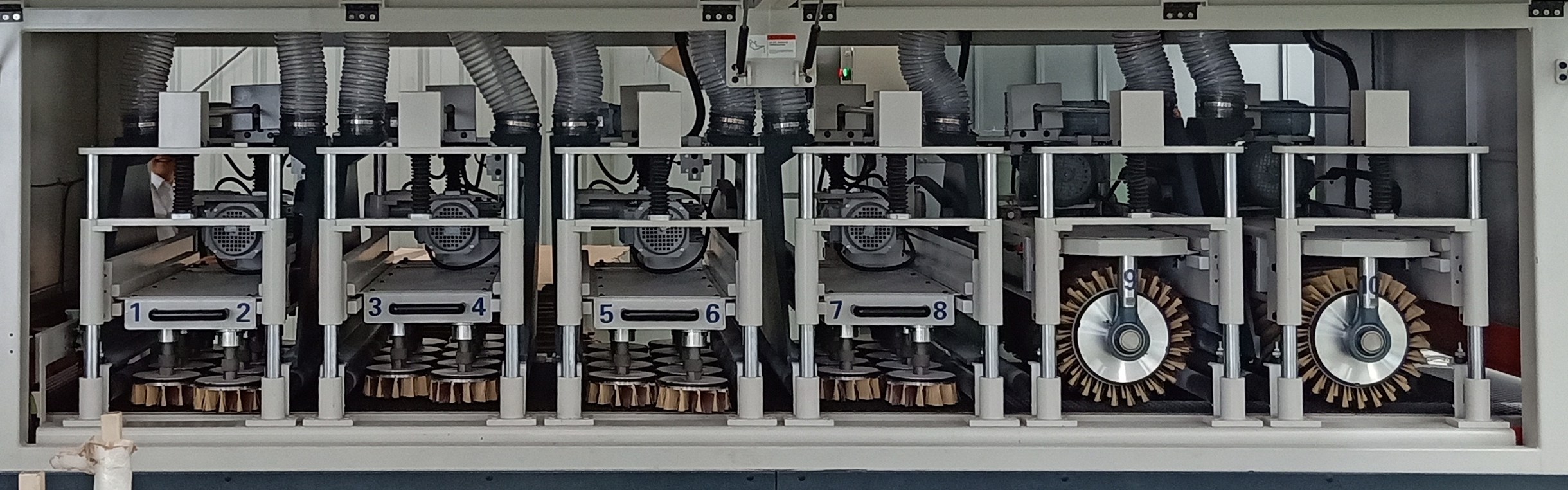

1. The UV primer cabinet door sanding machine is equipped with 10 sets of sanding units, which are composed of six sets of sanding components.

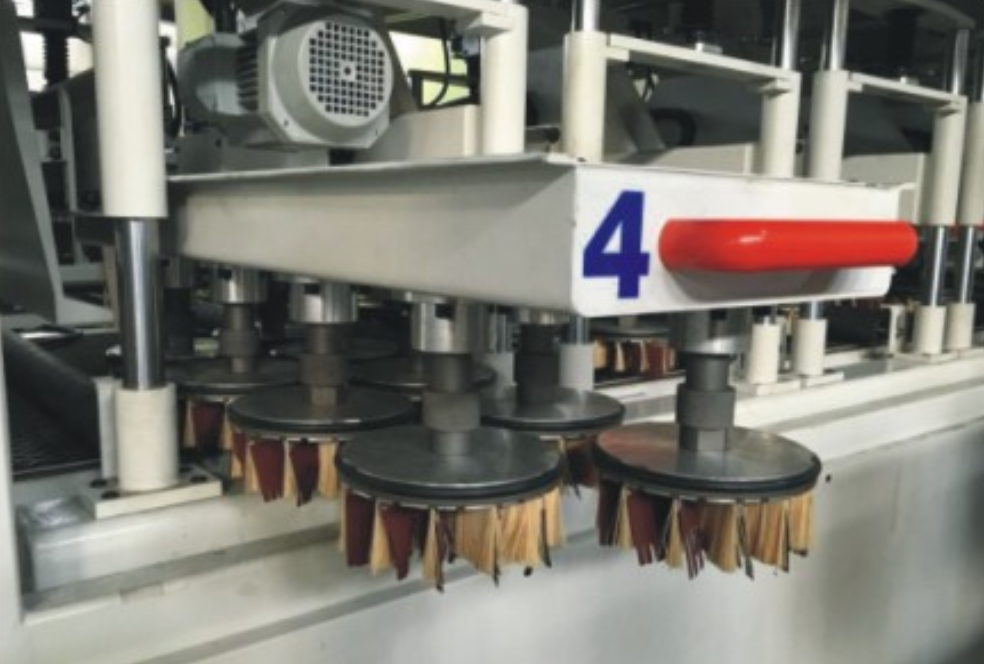

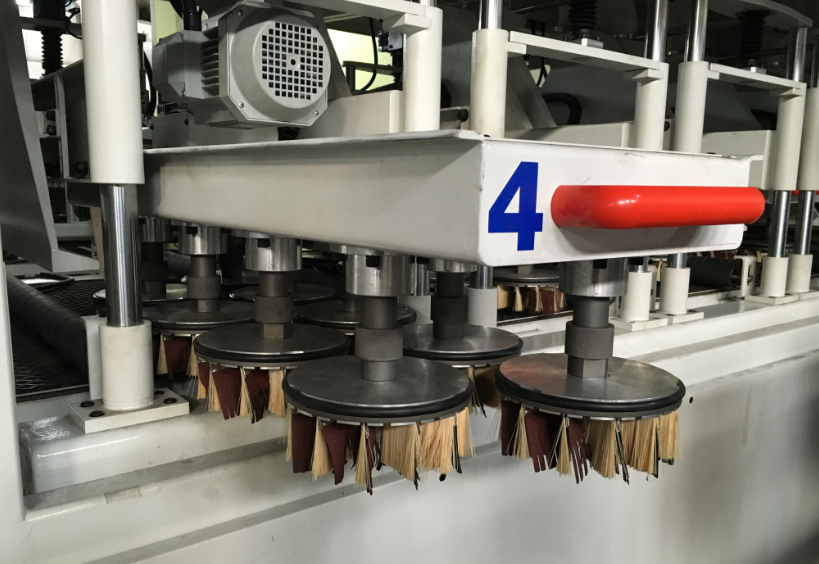

2. The first, second, third and fourth sets of sanding parts, eight groups of disc sanding units, 360 degree positive rotation and 360 degree reversal respectively, carry out all-round sanding and sanding on all corners of the workpiece;

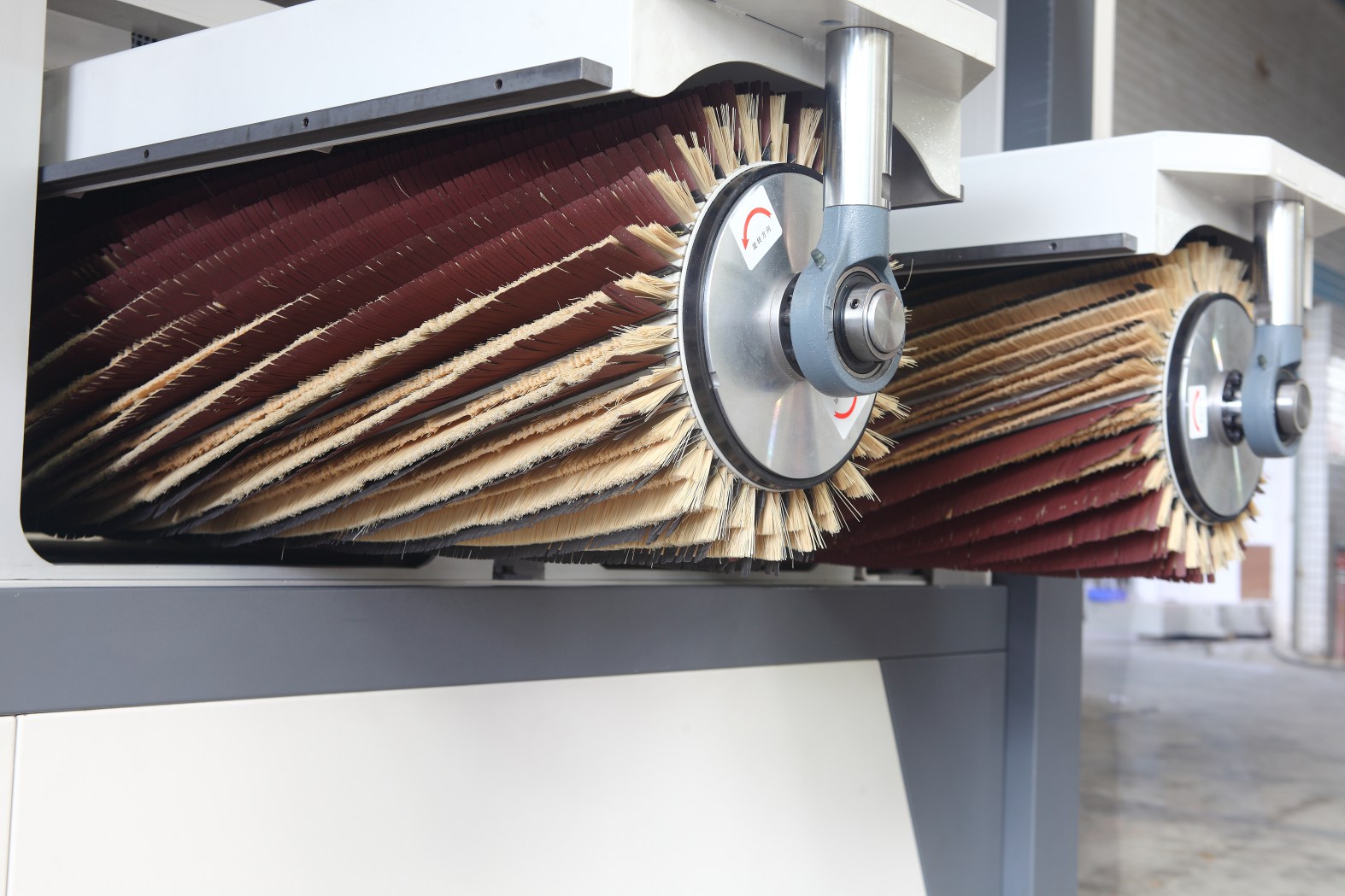

3. Fifth, sixth, set of sanding parts, two groups of straight sand roll sanding units, one positive and the other negative, large diameter sand roll large area sanding, the first several sanding lines are thoroughly dredged, and the concave convex surface is sanded.
4. The machine is equipped with 10 125MM dust-collecting ports to ensure the dust-collecting effect. In order to achieve the best dust-collecting effect, the best wind speed in the dust-collecting exhaust pipe should be kept at about 30 m/s.
5. The feed width is 1300 MM.
6. The equipment is equipped with an input and output material detection device, and the program regulates the start and stop of the sand rollers, which can effectively protect the head and tail of the workpiece and the protrusion from wearing sand.
Multifunctional sanding machine characteristics：
1. The Plastic uptake door panel sanding machine has a wide range of applications. It can polish white blanks and paint sanding of planar special-shaped workpieces processed by various materials.

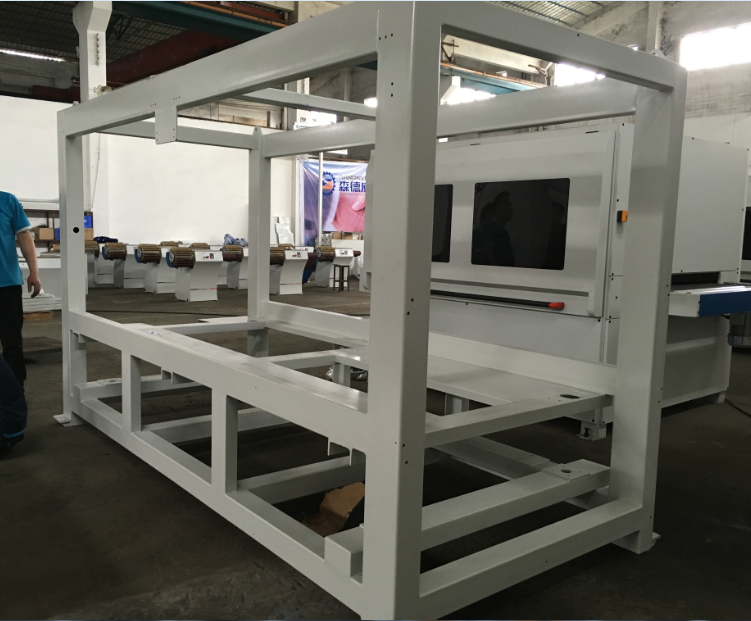

2. High-strength structure fuselage to ensure stable operation of equipment.
3. High wear-resistant belt to ensure smooth feeding.

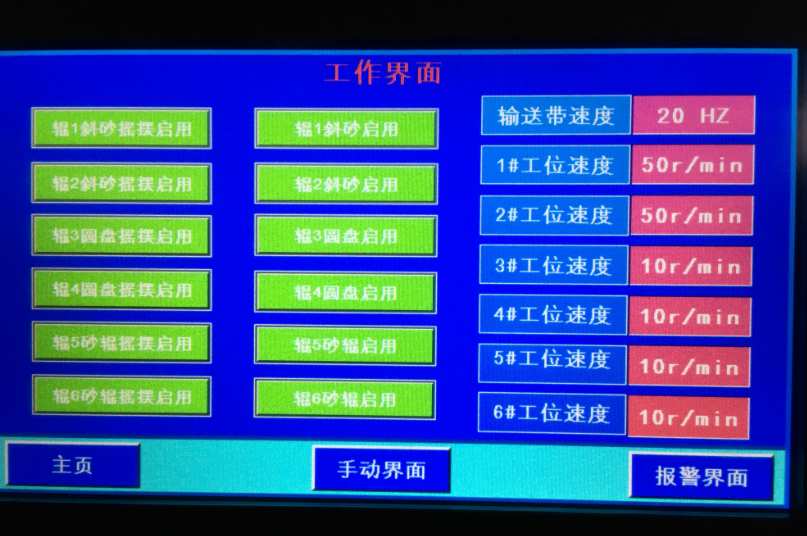

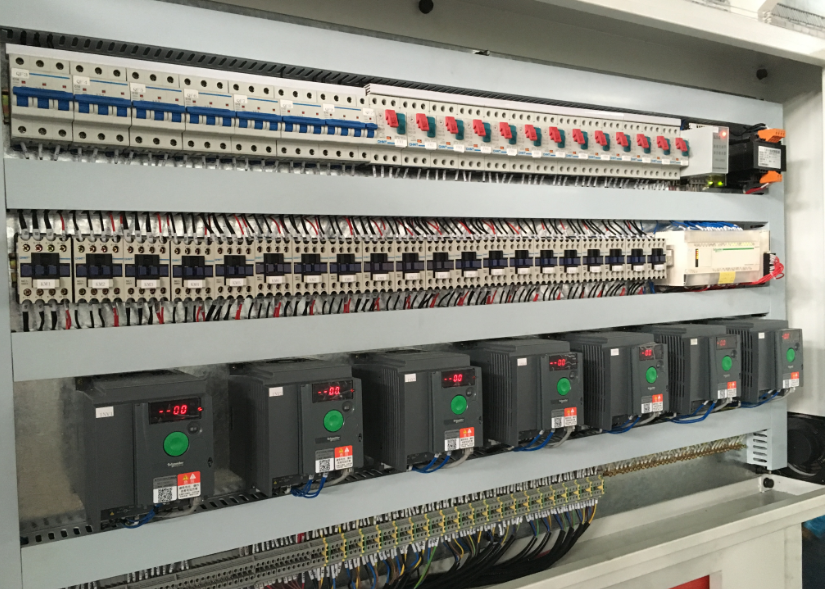

4. Touch screen man-machine interface, easy to operate, fast. PLC and frequency converter control conveying and each group of sanding components, independent speed regulation and independent lifting control. Sanding parameters of different workpieces can be stored in PLC for easy invocation.
5. The pressing roll and sanding component can be adjusted independently, and the plate with deeper sanding groove can be sanded.

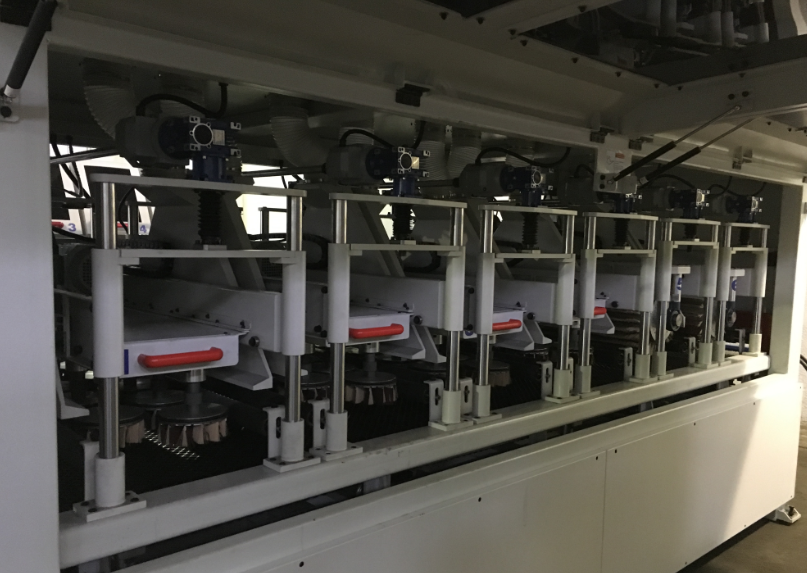

6. Sanding parts can be pulled out as a whole, and abrasive replacement is convenient.
7. The disc component has a patented fast-changing structure.
8. A wide range of technical solutions and sanding units.
9. Integral centralized sanding has good reliability and safety.
Mechanical parameter description:
| Machine type | SDG13-PPPPCC |
| Maximum processing width | 50～1300mm |
| Maximum processing height | 10～150 mm |
| Minimum processing length | 450 mm |
| Conveyor motor power | 2.2 kw |
| Integral lift motor power | 1 x 1.1 kw |
| Sand roller motor power | 2 x 1.5 kw |
| Disc motor power | 4 x 1.1 kw |
| Component fine-tuning motor power | 6 x 0.18 kw |
| Swing motor power | 6 x 0.25 kw |
| Feeding speed | 1-10 m/min |
| Rotary speed of sand roll | 100-280 r/min |
| Disk size | 4 x 9/11 x φ180 |
| Sand roll size | 2x φ380 x 1000/1300 mm |
| Conveyor band width | 1000 /1300mm |
| Power requirements | 3/PE 380V 50Hz |
| Clean air pressure | 4~6Pa |
| Working table height | 845mm |
| Dust-collecting wind speed | 22m/s |
| Vacuum cleaner | φ125mm×10 |
| Total power supply | 13.28kw |
| Machine size | 4860 x 1800 x 2050mm |
| Machine weight | 4000 kg |
