Product description:

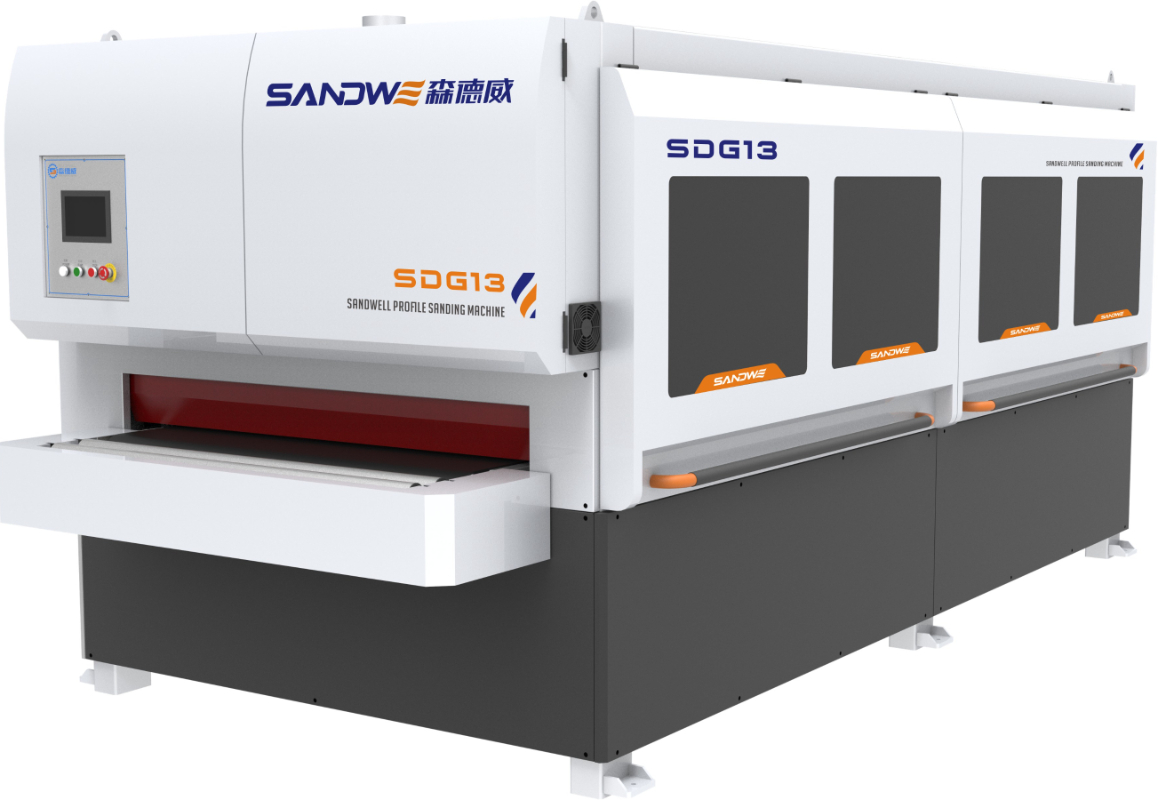

SANDWELL Profile Sander SDG10/13-PPLLLL
This MDF plate sanding and polishing is used for varnish sanding on the surface of planar special-shaped workpieces with various materials.
Through the selection and combination of different sanding parts and sanding materials, the surface of special-shaped paint is sanded.
Various combinations of this machine can greatly improve the sanding efficiency, reduce or do not need to be repaired manually again.
Reduce the harm of dust produced by manual grinding to human body.
Configuration description:

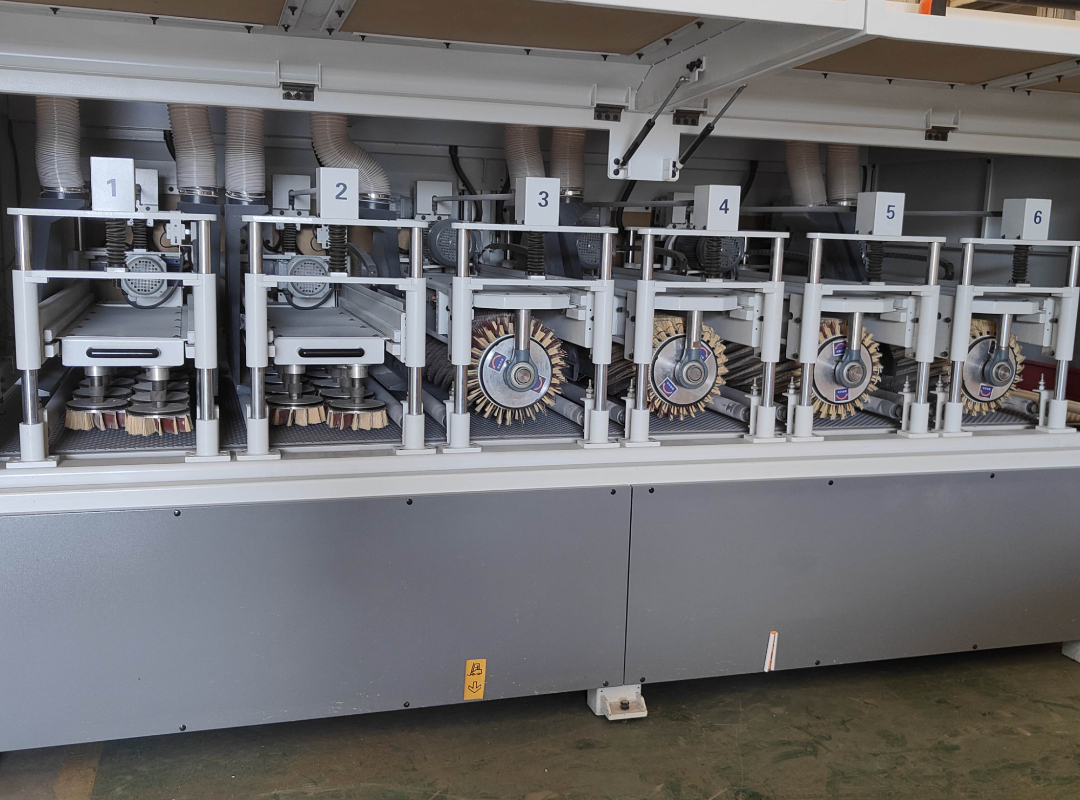

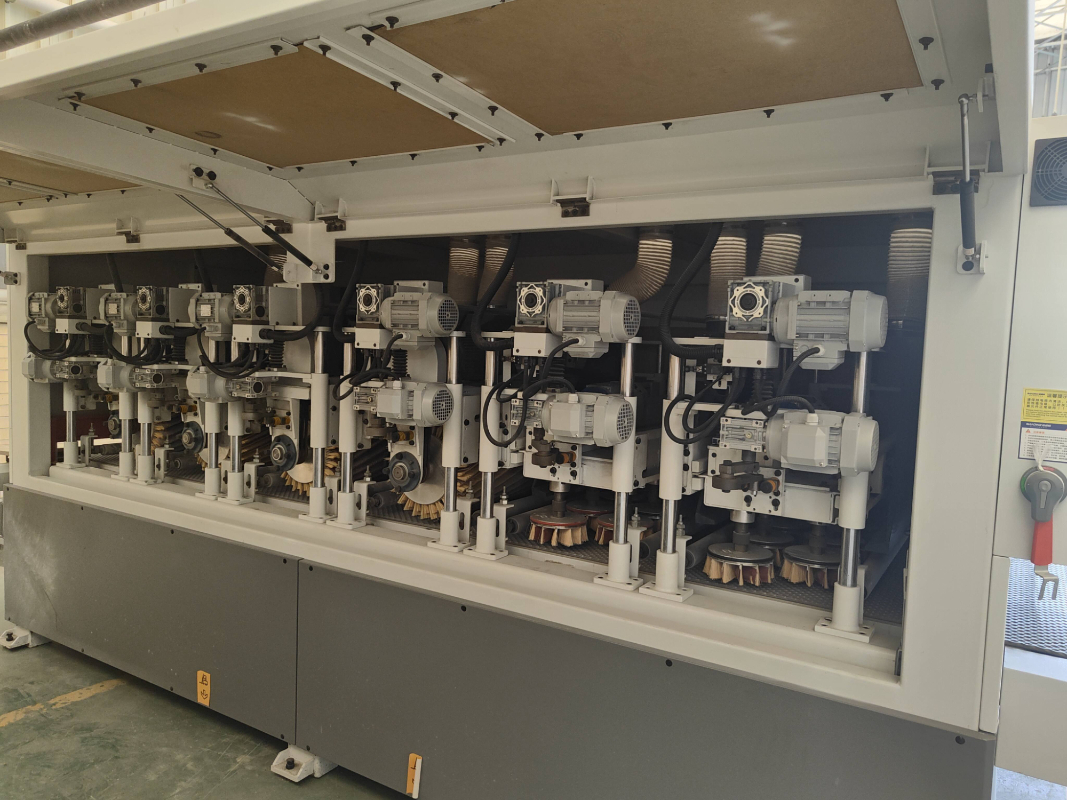

1. This Plastic uptake door panel sanding machine is equipped with 8 sets of sanding units, composed of six sets of sanding components, with a feeding width of 1300mm.
2. The first two sets of sanding components, four sets of disc sanding units, with 360 degree forward rotation and 360 degree reverse rotation respectively, are used to polish and sand the uneven surfaces of irregular paint surfaces and the horizontal and vertical corners;

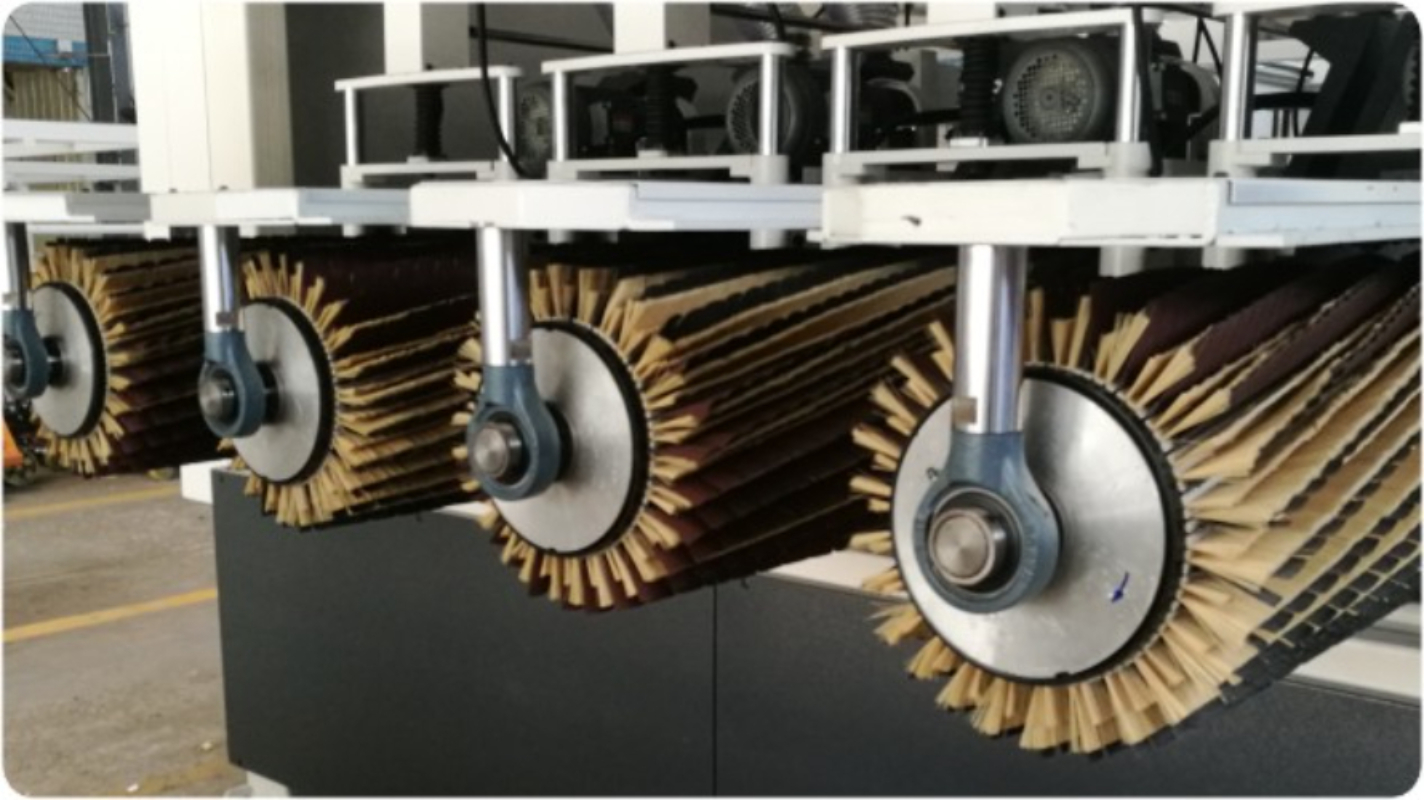

3. The third, fourth, fifth, and sixth sets of sanding components, four sets of spiral roller sanding units, one positive and one negative, large diameter sanding rollers are used for large-area sanding. The surface sand lines of the first few sanding layers of paint are comprehensively smoothed, and a rotating flexible sanding unit is formed by a spiral shaped sanding belt supported by an elastic brush. It adopts a continuous downward pressure rolling all-round irregular sanding unit, which has the characteristics of stable sanding force, smooth and uniform patterns, and sanding is carried out on concave and convex surfaces.
4. Equipped with 10 125MM suction ports, to ensure the cleaning effect, it is best to maintain a wind speed of 22 m/s or above in the vacuum exhaust pipe.
6. The equipment is equipped with a feeding and discharging detection device, which controls the start and stop of the sand roller to prevent biting the head and tail.
Multifunctional sanding machine characteristics：
1. The UV primer office furniture sanding machine has a wide range of applications, and can sanding a variety of plane special-shaped workpieces processed by paint.
2. High strength integral frame structure profile fuselage to ensure sanding accuracy of equipment.
3. With one key adjuster, PLC can store hundreds of sanding parameters and quickly adjust different workpiece sanding.

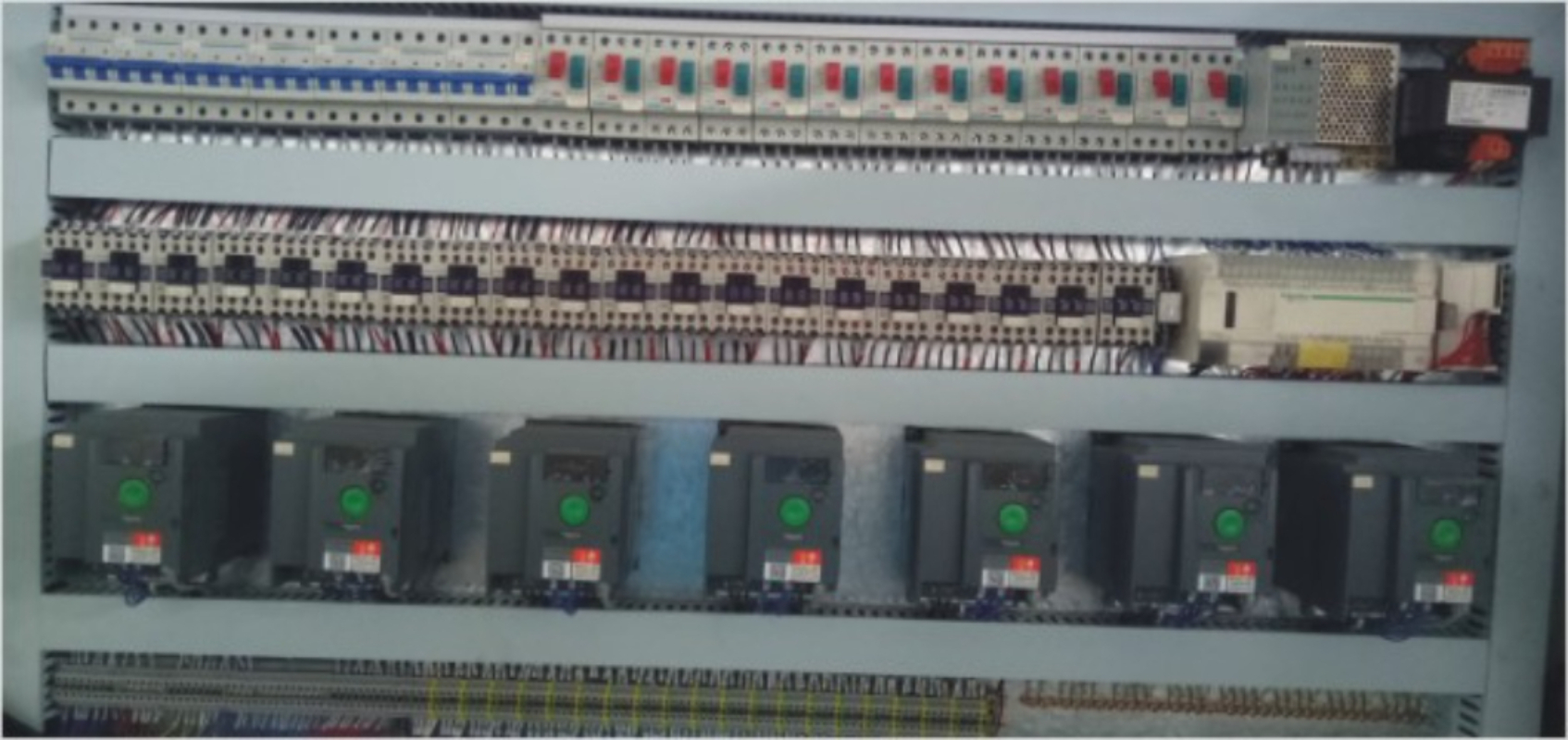

4. Transportation and sanding components, frequency converter independent speed regulation and independent lifting control. PLC controls frequency converter and related operation.

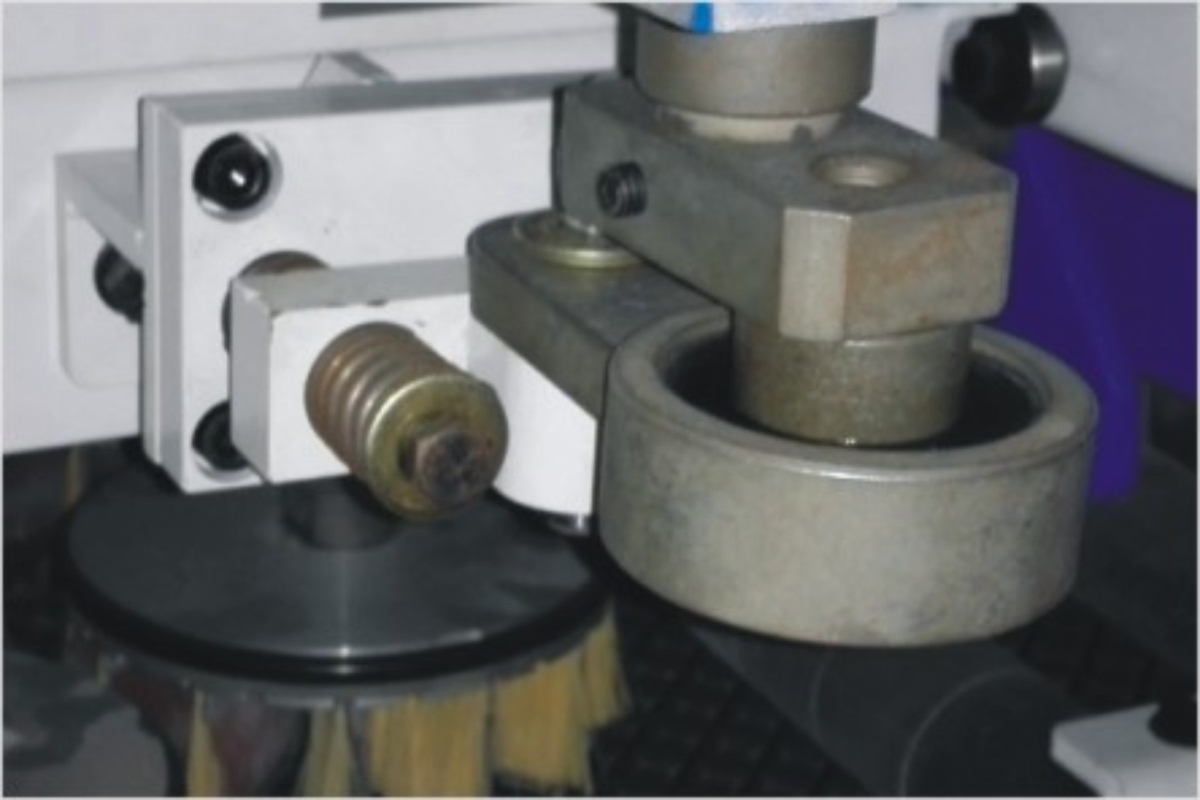

5. Each set of sanding components can be pulled out as a whole, and abrasive replacement is convenient. The disc components have a patented fast replacement structure.
6. The conveying table is fixed, the sanding unit is floating sanding as a whole, the pressing material is independent, and it is convenient for multi-machine automatic connection.
Mechanical parameter description:
| Machine type | SDG13-PPLLLL |
| Maximum processing width | 50～1300mm |
| Maximum processing height | 10～150 mm |
| Minimum processing length | 450 mm |
| Conveyor motor power | 2.2 kw |
| Integral lift motor power | 1 x 1.1 kw |
| Sand roller motor power | 4 x 1.5 kw |
| Disc motor power | 2 x 1.5 kw |
| Component fine-tuning motor power | 6 x 0.18 kw |
| Swing motor power | 6 x 0.25 kw |
| Feeding speed | 1-10 m/min |
| Rotary speed of sand roll | 100-280 r/min |
| Disk size | 4 x 9/11 x φ180 |
| Sand roll size | 2x φ380 x 1300 mm |
| Conveyor bandwidth | 1300 mm |
| Power requirements | 3/PE 380V 50Hz |
| Clean air pressure | 4~6Pa |
| Working table height | 845mm |
| Dust-collecting wind speed | 22m/s |
| Vacuum cleaner | φ125mm×10 |
| Total power supply | 13.28kw |
| Machine size | 4860 x 1800 x 2050mm |
| Machine weight | 4000 kg |
