Product description:
Model: SEB-Z2G2S1W5
Linear edge UV paint vacuum blasting edge sander is specially designed for all kinds of furniture, tables, chairs, tea tables, cabinets, doors and other board edge UV paint blasting, sanding, polishing; targeted, simple and easy to operate, according to the different process requirements can be configured with different abrasive belt.
It can also lengthen the rack to add sprinklers, sand racks and sand heads according to the technological requirements. It can be used to form multi-channel paint spraying edges of workpieces, such as furniture panels with abnormal edges.

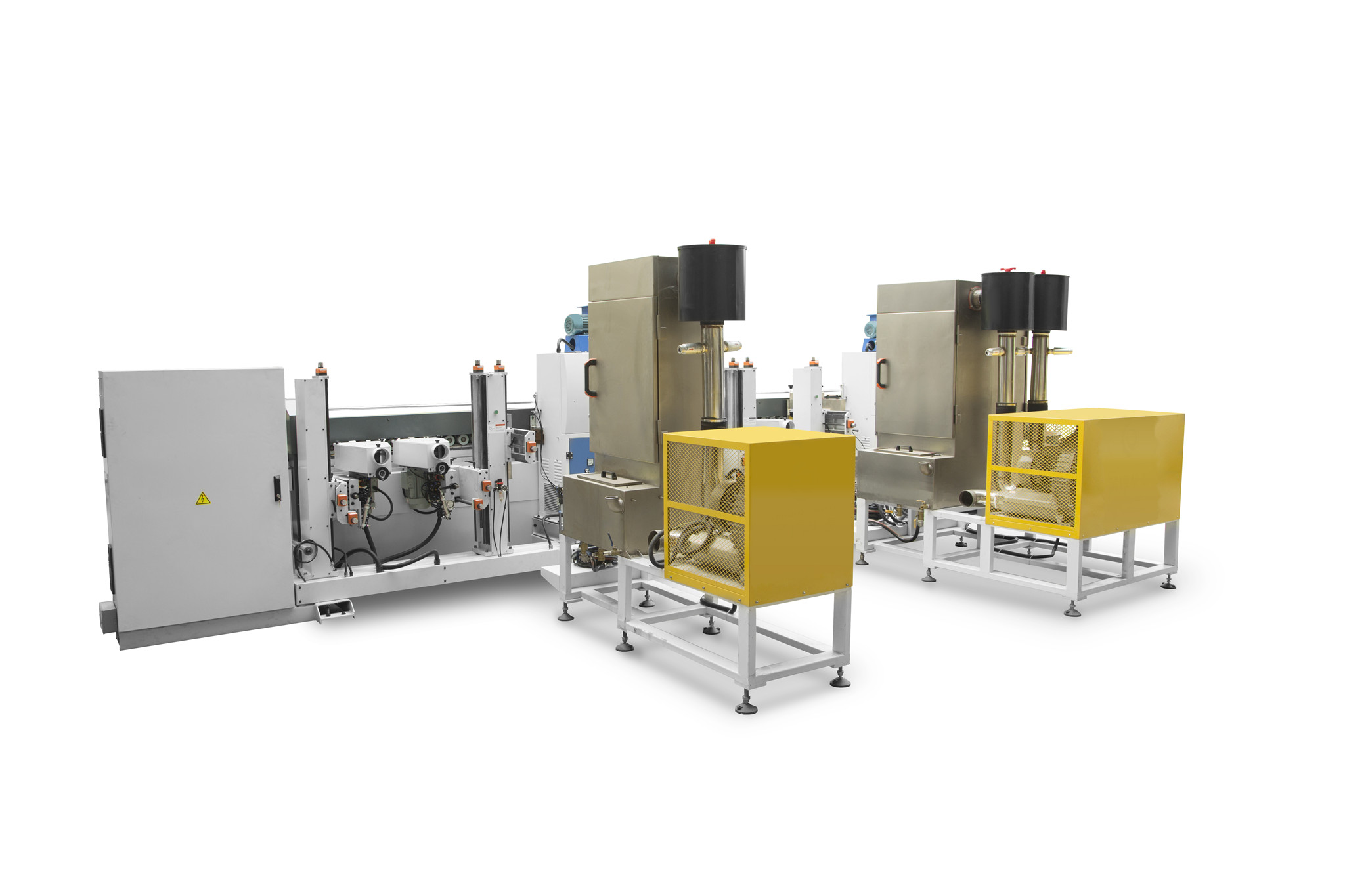

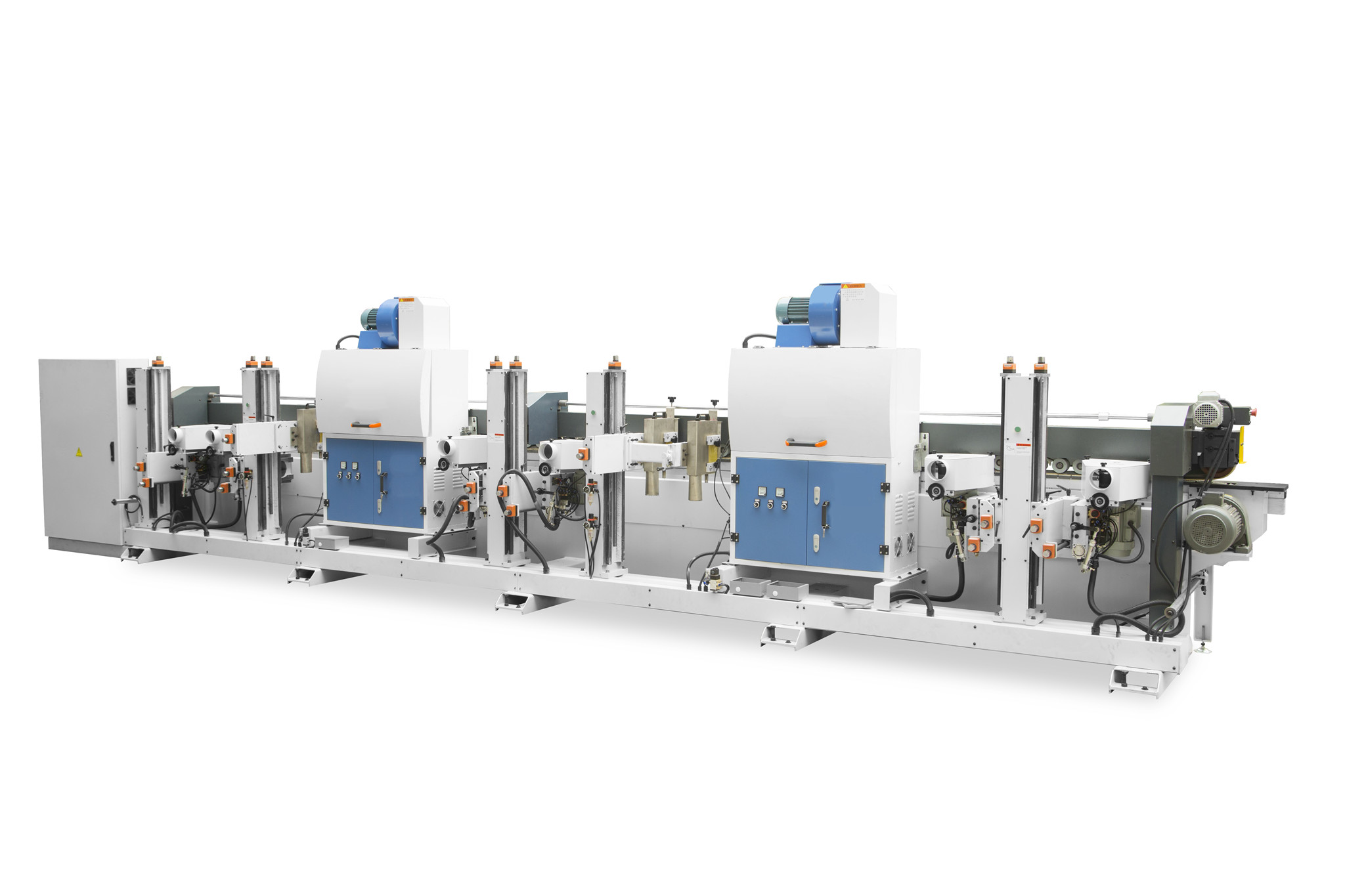

The edge linear UV paint vacuum edge blasting machine is mainly composed of electronic control box, frame parts, three-dimensional adjusting column, sponge sand head parts, pressing beam parts, lifting parts, sand frame, conveying parts.

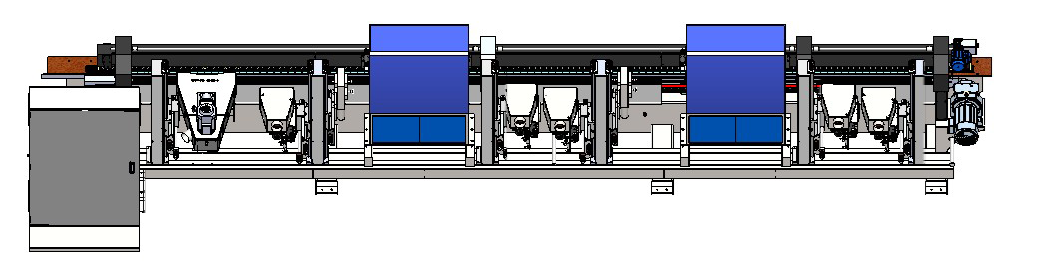

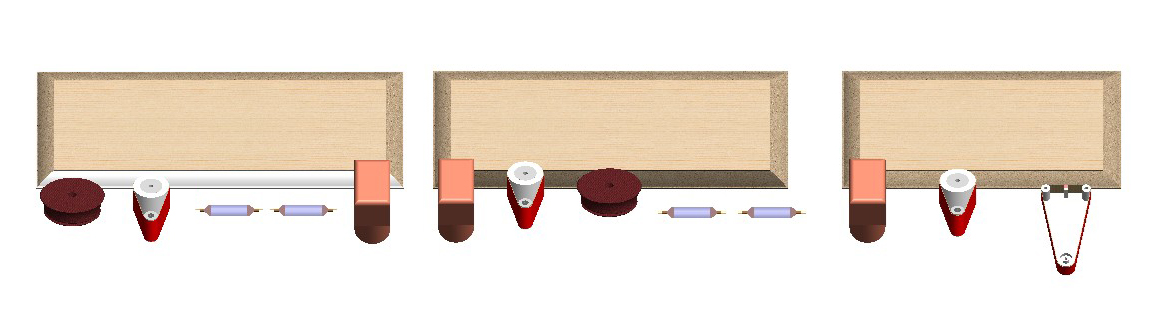

UV Edge Machine Equipment Configuration Chart:
Process: triangular grinding frame sanding - sponge wheel sanding - UV vacuum blasting - UV drying - sponge wheel sanding - UV vacuum blasting - sponge wheel sanding - UV drying - sponge wheel sanding - sponge wheel sanding - sponge wheel sanding
Triangular belt: The belt has the function of automatic swing. The pressing module can imitate the straight edge of abrasive cutting profile, and has the function of automatic expansion to protect the head and tail of the workpiece. The grinding quantity is the strongest and the smoothness is the best.

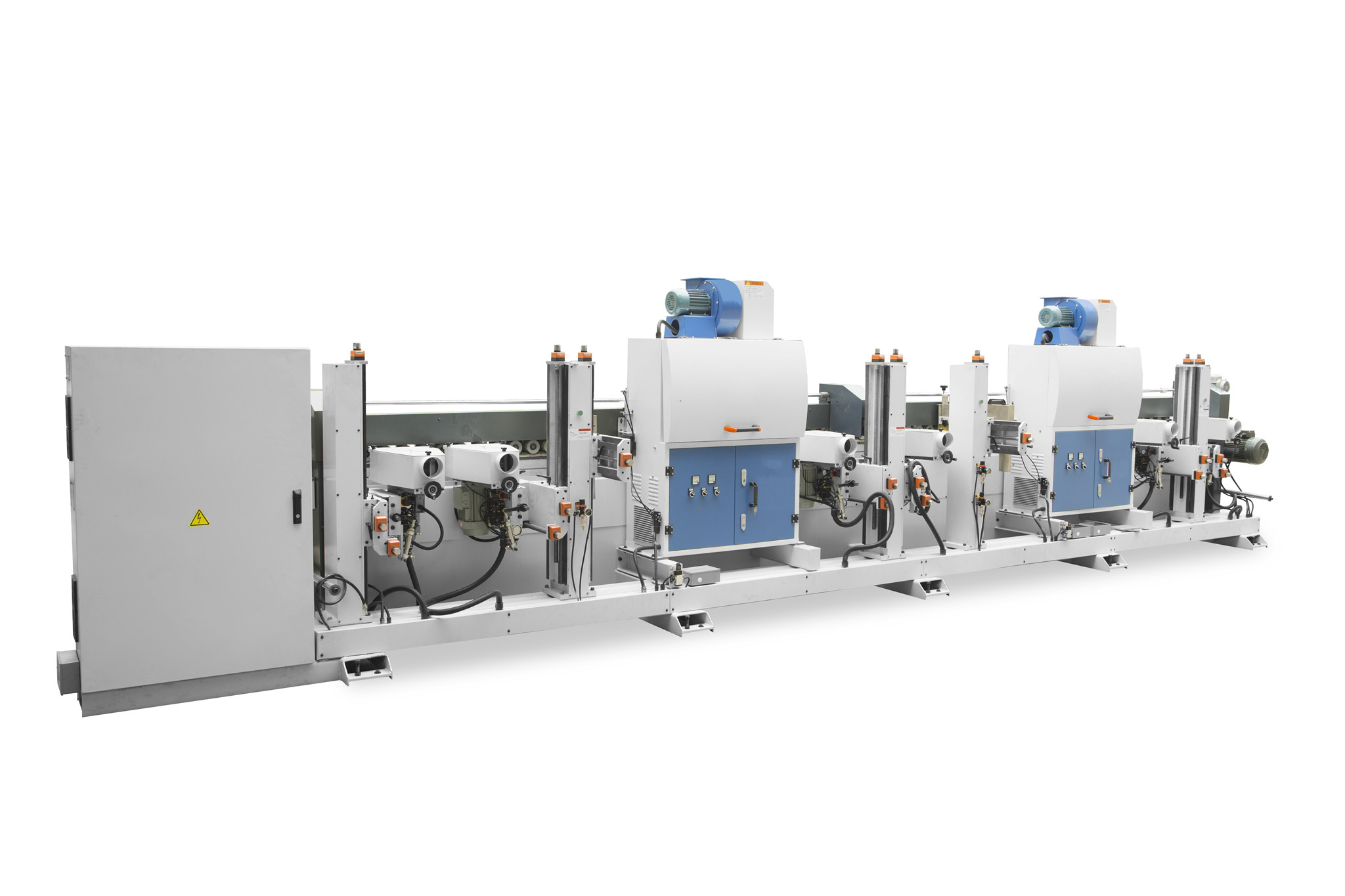

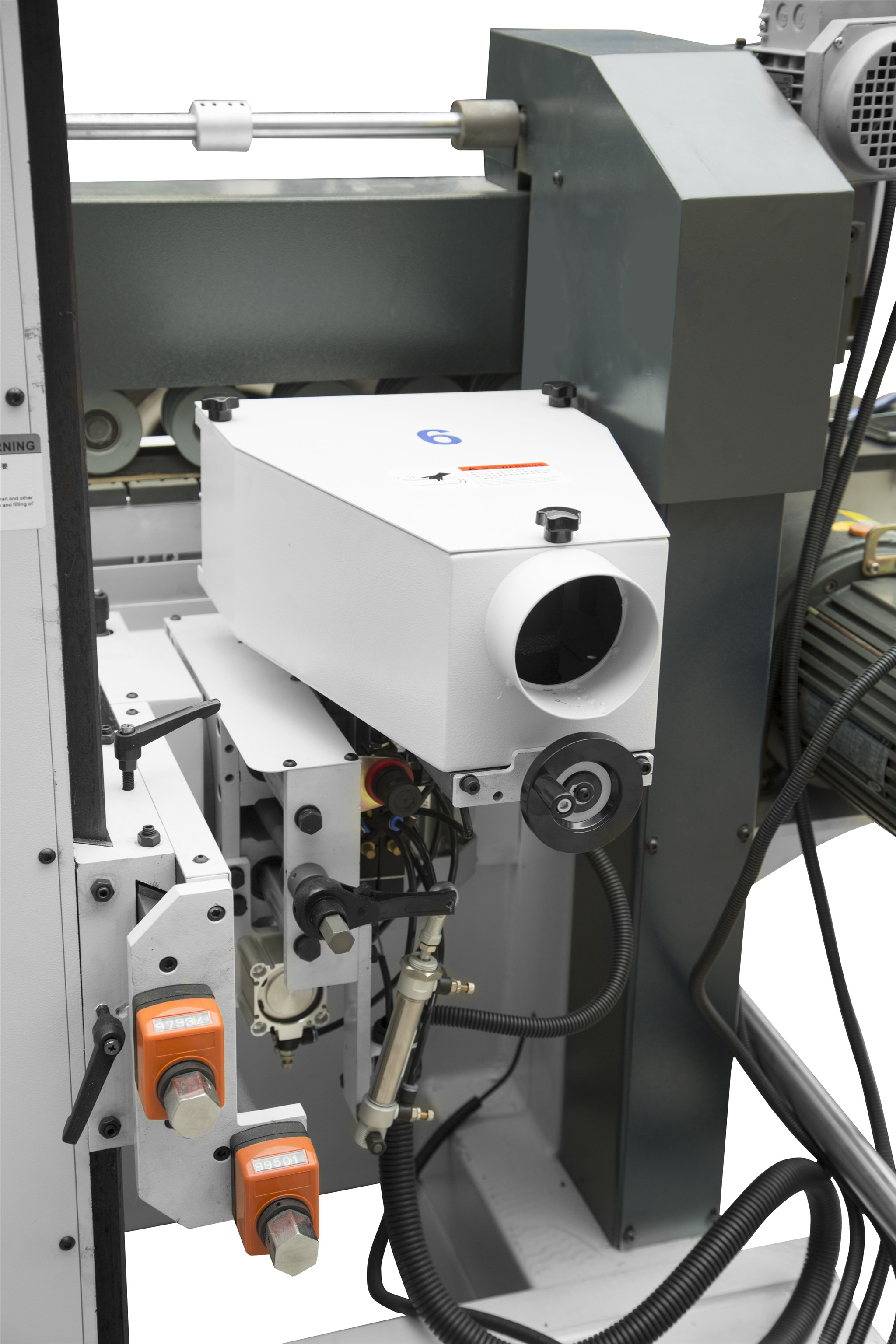

Sponge wheel: matching with the universal grinding wheel all over the world, it can install brush roller, octagonal sand, grinding wheel, polishing wheel and other abrasives. To implement all-round diversification of sand cutting profiled edges. Easy to operate, easy to replace abrasive belt and abrasive. It also has the function of automatic expansion to protect the head and tail of the workpiece, and uses the grinding wheel to compensate automatically.
Vacuum nozzle: High pressure pump gasifies paint and attaches to the edge of workpiece. Dies are made according to the workpiece shape.Quick replacement. It can be sprayed with transparent, white and black UV primer. Green environmental protection, energy saving and emission reduction. Effective use of site area, reduce labor intensity of workers.UV paint 100% recycling.
UV drying lamp: paint dries quickly. That is to say, spraying means drying and sand, and quickly transferring to the next process. Effective Section Provincial worksite area.
UV Edge Blasting Machine Excellent features:
The edge UV vacuum profiled coating sander is a combination of UV coating, sanding and ultraviolet drying, which can complete the operation from white embryo to paint surface at one time.
Sand rack can be adjusted to - 45 +90, which is suitable for straight line profile sanding at a certain angle.
The advance and retreat of sand frame pressure module are controlled by program, and need not be adjusted, which greatly improves the use efficiency.

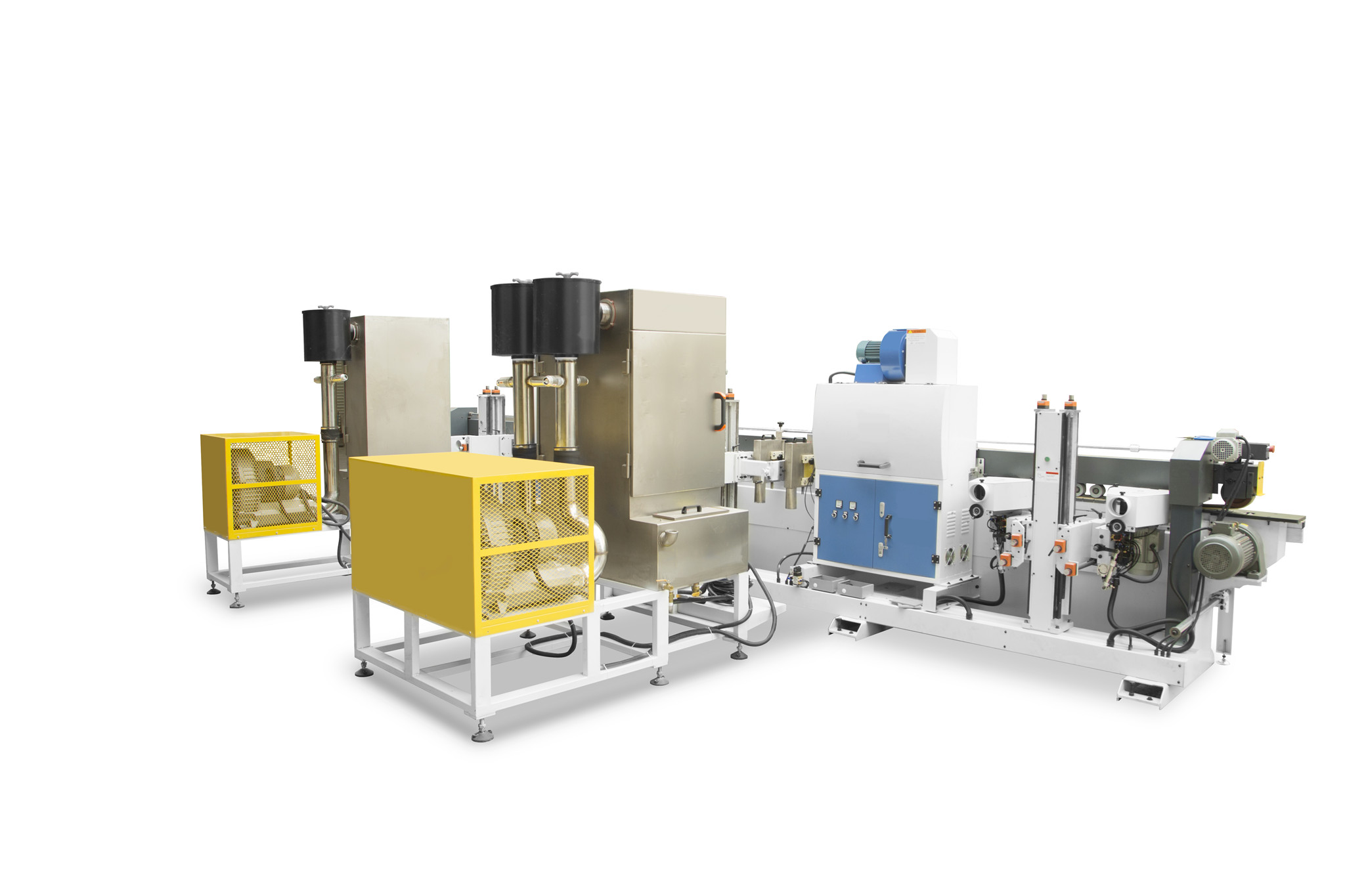

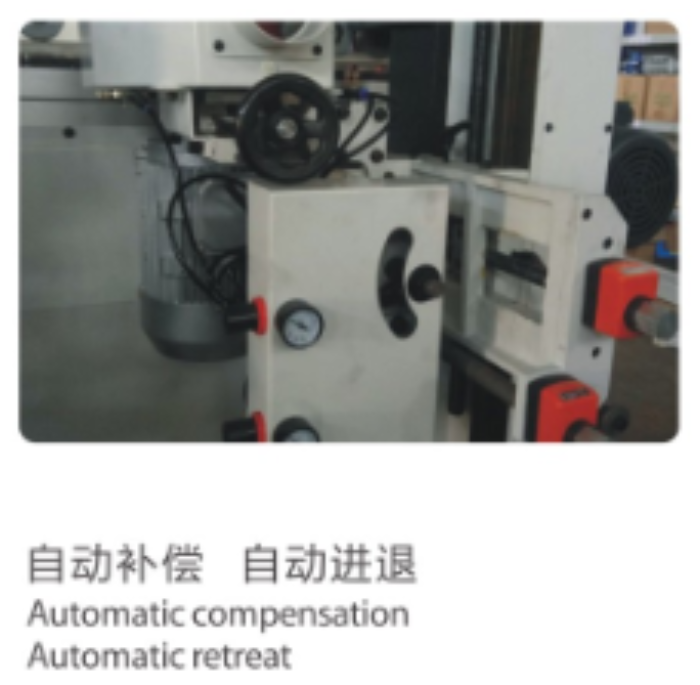

Sand rack with oscillation device, sand head with feed compensation device, to ensure smooth and uniform processing surface;
The speed of abrasive belt of this machine is regulated by frequency conversion, which is suitable for edge and corner sanding of different wood products. (White embryo, primer)

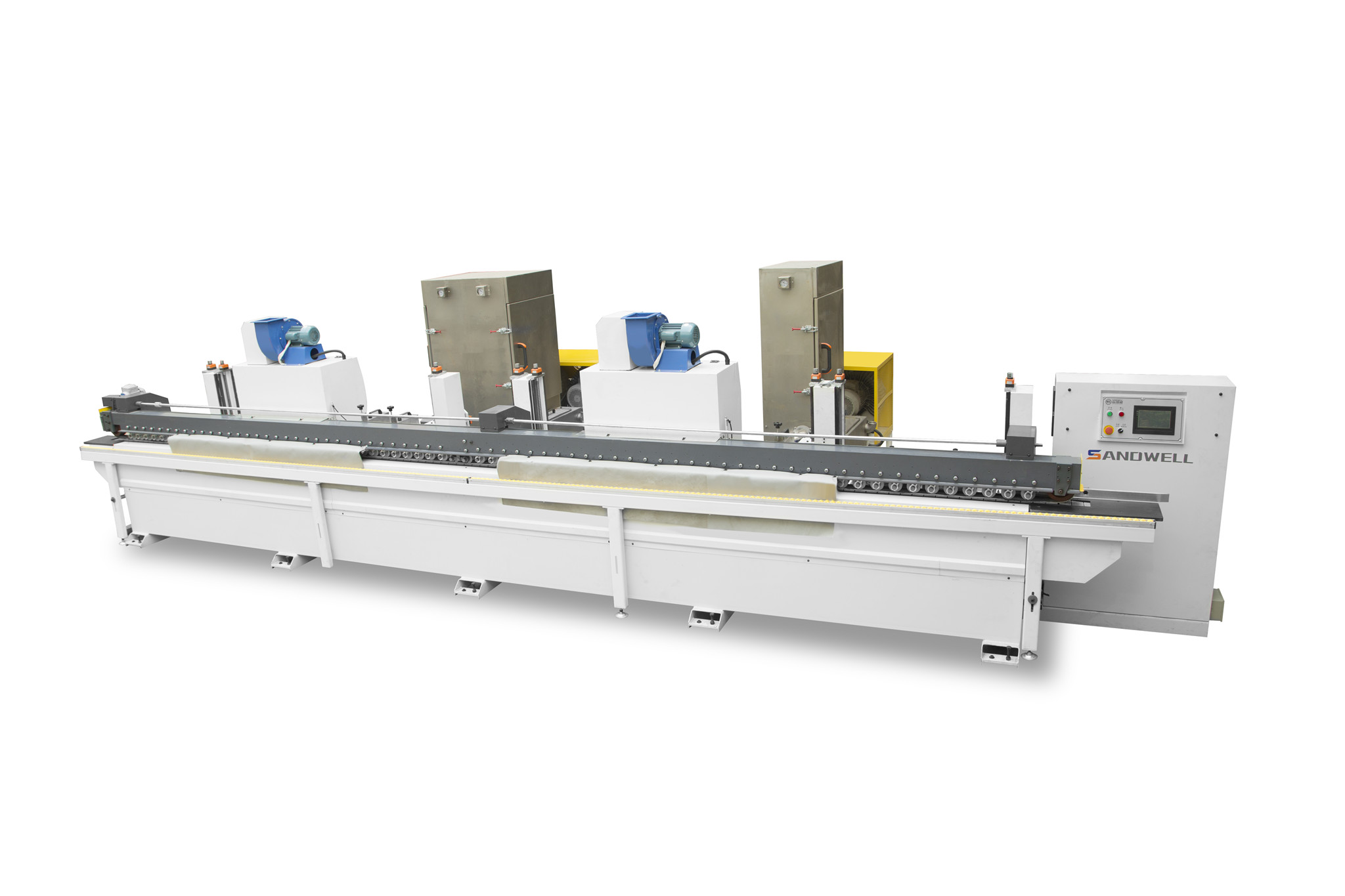

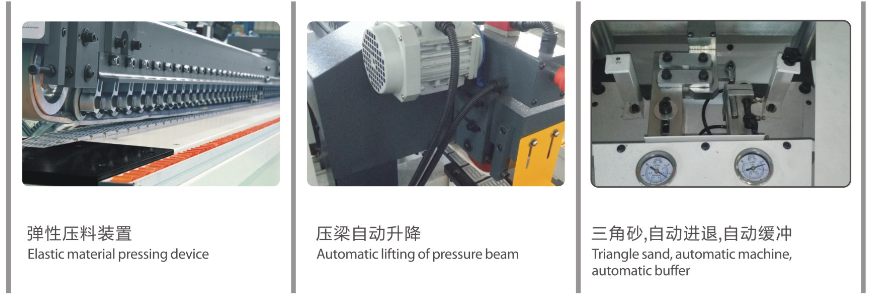

The pressing device is loaded by spring, which is reliable and does not hurt the workpiece.
The caterpillar adopts chain conveying, mechanical stepless speed change and cylindrical guide guide, which has strong feeding ability, stability and reliability.
The sprinkler die is simple to make, fast to replace, maximize the saving of paint, and solve the special-shaped edge process.
Dual lamp drying fast, that is, spray drying. An exhaust air regulating board is installed on the UV lamp device. The temperature of curing and drying of the UV lamp is limited by controlling the expansion and contraction of the regulating board, so that the edge surface of the workpiece will not be overheated.
Dust removal device can clean the dust on the side of the workpiece, and then roll paint to ensure that the surface of the workpiece is smooth and even.

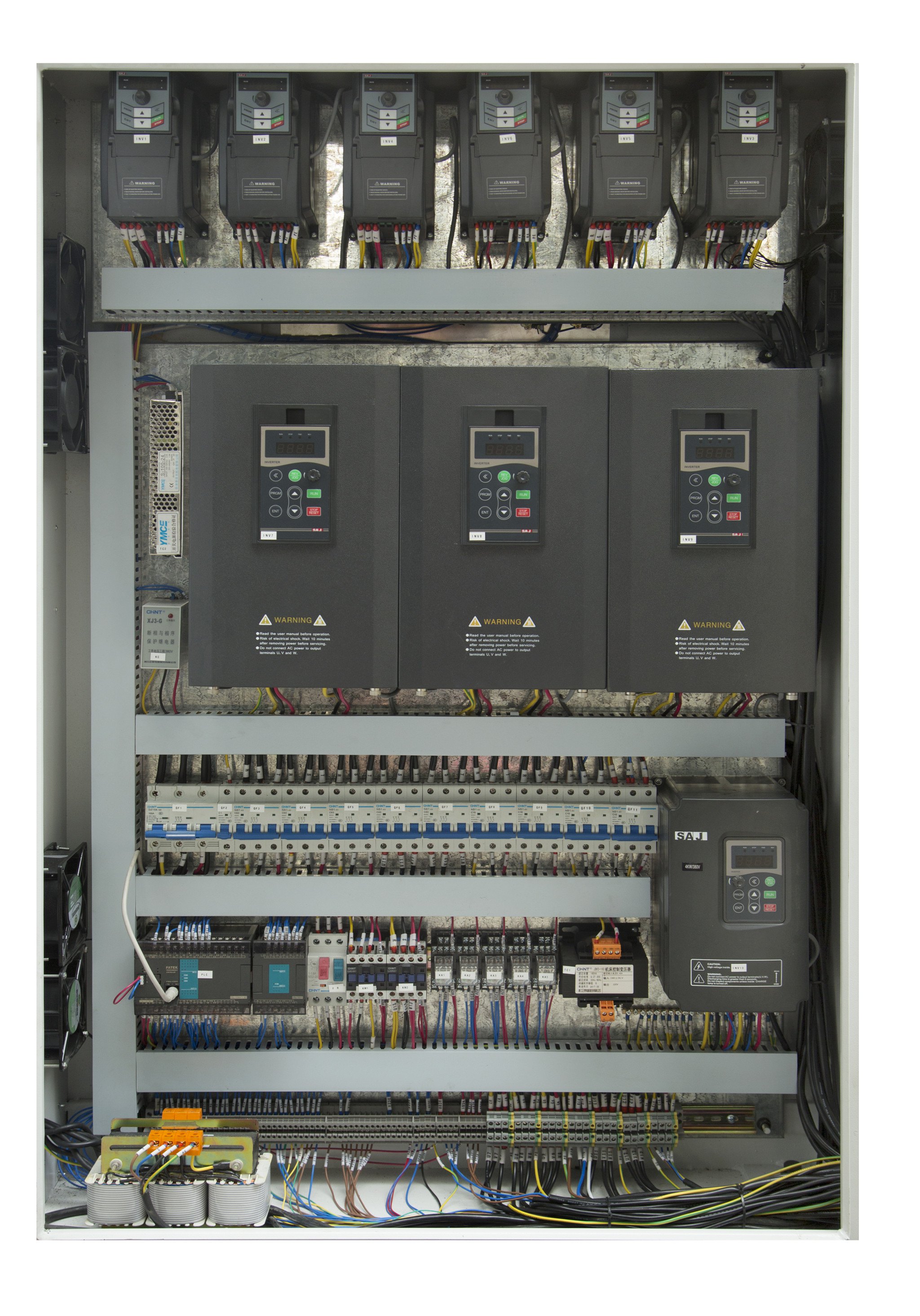

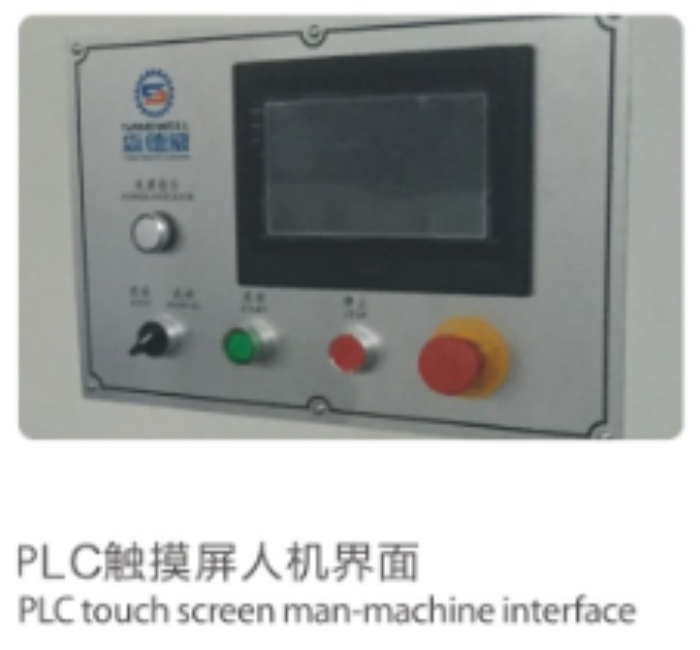

The operation panel adopts PLC man-machine interface, which is easy to debug and operate, precise control by PLC and easy to adjust.
UV Vacuum Edge Blasting Machine for Paint Technical parameters:
| Equipment Name: | Automatic Linear Vacuum Edge Sprayer |
| Model: | SEB-Z2G2S1W5 |
| Workpiece feeding width: | 100-1800mm |
| Feeding thickness: | 10-60 mm |
| Minimum length of workpiece feeding: | 200mm |
| Feeding motor: | 380V 50HZ 4KW 1430r/min |
| Feeding speed: | 1-22.4 m/min |
| Standard Sand Frame: | 1380V 50HZ 1.5KW 1420r/min |
| Sand frame oscillating motor: | 1380V 50HZ 0.025KW 1420r/min |
| Sandhead: | 5380V 50HZ 1.5KW 1420r/min |
| Vacuum nozzle: | 9KW X 2 sets |
| Fan:
| 0.37KW X 2 sets
|
| UV curing lamp:
| 3KW X 2 X 2
|
| Pressure beam elevator motor:
| 1380V 50HZ 0.37KW 1420r/min
|
| Total power:
| 41.29 KW
|
| Total Outline Size (Long X Width X High)
| About 7500X1300X1900mm Host
2100X700X2100 Single Jet Vacuum Box X 2
|
