Dual End UV Paint Milling Rolling Edge Sander

The automatic double-end milling roller edge grinder is mainly composed of electronic control box, frame parts, three-dimensional adjusting column, sponge sand head parts, pressing beam parts, milling cutter parts, slotting parts, sand frame, conveying parts, drying parts, lifting parts and so on.

The machine adopts aluminum alloy integral beam pressing and wheel pressing.

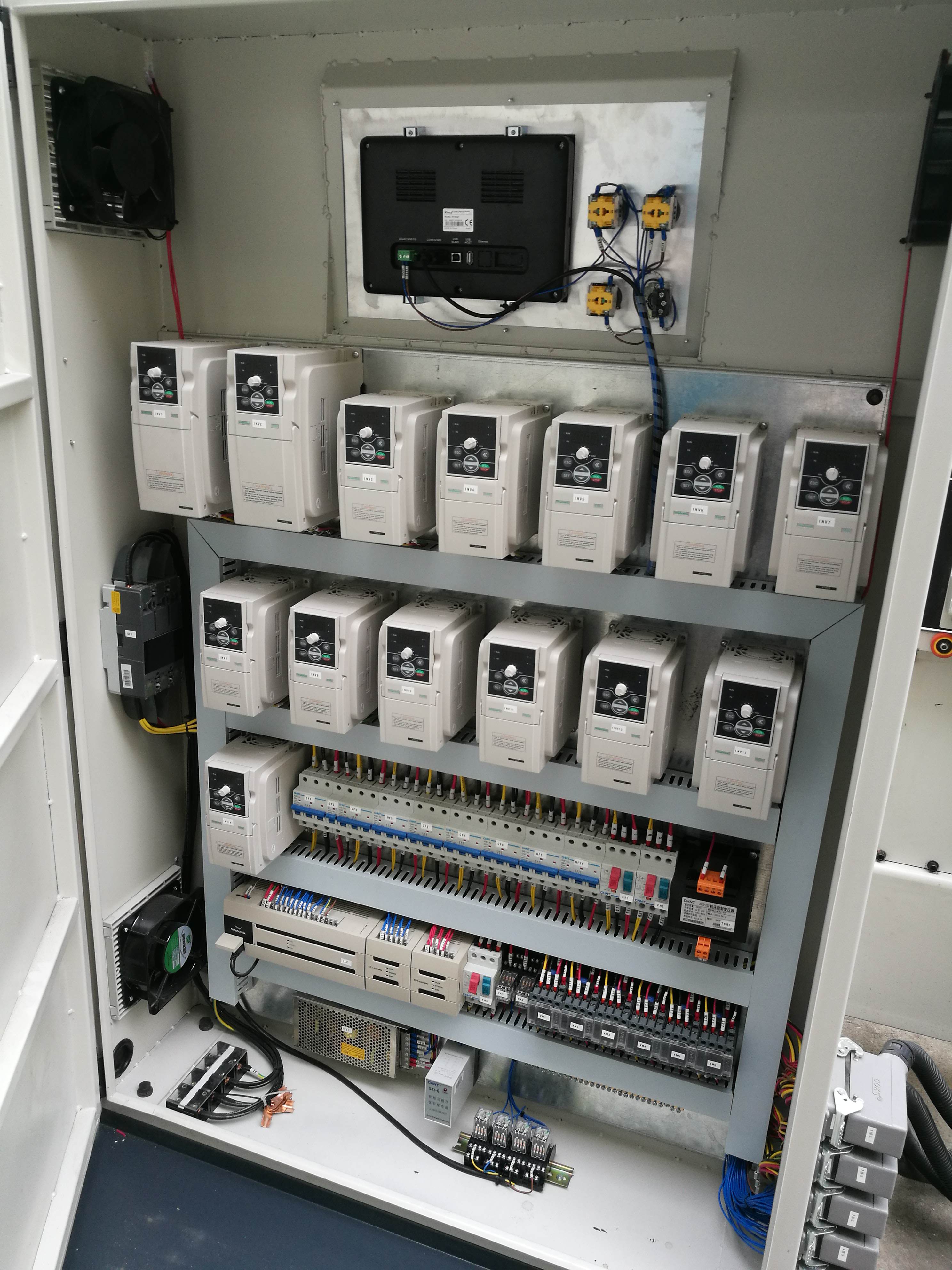

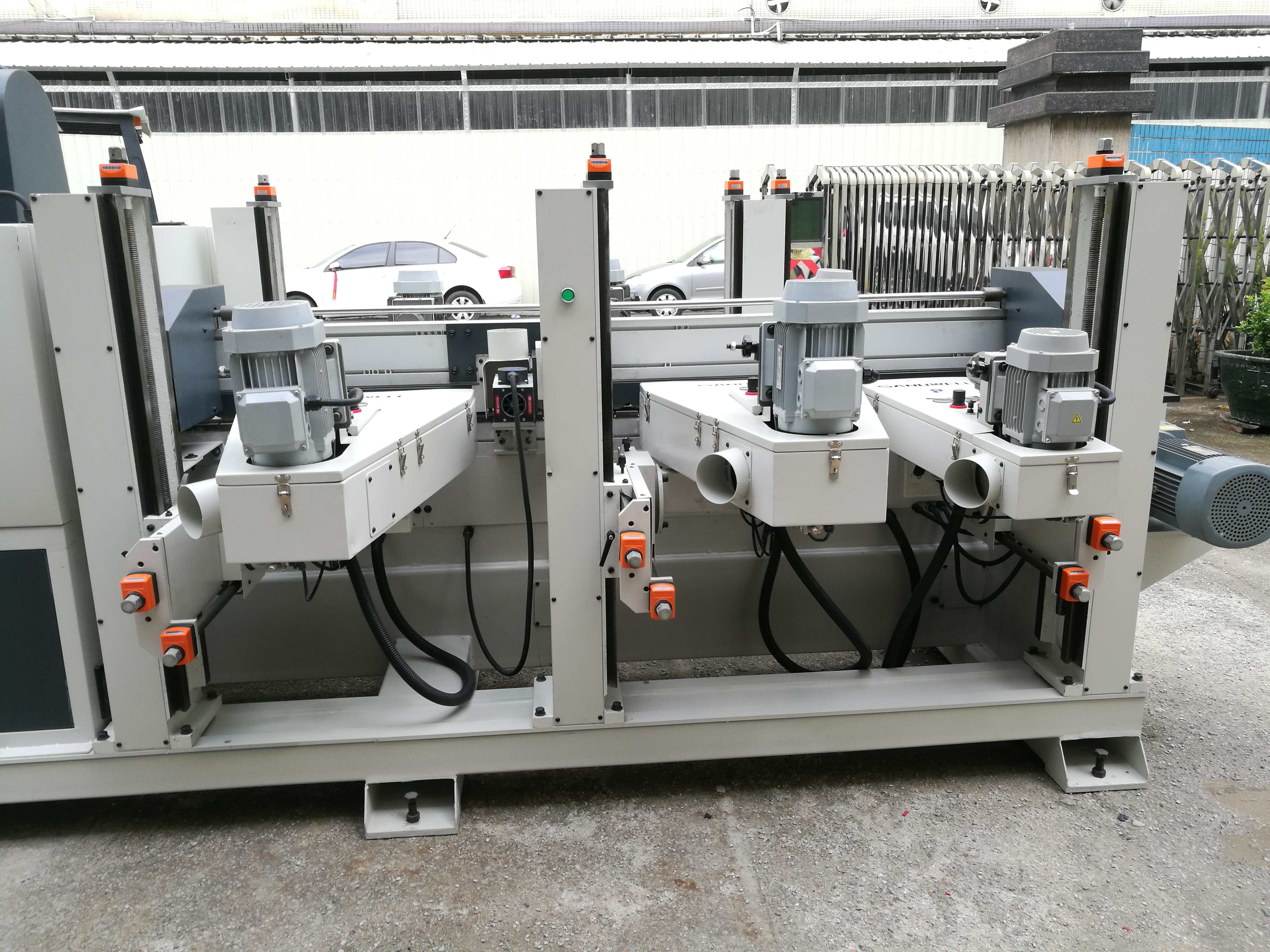

        Electronically Controlled Box                                            Coating Roller Component                                                   Three Dimensional Adjustment Column

                              |                     Sponge Sand Head Component                  |                  Pressure Beam Component                                        |                        200 Sand Frame Component

                              |                                                  |                                       |                                   |                                                                  |                                              |

Slotted milling sanding machine process description:

Flow: Left and right milling type - left and right sponge wheel polishing - left and right UV roller edge (fill) - left and right UV drying - left and right triangular sand - single side grooving - left and right triangular sand - left and right 200 grinders

 Legend description:

1. Processing sheet metal: This scheme is aimed at the drawer side plate. The equipment can also be used to process the same type of complex sheet metal.



2.Slotting and milling type: The structure of Gong milling head is composed of high-speed motor and three-dimensional adjusting plate. It can shape, chamfer, slot and trim the edge of the workpiece. Tool modelling is made according to the actual requirements of the workpiece. The motor fuselage can be angle adjusted. It has good versatility and convenient tool change. Features: Fixed installation, strong milling force.







4.Sponge wheel: matching with the universal grinding wheel all over the world, it can install brush roller, octagonal sand, grinding wheel, polishing wheel and other abrasives. To implement all-round diversification of sand cutting profiled edges. Easy to operate, easy to replace abrasive belt and abrasive. It also has the function of automatic expansion to protect the head and tail of the workpiece, and uses the grinding wheel to compensate automatically.







5.Batch automatic feeding device: This machine has an automatic feeding bin, which can put many pieces of work pieces in one time.

In the silo, the automatic feeding device can automatically feed the sheet material into the mechanical processing one by one.



UV Milling Sanding Vacuum Spray Coating Machine Characteristic:

UV Edge Machine Technical parameters:
