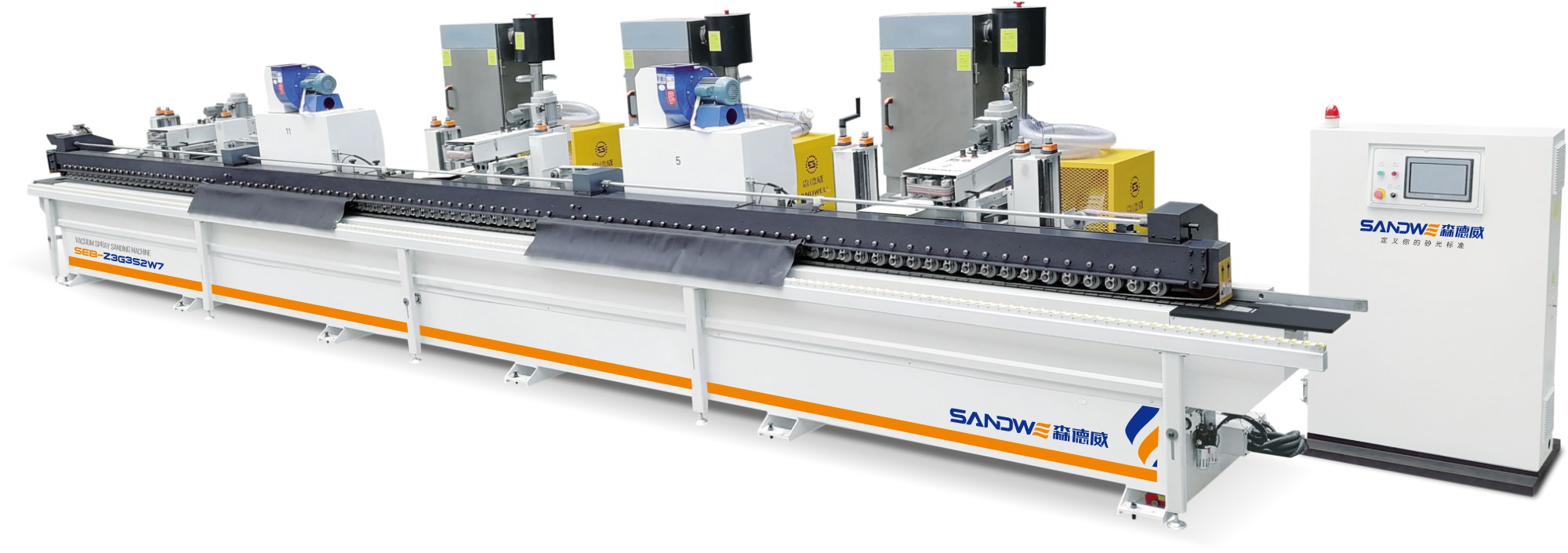

Automatic UV Paint Linear Vacuum Edge Sprayer

Model: SEB-Z3G3S2W7

The UV Milling Sanding Vacuum Spray Coating Machine is a combination of UV coating, sanding and ultraviolet drying, which can complete the operation from white embryo to paint surface at one time. It has strong pertinence and is easy to operate. Different abrasive belts can be configured according to different process requirements.

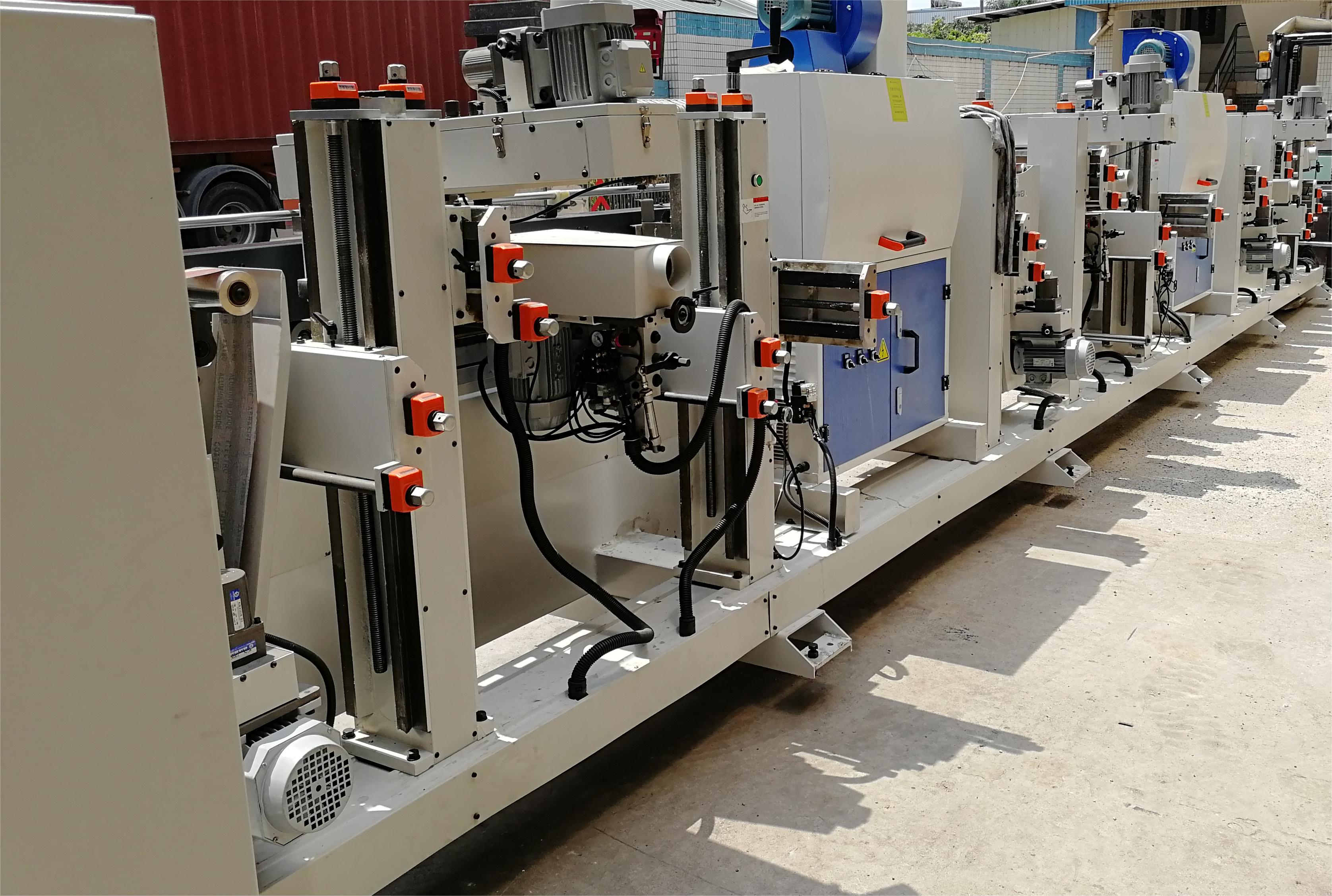

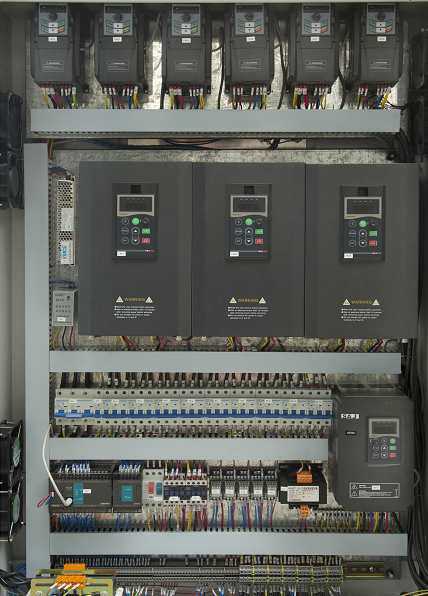

The edge UV vacuum abnormal coating sander is mainly composed of electronic control box, frame parts, three-dimensional adjusting column, sponge sand head parts, pressing beam parts, lifting parts, sand frame, conveying parts.

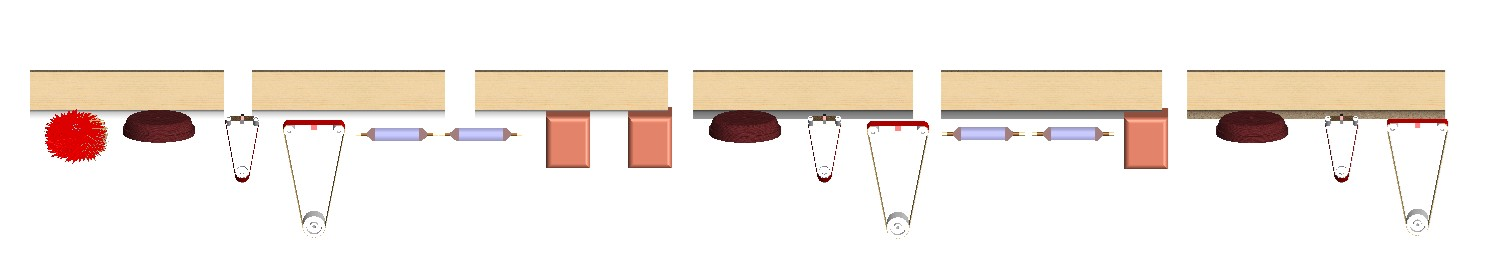

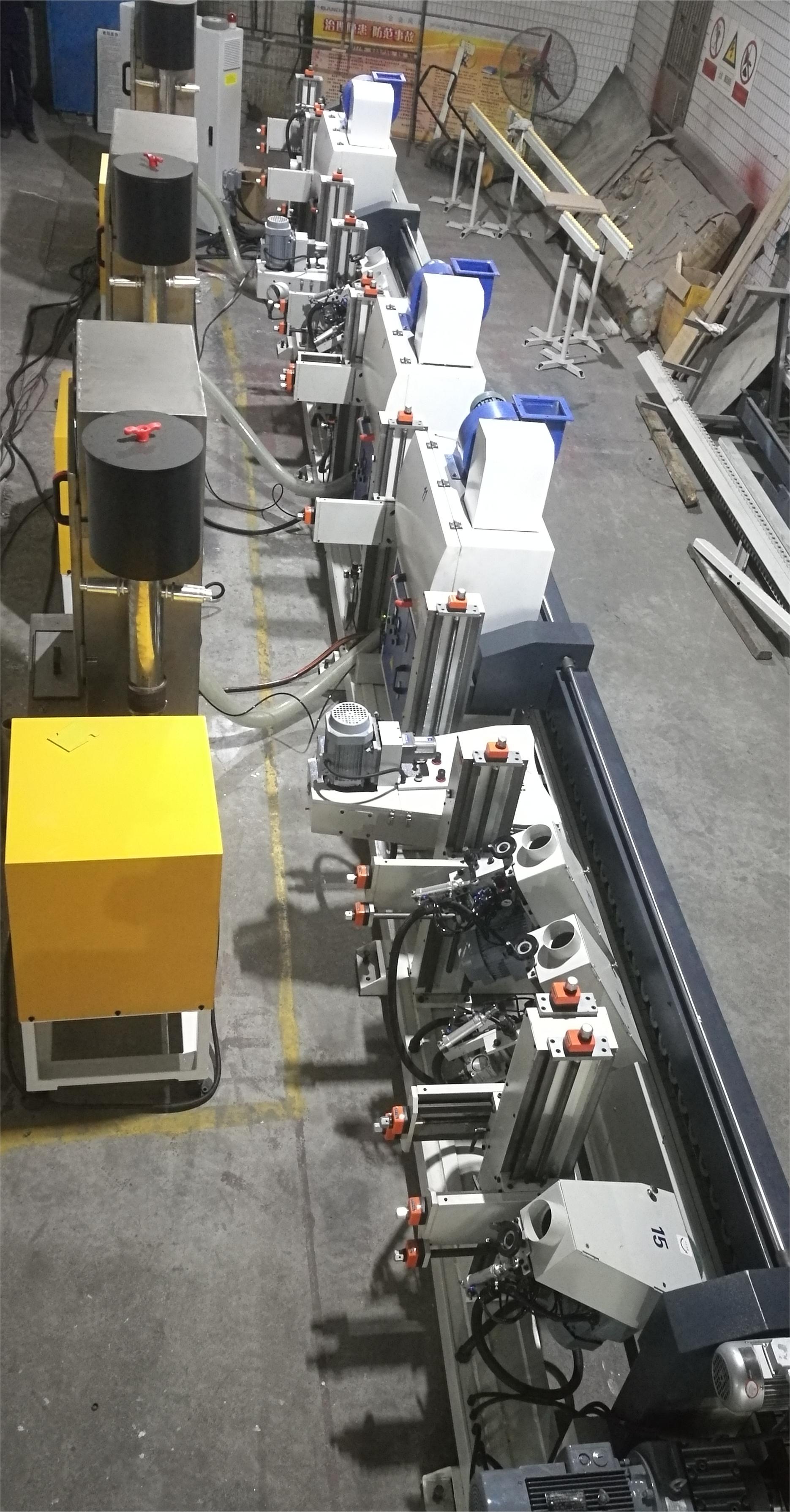

UV Edge Blasting Machine Equipment Configuration Chart:

UV Vacuum Edge Blasting Machine for Paint Process description:

Flow: Sponge wheel sanding - sponge wheel sanding - UV vacuum spraying - UV drying - triangular grinding frame sanding - sponge wheel sanding - sponge wheel sanding - UV vacuum spraying - UV drying - UV vacuum spraying - UV drying - triangular grinding frame sanding - sponge wheel sanding - sponge wheel sanding - sea Sponge wheel sanding.

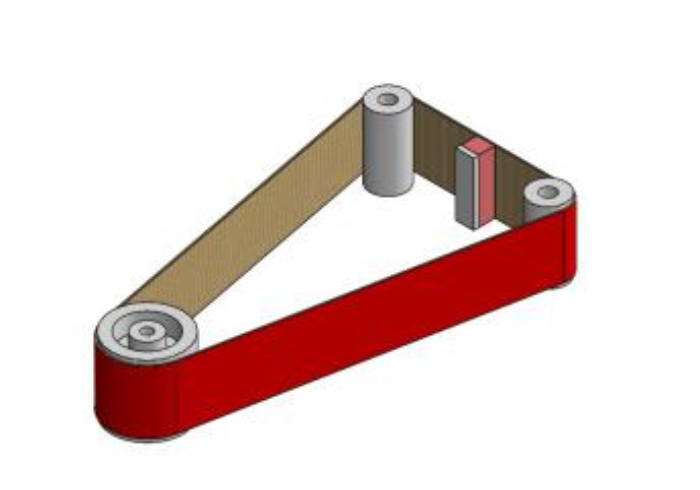

Triangular belt: The belt has the function of automatic swing. The pressing module can imitate the straight edge of abrasive cutting profile, and has the function of automatic expansion to protect the head and tail of the workpiece. The grinding quantity is the strongest and the smoothness is the best.

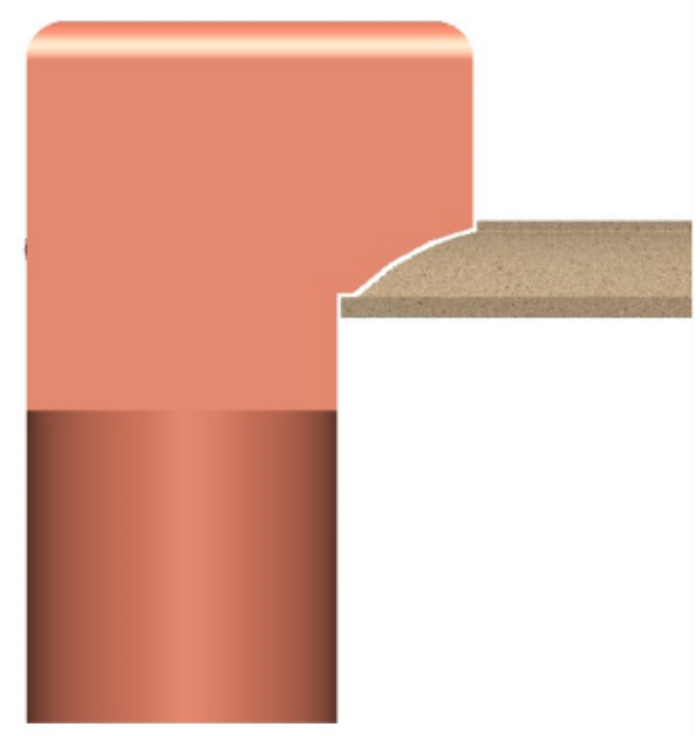

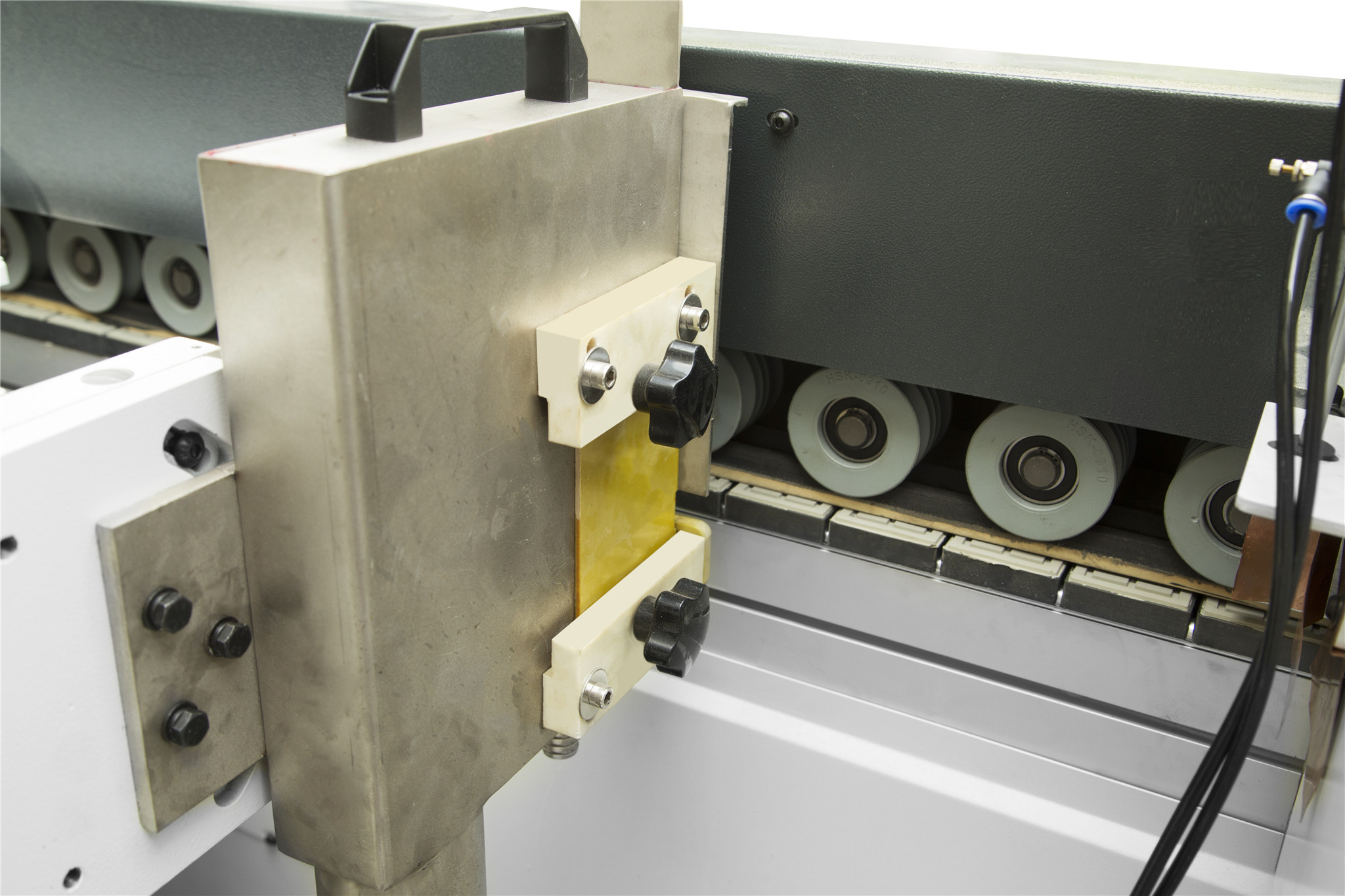

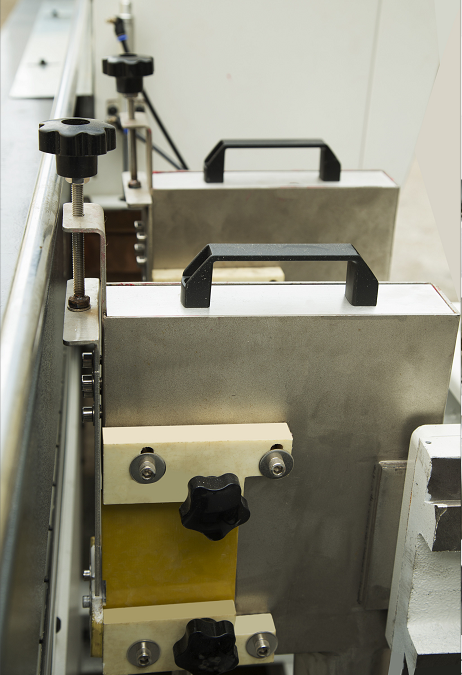

Vacuum nozzle: High pressure pump gasifies paint and attaches to the edge of workpiece. Dies are made according to the workpiece shape.Quick replacement. It can be sprayed with transparent, white and black UV primer. Green environmental protection, energy saving and emission reduction. Effective use of site area, reduce labor intensity of workers.UV paint 100% recycling.

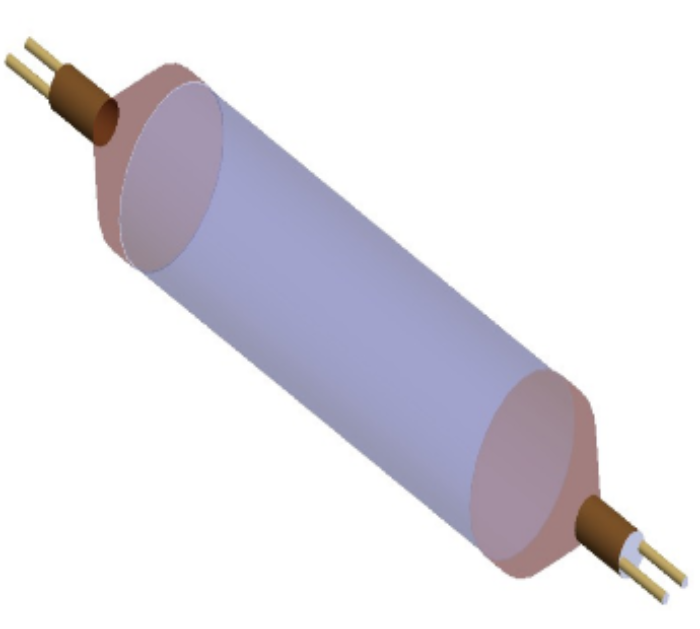

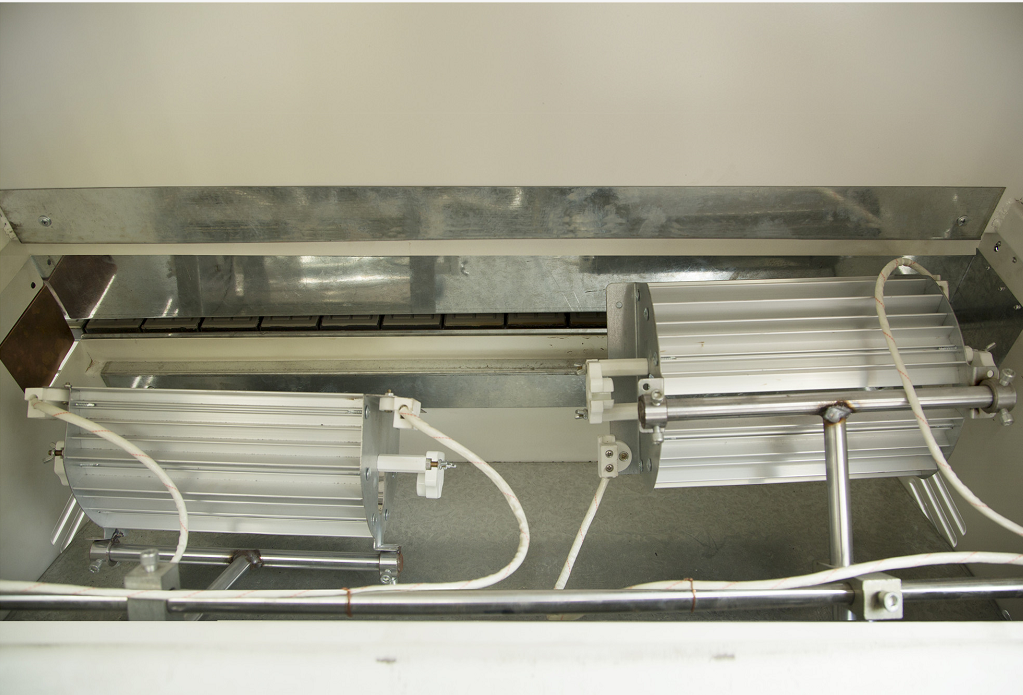

UV drying lamp: paint dries quickly. That is to say, spraying means drying and sand, and quickly transferring to the next process. Effective Section  Provincial worksite area.

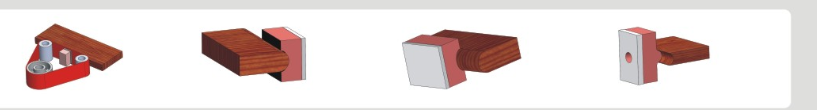

1. This machine is suitable for the sanding of plane straight-line profiled edges, and can arrange various sand heads according to the requirements of different processing technologies.

2. Sand rack can be adjusted to - 45 +90, which is suitable for straight line profile sanding at a certain angle.

3. The advance and retreat of the sand frame pressure module are controlled by the program without adjustment, which greatly improves the use efficiency.

4. Sand rack is equipped with oscillating device and sand head with feed compensation device to ensure smooth and uniform surface.

5. The speed of abrasive belt of this machine is regulated by frequency conversion to suit the edge and corner sanding of different wood products; (White embryo, primer)

6. The pressing device is loaded by spring, which is reliable and does not hurt the workpiece.

7. The caterpillar adopts chain conveying, mechanical stepless speed change and cylindrical guide guide, which has strong feeding ability, stability and reliability.

8. The sprinkler die is easy to make and can be replaced quickly.

9. Double-lamp drying is fast, that is, spray drying.

UV Edge Machine Technical parameters:
