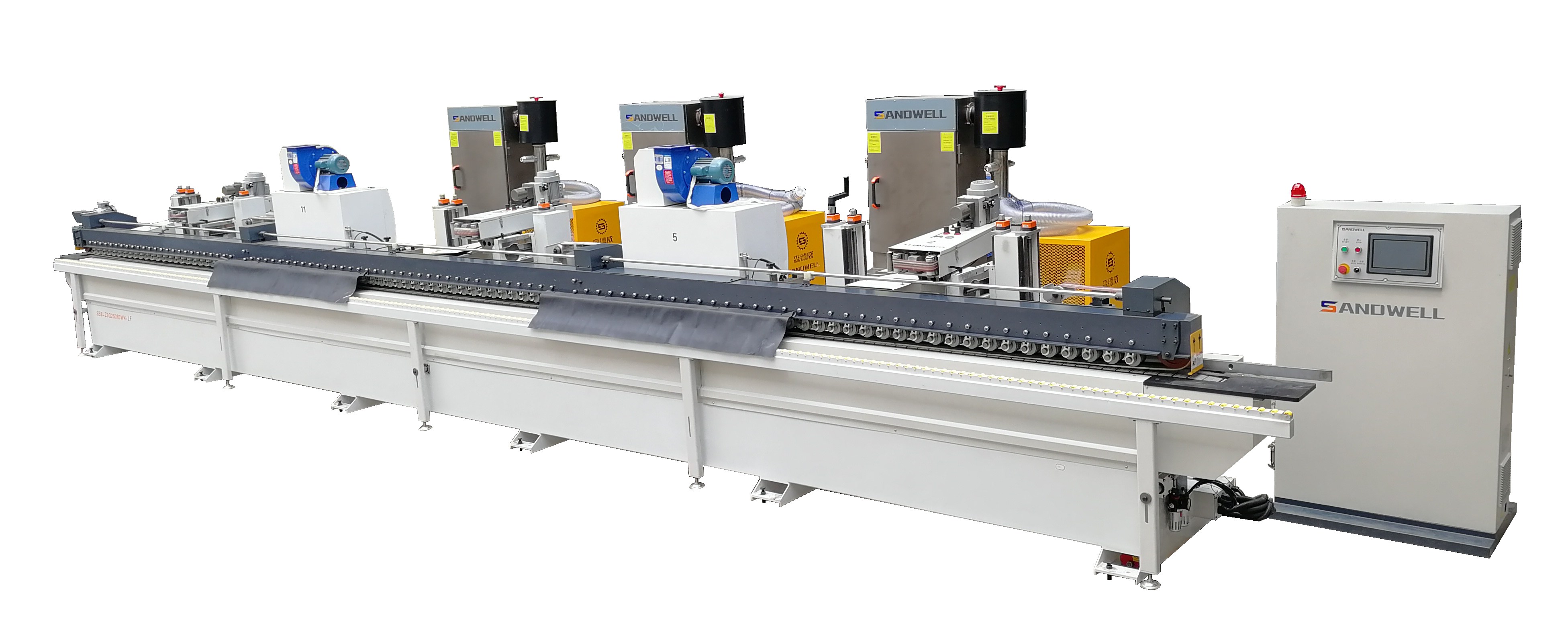

Linear UV Paint Vacuum Edge Spraying Milling Machine

Model: SEB-K2W2Z1G2

This machine integrates milling, spraying and sanding as one sanding machine, which can be sprayed and sanded according to material shape.

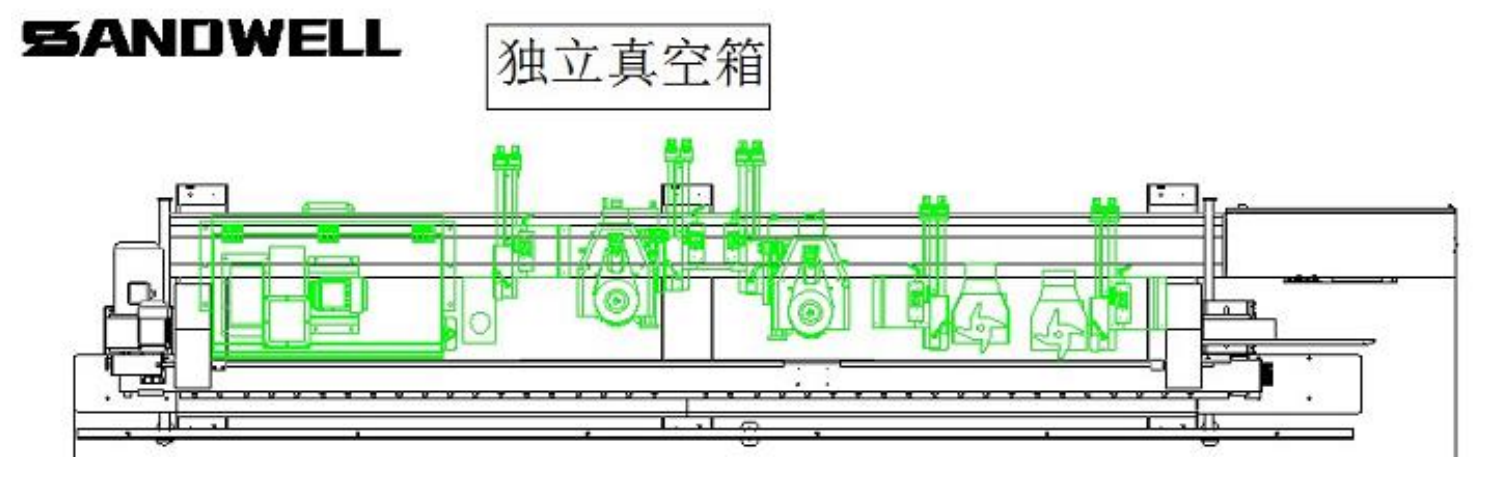

The vacuum edge sandblasting machine for edge linear UV paint is mainly composed of electronic control box, frame parts, three-dimensional adjusting column, milling head parts, sponge sand head parts, pressing beam parts, lifting parts, sand frame, conveying parts and so on.

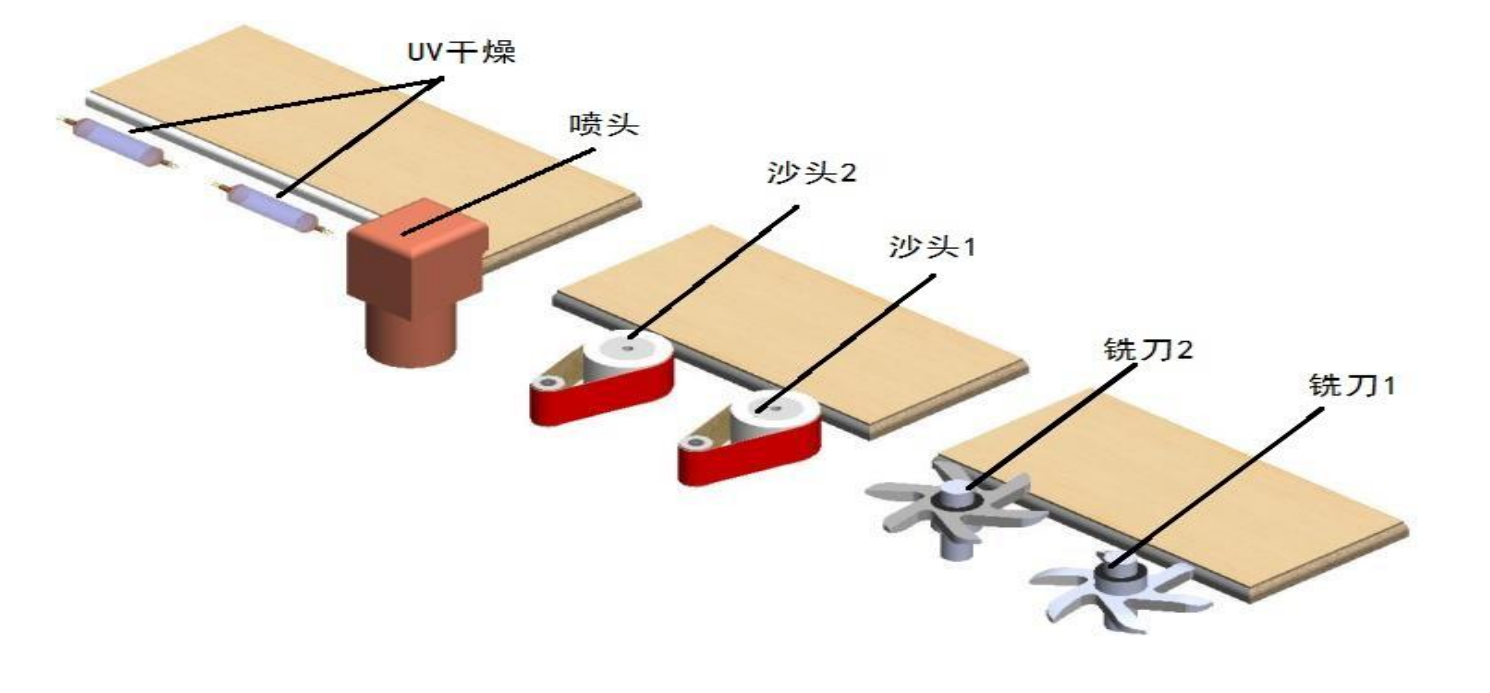

UV Milling Sanding Vacuum Spray Coating Machine Process description:



Instructions for equipment components:

A--Milling Tool Components:

Note: The Gong milling head structure is composed of high-speed motor and three-dimensional adjusting board. It has the characteristics of good versatility, convenient tool change and safe operation. It is used in home.

Furniture accessories edge grooving, milling, chamfering and other cutting pins.

B--Sandhead parts:

Note: The sanding structure with belt rotation outside sponge wheel has the characteristics of automatic feeding sanding. It can also be fitted with profiled imitation sanding wheel.

Grinding and sanding the outline edges.

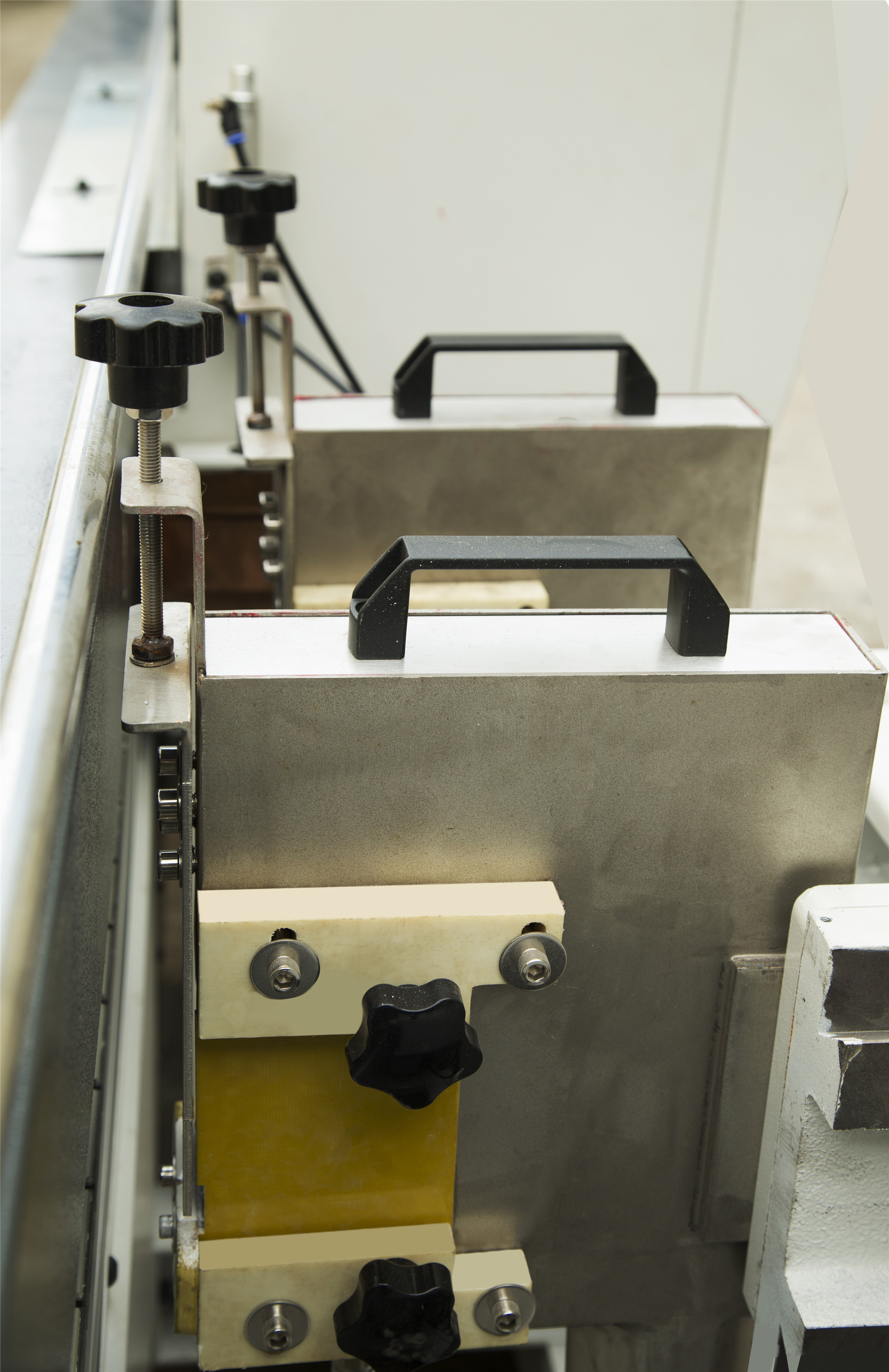

C--nozzle parts:

Note: This part is made of stainless steel. Different Abrasives can be made according to the shape of the workpiece. The UV paint can be uniform through a vacuum transmitter.

Spraying to the surface of the workpiece.

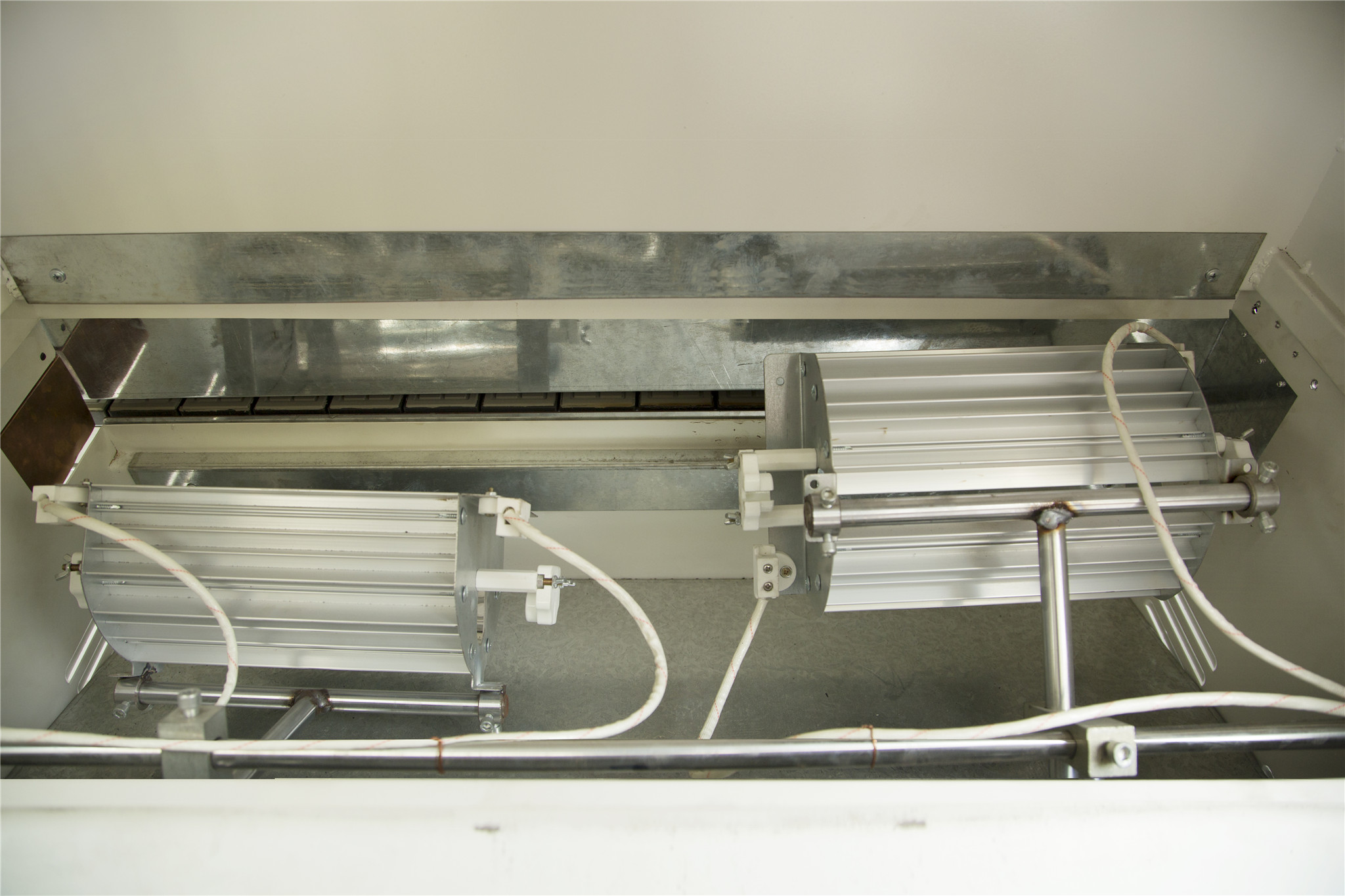

D--Paint Drying Parts:

Note: This part is a drying lamp. Its main function is to dry the UV paint on the spray.

UV Edge Machine Equipment characteristics:

According to different technological requirements, various sand heads are arranged and disposed freely.

Sand head with automatic compensation function, induction forward and backward function, to ensure that the head and tail of the workpiece is not sand pierced, not sand circle.

Sand rack can be adjusted to - 45 +90, which is suitable for straight line profile sanding at a certain angle.

Sand rack with oscillating device, sand head with feed compensation device, to ensure smooth and uniform processing surface;

The speed of abrasive belt of this machine is adjusted by frequency conversion, which is suitable for edge and corner sanding of different wood products. (White embryo, primer)

56MM seamless wide belt beam is used for pressing beam of sand edger. Spring load is used for pressing device, which is reliable and does not hurt workpiece.

The caterpillar adopts chain conveyor, mechanical stepless speed change and cylindrical guide guide, which has strong feeding ability, stability and reliability.

The advance and retreat of the sand frame pressure module are controlled by program without adjustment, which greatly improves the use efficiency.

This machine adopts touch screen operation, PLC program control, each working group independent frequency conversion speed regulation, plate thickness automatic adjustment.

Edge Uv Coater Machine Technical parameters:
