Wooden Board MDF Panel Polishing Edge Sanding Machine

1. This edge belt sander is equipped with a sand frame and a sand head with automatic wear compensation.

2. The sanding frame and head can be equipped with various sizes of sanding belts and different sanding materials such as flying wing wheels and nylon wheels and so on, to complete the sanding of different materials such as white blanks and paints.

3. This machine's sand frame and sand head can only be adjusted in two directions: forward and backward, and up and down, do not have the ability to rotate.

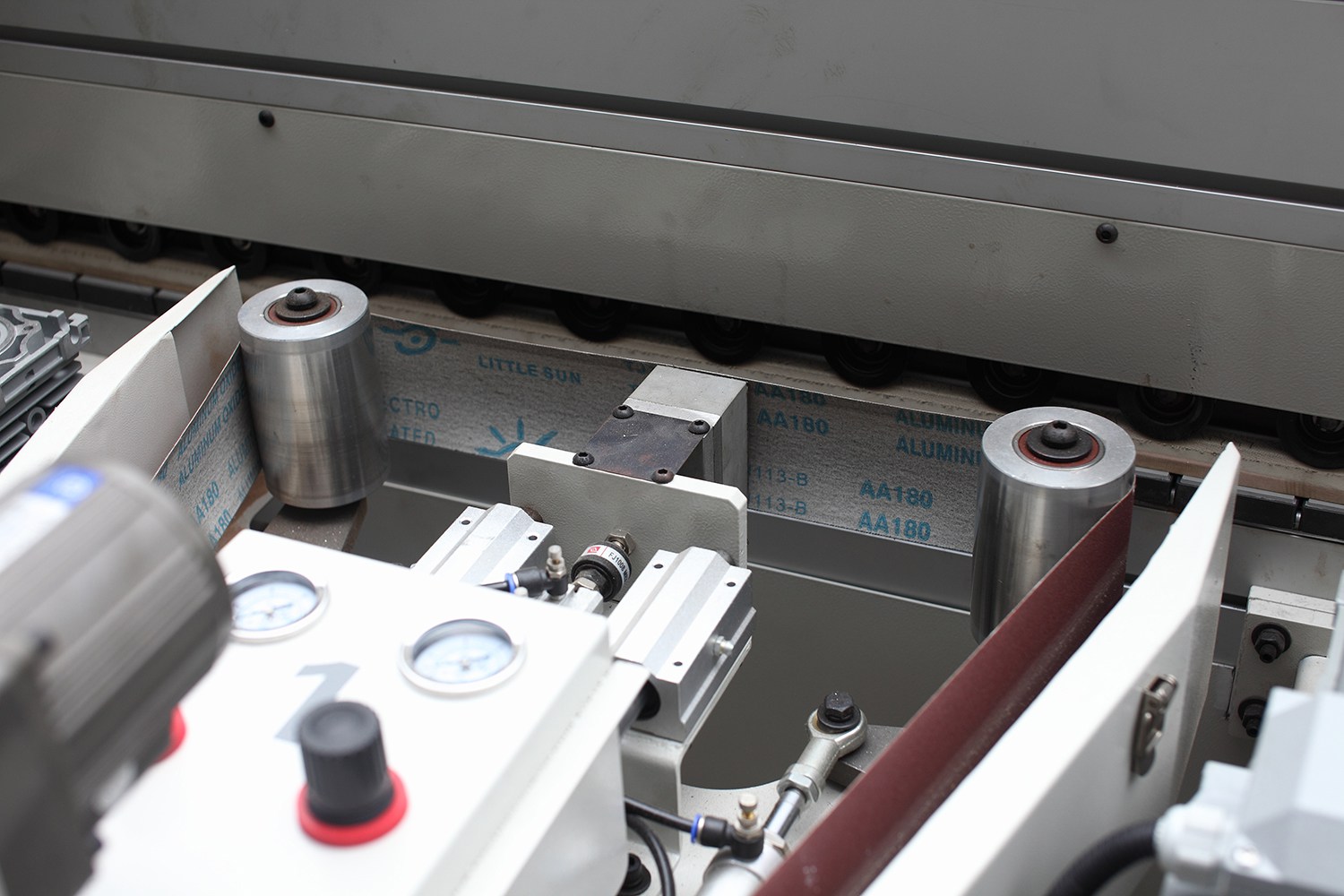

The sand frame is equipped with an oscillation device, and the sand head is equipped with a feed compensation device to ensure a smooth and uniform processing surface;

The speed of the abrasive belt of this Edge rounding sander machine is adjusted by frequency conversion to suit the sanding of different wood products' edges and corners; (white blank, primer)

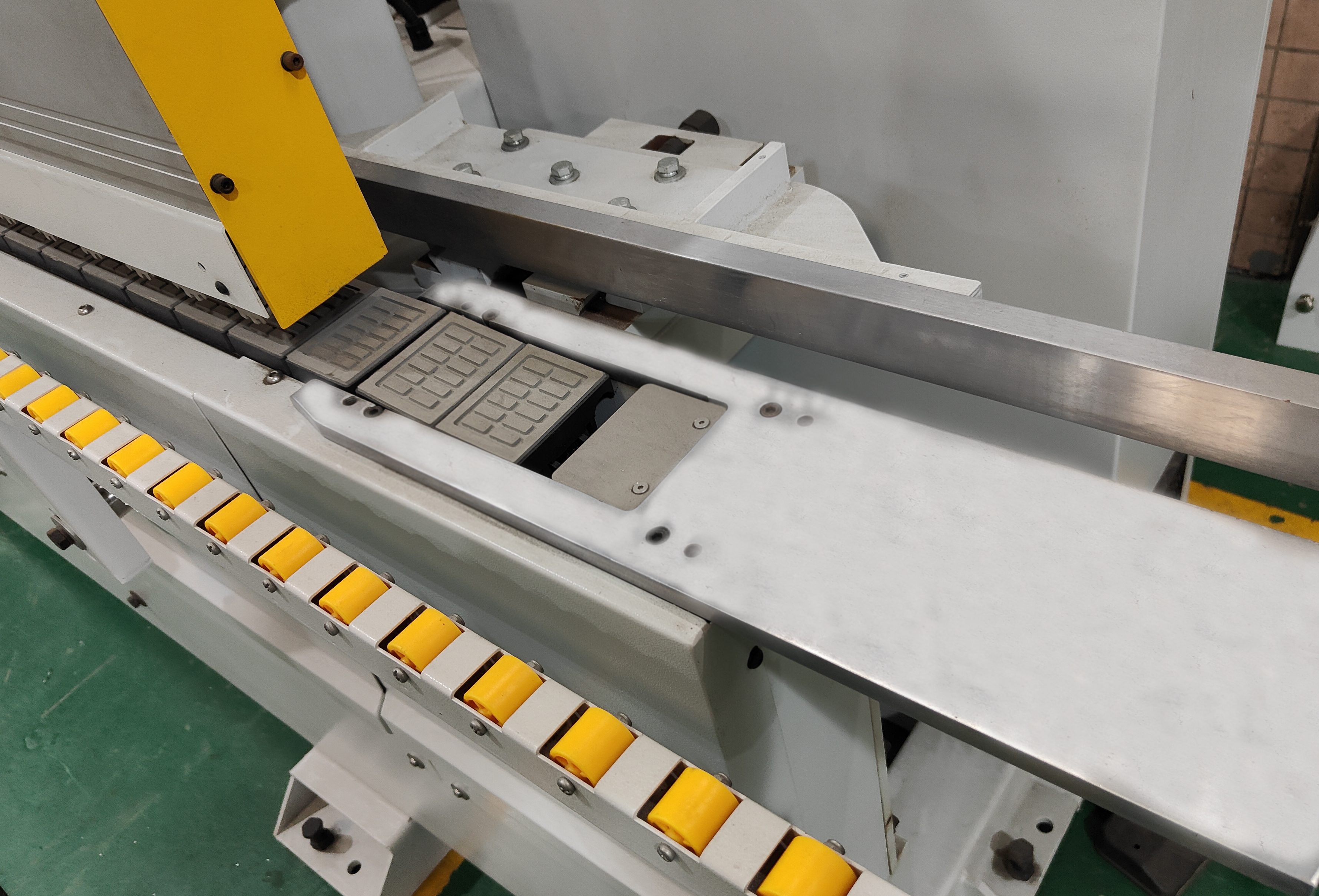

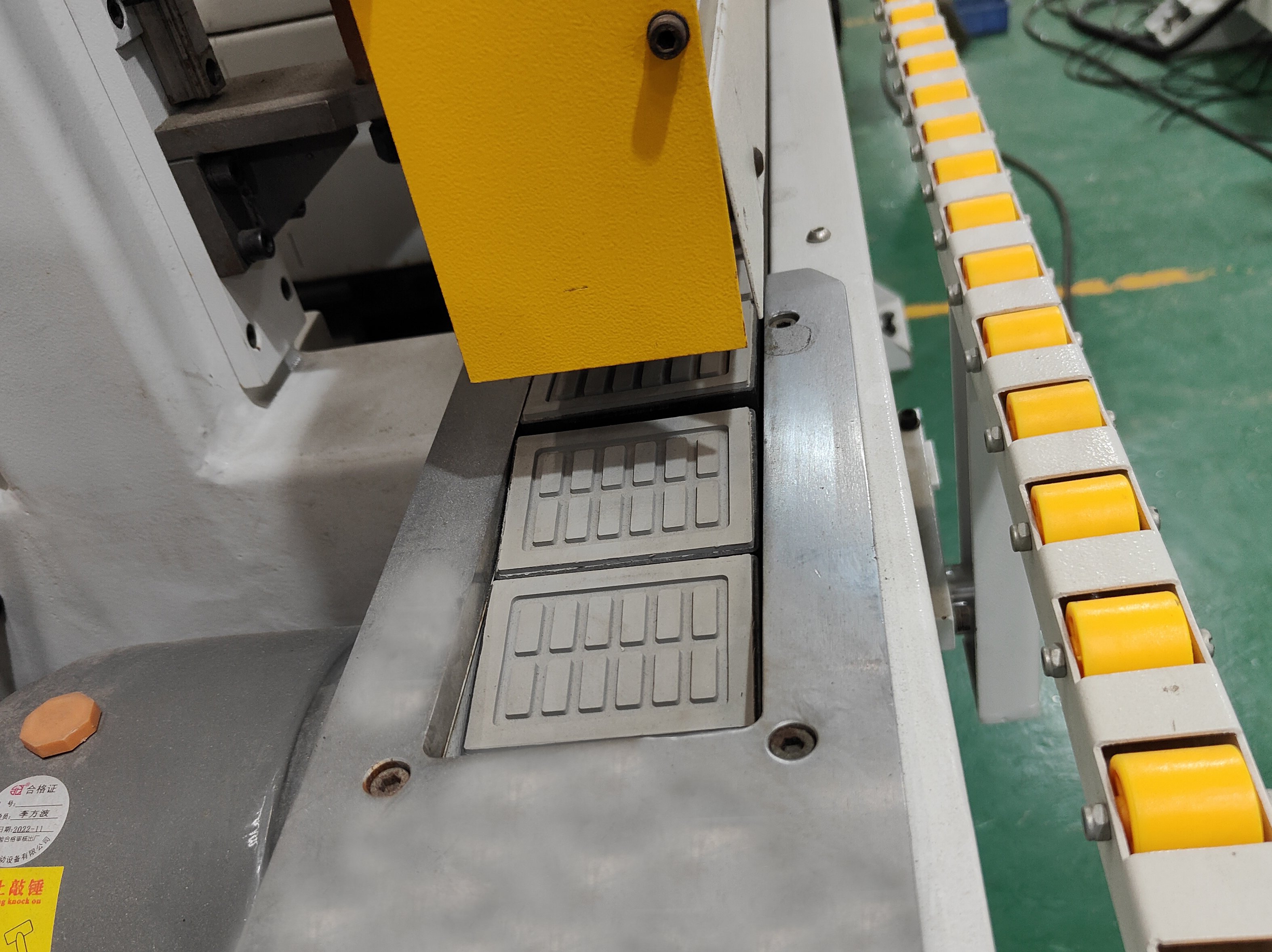

The pressure beam of the wood sander machine is made of aluminum alloy, and the pressure device adopts wheel type pressure material.

The track adopts chain conveying, mechanical stepless speed change, and cylindrical guide rail guidance, with strong feeding capacity, stability and reliability;

The advancement and retraction of the sand frame pressing module are controlled by the program, eliminating the need for adjustment, significantly enhancing operational efficiency.

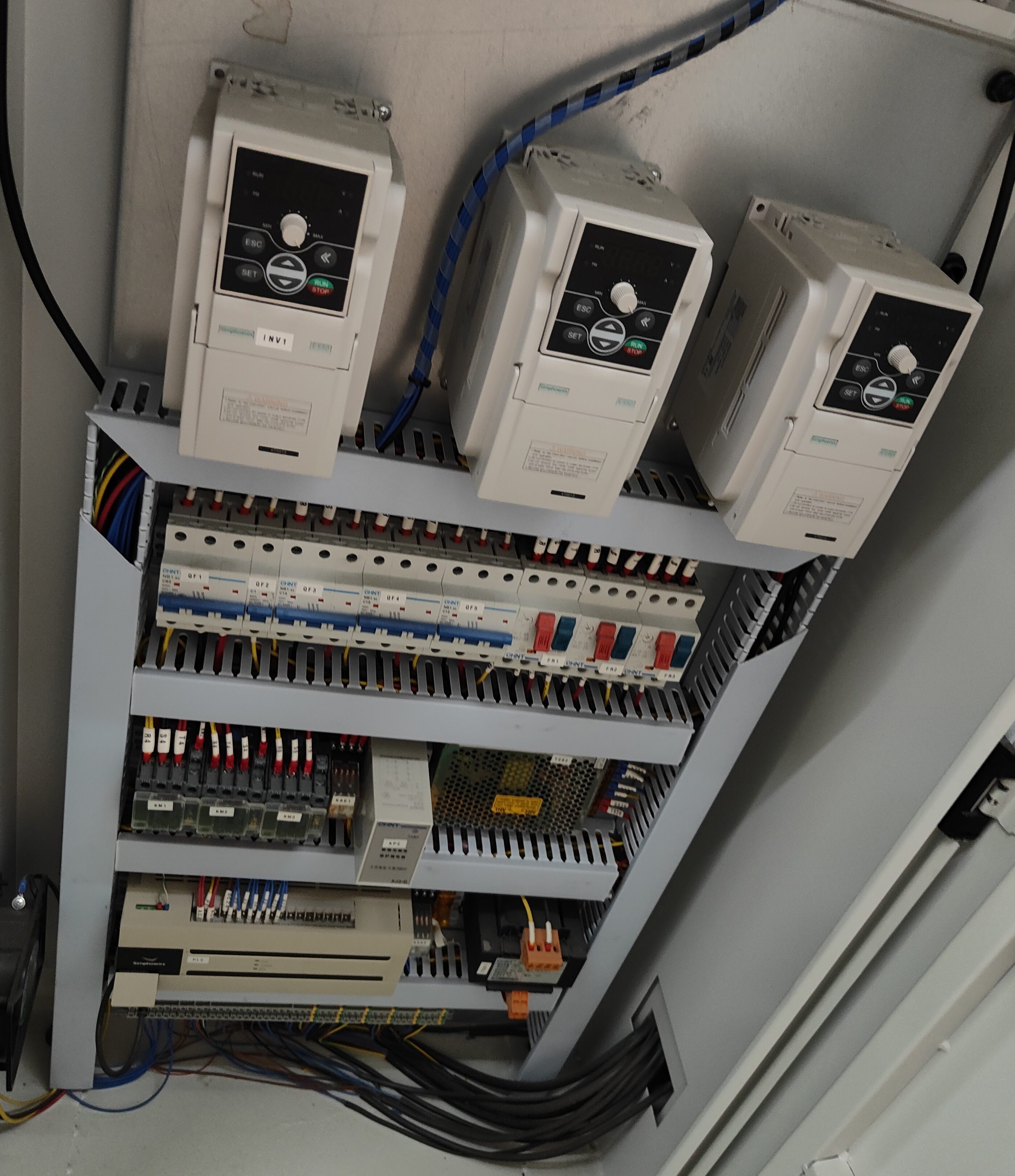

This machine adopts touch screen operation and PLC program control, with each work group independently controlled by frequency conversion speed regulation and automatic adjustment of plate thickness.
