Woodworking Edge Sanding Machine for Furniture

Get Latest Price

Payment Type:

L/C,T/T

Incoterm:

FOB,EXW

Min. Order:

1 Set/Sets

Transportation:

Ocean,Land

Contact Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: SEB-K2S2W2

Brand: SANDWELL

Place Of Origin: China

Status: New

Machine Type: Wood Sanding Machine

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Bearing, Gearbox, Motor

Warranty Period: 1 Year

Core Selling Point: Easy To Operate, High Productivity, Flexible Manufacturing, Multifunctional, Energy Saving, High Safety Level, High-Accuracy, High Rigidity, Long Service Life, Patented Product

Showroom Location (in Which Countries Are There Sample Rooms Overseas): Viet Nam, Russia, Malaysia, Australia, Indonesia

Out-of-warranty Service: Video Technical Support, Online Support, Field Maintenance And Repair Service

Applicable Industry: Farms, Construction Works, Energy &Amp; Mining, Advertising Company

Workpiece Feeding Width: 80-2400mm

The Minimum Length Of Workpiece Feeding: 150mm

Workpiece Feeding Thickness: 5-80mm

Feeding Speed: 3-30m/min

Feeding Motor: 1 feeding motor (pcs), 380V, 50Hz, 2.2Kw, 1430r/min

Profiling Milling Motors: Two profiling milling motors, 5.5Kw/unit, 200Hz, 12000r/min

Sand Frame And Sand Belt Specifications: perimeter: 2160mm, maximum width: 80mm

Sand Frame Sand Belt Linear Speed: 8.15-13.58m/s (30Hz 50Hz)

The Sand Frame Can Tilt From: 0 ° to+90 °

Working Pressure: 0.6-0.8Mpa

Supply Ability & Additional Information

Transportation: Ocean,Land

Payment Type: L/C,T/T

Incoterm: FOB,EXW

Packaging & Delivery

Selling Units:: Set/Sets

Product description:

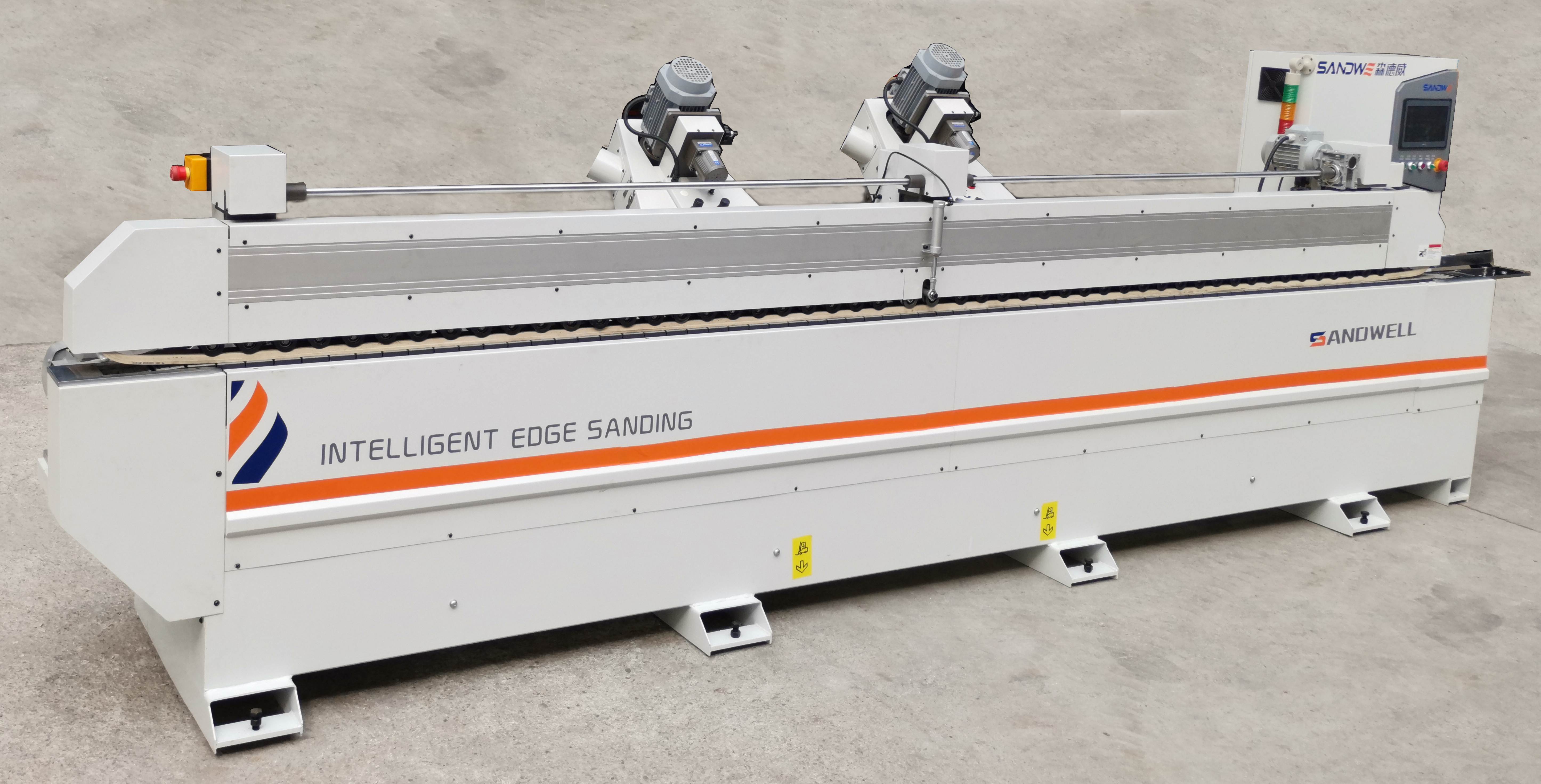

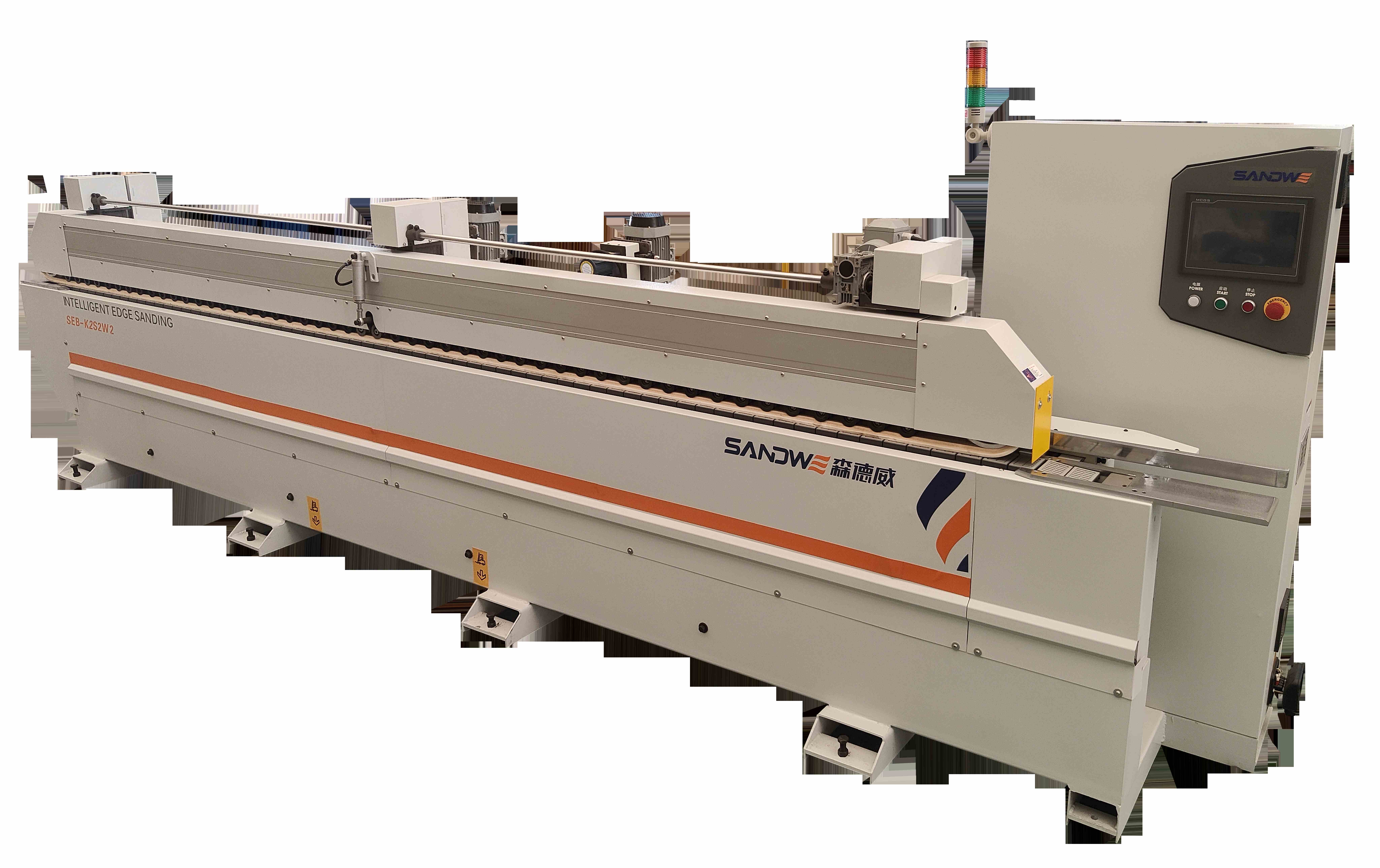

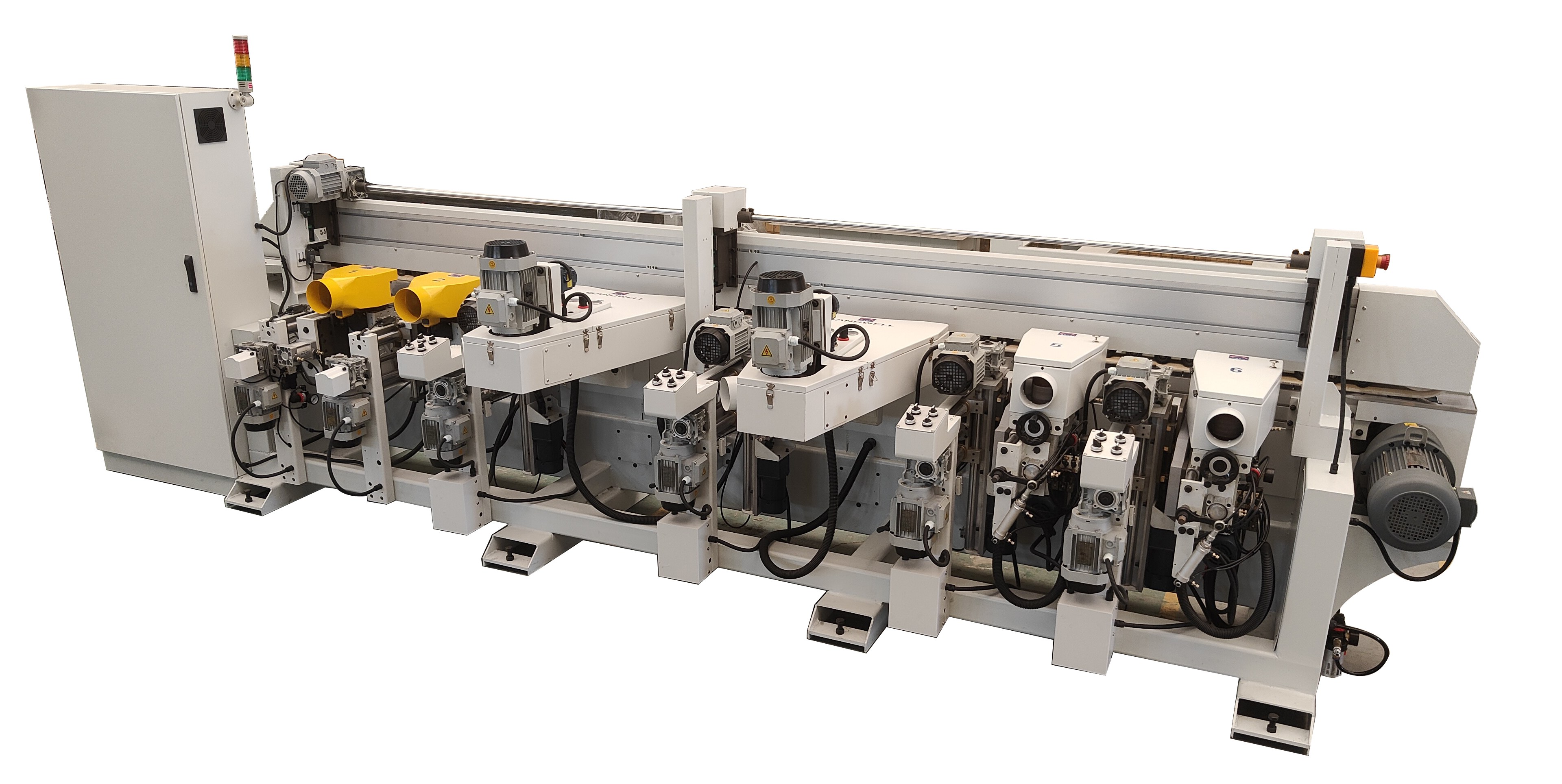

Linear milling and sanding machine SEB-K2S2W2

This Edge Sanding Machine is suitable for straight irregular edge milling and sanding; Specially designed for various types of furniture, tables and chairs, coffee tables, cabinets, doors, and other board edge white milling and white paint sanding; Strong targeting, simple and easy to operate, different abrasive belts can be configured according to different process requirements.

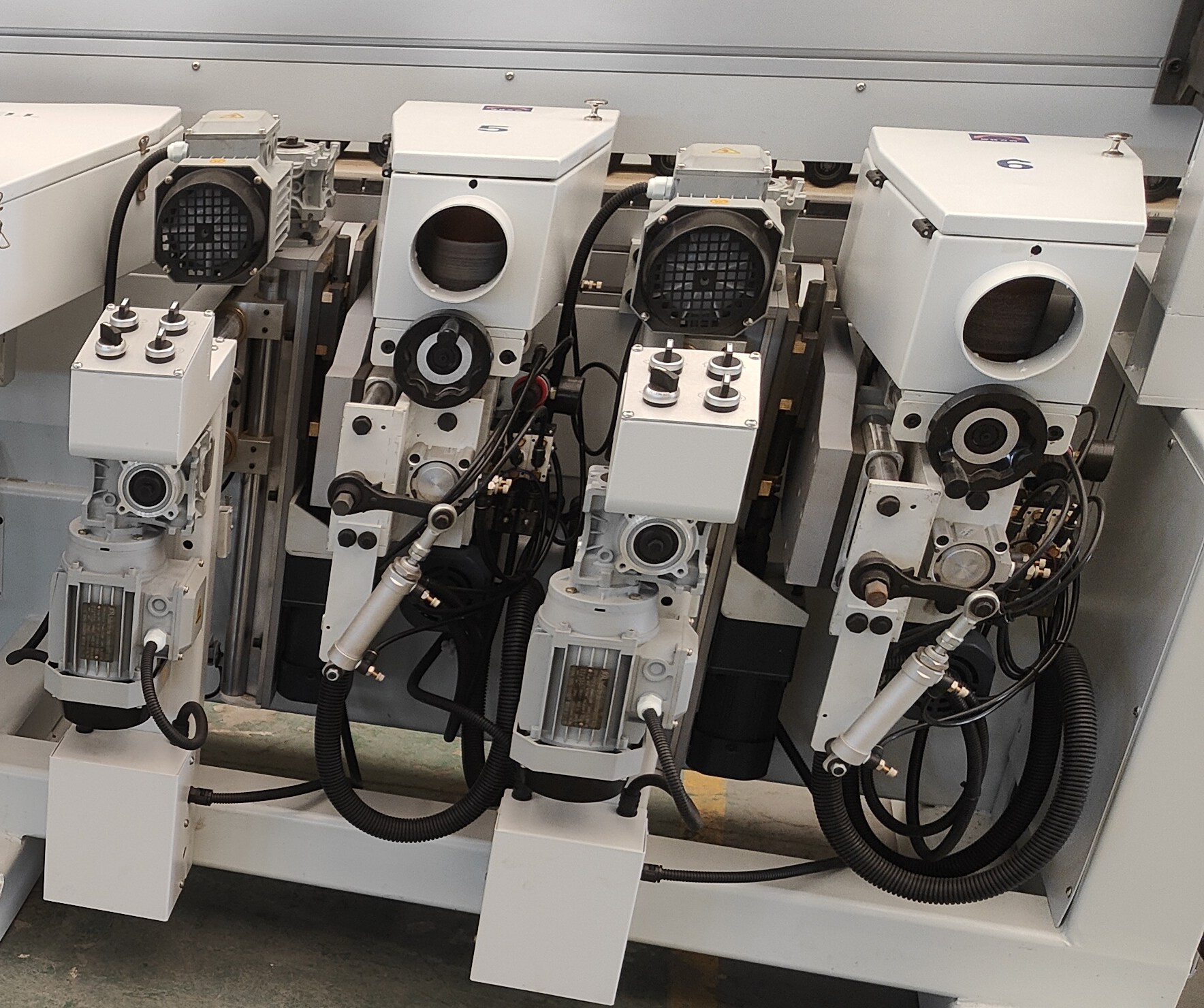

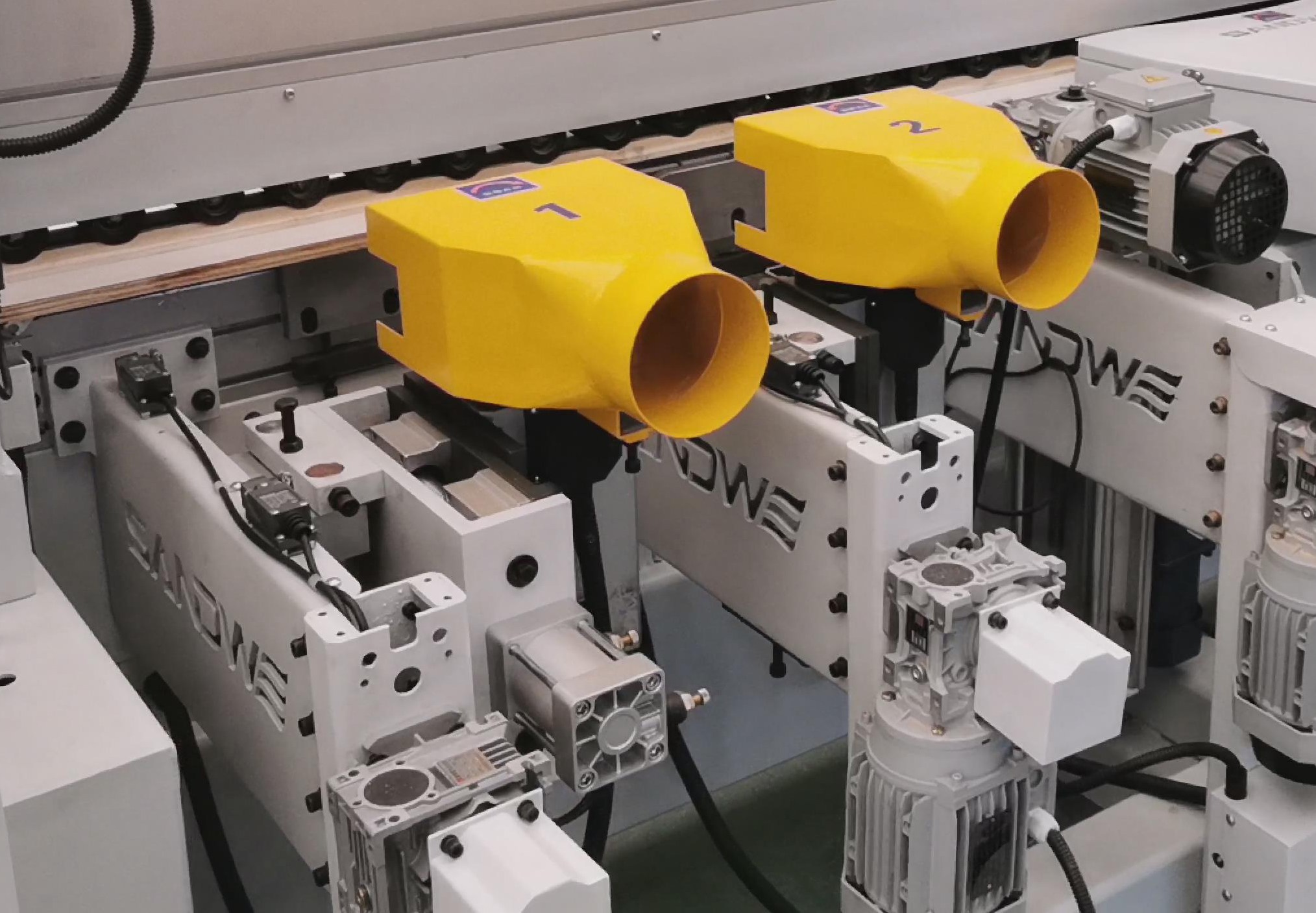

1. The first and second milling cutter motors are high-speed motors (with a maximum speed of 12000 r/min). The first milling cutter has a jumping function to prevent tearing of the solid wood board;

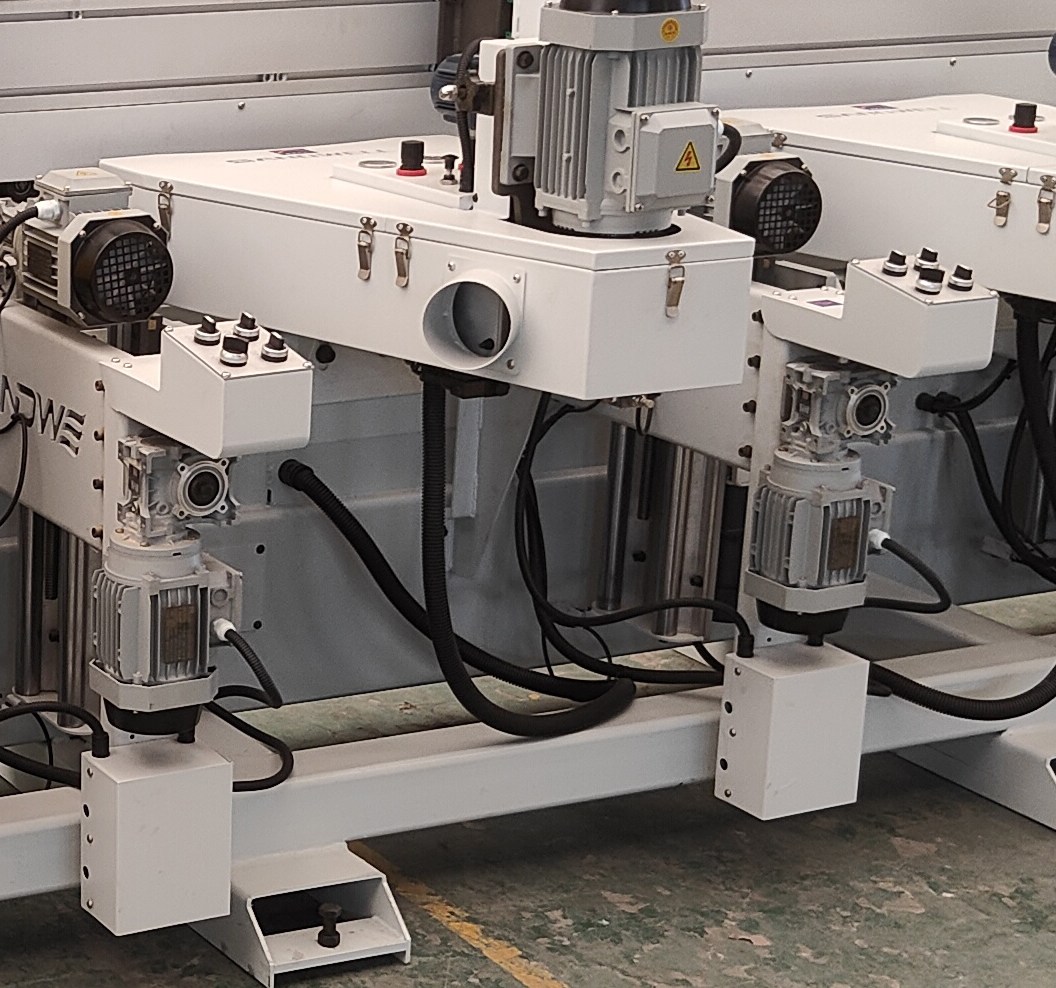

2. The third and fourth are sand frame units, combined with sandpaper of different particle sizes, to apply coarse and fine sand to the sides of the board.

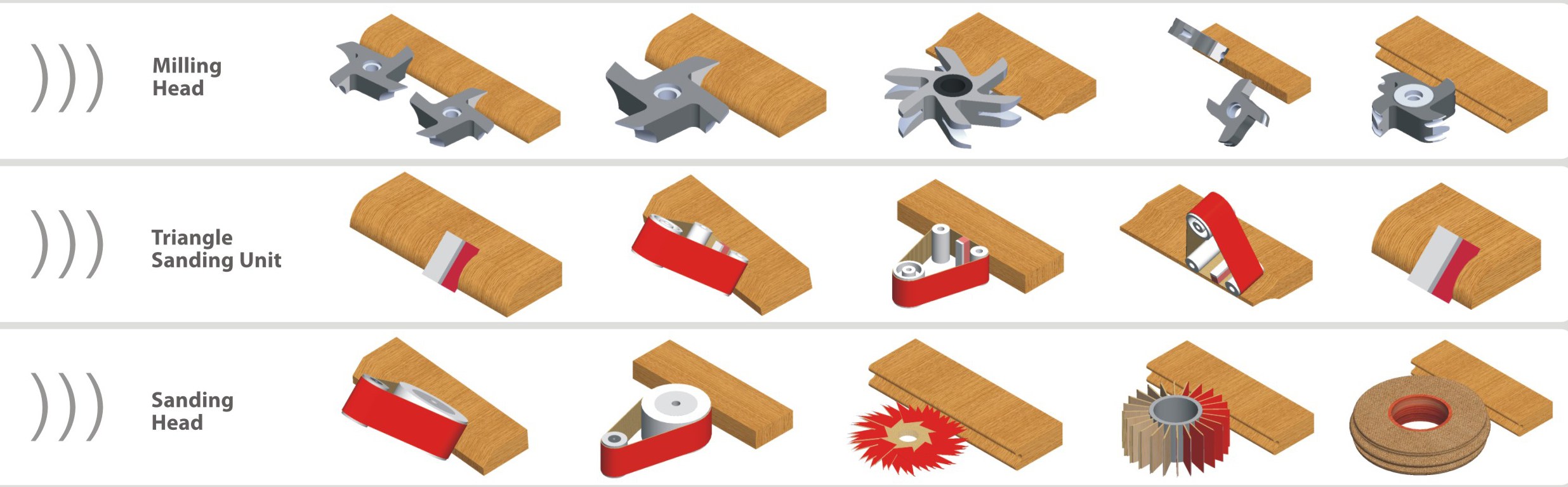

3. The fifth and sixth are two to four sand head units with automatic wear compensation, which can be equipped with sponge wheel sand heads or various types of grinding wheel pairs for side sanding and polishing.

The sand frame can be adjusted from 0 ° to+90 °, suitable for edge straight line imitation sanding at a certain angle;

The sand frame is equipped with an oscillation device, and the sand head is equipped with a feed compensation device to ensure a smooth and uniform processing surface;

The sanding belt speed of this machine adopts variable frequency speed regulation to adapt to the sanding of different wooden products at the edges and corners; (White embryo, primer)

The wood sander machine adopts a 56mm seamless wide belt pressure beam, and the pressure device adopts spring load, which is reliable and does not damage the workpiece.

The track adopts chain conveyor and cylindrical guide rail guidance, with strong feeding capacity and stable reliability;

The advance and retreat of the sand frame pressure module are controlled by the program, without the need for adjustment, greatly improving the efficiency of use.

This edge belt sander adopts touch screen operation, PLC program control, and independent variable frequency speed regulation for each working group.
