Sanding machine for edge with furniture door cabinet

Get Latest Price

Payment Type:

L/C,T/T

Incoterm:

FOB,EXW

Min. Order:

1 Set/Sets

Transportation:

Ocean,Land

Contact Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: SEB-S1W3

Brand: SANDWELL

Place Of Origin: China

Status: New

Machine Type: Wood Sanding Machine

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Bearing, Gearbox, Motor

Warranty Period: 1 Year

Core Selling Point: Easy To Operate, High Productivity, Flexible Manufacturing, Multifunctional, Energy Saving, High Safety Level, High-Accuracy, High Rigidity, Long Service Life, Patented Product

Showroom Location (in Which Countries Are There Sample Rooms Overseas): Viet Nam, Russia, Malaysia, Australia, Indonesia

Out-of-warranty Service: Video Technical Support, Online Support, Field Maintenance And Repair Service

Applicable Industry: Farms, Construction Works, Energy &Amp; Mining, Advertising Company

Workpiece Feeding Width: 100-1800mm

The Minimum Length Of Workpiece Feeding: 200mm

Workpiece Feeding Thickness: 5-65mm

Feeding Speed: 4.5-22m/min

Feeding Motor: 1 feeding motor (pcs), 380V, 50Hz, 1.5Kw, 1430r/min

Sand Frame And Sand Belt Specifications: perimeter: 2160mm, maximum width: 80mm

Sand Frame Sand Belt Linear Speed: 8.15-13.58m/s (30Hz 50Hz)

Working Pressure: 0.6-0.8Mpa

Sand Head Sand Belt Specification: perimeter: 840mm maximum width: 100mm

The Total Power Of The Motor: 8.44w

Supply Ability & Additional Information

Transportation: Ocean,Land

Payment Type: L/C,T/T

Incoterm: FOB,EXW

Packaging & Delivery

Selling Units:: Set/Sets

Product description:
Linear Edge Sanding Machine SEB-S2W3

Edge sanding machineis specifically designed for sanding and polishing the edges of various furniture, tables, chairs, coffee tables, cabinets, doors, and other panels with white body and paint. It is highly targeted, simple to operate, and can be configured with different abrasives according to different process requirements to meet the requirements.

The frame can also be extended according to the sanding process requirements to add sanding racks and sanding heads for grinding the edges of shaped workpieces, such as furniture panels with irregular edges.

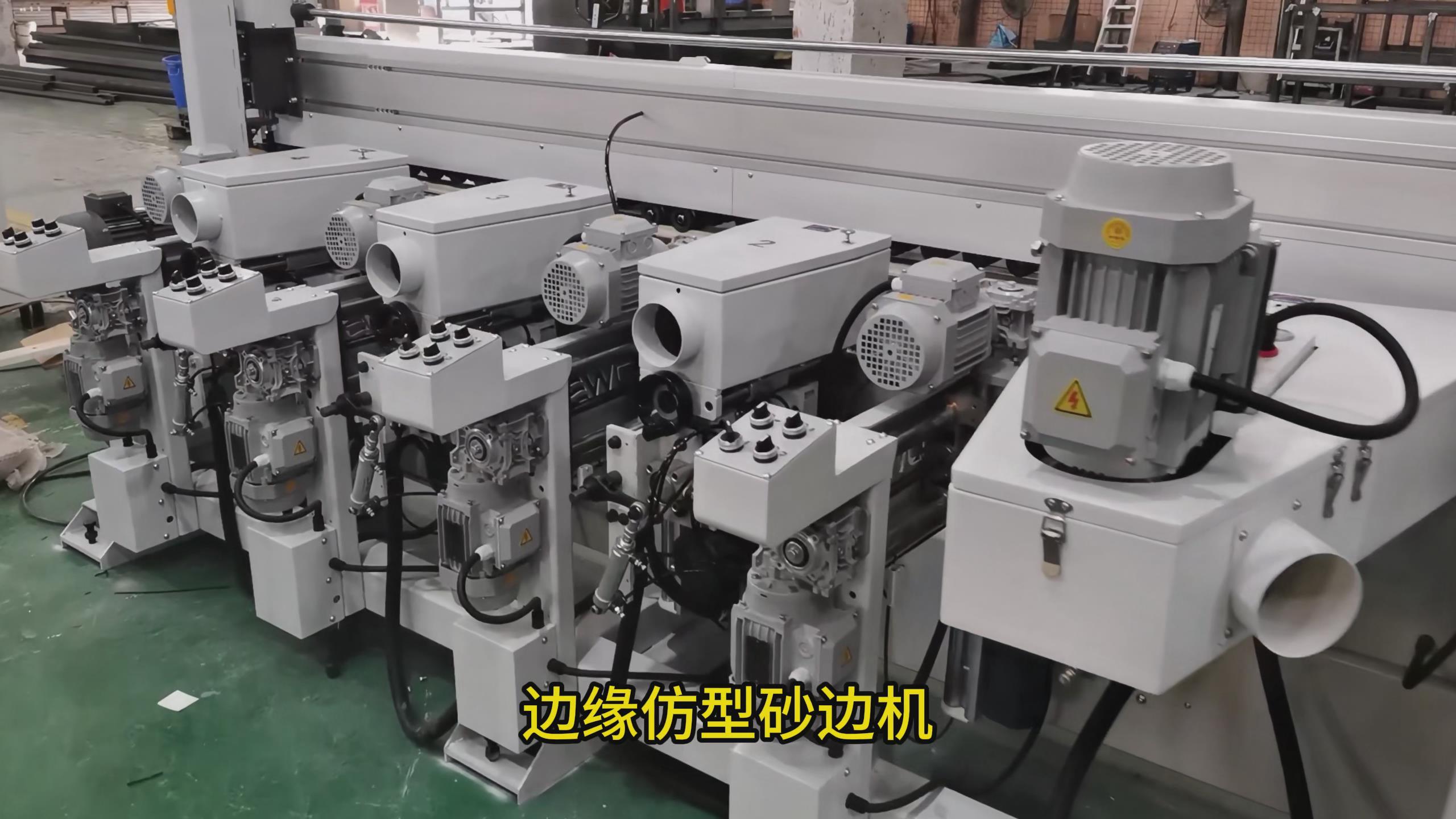

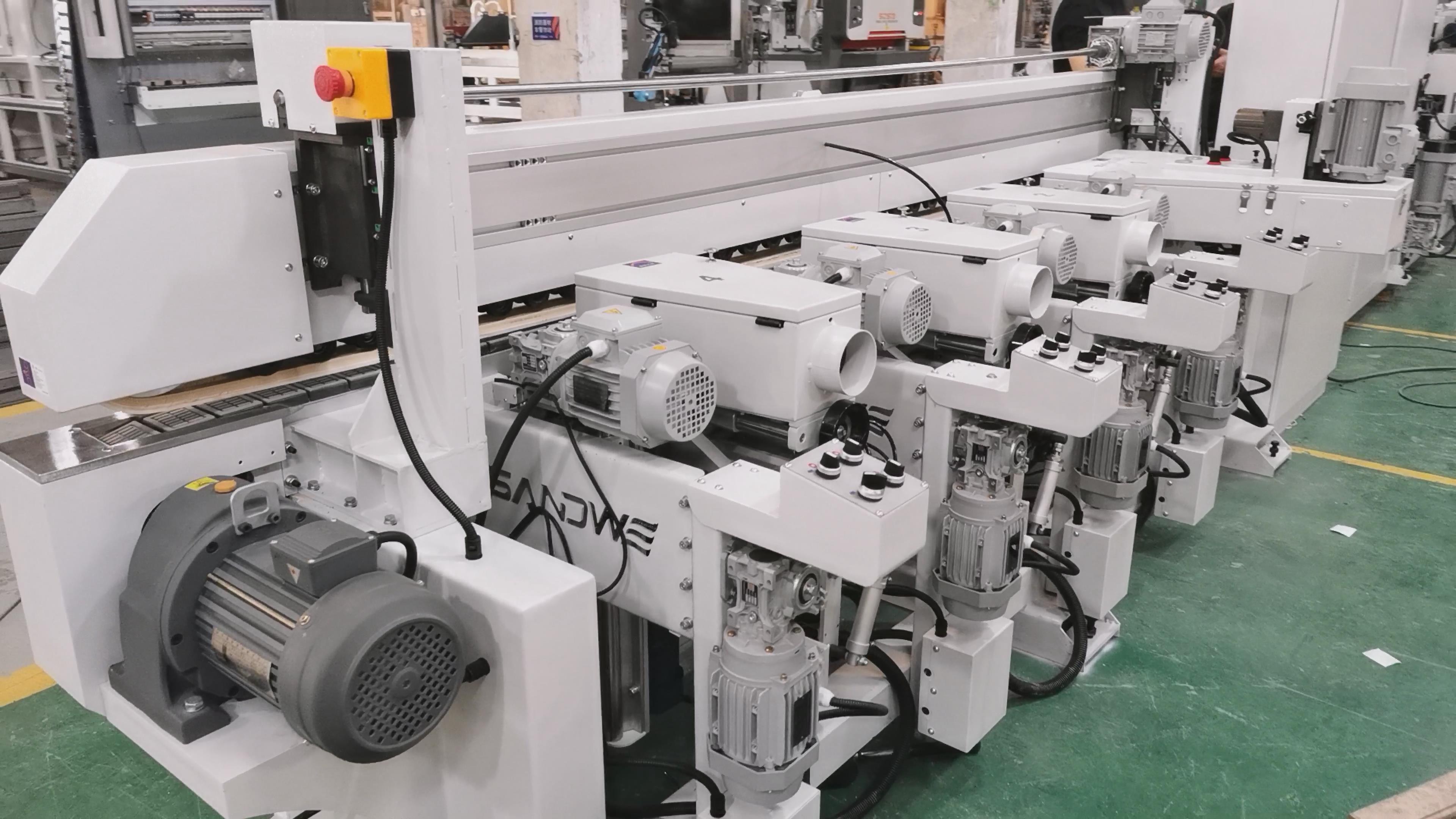

1. This model of machine is equipped with one sand frame unit and three sand head units with automatic wear compensation.

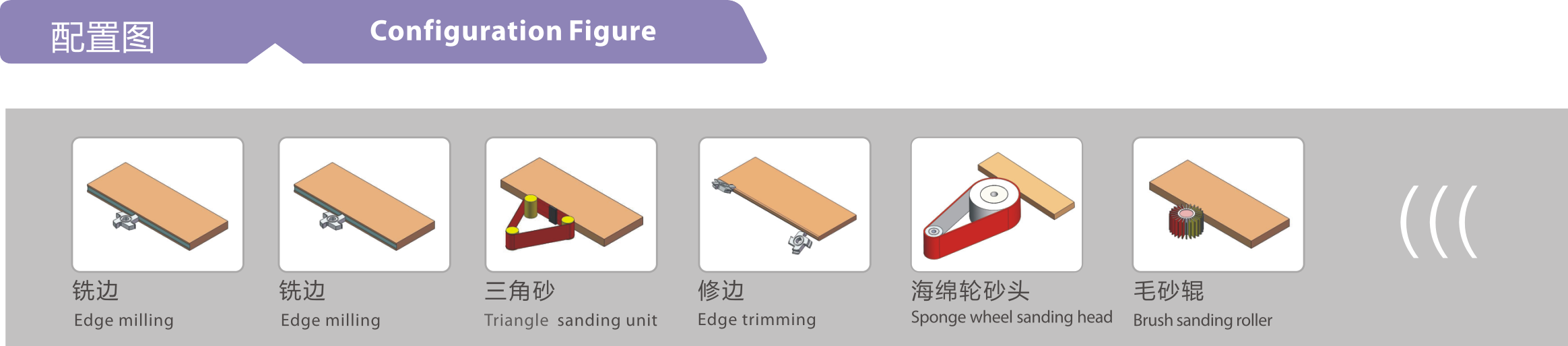

2. The sand frame and sand head can be equipped with various sizes of sand belts and different sanding materials such as flying wing wheels, nylon wheels, etc., to complete the sanding of different materials such as blank and paint.

3. Electric adjustment of sand frame and sand head forward and backward, lifting and lowering.

The sand frame can be adjusted from 0 ° to+90 °, suitable for edge straight line imitation sanding at a certain angle;

The sand frame is equipped with an oscillation device, and the sand head is equipped with a feed compensation device to ensure a smooth and uniform processing surface;

The sanding belt speed of this edge belt sander adopts variable frequency speed regulation to adapt to the sanding of different wooden products at the edges and corners; (White embryo, primer)

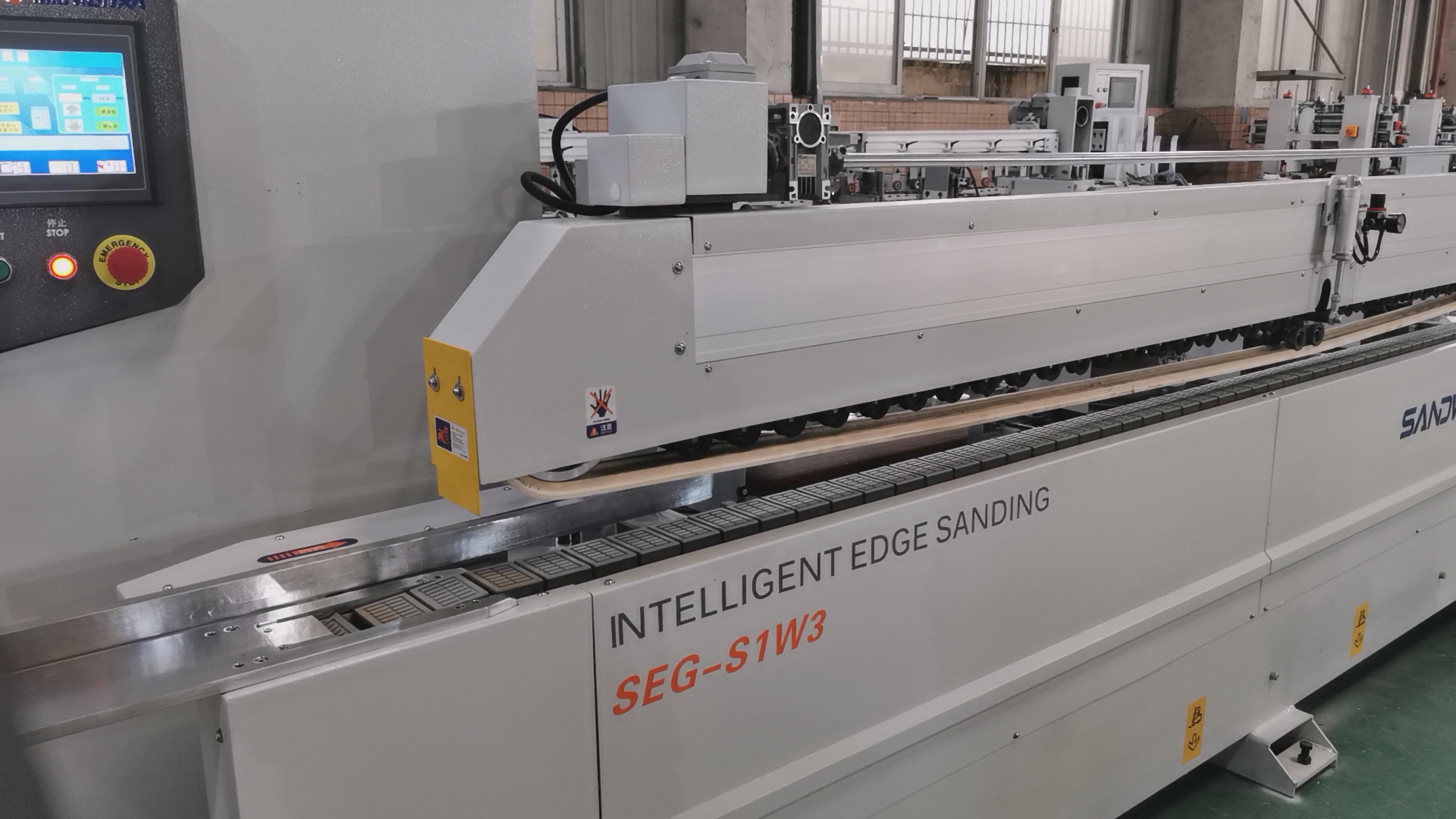

The wood sander machine adopts a 56mm seamless wide belt pressure beam, and the pressure device adopts spring load, which is reliable and does not damage the workpiece.

The track adopts chain conveyor and cylindrical guide rail guidance, with strong feeding capacity and stable reliability;

The advance and retreat of the sand frame pressure module are controlled by the program, without the need for adjustment, greatly improving the efficiency of use.

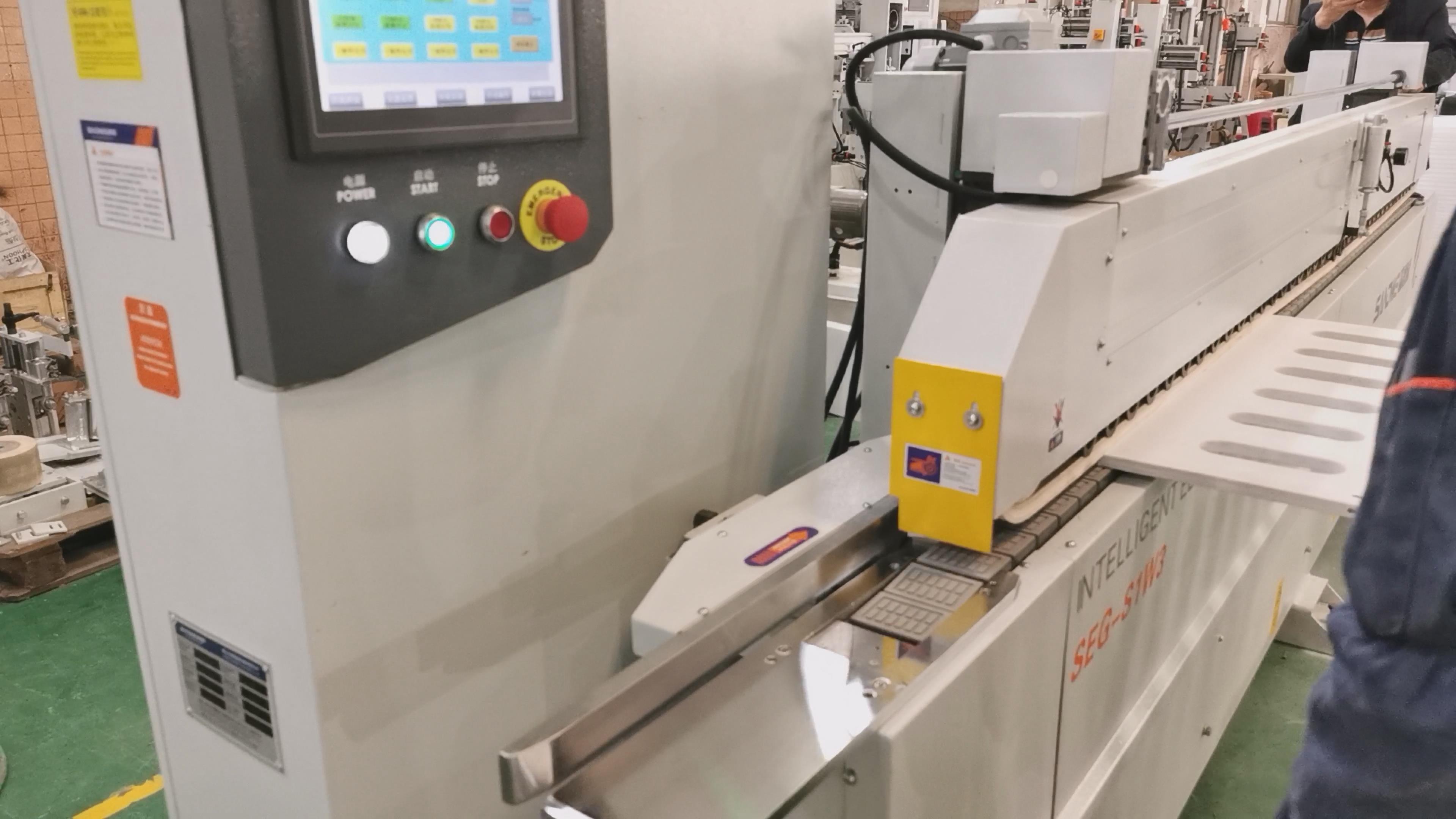

This wood edge sander adopts touch screen operation, PLC program control, and independent variable frequency speed regulation for each working group.

Technical parameters:

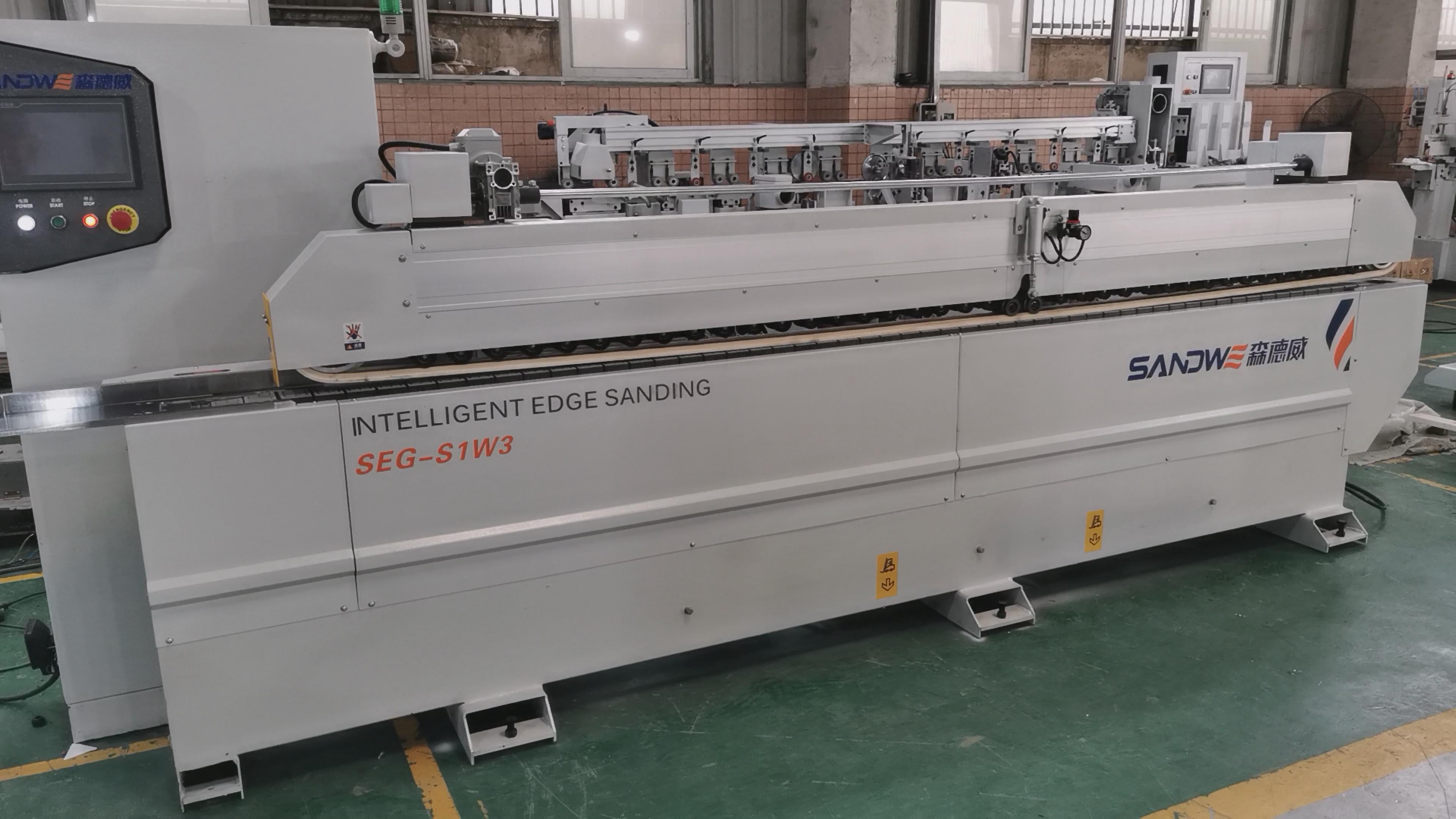

SEB-S1W3

Workpiece feeding width 100-1800mm

The minimum length of workpiece feeding is 200mm

Workpiece feeding thickness 5-65mm

Feeding speed 4.5-22m/min

1 feeding motor (pcs), 380V, 50Hz, 1.5Kw, 1430r/min

Sand frame and sand belt specifications: perimeter: 2160mm, maximum width: 80mm

Sand frame sand belt linear speed 8.15-13.58m/s (30Hz 50Hz)

Working pressure 0.6-0.8Mpa

Sand head sand belt specification perimeter: 840mm maximum width: 100mm
