1. Use triangular sand frame S1 to install 180 # sand belt coarse sand on the side and level the sand on the side.
2. Align the R-angle milling type (R1-R2) with a J1 milling cutter.
3. Use J2 milling cutter to lower the R-angle milling type (R1-R2).
4. Use a triangular sand frame S1 to install the 240 # sand belt with fine sand on the side and level the sand on the side.

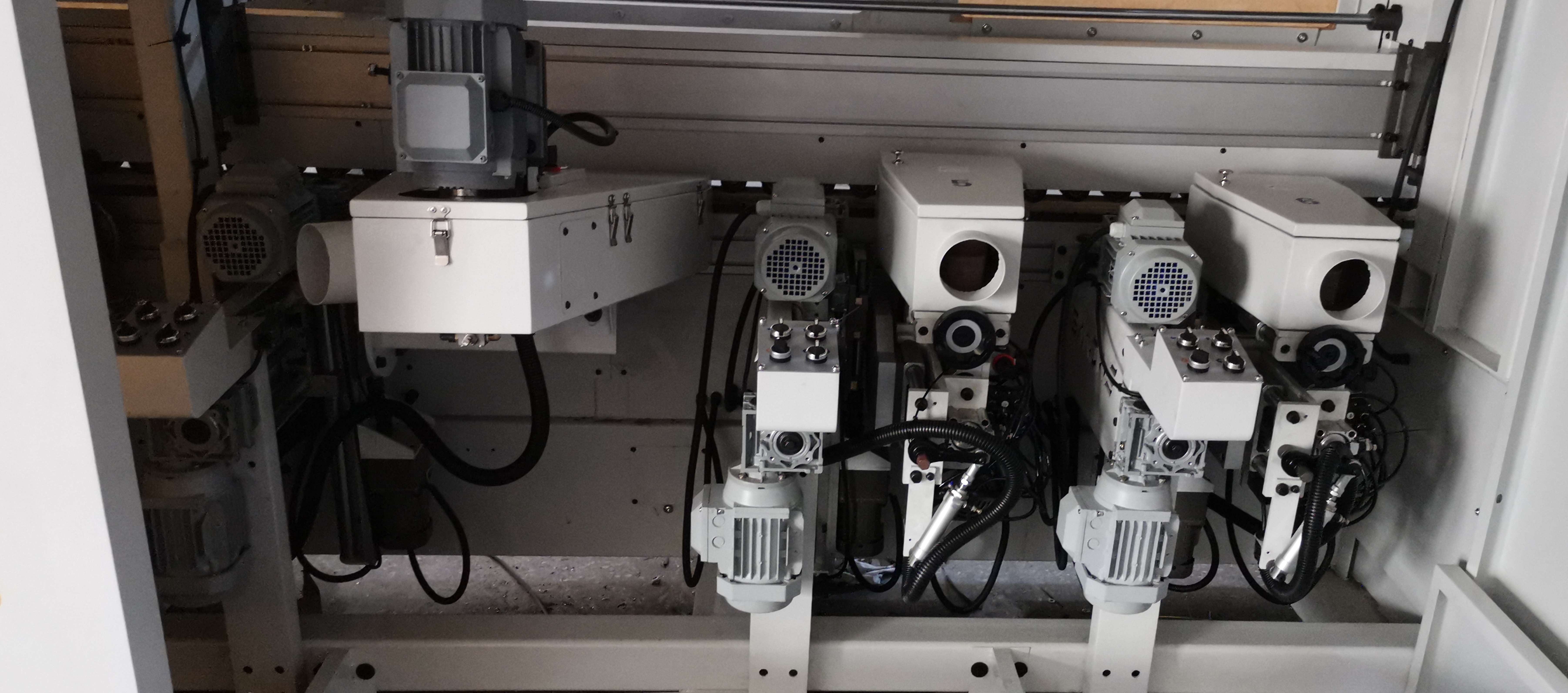

5. Equipped with automatic wear compensation sponge wheel sand head W1, install 320 # sand belt with fine sand and smooth side sand.
6. Equipped with automatic wear compensation polishing wheel sand head W2, for complete side polishing.
Mechanical characteristics:
The sanding frame can be adjusted from -45° to +90°, suitable for straight edge profiling sanding at a certain angle;
The sand frame with oscillation device, the sand head with feed compensation device, to ensure smooth and uniform processing surface;
The speed of the abrasive belt of this wood edge sander is adjusted by frequency conversion to suit the sanding of different wood products' edges and corners; (white blank, primer)
The sanding machine uses a 56mm seamless wide belt for pressing the beam, and the pressing device uses spring load to ensure reliable pressing and does not hurt workpiece.

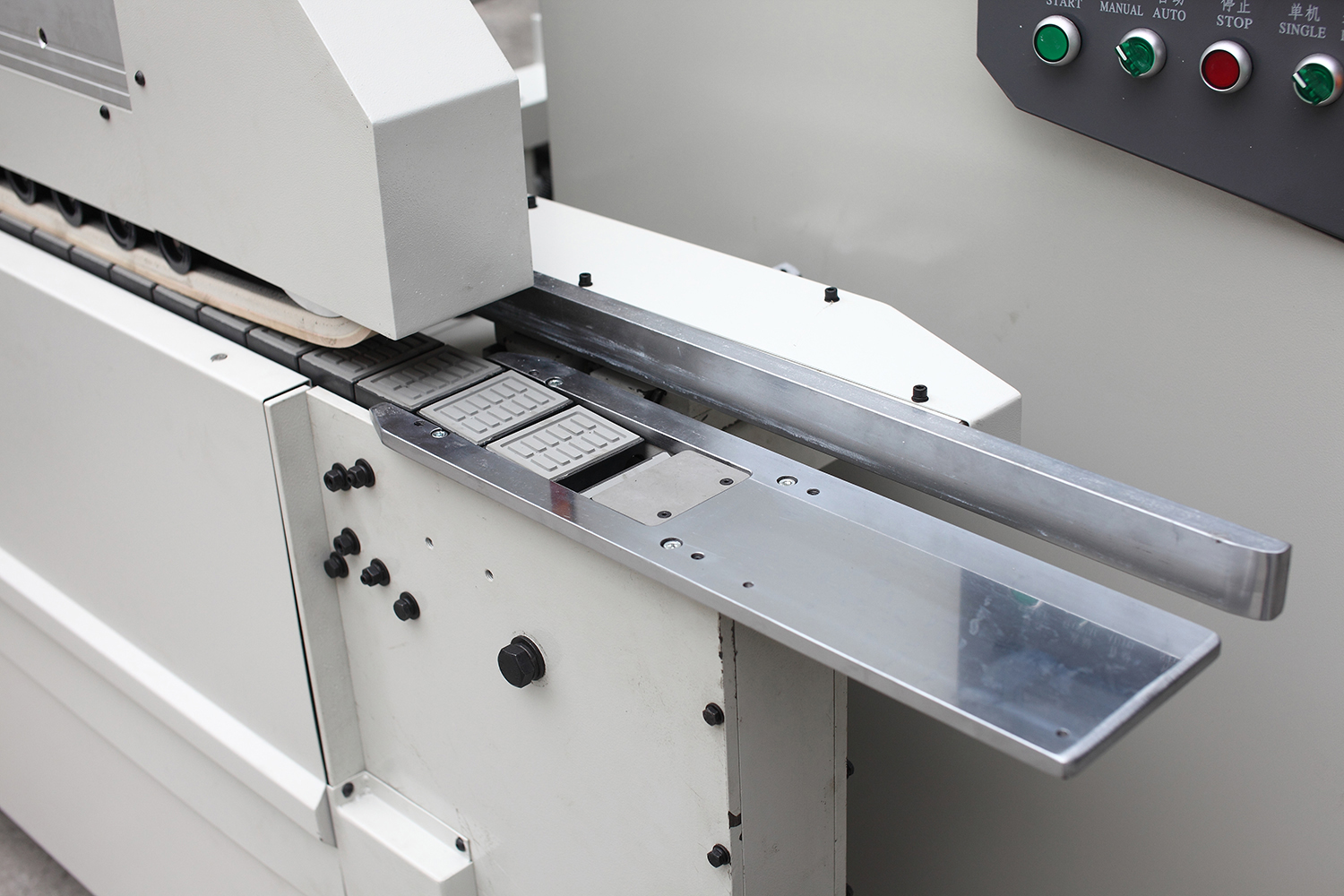

The caterpillar track adopts chain conveying, mechanical stepless speed change, and cylindrical guide rail guidance, with strong feeding capacity, stability and reliability;
The sand frame pressure module's advancement and retraction are controlled by the program, eliminating the need for adjustment, greatly improving efficiency.
This edge belt sander adopts touch screen operation and PLC program control, with each work group independently controlled by frequency conversion speed regulation and automatic adjustment of plate thickness.
Technical specification：
SEB-S2J2W2
Feed width 80-2400mm
The minimum length of feeding is 150mm
Feeding thickness 5-80mm
Feeding speed 3-30m/min
feeding motor (pcs), 380V, 50Hz, 2.2Kw, 1430r/min
Sand frame and sand belt specifications: perimeter: 2160mm, maximum width: 80mm
Sand frame sand belt linear speed 8.15-13.58m/s (30Hz 50Hz)
The sand frame can tilt from -45 ° to+90 °
2 precision knives, 0.75Kw/unit, 200Hz
Working pressure 0.6-0.8Mpa
Sand head sand belt specification perimeter: 840mm maximum width: 100mm
The sand head can tilt at an angle of 0 ° -+90 °
Total motor power 16.025 KW
Working voltage 380V 50Hz
External dimensions 5600mm X 1300mm X 1500mm
Net weight 3000kg
