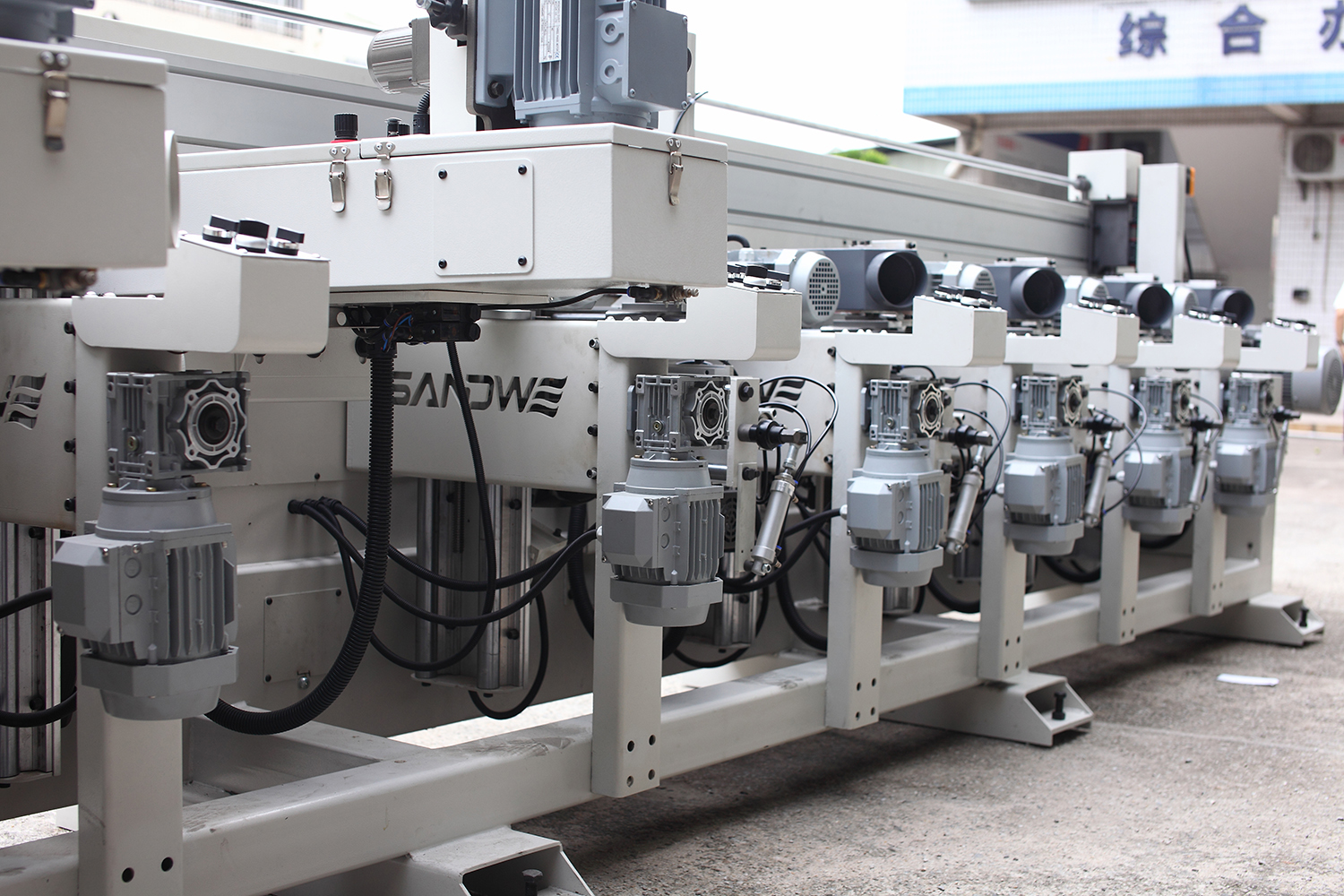

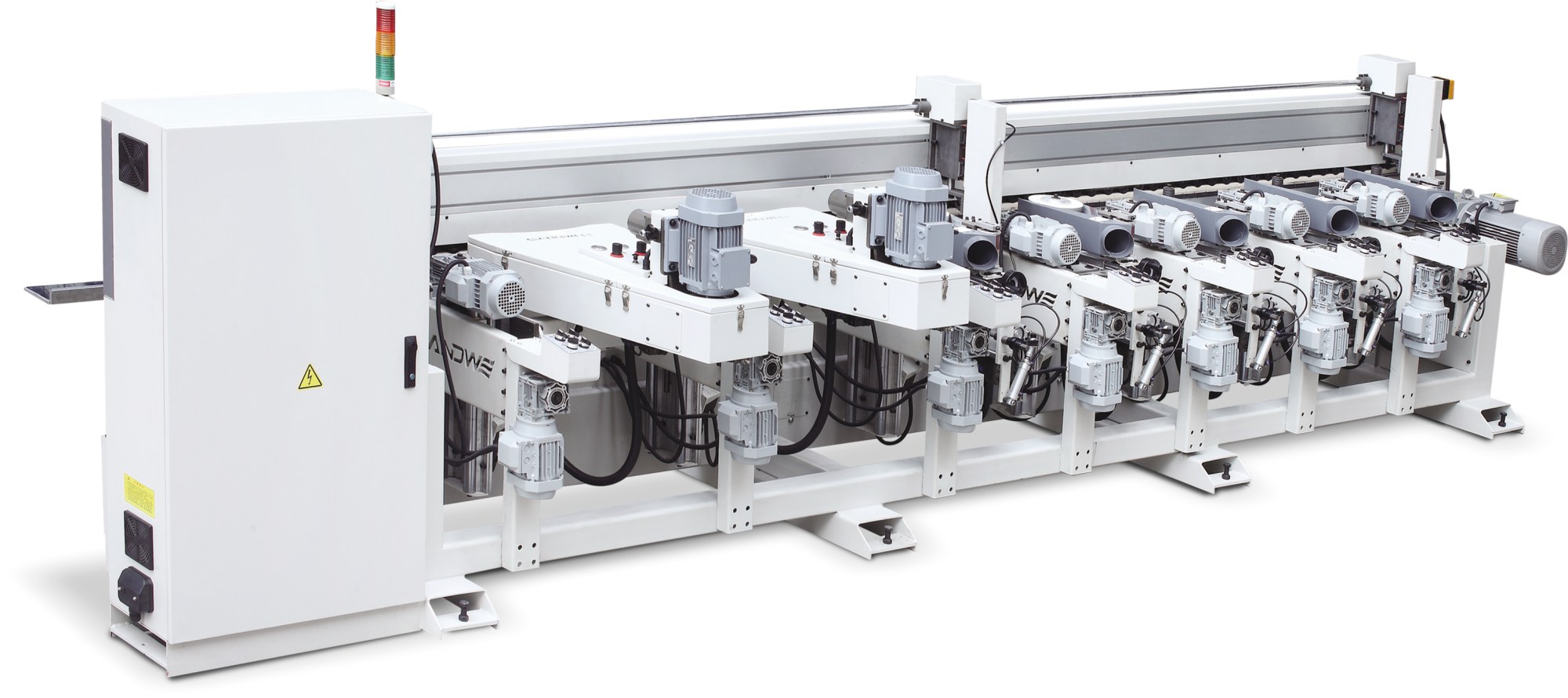

1. This model of machine is equipped with 2 sand frame units and 5 sand head units with automatic wear compensation.
2. The sand frame and sand head can be equipped with various sizes of sand belts and different sanding materials such as flying wing wheels, nylon wheels, etc., to complete the sanding of different materials such as blank and paint.

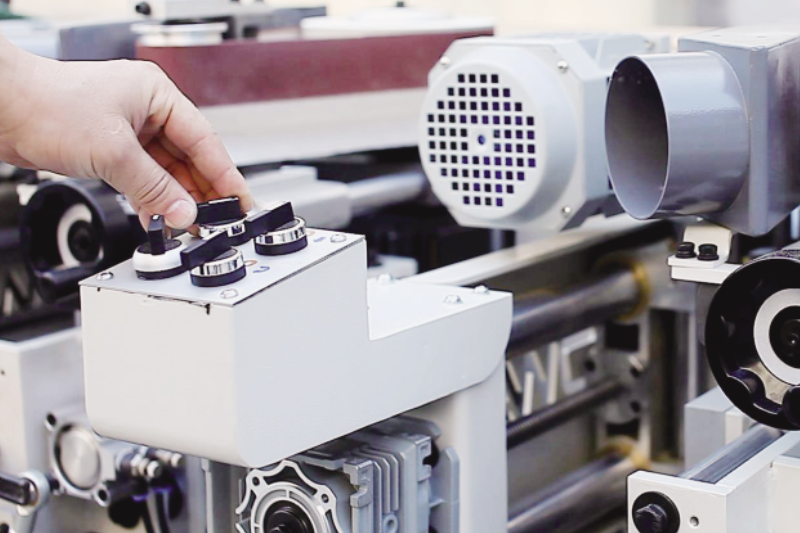

3. The adjustment of the sand frame and sand head automatic advance and retreat control system, as well as the electric adjustment of advance and retreat and lifting.
Component description:
The sand frame can be adjusted from 0 ° to 90 °, suitable for edge straight line imitation sanding at a certain angle;
The sand frame is equipped with an oscillation device, and the sand head is equipped with a feed compensation device to ensure a smooth and uniform processing surface;
The sanding belt speed of this edge belt sander adopts variable frequency speed regulation to adapt to the sanding of different wooden products at the edges and corners; (White embryo, primer)

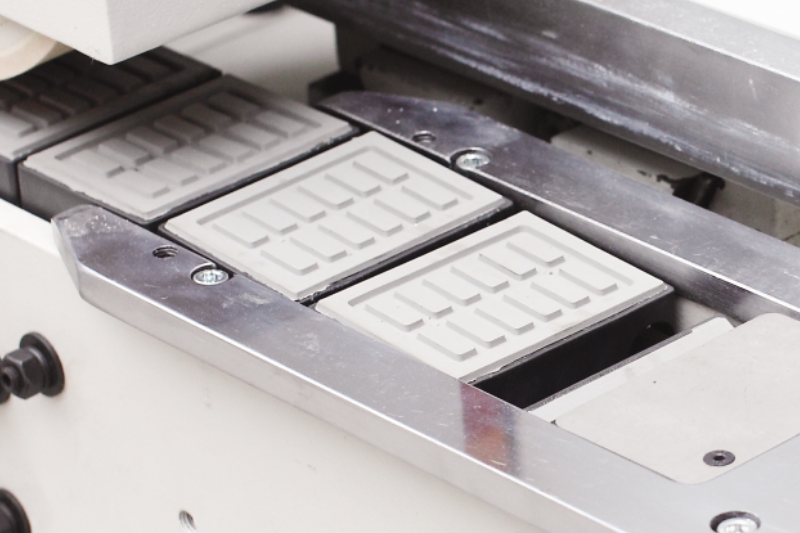

The wood edge sander adopts a 56mm seamless wide belt pressure beam, and the pressure device adopts spring load, which is reliable and does not damage the workpiece.

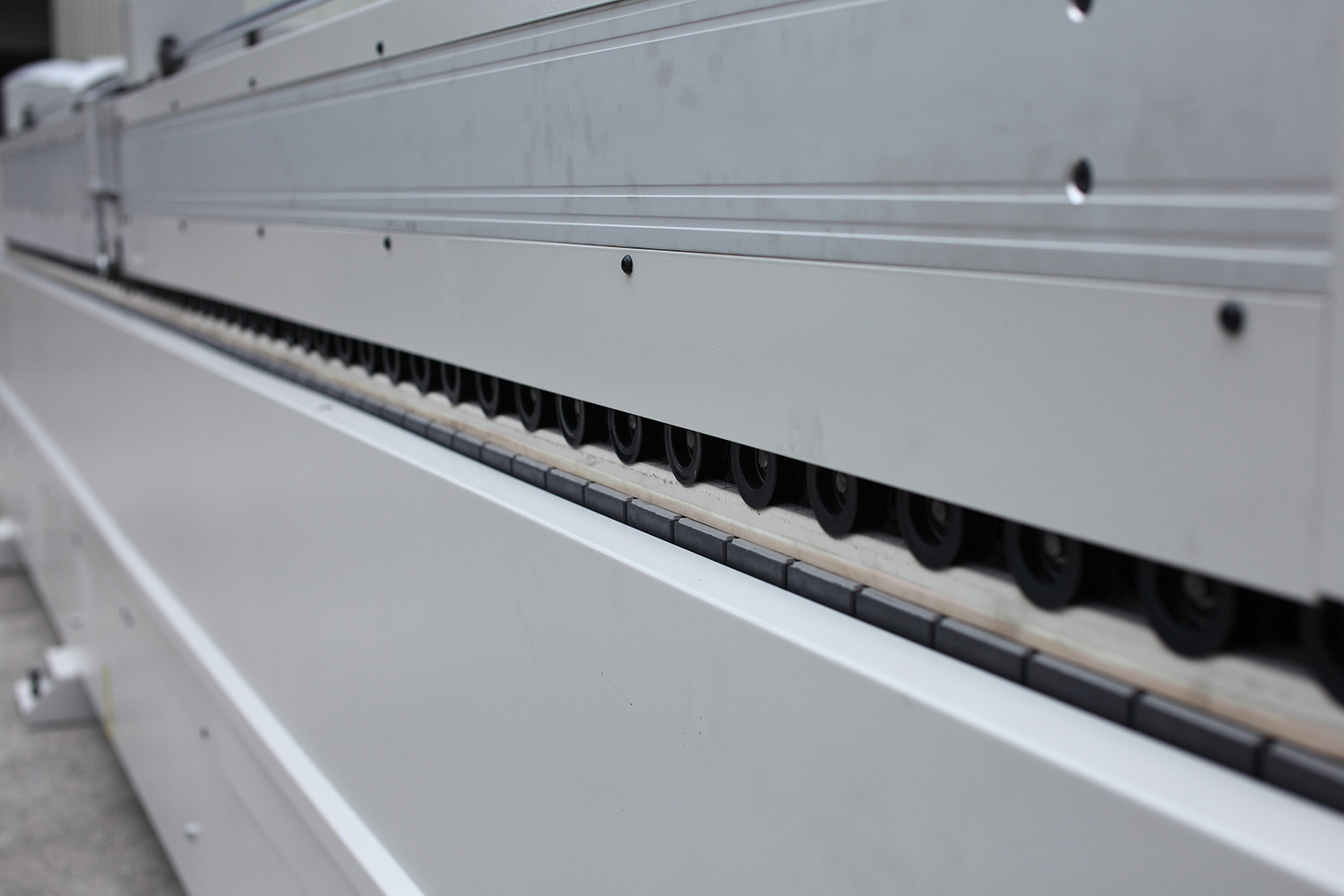

The track adopts chain conveyor and cylindrical guide rail guidance, with strong feeding capacity and stable reliability;
The advance and retreat of the sand frame pressure module are controlled by the program, without the need for adjustment, greatly improving the efficiency of use.
This wood sander machine adopts touch screen operation, PLC program control, and independent variable frequency speed regulation for each working group.
Technical parameters:
SEB-S2W5
Workpiece feeding width 100-1800mm
The minimum length of workpiece feeding is 200mm
Workpiece feeding thickness 5-65
Feeding speed 4.5-22m/min
Sand frame and sand belt specifications: perimeter: 2160mm, maximum width: 80mm
Sand frame sand belt linear speed 8.15-13.58m/s (30Hz 50Hz)
The sand frame can tilt from 0 ° to+90 °
Pressure module ejection pressure 0.2-0.3Mps

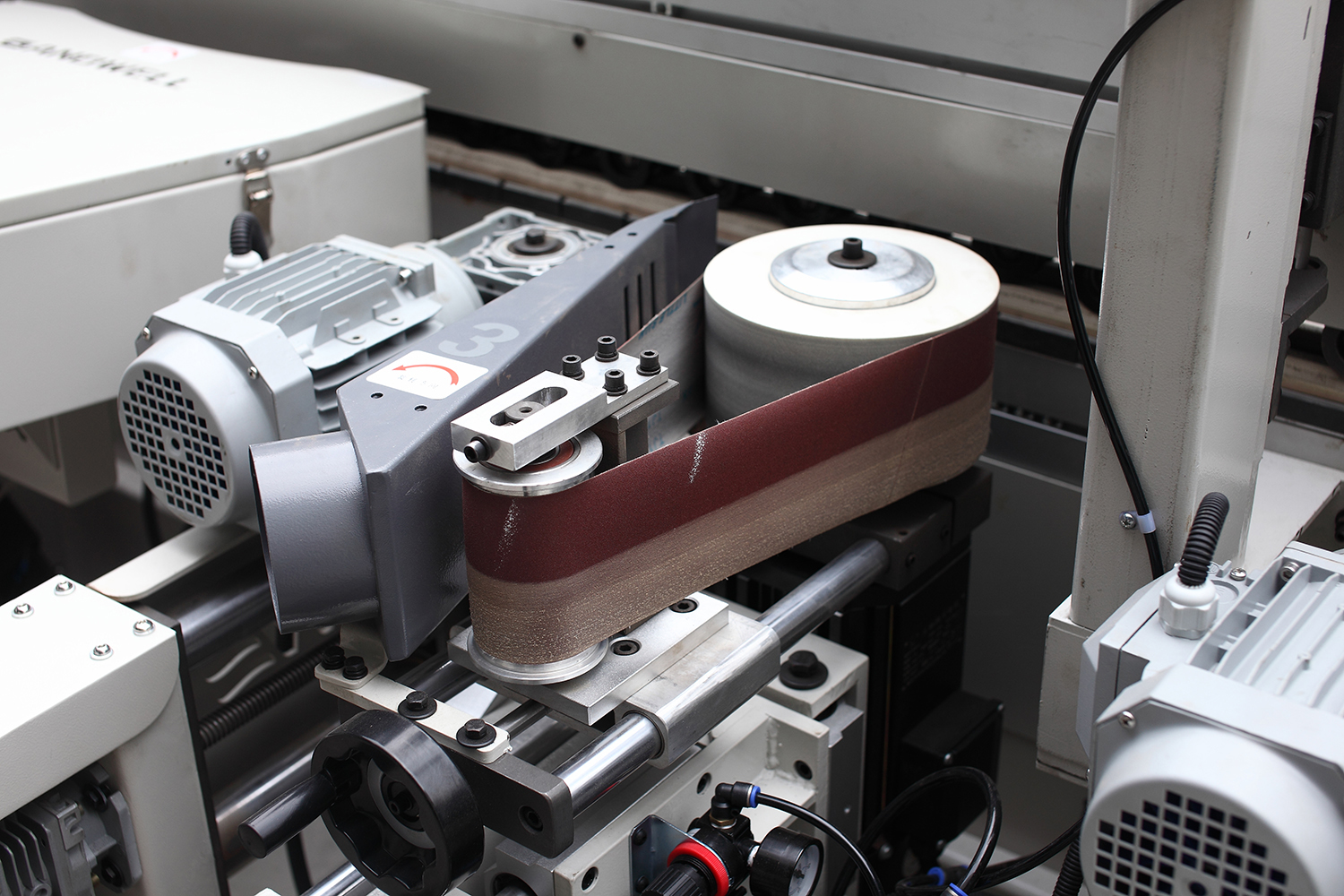

Sand head sand belt specification perimeter: 840mm maximum width: 100mm
The sand head can tilt at an angle of 0 ° -+90 °
The total power of the motor is 13.44W
Working voltage 380V 50Hz
External dimensions 5600mm X 1300mm X 1500mm
Net weight 2800kg
