Automatic edge sander for edges in wood

Get Latest Price

Payment Type:

L/C,T/T

Incoterm:

FOB,EXW

Min. Order:

1 Set/Sets

Transportation:

Ocean,Land

Contact Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: SEB-K2S2J2W2

Brand: SANDWELL

Place Of Origin: China

Status: New

Machine Type: Wood Sanding Machine

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Bearing, Gearbox, Motor

Warranty Period: 1 Year

Core Selling Point: Easy To Operate, High Productivity, Flexible Manufacturing, Multifunctional, Energy Saving, High Safety Level, High-Accuracy, High Rigidity, Long Service Life, Patented Product

Showroom Location (in Which Countries Are There Sample Rooms Overseas): Viet Nam, Russia, Malaysia, Australia, Indonesia

Out-of-warranty Service: Video Technical Support, Online Support, Field Maintenance And Repair Service

Applicable Industry: Farms, Construction Works, Energy &Amp; Mining, Advertising Company

Workpiece Feeding Width: 80-2400mm

The Minimum Length Of Workpiece Feeding: 150mm

Workpiece Feeding Thickness: 5-80mm

Feeding Speed: 3-30m/min

Feeding Motor: 1 feeding motor (pcs), 380V, 50Hz, 2.2Kw, 1430r/min

Profiling Milling Machines: Two profiling milling machines, 5.5Kw/machine, 200Hz, 12000r/min

Sand Frame And Sand Belt Specifications: perimeter: 2160mm, maximum width: 80mm

Sand Frame Sand Belt Linear Speed: 8.15-13.58m/s (30Hz 50Hz)

Working Pressure: 0.6-0.8Mpa

Sand Head Sand Belt Specification: perimeter: 840mm maximum width: 100mm

Supply Ability & Additional Information

Transportation: Ocean,Land

Payment Type: L/C,T/T

Incoterm: FOB,EXW

Packaging & Delivery

Selling Units:: Set/Sets

Product description:

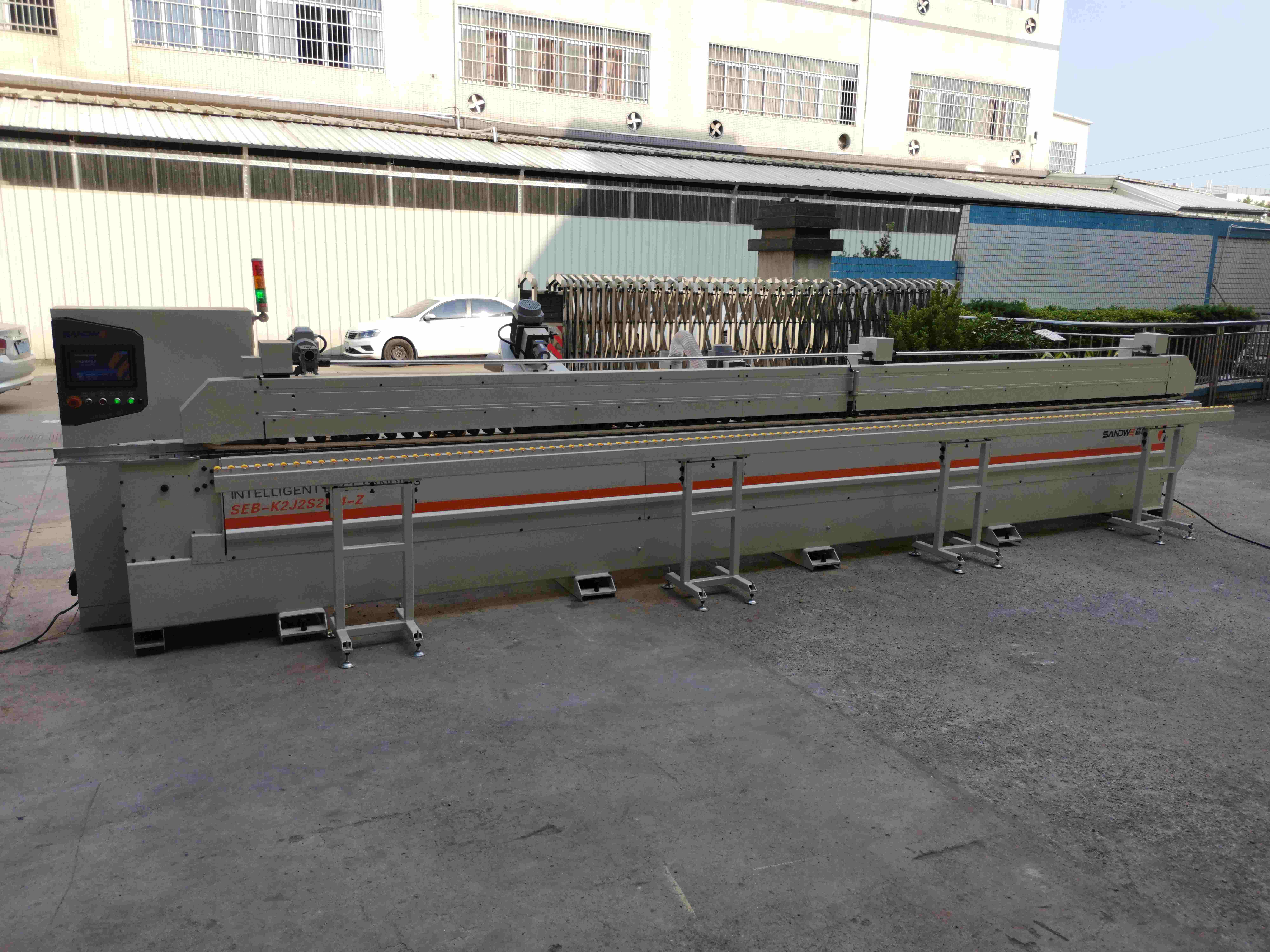

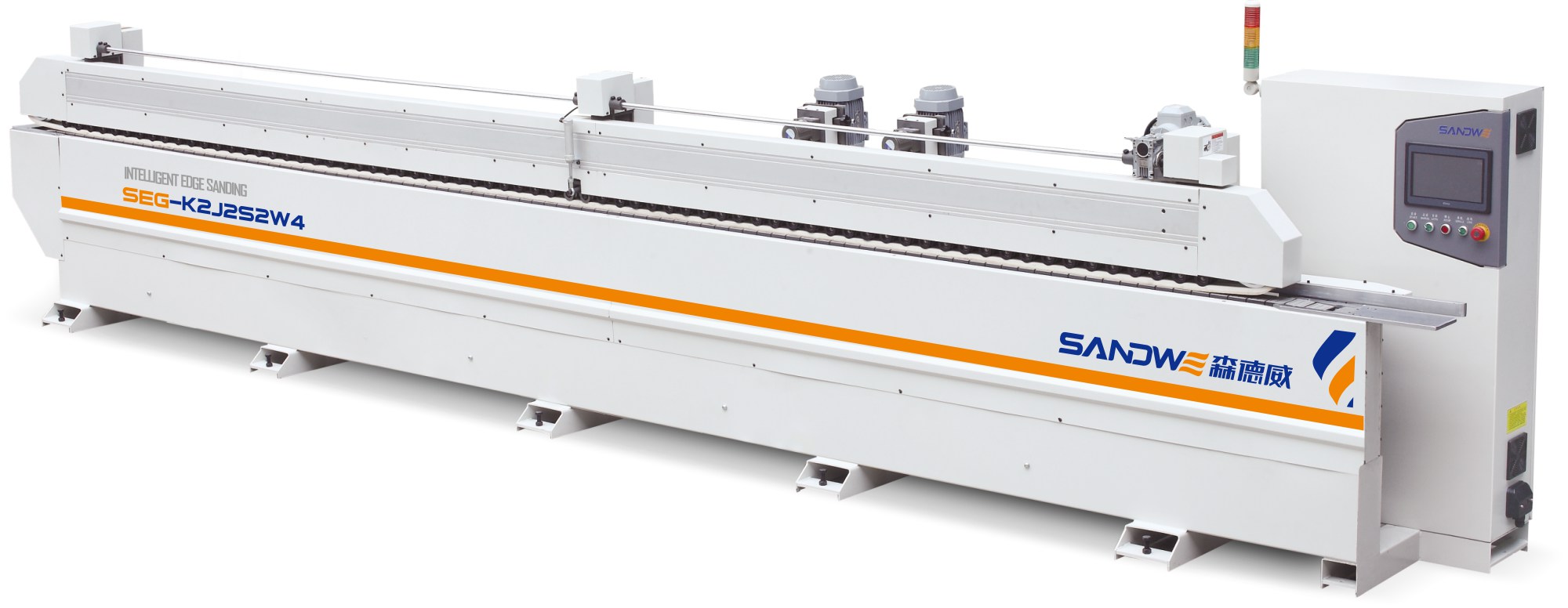

Linear Edge Milling and Sanding Machine SEB-K2S2J2W2

This wood edge sander is suitable for grooving, milling, chamfering and sanding of linear profiled edges of FDM materials and solid wood and other base material workpieces; milling and sanding of white blanks and white blanks on the edges of various furniture, tables, chairs, tea tables, cabinets, doors, etc. with strong pertinence and easy operation.

Edge Sander Wood Machine

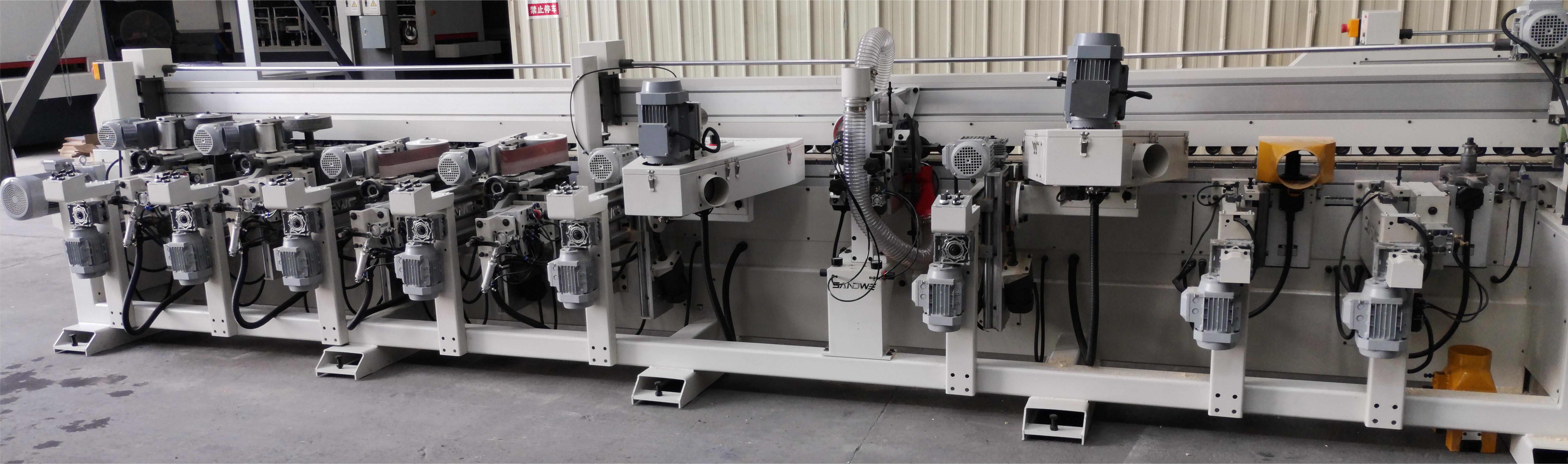

1. The first and second milling cutter motors are high-speed motors (with a maximum speed of 12000 r/min). The first milling cutter has a jumping function to prevent tearing of the solid wood board;

2. The third is the sand frame unit, which is equipped with 180 # sand belt coarse sand on the side, and the sand on the side is leveled.

3. Align the R-angle milling type (R1-R2) with a J1 milling cutter.

4. Use J2 milling cutter to lower the R-angle milling type (R1-R2).

5. Six sand frame units, suitable for flat sand and large arc sanding

6. The seventh to tenth are four sand head units with automatic wear compensation, which can be equipped with sponge wheel sand heads or various types of grinding wheel pairs for side sanding and polishing.

The sand frame can be adjusted from 0 ° to+90 °, suitable for edge straight line imitation sanding at a certain angle;

The sand frame is equipped with an oscillation device, and the sand head is equipped with a feed compensation device to ensure a smooth and uniform processing surface;

The sanding belt speed of this Edge rounding sander machine adopts variable frequency speed regulation to adapt to the sanding of different wooden products at the edges and corners; (White embryo, primer)

The wood sander machine adopts a 56mm seamless wide belt pressure beam, and the pressure device adopts spring load, which is reliable and does not damage the workpiece.

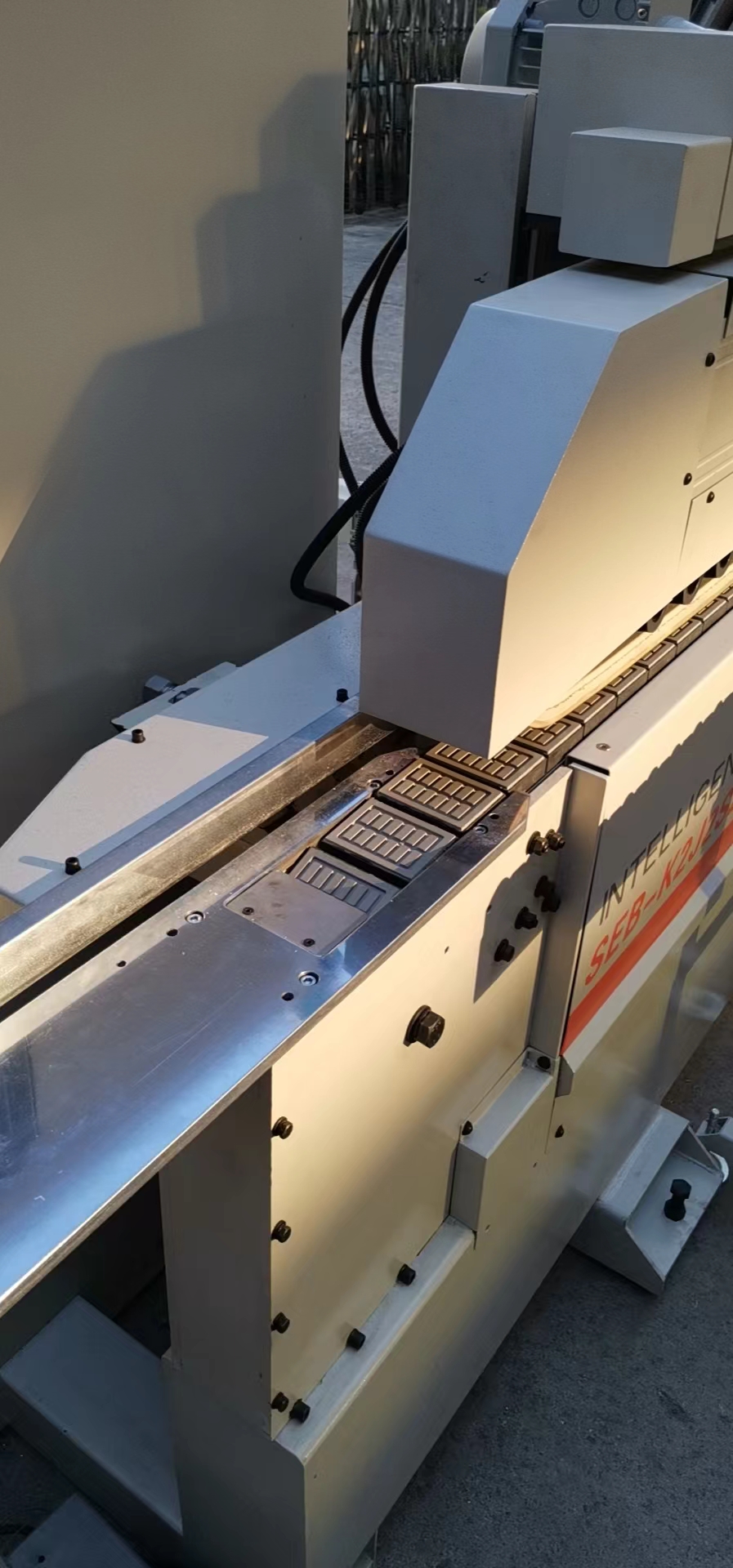

The track adopts chain conveyor and cylindrical guide rail guidance, with strong feeding capacity and stable reliability;

The advance and retreat of the sand frame pressure module are controlled by the program, without the need for adjustment, greatly improving the efficiency of use.

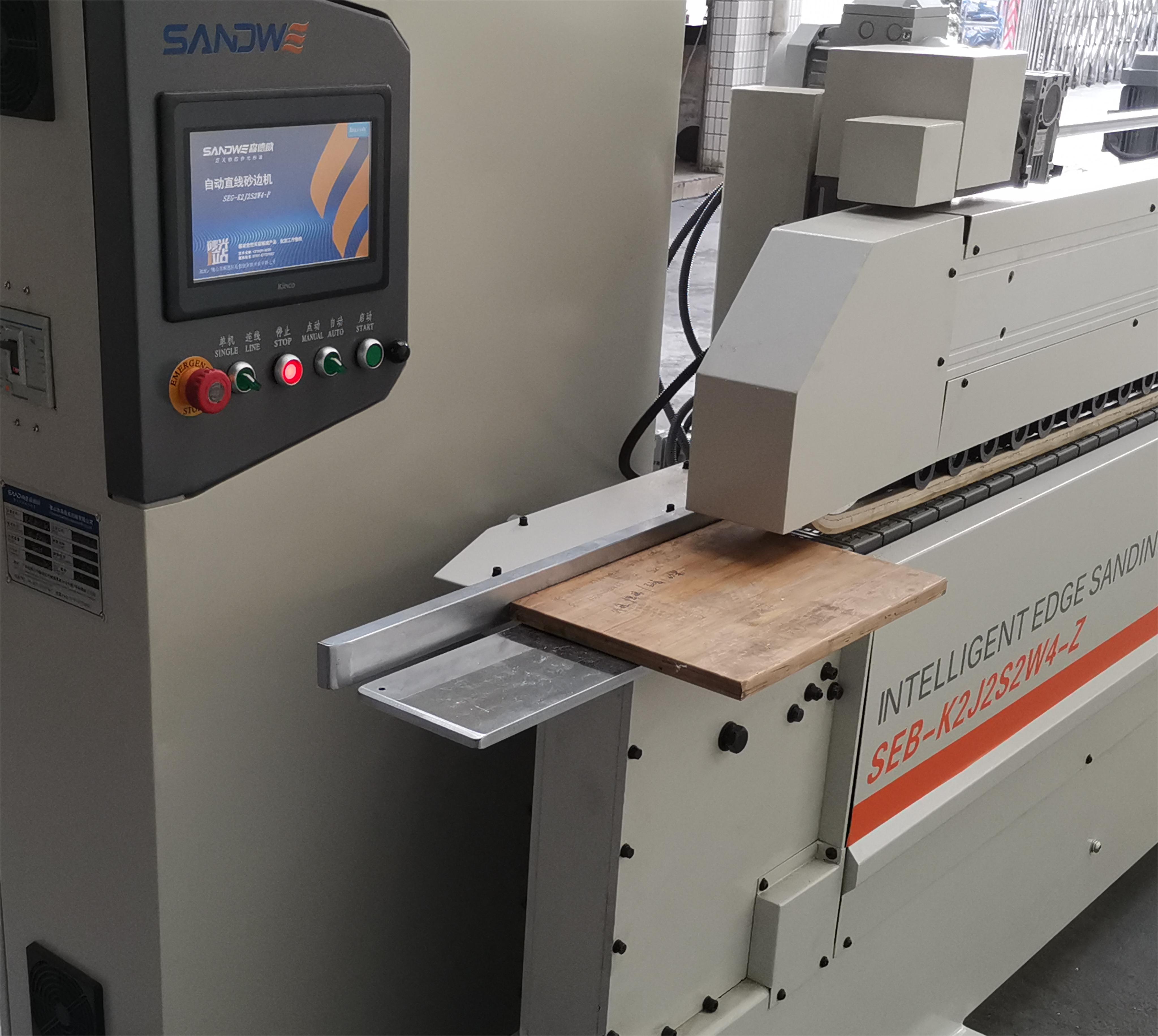

This edge belt sander adopts touch screen operation, PLC program control, and independent variable frequency speed regulation for each working group.
