Automatic Edge Sanding Machine

Get Latest Price

Payment Type:

L/C,T/T

Incoterm:

FOB,EXW

Min. Order:

1 Set/Sets

Transportation:

Ocean,Land

Contact Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: SEB-S1J2W3

Brand: SANDWELL

Place Of Origin: China

Status: New

Machine Type: Wood Sanding Machine

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Bearing, Gearbox, Motor

Warranty Period: 1 Year

Core Selling Point: Easy To Operate, High Productivity, Flexible Manufacturing, Multifunctional, Energy Saving, High Safety Level, High-Accuracy, High Rigidity, Long Service Life, Patented Product

Showroom Location (in Which Countries Are There Sample Rooms Overseas): Viet Nam, Russia, Malaysia, Australia, Indonesia

Out-of-warranty Service: Video Technical Support, Online Support, Field Maintenance And Repair Service

Applicable Industry: Farms, Construction Works, Energy &Amp; Mining, Advertising Company

Workpiece Feeding Width: 100-1800mm

The Minimum Length Of Workpiece Feeding: 200mm

Workpiece Feeding Thickness: 5-65mm

Feeding Speed: 4.5-22m/min

Feeding Motor: 1 feeding motor (pcs), 380V, 50Hz, 1.5Kw, 1430r/min

Precision Knives: 2 precision knives, 0.75Kw/unit, 200Hz

Sand Frame And Sand Belt Specifications: perimeter: 2160mm, maximum width: 80mm

Sand Frame Sand Belt Linear Speed: 8.15-13.58m/s (30Hz 50Hz)

Working Pressure: 0.6-0.8Mpa

Sand Head Sand Belt Specification: perimeter: 840mm maximum width: 100mm

Supply Ability & Additional Information

Transportation: Ocean,Land

Payment Type: L/C,T/T

Incoterm: FOB,EXW

Packaging & Delivery

Selling Units:: Set/Sets

Product description:

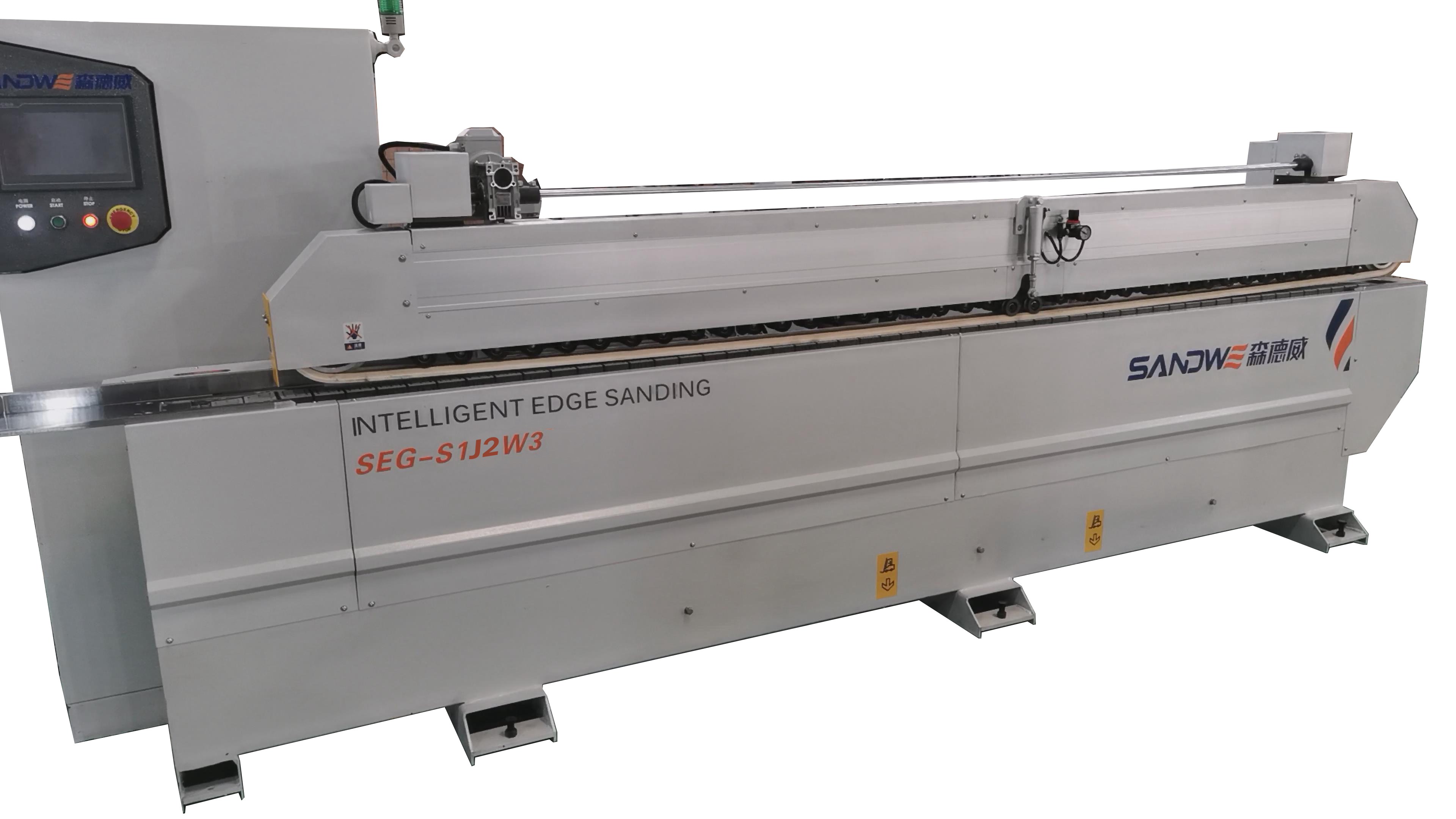

Linear milling and sanding machine SEB-S1J2W3

This Edge rounding sander machine is suitable for straight irregular edge milling, chamfering, and sanding; Specially designed for various types of furniture, tables and chairs, coffee tables, cabinets, doors, and other board edge white milling and white paint sanding; Strong targeting, simple and easy to operate, different abrasive belts can be configured according to different process requirements.

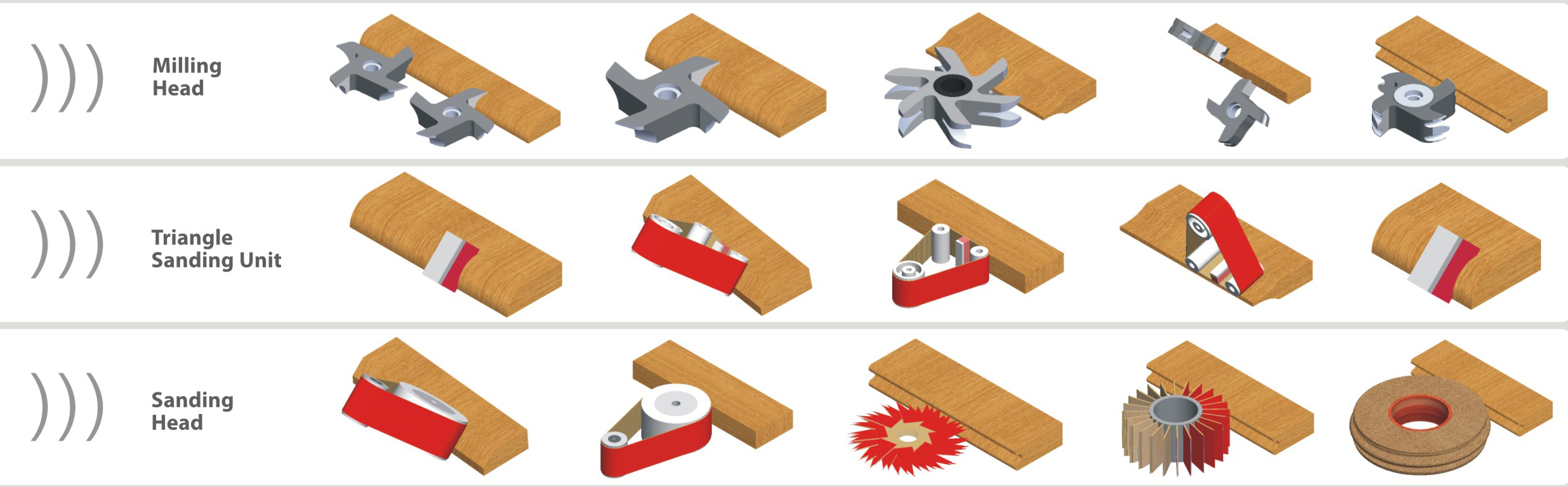

1. Use the triangular sand frame S1 to load the coarse sand on the side of the sand belt and level the sand on the side.

2. Align the R-angle milling type (R2-R3) with a J1 milling cutter.

3. Use J2 milling cutter to lower the R-angle milling type (R2-R3).

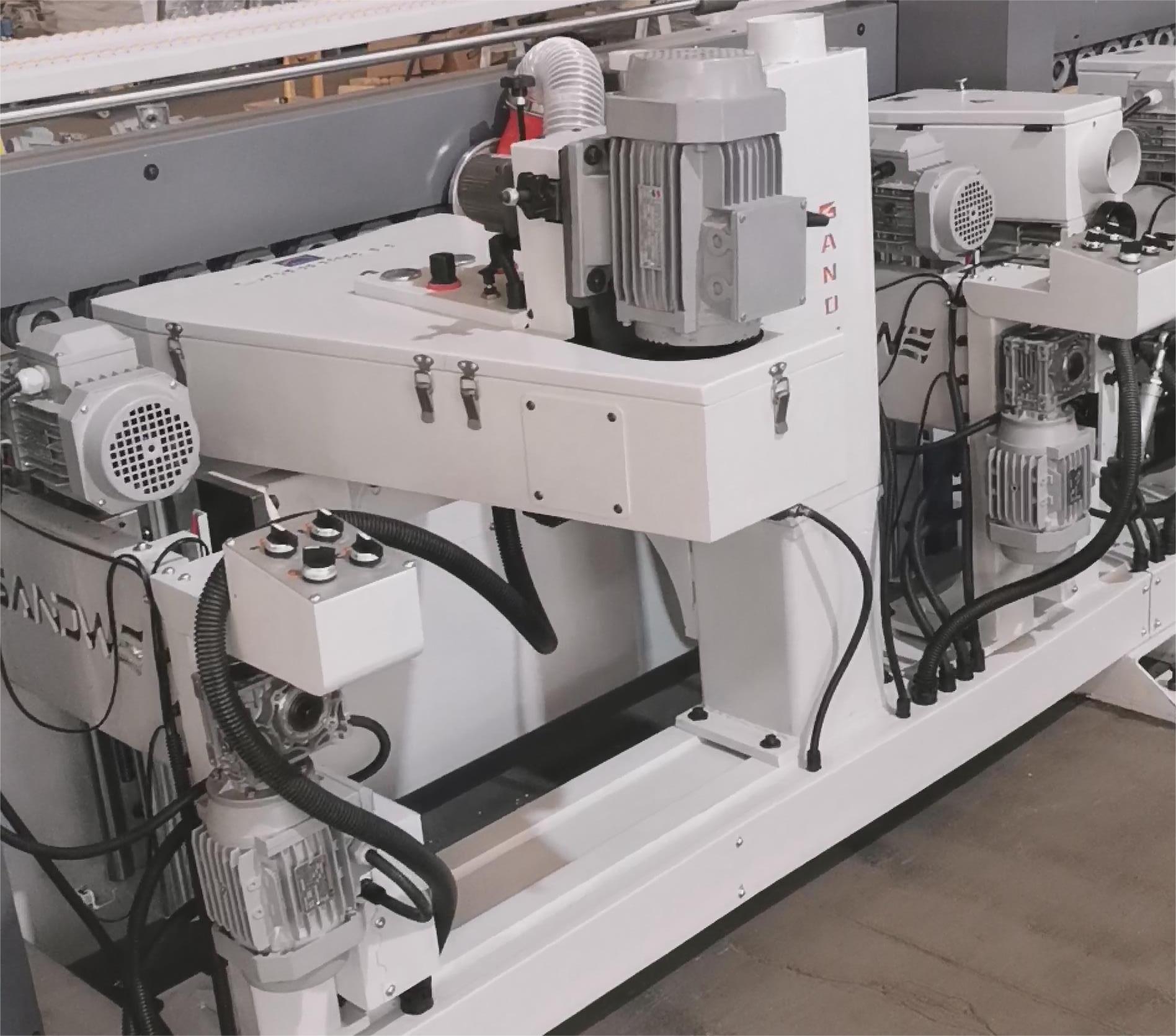

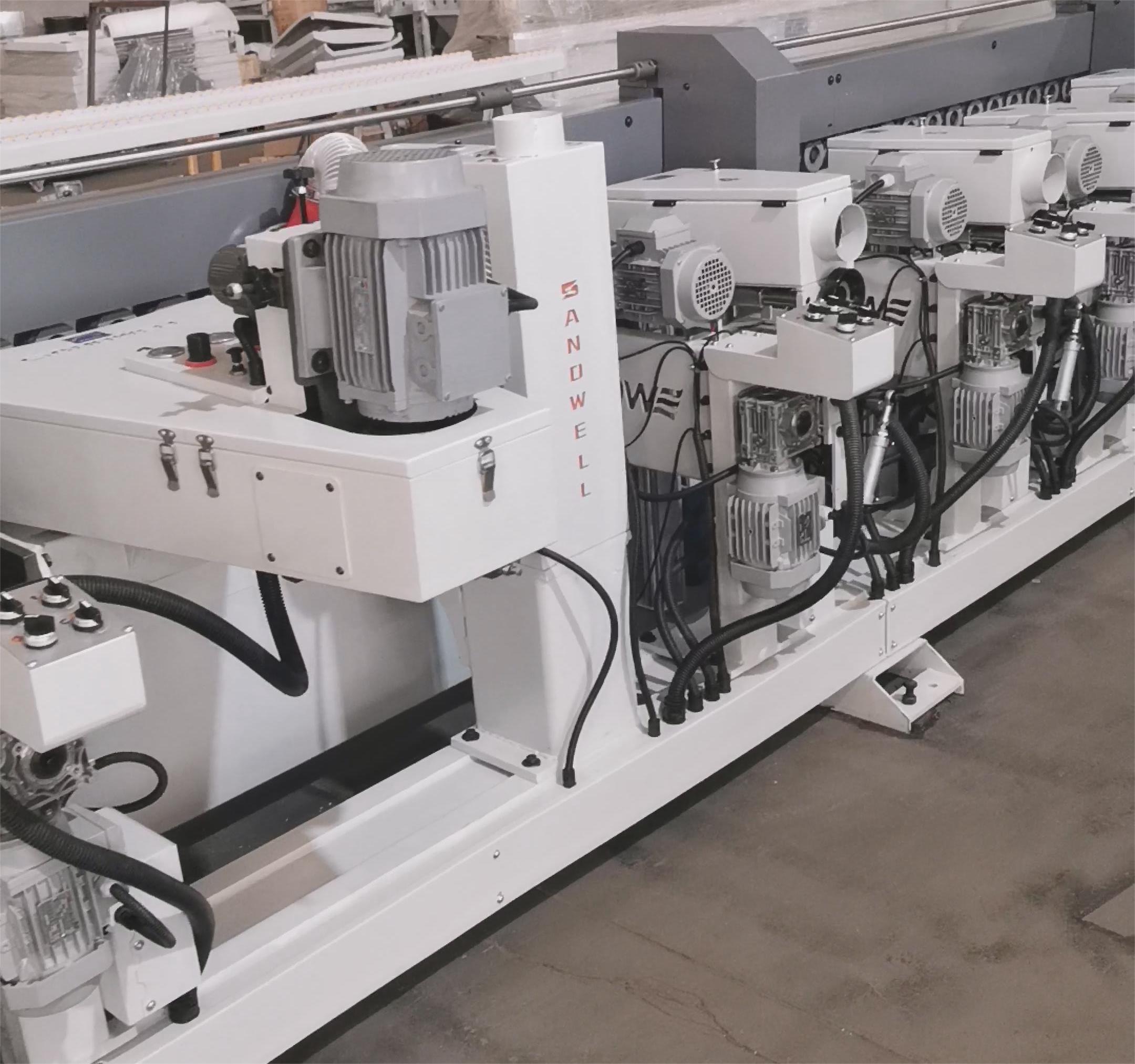

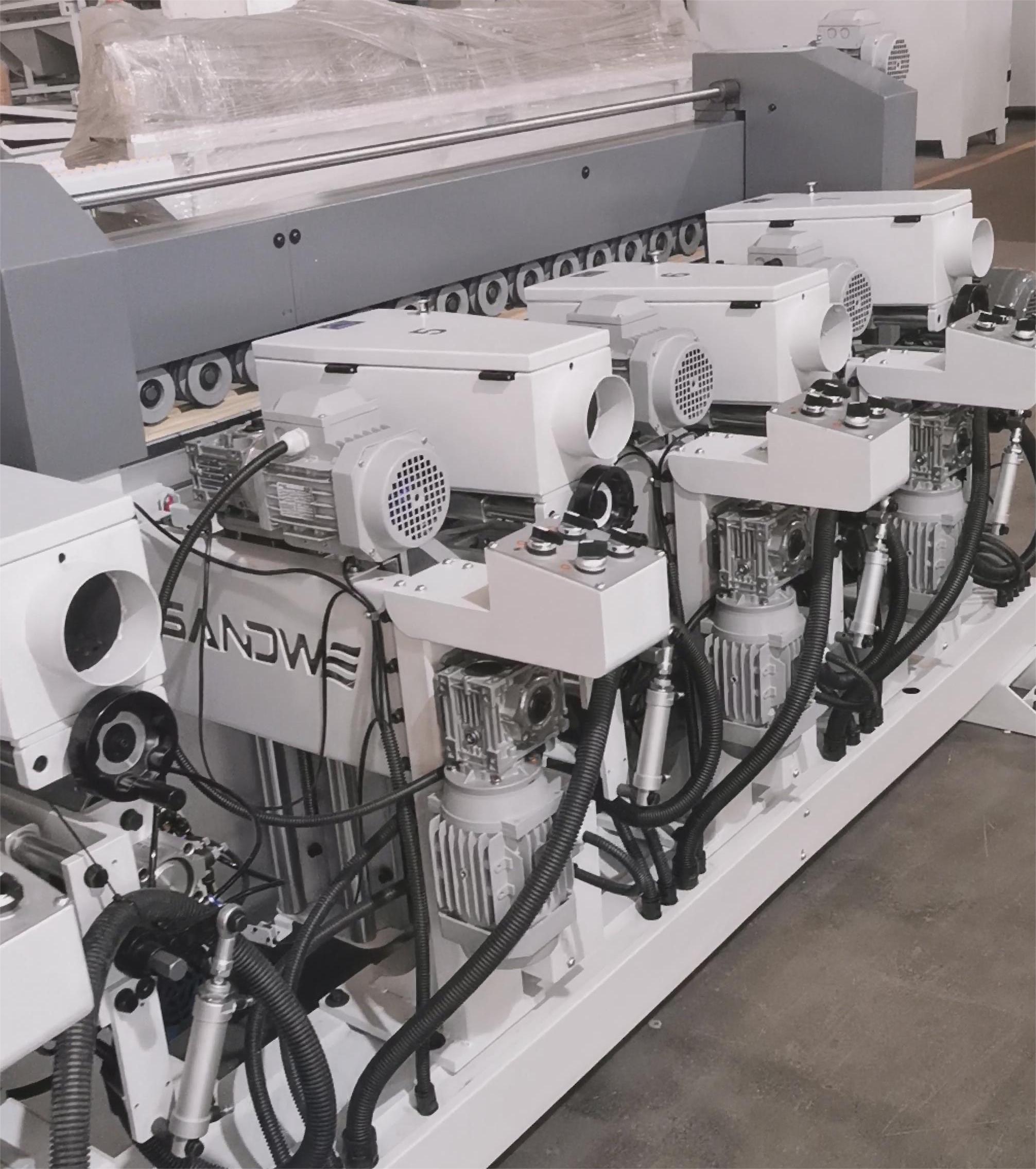

4. Sponge wheel sand heads W1, W2, and W3 can be combined with different abrasives to achieve flat edges, corners, and some shapes of coarse and fine sand.

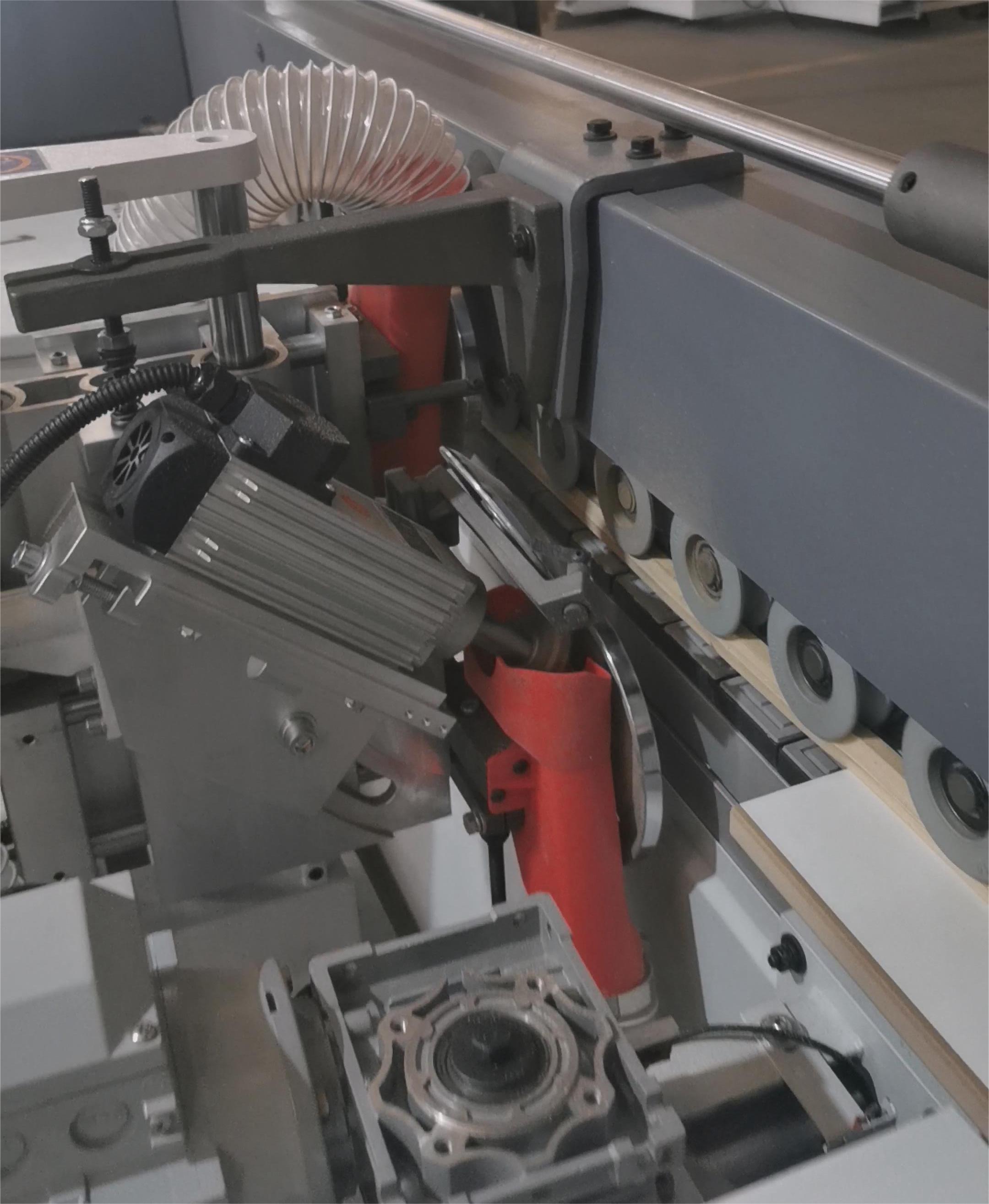

The sand frame can be adjusted from 0 ° to+90 °, suitable for edge straight line imitation sanding at a certain angle;

The sand frame is equipped with an oscillation device, and the sand head is equipped with a feed compensation device to ensure a smooth and uniform processing surface;
The sanding belt speed of this wood edge sander adopts variable frequency speed regulation to adapt to the sanding of different wooden products at the edges and corners; (White embryo, primer)
The edge belt sander adopts a 56mm seamless wide belt pressure beam, and the pressure device adopts spring load, which is reliable and does not damage the workpiece.

The track adopts chain conveyor and cylindrical guide rail guidance, with strong feeding capacity and stable reliability;

The advance and retreat of the sand frame pressure module are controlled by the program, without the need for adjustment, greatly improving the efficiency of use.

This wood sander machine adopts touch screen operation, PLC program control, and independent variable frequency speed regulation for each working group.
